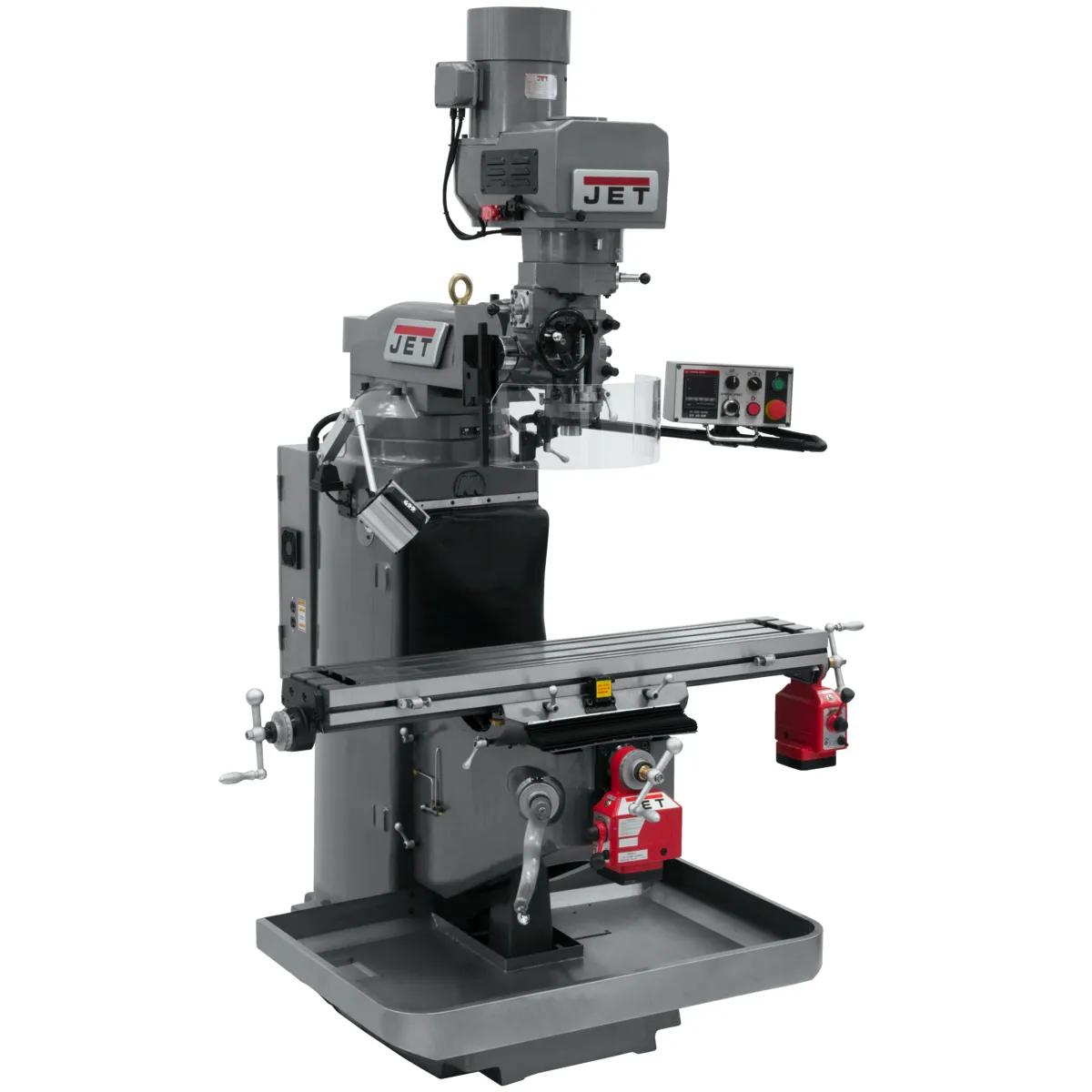

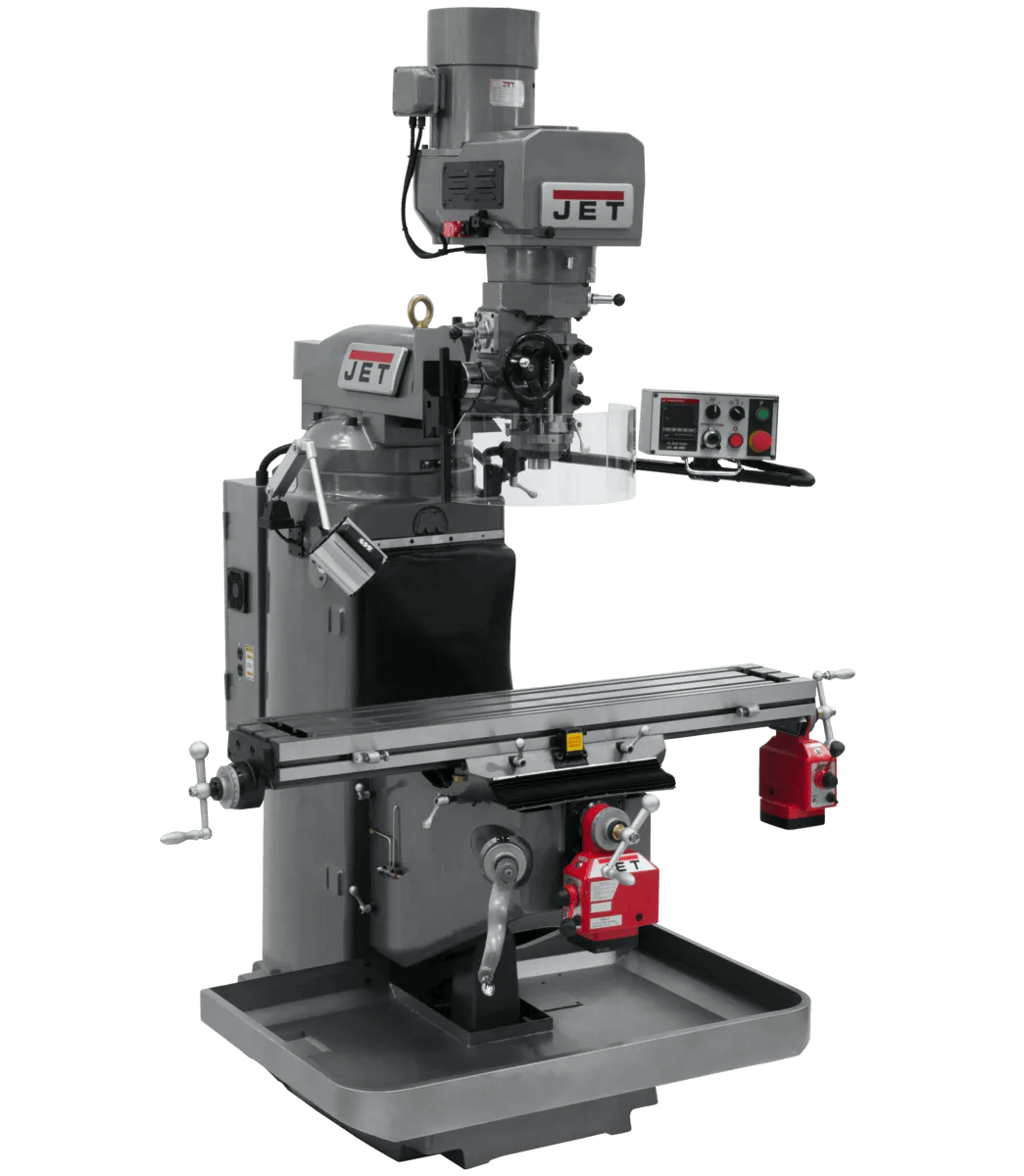

9" x 49" Mill w/ X-Axis, Y-Axis Powerfeeds, 3HP, 230/460V 3PH(JTM-949EVS/230)

Stock Number: JT9-690503

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the milling that turns programs into parts. Designed for machinists who measure success in tenths, the JTM-949EVS/230 stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Continuous-duty 3 HP induction drive — running cooler under sustained load than equivalents.
  • Generous 9 in. x 49 in. table surface — expanding the workholding envelope without sacrificing rigidity across tool-room work.
  • R-8 spindle taper provides the standard end-mill library for the tooling library every production operator already maintains.
  • Continuous-duty 5-inch spindle travel — delivering vertical reach production work actually requires across tool-room machining.
  • Operating range of 60 - 4,500 RPM covers the cuts for the cutting envelope production cuts demand.
  • Certified Meehanite reference surfaces resist wear and deflection for stability where commercial-grade iron warps.

Specifications

  • SKU
    JT9-690503
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    65-3/4 x 63 x 85-3/4 in.
  • Collet Size
    1/8 - 7/8 in.
  • Column Width
    11-3/8 in.
  • Digital Readout
    No
  • Distance Spindle to Column (Max.)
    18-1/8 in.
  • Distance Spindle to Column (Min.)
    5.2 in.
  • Head Movement
    90 Deg. (L&R), 45 Deg. (F&B)
  • Inverter Type
    Delta, B
  • Maximum Distance Spindle To Table
    20-3/4 in.
  • Motor Amps
    8 A
  • Motor Speed
    1720 RPM
  • Noise Level Db at 3Ft
    72 dB
  • Number of Spindle Speeds
    60-500 / 500-4500 RPM
  • Old Material Number
    690503
  • Power Feed
    X-Axis/Y-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,420
  • SAP Net weight
    2,420
  • Saddle Width
    20 in.
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    EVS
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Longitudal Travel With Powerfeed
    30-3/4 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    15-3/4 in.
  • Travel Of Ram
    8-1/8 in.
  • UPC
    731325451559
  • Warranty
    Two Years
  • Work Table Weight Capacity
    660 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
