Product Details

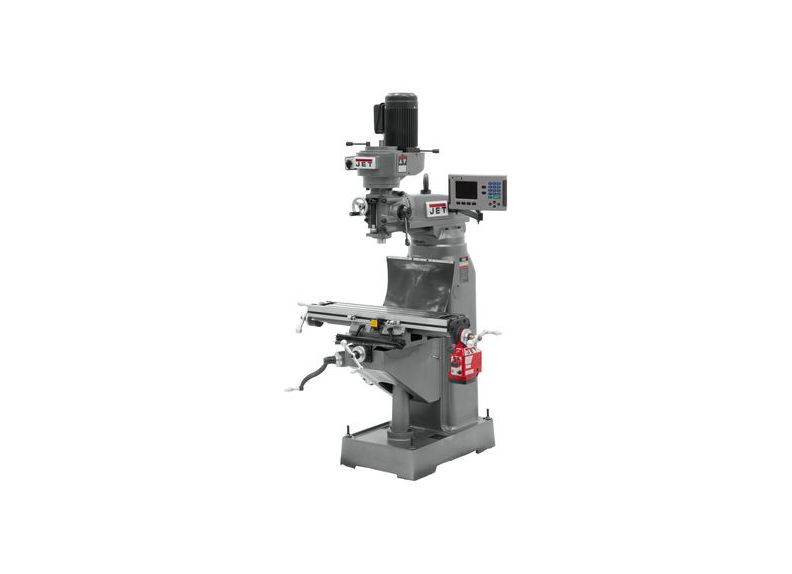

From prototype to production, the same mill earns its place. The JVM-836-1 was sized for fabrication and tool-room work that demands tolerance. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.
Features
- The 1.5 HP, 115V induction motor handles full-capacity passes for the power output industrial cutting requires.
- Heavy 7-7/8 in. x 35-3/4 in. table delivers the workholding envelope for the part library production milling actually runs.
- R-8 spindle taper handles the standard end-mill library for fast tool changes with the standard collet system.
- Continuous-duty 5-inch spindle travel — handling the depth-of-cut production demands across production milling.
- 240 - 1,550 RPM envelope handles the speed range for slow torque-heavy work and high-speed finishing in one machine.
- Heat-treated Meehanite saddle castings deliver rigidity for stability where commercial-grade iron warps.
Specifications
- SKUJT9-690144
- Assembled Dimensions55 x 52 x 77 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutAcu-Rite 203
- Distance Spindle to Column (Max.)15-3/4 in.
- Distance Spindle to Column (Min.)5-1/4 in.
- Head Movement90 Deg. (L&R)
- Input Power115 V 1 Ph
- Maximum Distance Spindle To Table13-3/4 in.
- Model NumberJVM-836-1
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Noise Level Db at 3Ft75 dB
- Number of Spindle Speeds5
- Old Material Number690144
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate.0015 - .003 - .006 IPR
- Range Of Spindle Speeds240 - 1550 RPM
- SAP Gross Weight1,625
- SAP Net weight1,625
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeStep Pulley
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel9-1/2 in.
- Table Longitudal Travel22-1/4 in.
- Table Longitudal Travel With Powerfeed18 in.
- Table Size7-7/8 x 35-3/4 in.
- Travel Of Knee14 in.
- Travel Of Ram10-1/2 in.
- UPC662755516009
- WarrantyTwo Years
- Work Table Weight Capacity500 lbs
