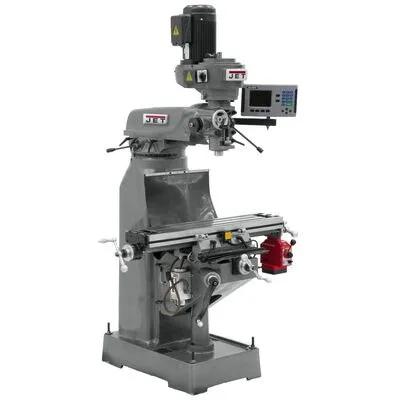

8" x 36" Mill w/ ACU-RITE 203 DRO w/ X-Axis Powerfeed, 1.5HP, 230V 1PH(JVM-836-1)
8" x 36" Mill w/ ACU-RITE 203 DRO w/ X-Axis Powerfeed, 1.5HP, 230V 1PH(JVM-836-1)
8" x 36" Mill w/ ACU-RITE 203 DRO w/ X-Axis Powerfeed, 1.5HP, 230V 1PH(JVM-836-1)

8" x 36" Mill w/ ACU-RITE 203 DRO w/ X-Axis Powerfeed, 1.5HP, 230V 1PH(JVM-836-1)

Stock Number: JT9-690144-2

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, single-phase
  • 7-7/8" x 35-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Where setups become parts. Engineered around production shops that turn programs into parts daily, the JVM-836-1 earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Precision-rated 1.5 HP motor with sealed bearings — handling startup loads where smaller motors trip across industrial shop floors.
  • Generous 7-7/8 in. x 35-3/4 in. table surface — delivering the workholding capacity production work demands across industrial milling environments.
  • Industrial R-8 spindle interface — handling the tooling loads production cutting generates.
  • Production-spec 5-inch spindle travel — covering the workpiece envelope this machine targets across tool-room machining.
  • Speeds across 240 - 1,550 RPM match cut requirements for the cutting envelope production cuts demand.
  • Certified Meehanite knee castings support structural authority for the cycle counts production turning generates.

Specifications

  • SKU
    JT9-690144-2
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    55 x 52 x 77 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 203
  • Distance Spindle to Column (Max.)
    15-3/4 in.
  • Distance Spindle to Column (Min.)
    5-1/4 in.
  • Head Movement
    90 Deg. (L&R)
  • Input Power
    230 V 1 Ph
  • Maximum Distance Spindle To Table
    13-3/4 in.
  • Model Number
    JVM-836-1
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    5
  • Old Material Number
    690144-2
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    240 - 1550 RPM
  • SAP Gross Weight
    1,625
  • SAP Net weight
    1,625
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    9-1/2 in.
  • Table Longitudal Travel
    22-1/4 in.
  • Table Longitudal Travel With Powerfeed
    18 in.
  • Table Size
    7-7/8 x 35-3/4 in.
  • Travel Of Knee
    14 in.
  • Travel Of Ram
    10-1/2 in.
  • UPC
    019907000693
  • Warranty
    Two Years
  • Work Table Weight Capacity
    500 lbs
