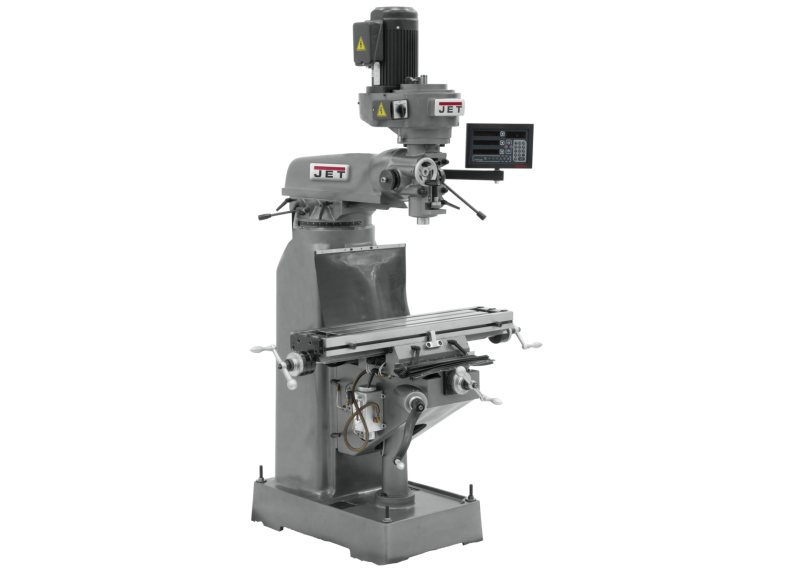

8" x 36" Mill w/ 3-Axis NMS800 DRO (Q) w/ X-Axis Powerfeed, 1.5HP, 230V 3PH(JVM-836-3)
8" x 36" Mill w/ 3-Axis NMS800 DRO (Q) w/ X-Axis Powerfeed, 1.5HP, 230V 3PH(JVM-836-3)

8" x 36" Mill w/ 3-Axis NMS800 DRO (Q) w/ X-Axis Powerfeed, 1.5HP, 230V 3PH(JVM-836-3)

Stock Number: JT9-691185

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, three-phase
  • 7-7/8" x 35-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Built around the spindle, the table, and the operator who runs them. Designed for production shops that turn programs into parts daily, the JVM-836-3 stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • The 1.5 HP three-phase drive matches the working torque for full-capacity production runs.
  • Industrial 7-7/8 in. x 35-3/4 in. table — delivering the workholding capacity production work demands, sized for the workpiece sizes production milling actually generates.
  • Working-grade 5-inch spindle travel — expanding the operating envelope without compromise across professional cutting environments.
  • Industrial 120 - 1,550 RPM range — delivering operator-side speed control.
  • Certified Meehanite reference surfaces support structural authority for the dimensional stability tolerance work measures.
  • Surface-ground knee gears deliver dimensional stability without backlash drift that costs you finish quality.

Specifications

  • SKU
    JT9-691185
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    55 x 52 x 77 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    3-Axis Newall NMS800
  • Distance Spindle to Column (Max.)
    15-3/4 in.
  • Distance Spindle to Column (Min.)
    5-1/4 in.
  • Head Movement
    90 Deg. (L&R)
  • Input Power
    230 V 3 Ph
  • Maximum Distance Spindle To Table
    13-3/4 in.
  • Model Number
    JVM-836-3
  • Motor HP
    1.5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    10
  • Old Material Number
    691185
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    120 - 1550 RPM
  • SAP Gross Weight
    1,635
  • SAP Net weight
    1,635
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    9-1/2 in.
  • Table Longitudal Travel
    22-1/4 in.
  • Table Longitudal Travel With Powerfeed
    18 in.
  • Table Size
    7-7/8 x 35-3/4 in.
  • Travel Of Knee
    14 in.
  • Travel Of Ram
    10-1/2 in.
  • UPC
    662755514005
  • Warranty
    Two Years
  • Work Table Weight Capacity
    500 lbs
