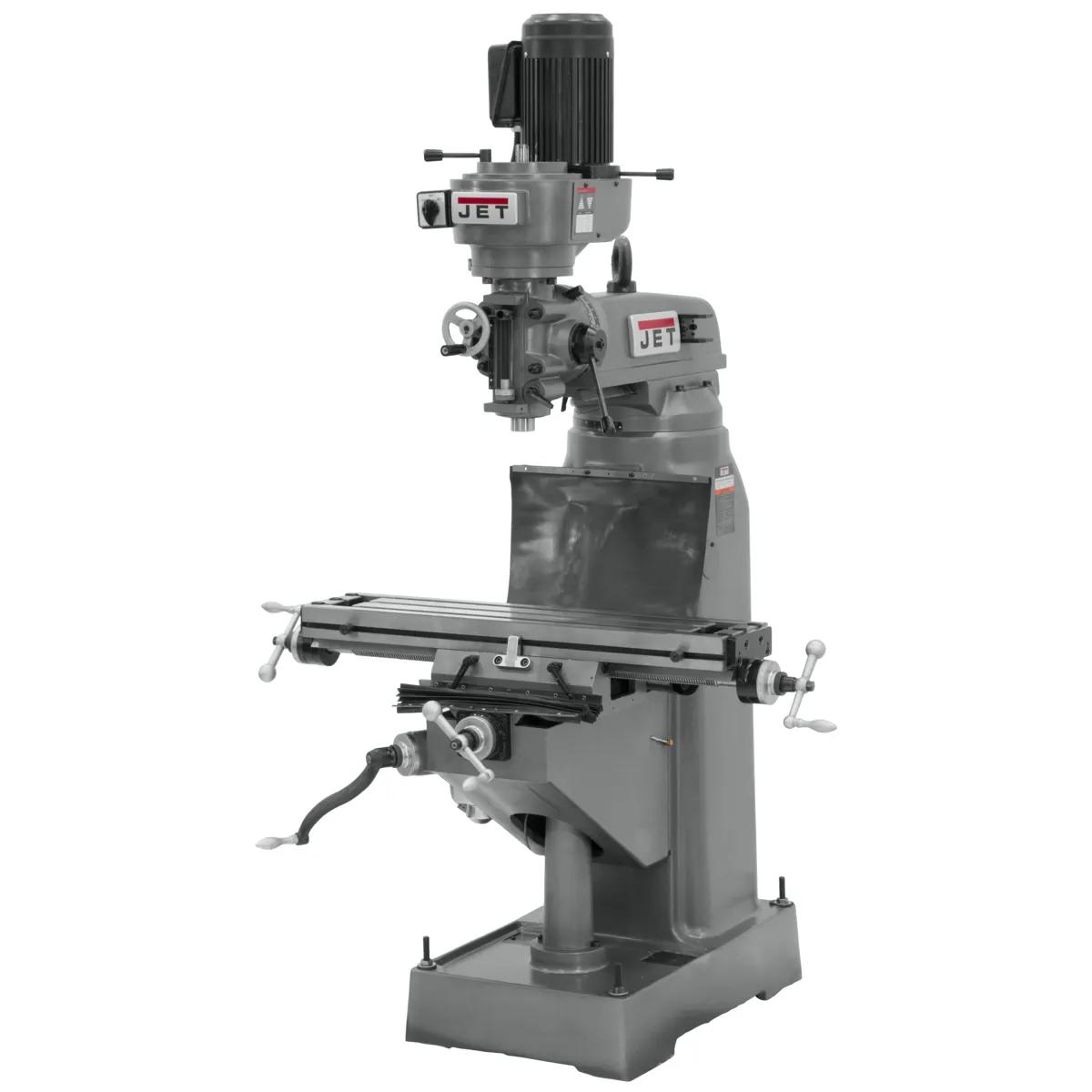

8" x 36" Step Pulley Milling , 1.5HP, 230V 3PH(JVM-836-3)
8" x 36" Step Pulley Milling , 1.5HP, 230V 3PH(JVM-836-3)

8" x 36" Step Pulley Milling , 1.5HP, 230V 3PH(JVM-836-3)

Stock Number: JT9-690038

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, three-phase
  • 7-7/8" x 35-3/4" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Rigid construction, accurate cuts, repeatable results. Built around industrial machining environments running long-cycle production, the JVM-836-3 delivers production-grade results. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.

Features

  • Industrial 1.5 HP drive covers consistent torque for mixed-material work envelopes.
  • 7-7/8 in. x 35-3/4 in. table — accommodating the fixture-and-vise library most production shops keep.
  • R-8 spindle interface — delivering the standard interface production milling expects, sized for the collet-and-chuck library industrial shops already keep.
  • Production-grade 5-inch spindle travel — covering the workpiece envelope this machine targets across tool-room machining.
  • Wide 120 - 1,550 RPM range — covering the operating range production cuts require.
  • Premium Meehanite saddle castings earn their place for finish quality production cutting requires.

Specifications

  • SKU
    JT9-690038
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    55 x 52 x 77 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    No
  • Distance Spindle to Column (Max.)
    15-3/4 in.
  • Distance Spindle to Column (Min.)
    5-1/4 in.
  • Head Movement
    90 Deg. (L&R)
  • Input Power
    230 V 3 Ph
  • Maximum Distance Spindle To Table
    13-3/4 in.
  • Model Number
    JVM-836-3
  • Motor HP
    1.5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Noise Level Db at 3Ft
    75 dB
  • Number of Spindle Speeds
    10
  • Old Material Number
    690038
  • Power Feed
    No
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    .0015 - .003 - .006 IPR
  • Range Of Spindle Speeds
    120 - 1550 RPM
  • Reference Type
    Base Machine
  • SAP Gross Weight
    1,610
  • SAP Net weight
    1,610
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Step Pulley
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    9-1/2 in.
  • Table Longitudal Travel
    22-1/4 in.
  • Table Longitudal Travel With Powerfeed
    18 in.
  • Table Size
    7-7/8 x 35-3/4 in.
  • Travel Of Knee
    14 in.
  • Travel Of Ram
    10-1/2 in.
  • UPC
    662755195037
  • Warranty
    Two Years
  • Work Table Weight Capacity
    500 lbs
