Product Details

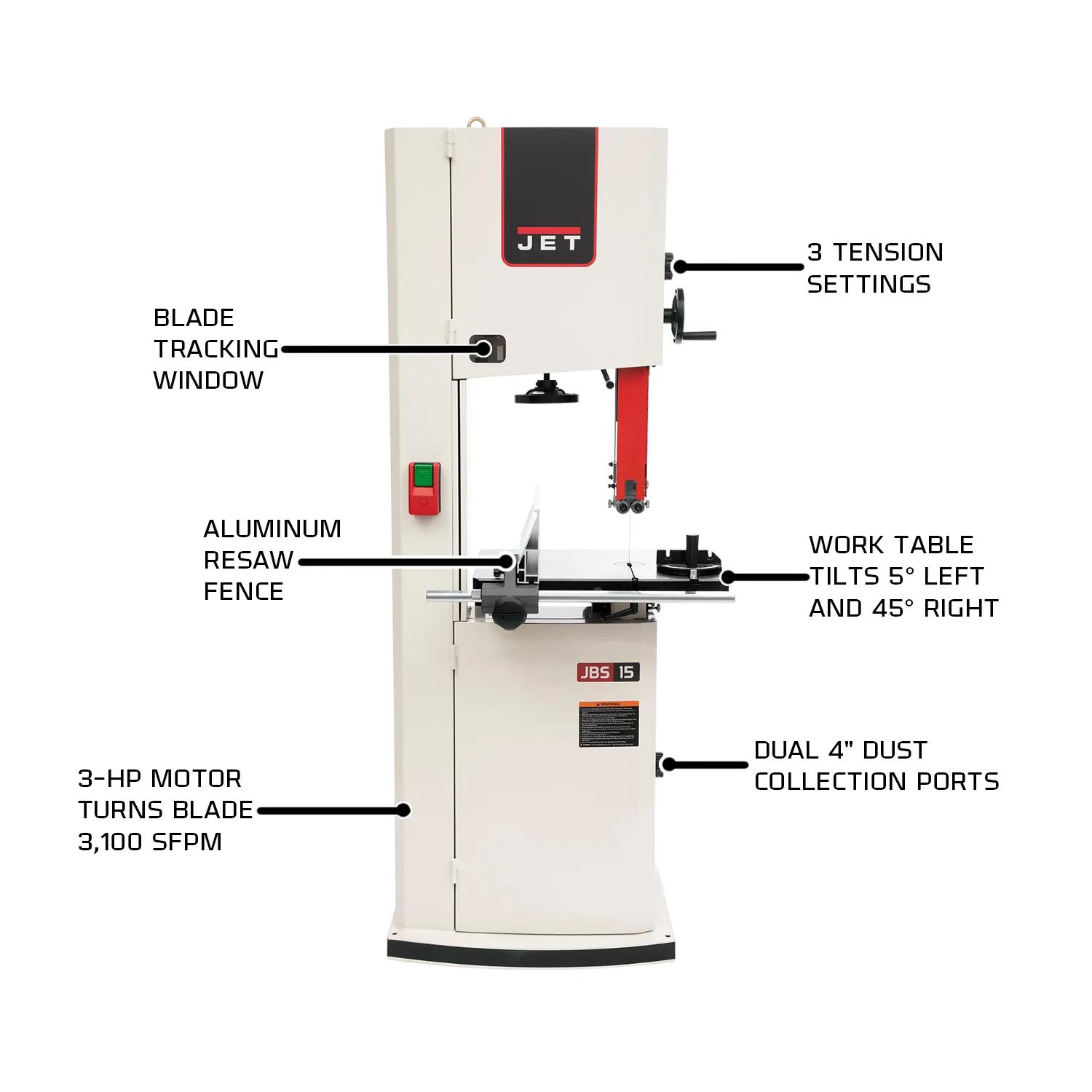

Built for the cuts that production fabrication actually generates. The JWBS-15-3 fits fabrication shops running daily cuts — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- 3 HP, 230V single-phase induction motor — holding speed under load when lighter motors stall, sized for the cycle counts industrial use generates.
- Production-spec blade speed at 3100 FPM supports cut velocity for matching the cut to the material.
- Industrial saw frame — running cooler under sustained cutting loads than commercial-grade frames across fabrication environments.
- Industrial-spec tilting table — delivering the angle envelope production cutting demands, engineered for miter and bevel cuts that defeat fixed-table saws.
- Factory-tested cutting envelope matches workpiece sizes for the cutting envelope production sawing demands.
- Continuous-duty cast iron reference surfaces dampen harmonics across production cutting.
Specifications
- SKUJT9-714650
- Assembled Dimensions29-1/2 x 32 x 74 in.
- Base Size25-1/2 x 21-5/8 in.
- Blade Diameter14-3/4 in.
- Blade Length133 in.
- Blade Size (In.)15 in.
- Blade Speed3100 FPM
- Cutting Capacity - Height14 in.
- Cutting Capacity - Width14-1/8 in.

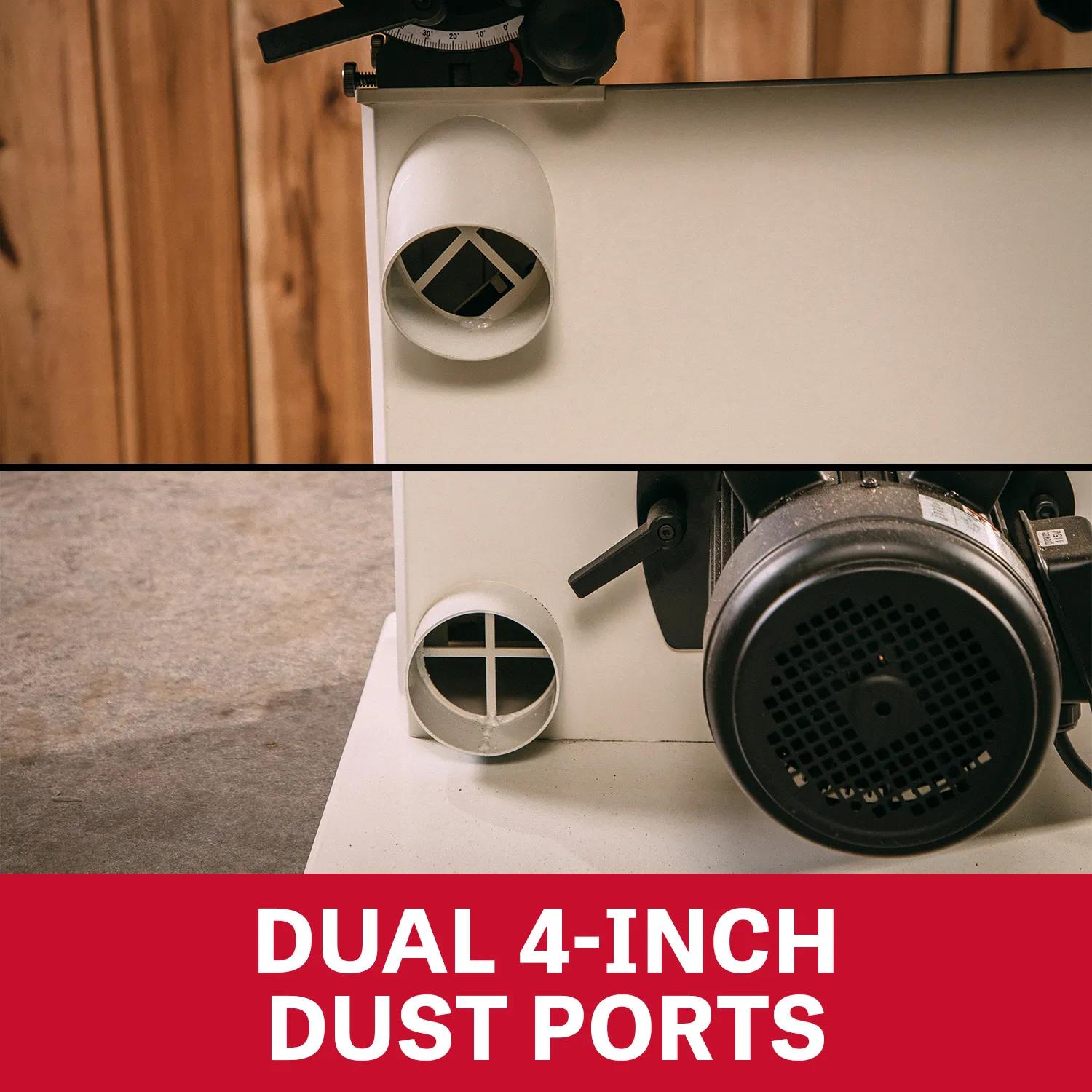

- Dust Port Outside Diameter4 in.
- Fence Size L X H18-1/8 x 1-3/4 x 6 in.
- Height74 in.
- Horse Power3 HP
- Input Power230 V 1 Ph
- Maximum Blade Width1 in.
- Maximum Rip Left Of Blade12-3/8 in.
- Minimum Saw Blade Width1/8 in.
- Model NumberJWBS-15-3
- Motor Amps12 A
- Motor HP3 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number714650
- Overall Assembled (Bow Lowered)29-1/2 x 32 x 74 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight446
- SAP Net weight382
- Style TypeFloor
- Table Height35 in.

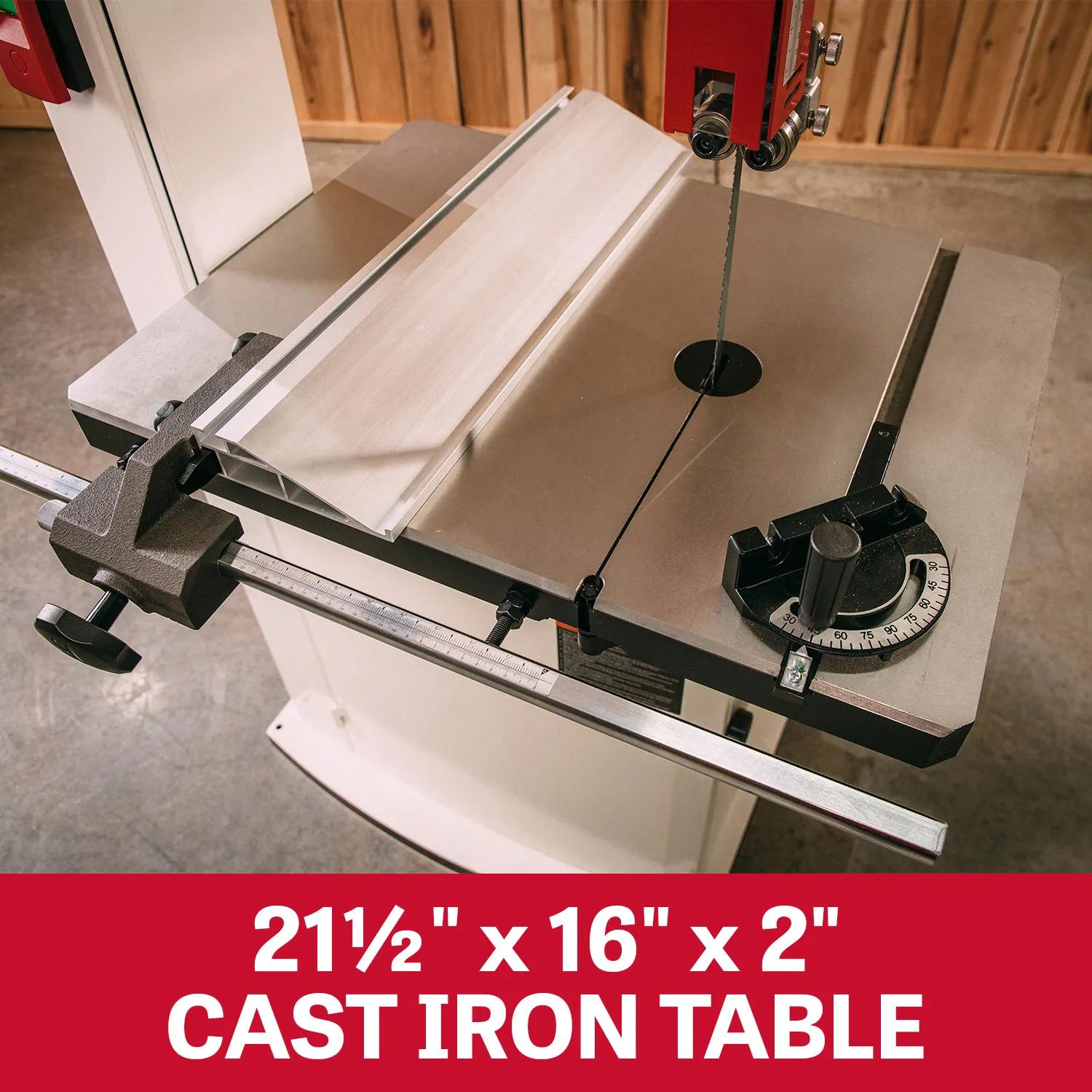

- Table Size21-1/2 x 16 in.
- Table T-Slot3/4 in.

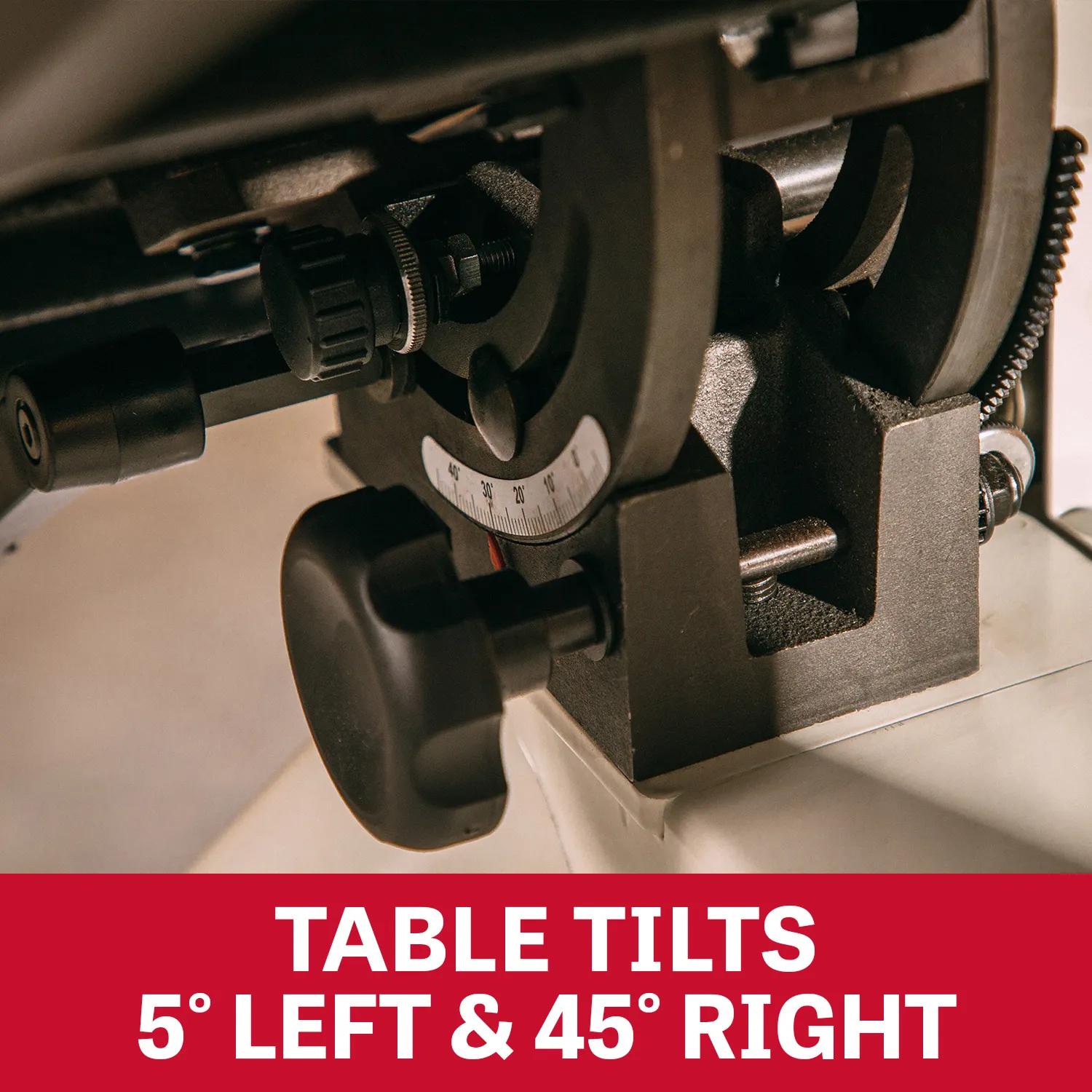

- Table Tilt (L, R, C)Right 45 Deg. / Left 5 Deg.
- Throat Depth14-1/8 in.
- UPC731325467475
- WarrantyFive Years
- Wheel Diameter14-3/4 in.
