20" Bandsaw, 3HP, 230V(JWBS-20-3)

Stock Number: JT9-714800

0 Reviews

No reviews yet.

  • 3 HP, 230V, single-phase
  • 2530/4850 FPM
BUY NOW
Loading Banner
Loading Need Parts Banner

Product Details

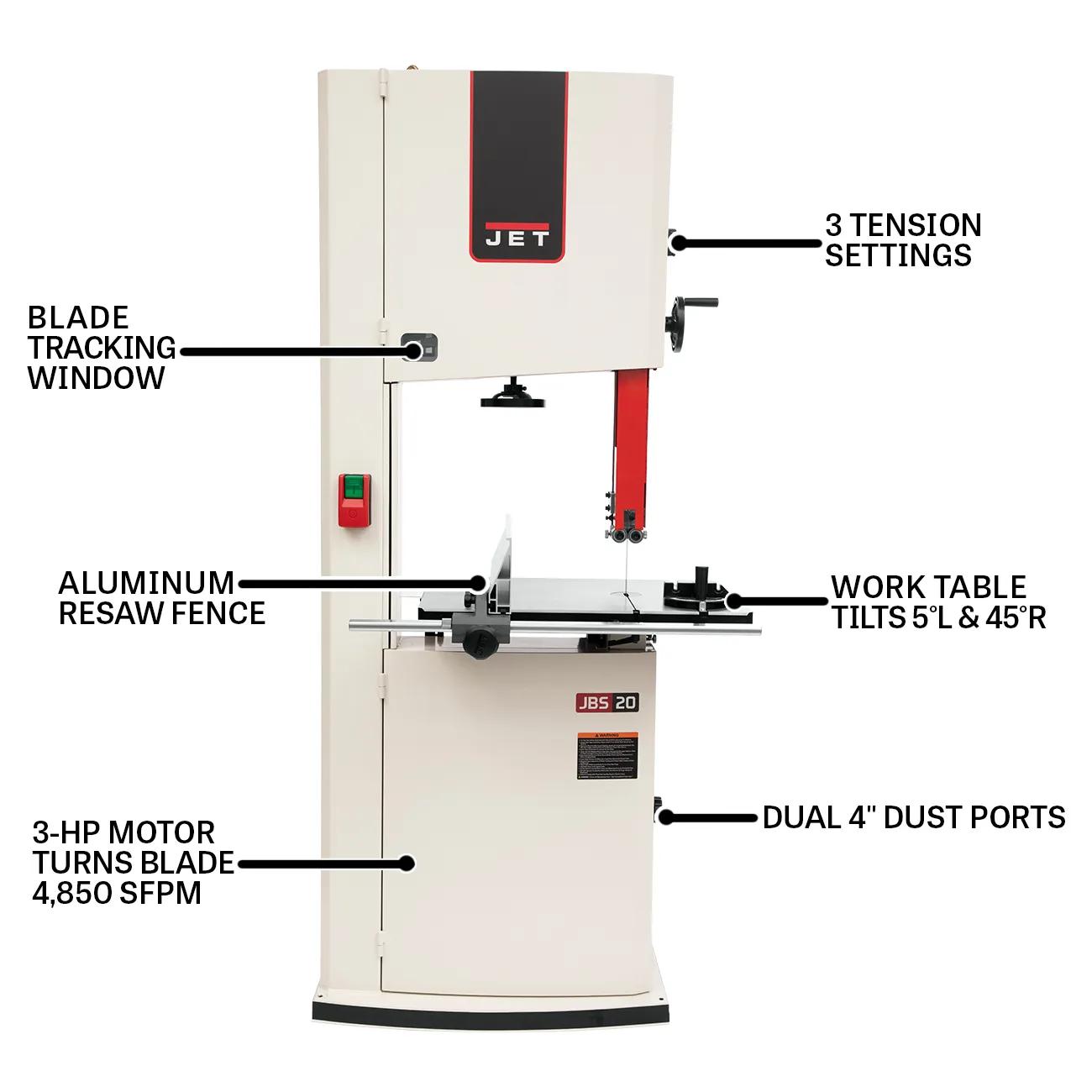

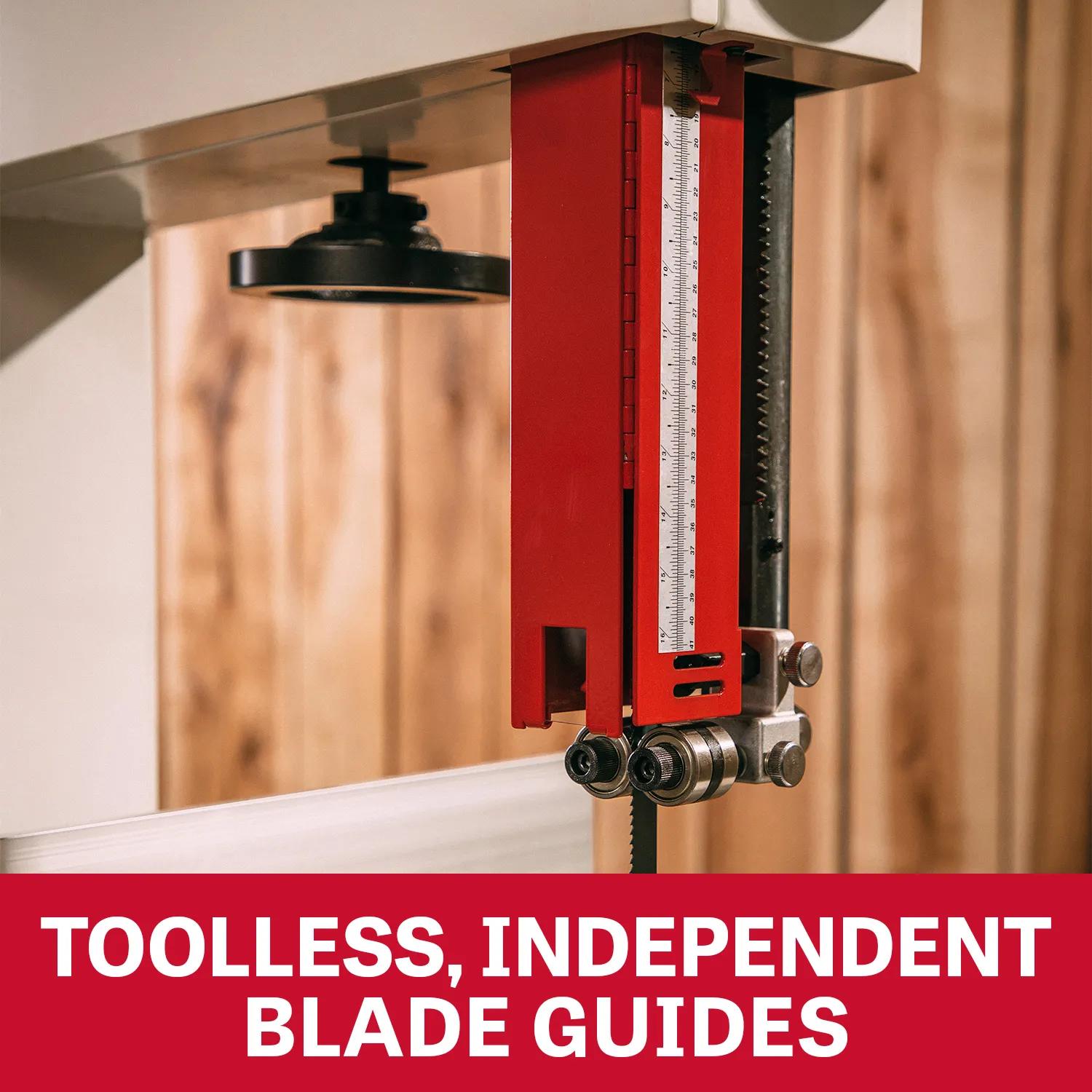

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

Features

  • Blade tracking window provides clear view of blade during tracking
  • Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
  • Cast iron trunnion for maximum support and stability

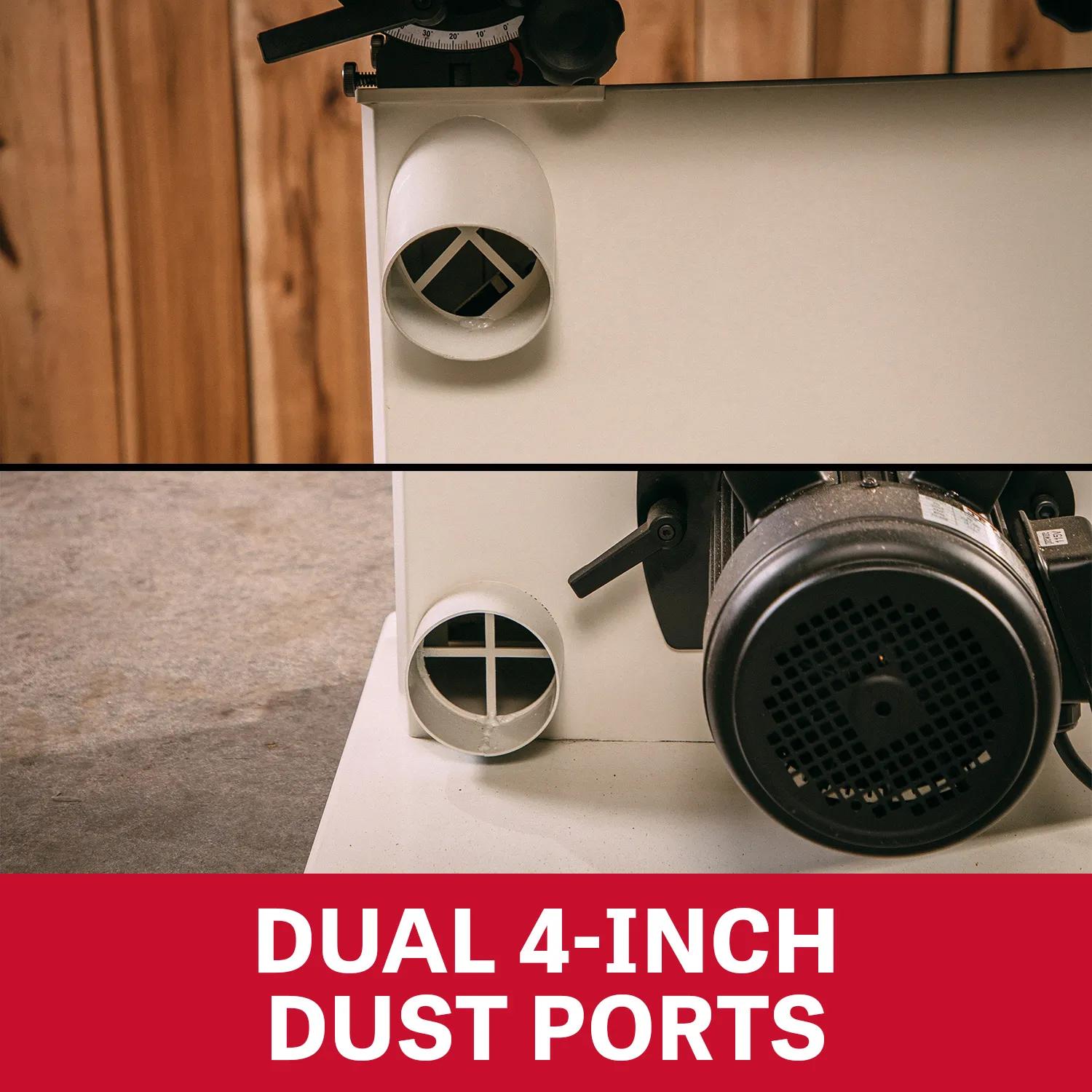

  • Conveniently located dual 4" dust collection ports catch dust and chips at the source

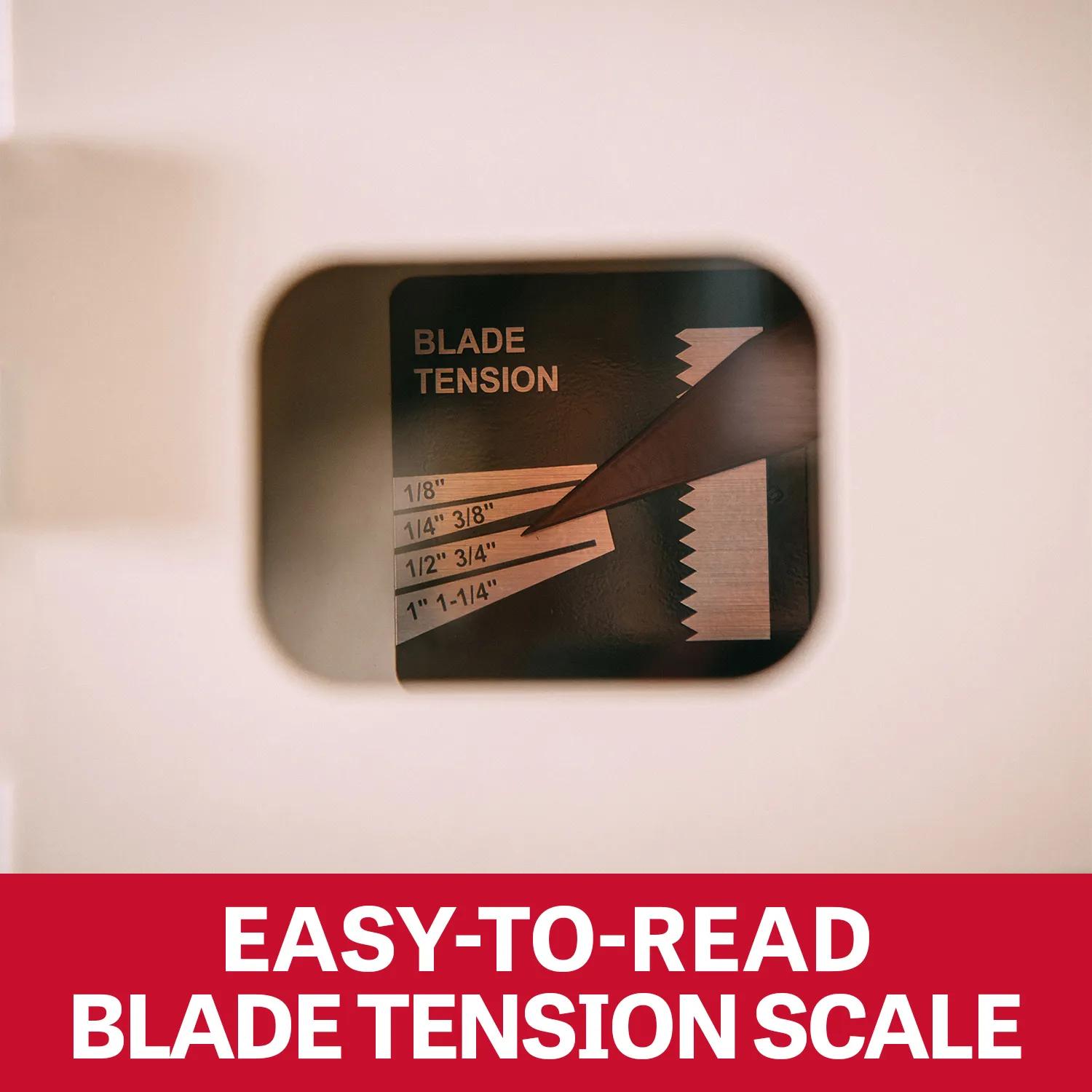

  • Easy-to-read blade tension scale can be viewed through upper door window

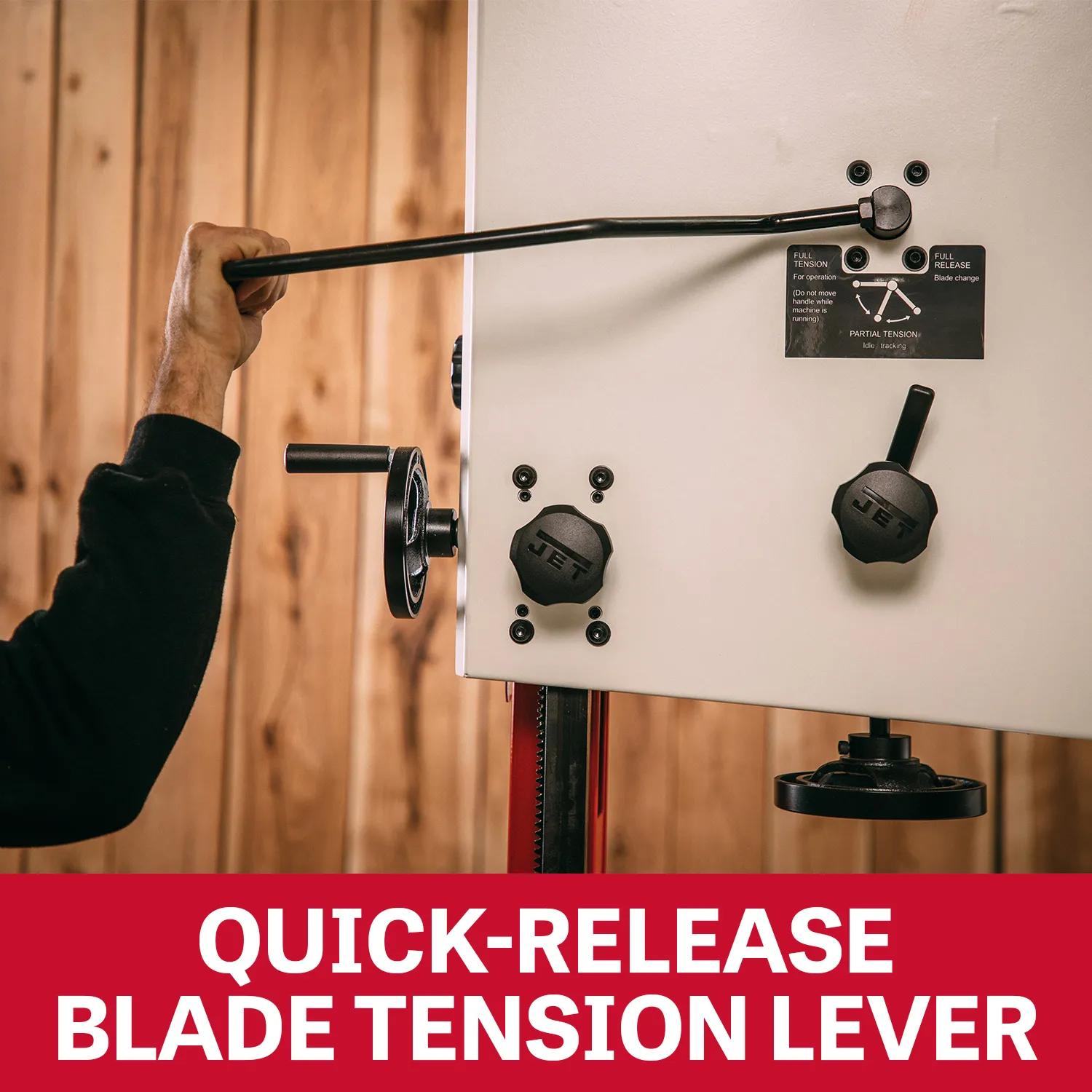

  • Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Round table insert features leveling screws for precise adjustment
  • Single knob adjustment simplifies the blade tracking process

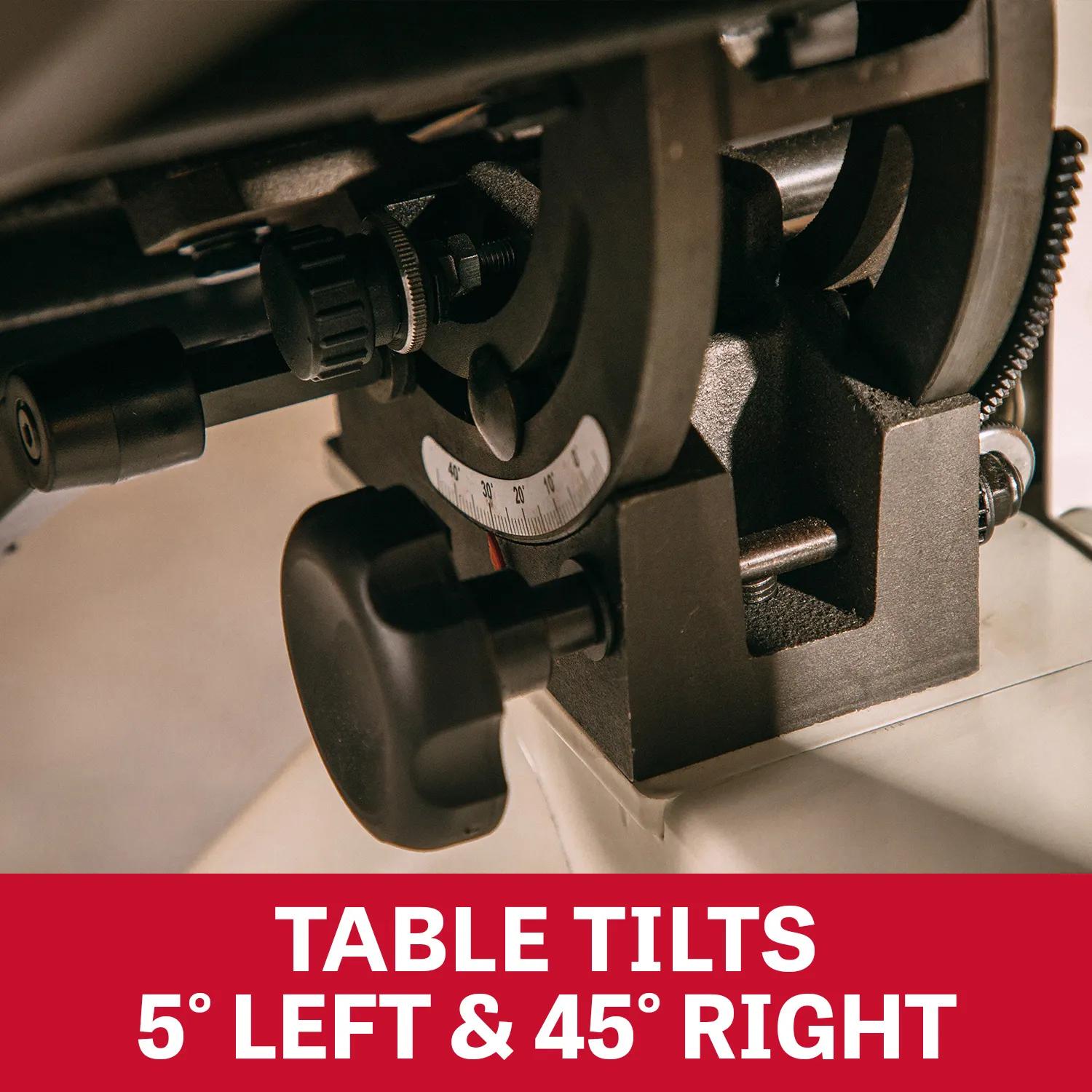

  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Specifications

  • SKU
    JT9-714800
  • Assembled Dimensions
    37 x 33-1/8 x 88 in.
  • Base Size
    31-1/2 x 21-5/8 in.
  • Blade Diameter
    20-1/4 in.
  • Blade Length
    158 in.
  • Blade Size (In.)
    20 in.
  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    22-1/2 x 1-3/4 x 6 in.
  • Height
    88 in.
  • Maximum Blade Width
    1-1/2 in.
  • Maximum Rip Left Of Blade
    18-1/2 in.
  • Maximum Rip Right of Blade
    4-1/2 in.
  • Minimum Saw Blade Width
    1/8 in.
  • Model Number
    JWBS-20-3
  • Overall Assembled (Bow Lowered)
    37 x 33-1/8 x 88 in.
  • Product Type
    Machines
  • Style Type
    Floor
  • Table Height
    37 in.

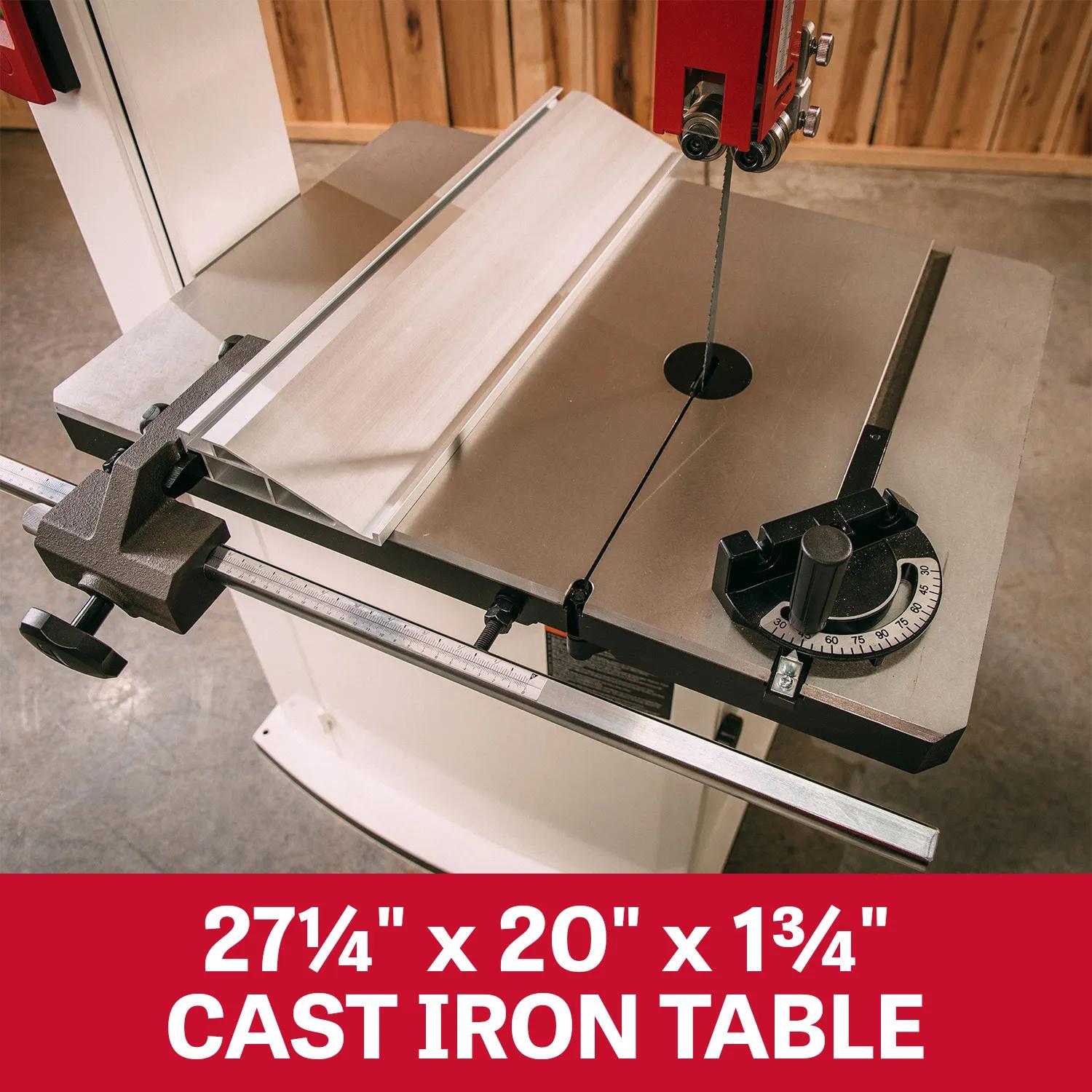

  • Table Size
    27-1/4 x 20 in.
  • Table T-Slot
    3/4 in.
  • Throat Depth
    20 in.
  • UPC
    731325467505
  • Wheel Diameter
    20-1/4 in.
