Product Details
Production-grade sawing for shops that need it daily. Built around production environments where blade speed and frame rigidity both count, the JWBS-20-5 delivers production-grade results. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Industrial 5 HP induction motor: delivering production-grade power output, designed for working shops.
- 2530/4850 FPM cutting speed — delivering the cutting velocity production fabrication requires across fabrication shops.
- Heavy-duty saw frame absorbs the cutting forces for the cutting authority industrial fabrication demands.
- Precision-rated tilting table — delivering the angle envelope production cutting demands, engineered for miter and bevel cuts that defeat fixed-table saws.
- Shop-rated cutting envelope matches workpiece sizes for the cut-length envelope industrial sawing requires.
- Heavy-gauge cast iron frames — holding reference geometry.
Specifications
- SKUJT9-714850
- Assembled Dimensions37 x 32-1/4 x 88 in.
- Base Size31-1/2 x 21-5/8 in.
- Blade Diameter20-1/4 in.
- Blade Length158 in.
- Blade Size (In.)20 in.
- Blade Speed2530/4850 FPM
- Cutting Capacity - Height16 in.
- Cutting Capacity - Width20 in.

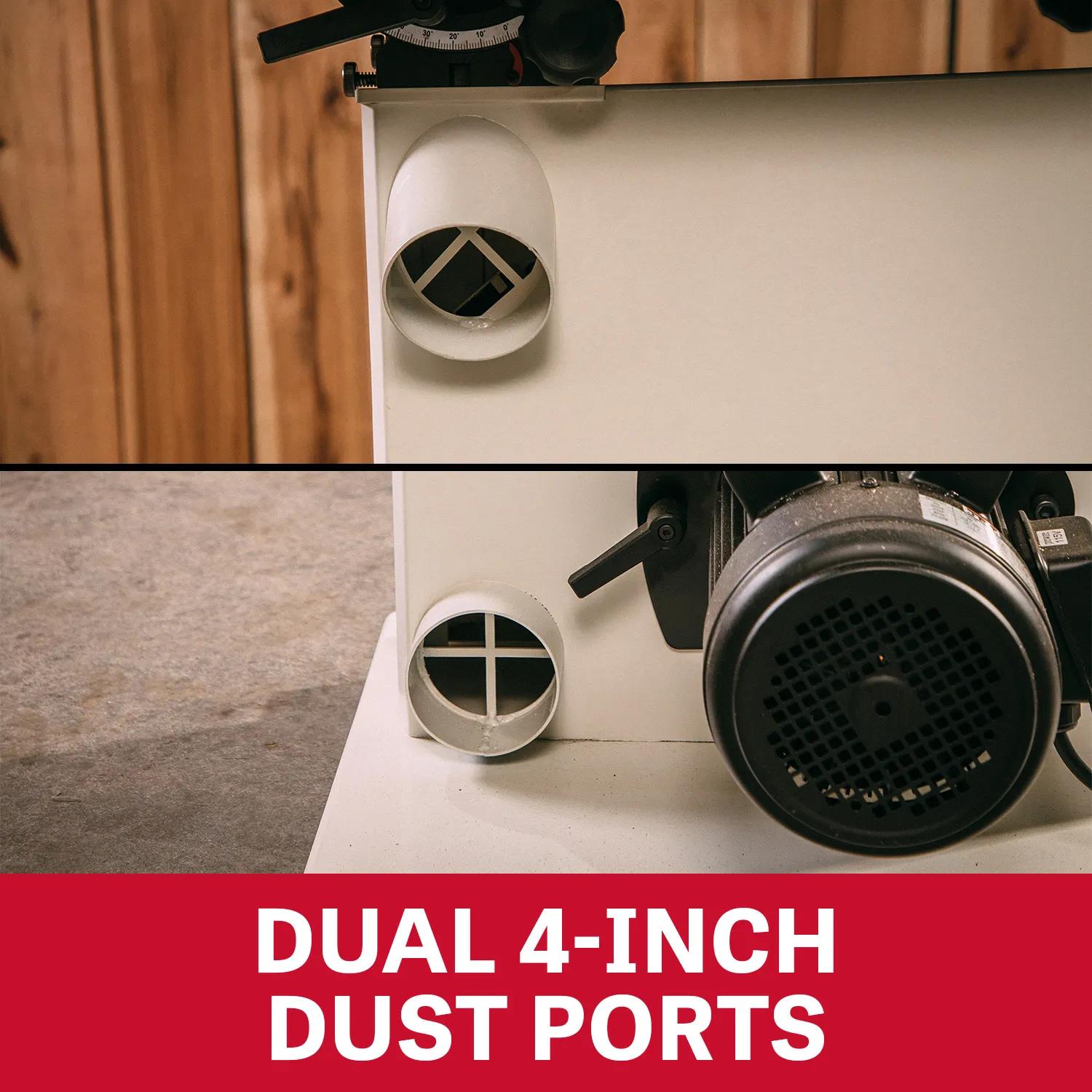

- Dust Port Outside Diameter4 in.
- Fence Size L X H22-1/2 x 1-3/4 x 6 in.
- Height88 in.
- Horse Power5 HP
- Input Power230 V 1 Ph
- Maximum Blade Width1-1/2 in.
- Maximum Rip Left Of Blade18-1/2 in.
- Minimum Saw Blade Width1/8 in.
- Model NumberJWBS-20-5
- Motor Amps22 A
- Motor HP5 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number714850
- Overall Assembled (Bow Lowered)37 x 32-1/4 x 88 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp30 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight688
- SAP Net weight616
- Style TypeFloor
- Table Height37 in.

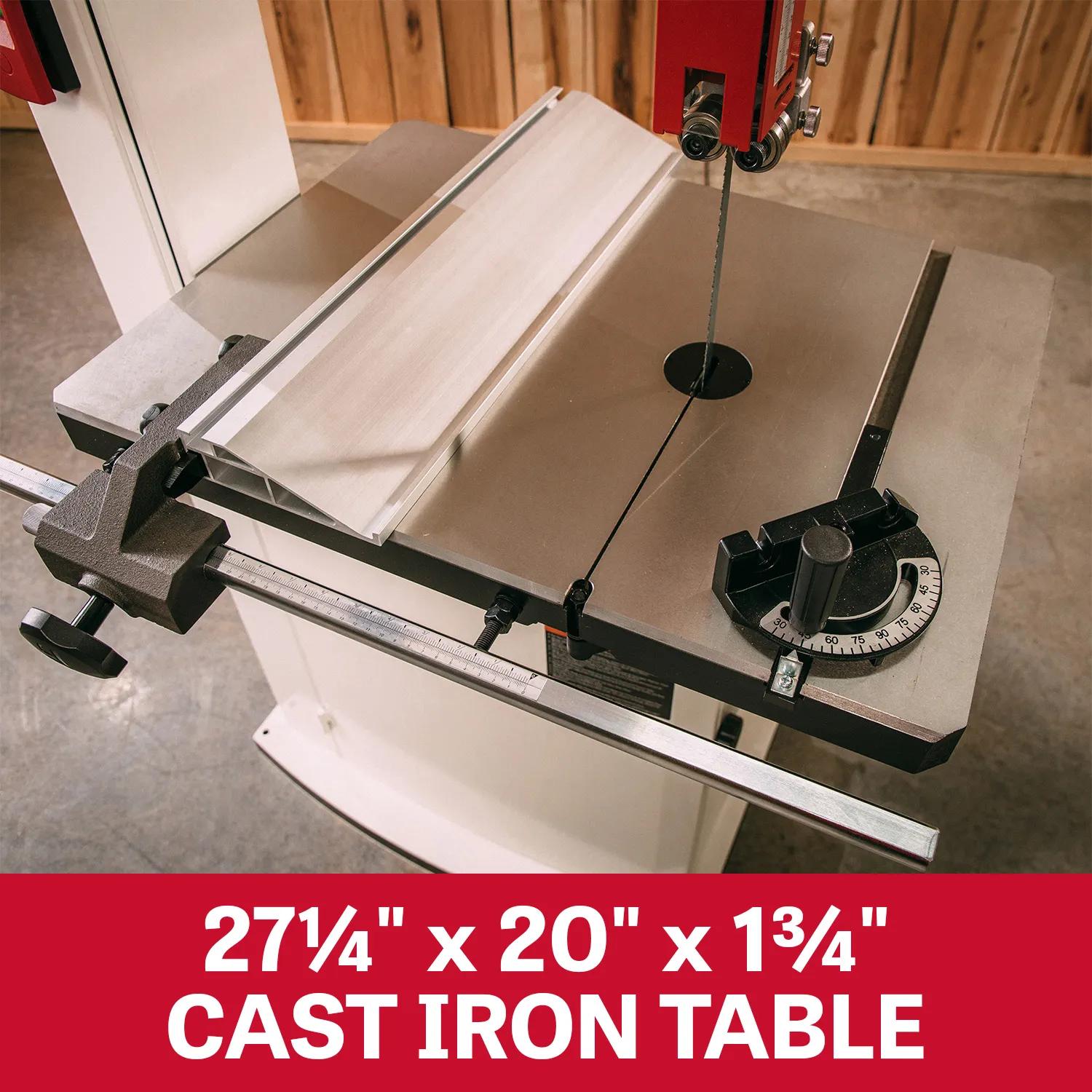

- Table Size27-1/4 x 20 in.
- Table T-Slot3/4 in.

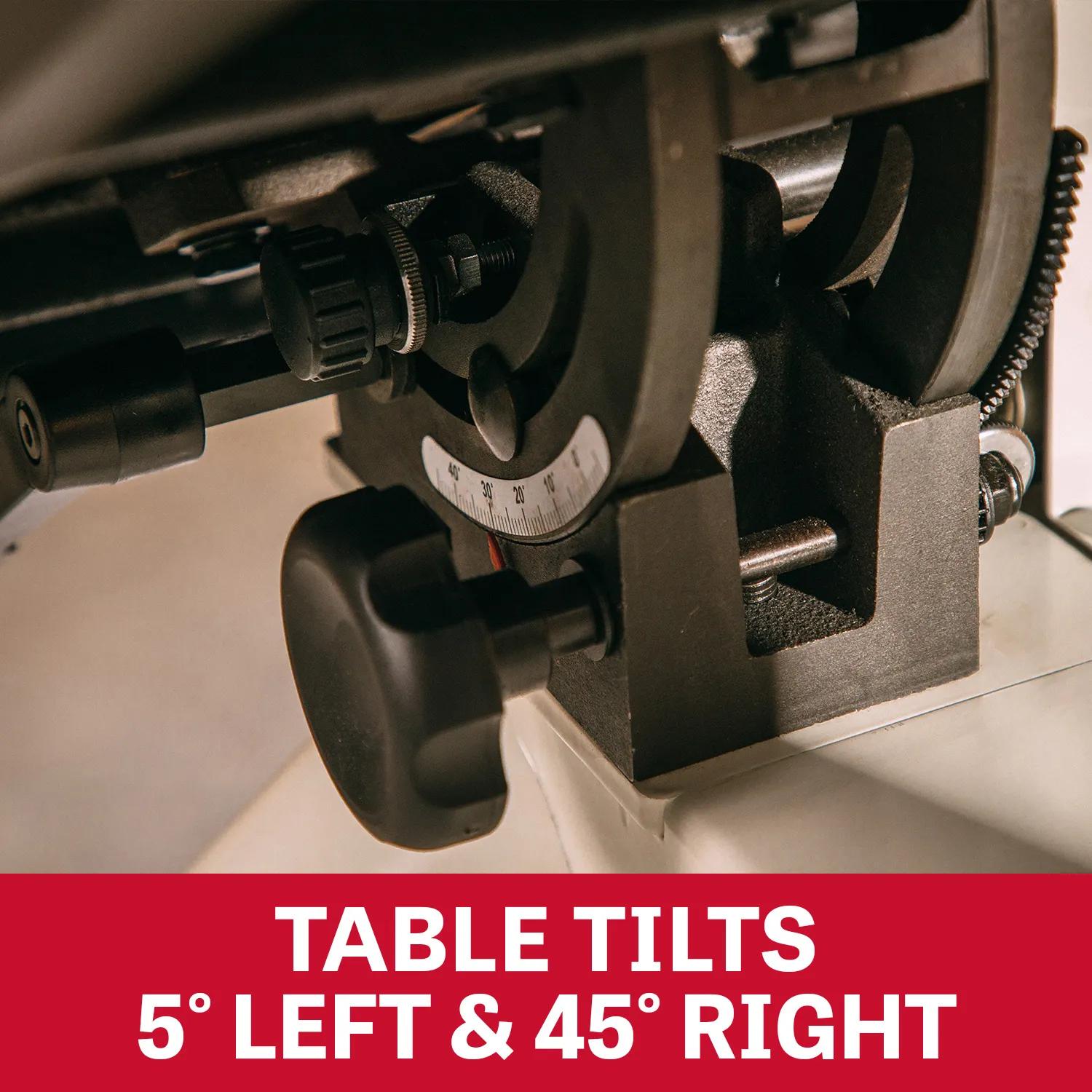

- Table Tilt (L, R, C)Right 45 Deg. / Left 5 Deg.
- Throat Depth20 in.
- UPC731325467512
- WarrantyFive Years
- Wheel Diameter20-1/4 in.
