10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)
10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)

10" Benchtop Drill Press, 0.33HP, 120V 1PH(JWBS-10)

Stock Number: JT1-3162

0 Reviews

No reviews yet.

  • 10" Swing Capacity
  • 630-3300 RPM, 5 Speeds
  • LED Light & Lasers
  • Table Tilts 45 Degrees
BUY NOW

Product Details

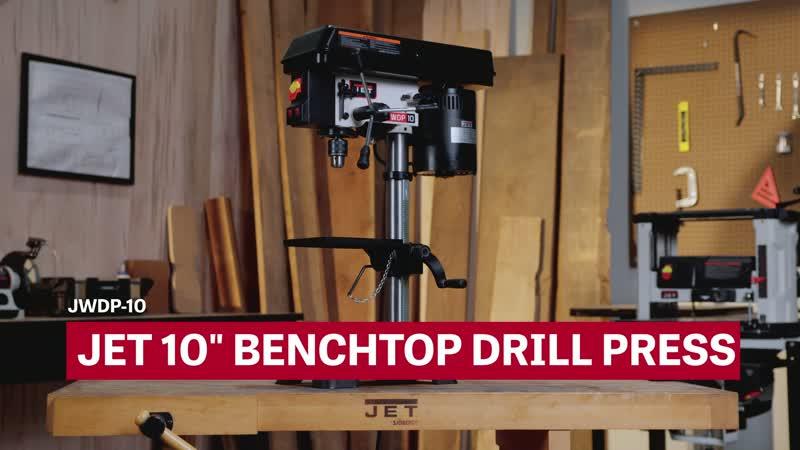

Compact, precise, and easy to use, the JET 10" Benchtop Drill Press is designed for accurate drilling in a small footprint. Multiple speed settings provide versatility across materials, while the integrated laser and LED light improve alignment and visibility. Built for control and consistency, it is a reliable solution for the shop.

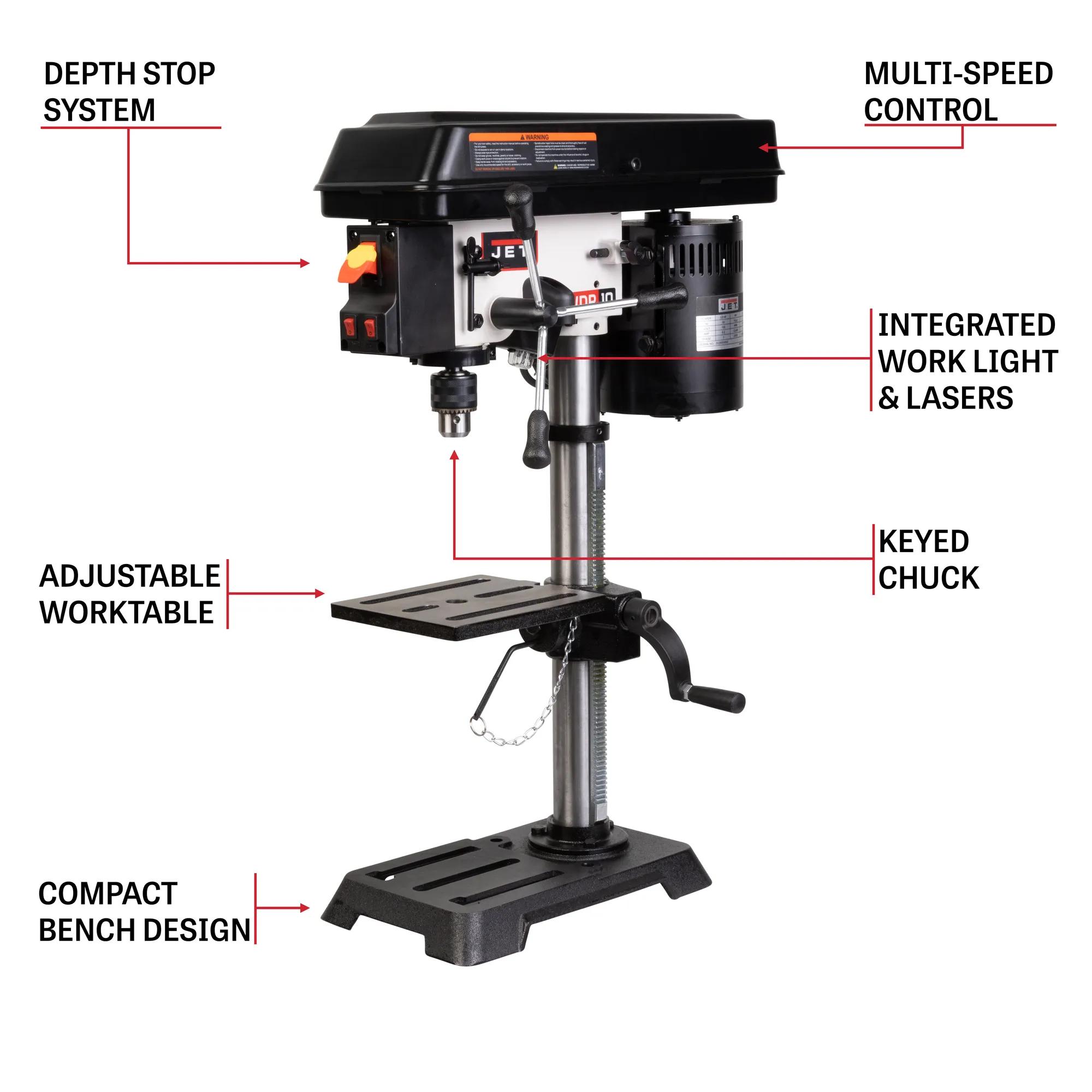

Features

  • 10 Inch Swing - Handles core drilling applications in a compact benchtop design.

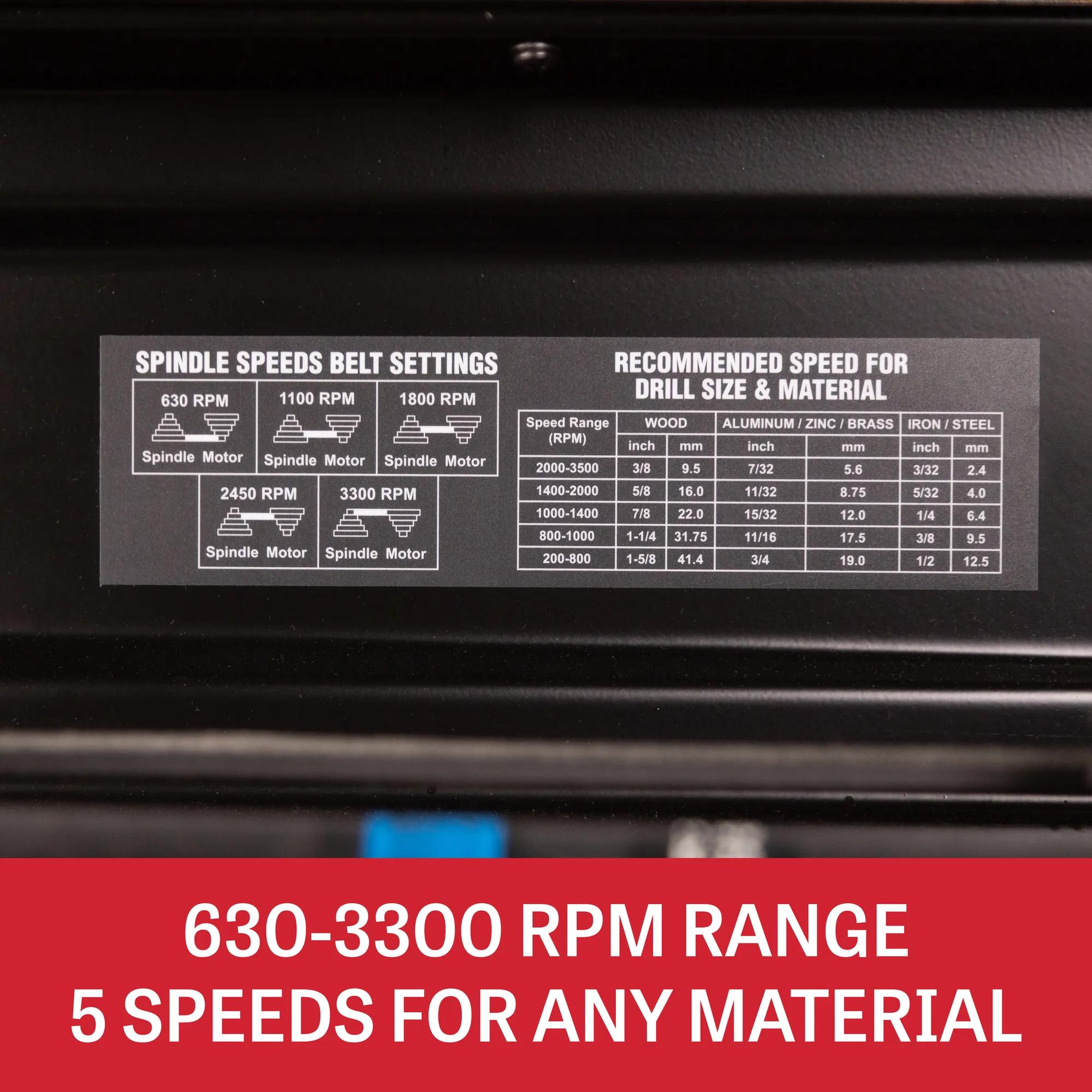

  • 630 to 3300 RPM Speed Range - Supports 5 optimized drilling speeds across applications and materials.

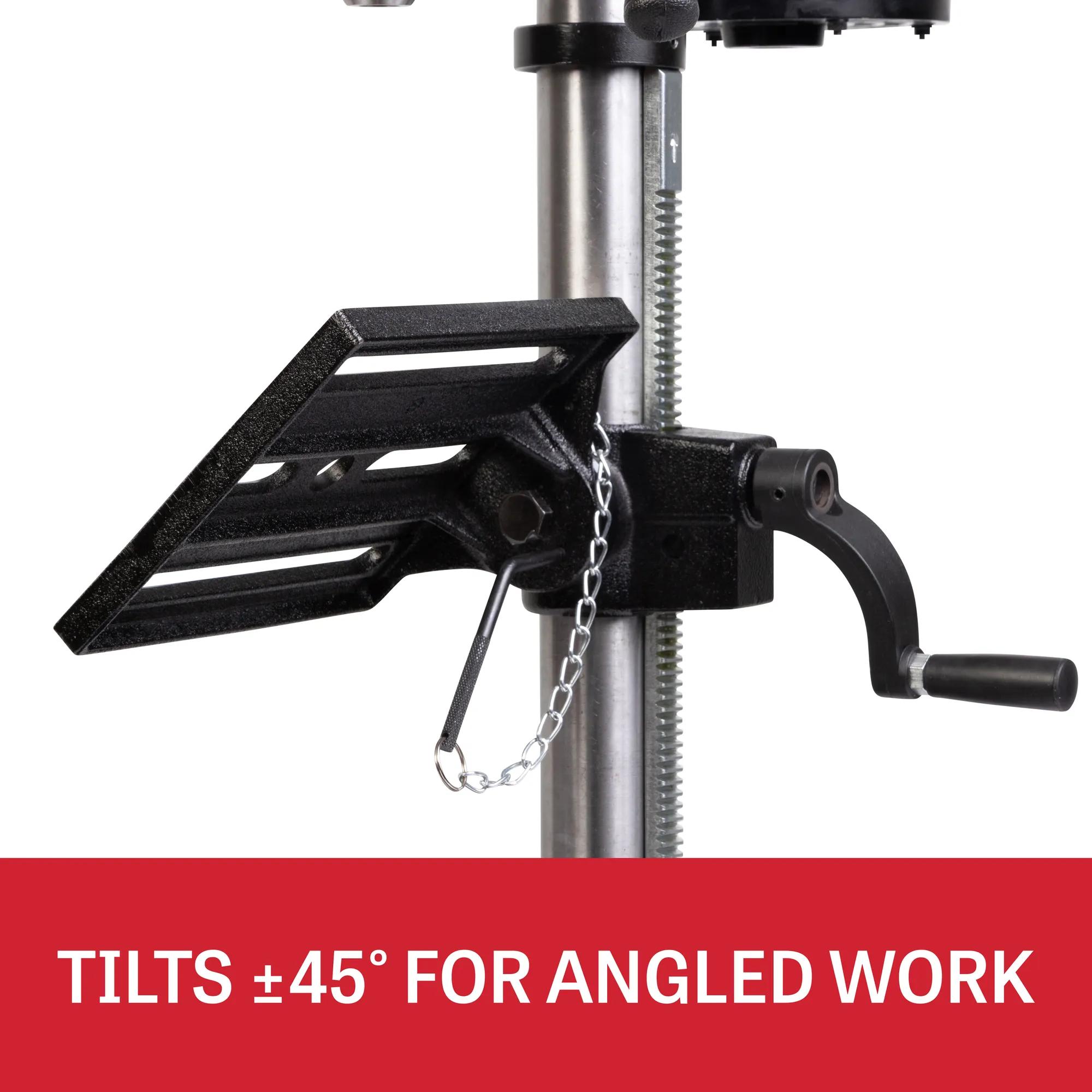

  • Table Tilts ±45° - Allows angled drilling with stable material support.

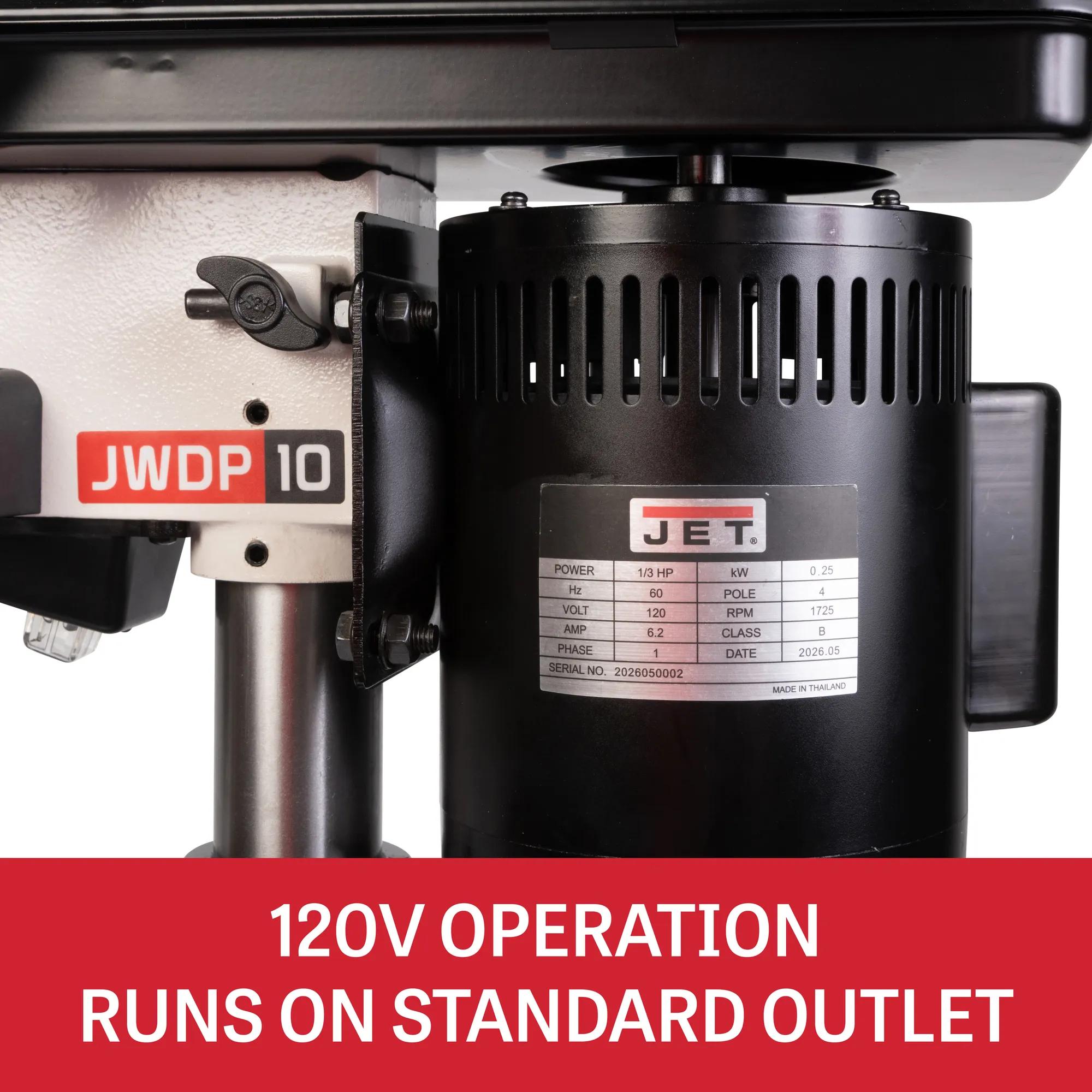

  • 120V Operation - Runs on standard household power for flexible placement.
  • Only 48 lbs. - Easy to move, lift, and reposition around the shop.

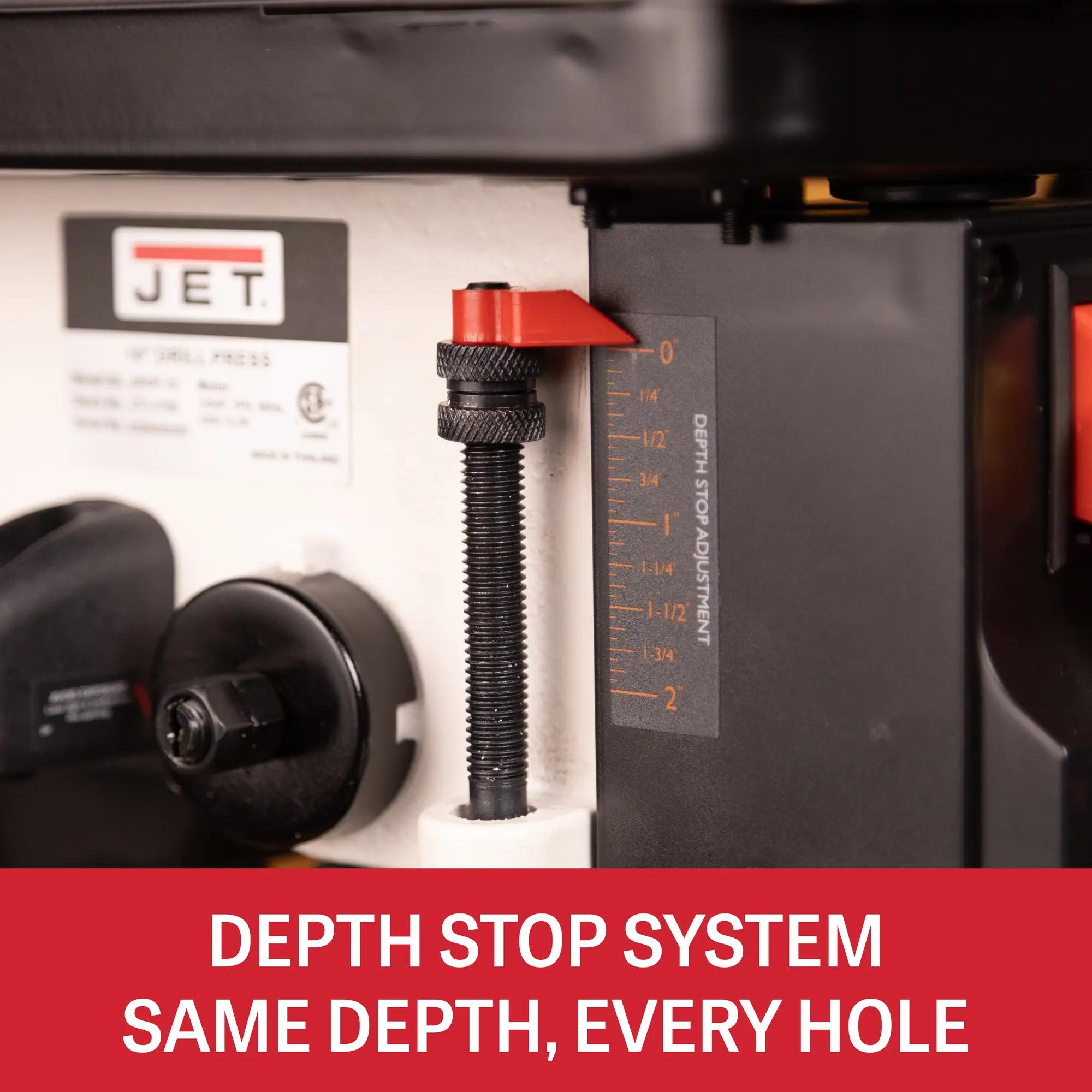

  • Depth Stop System - Enables quick, repeatable drilling depths with consistent results.
  • Adjustable Worktable - Tilts and adjusts for angled drilling and material support.
  • Compact Bench Design - Maximizes vertical capacity in a small footprint.

Specifications

  • SKU
    JT1-3162
  • Assembled Dimensions
    11 x 19 x 28-3/4 in.
  • Base Size
    13-7/16 x 8-3/16 in.
  • Chuck Size
    JT33, 1/16 to 1/2 in.
  • Distance Column to Spindle
    5 in.
  • Drilling Capacity Mild Steel
    0.5 in.
  • Drills to Center of Circle
    10 in.
  • Horse Power
    1/3 HP
  • Model Number
    JWBS-10
  • Motor Amps
    6.2 A
  • Motor HP
    0.33 HP
  • Motor Phase
    Single
  • Motor Speed
    1725 RPM
  • Motor Voltage
    120 V
  • Number of Spindle Speeds
    5
  • Prewired Voltage
    120 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Spindle Speeds
    630 to 3300 RPM
  • SAP Gross Weight
    52
  • SAP Net weight
    48.5
  • Spindle Distance To Base
    17-5/16 in.
  • Spindle Distance To Table Max
    13-3/8 in.
  • Spindle Taper
    JT33
  • Spindle Travel
    2 in.
  • Table Tilt (L, R, C)
    Right 45 / Left 45
  • Table Travel
    10-7/16 in.
  • UPC
    019907007135
  • Warranty
    Five Years
  • Work Table Weight Capacity
    44 lbs
