Product Details
Industrial turning capacity, machine-shop reliability. Engineered around industrial machine shops with daily turning work, the JWL-1015VS earns its place. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.
Features
- 10-inch swing capacity — accommodating the chuck and tool-holding capacity production demands across tool-room turning.
- Industrial-spec 0.5 HP single-phase induction motor delivers torque for full-capacity production runs.
- Tolerance-grade 15-1/2 in. bed length covers long-shaft work for repair and fabrication shaft work.
- Generous 3/8 in. spindle bore puts long bar work in reach for the bar diameters production work actually runs.

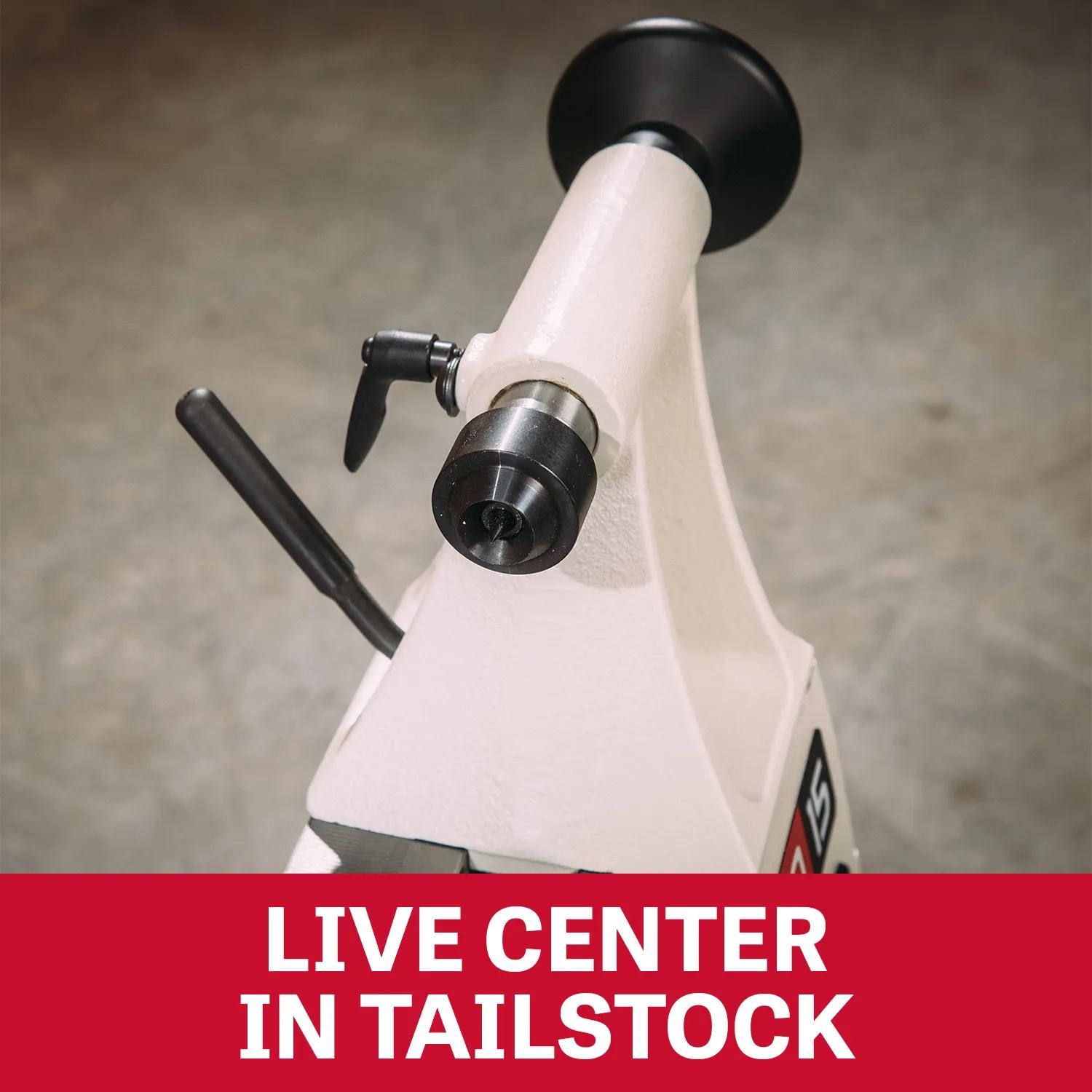

- Engineered Meehanite tailstock castings — delivering the rigidity production turning depends on, sized for the structural authority production turning demands.
- Industrial hardened feed-shaft gears — transferring spindle torque without the wear softer drivetrains develop, engineered for the cycle counts industrial use generates.
Specifications
- SKUJT9-719110
- Assembled Dimensions35 x 18.1 x 14.56 in.
- Centerline of Spindle to FloorVariable
- Collet CloserNo
- ConstructionCast Iron
- Digital ReadoutNo
- Distance Between Centers15-1/2 in.
- Headstock MovementSliding
- Height14.56 in.
- Horse Power1/2 HP
- Input Power115 V 1 Ph
- Model NumberJWL-1015VS
- Motor Amps4 A
- Motor HP0.5 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Number of Indexing Positions24
- Old Material Number719110
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Quill Travel2 in.

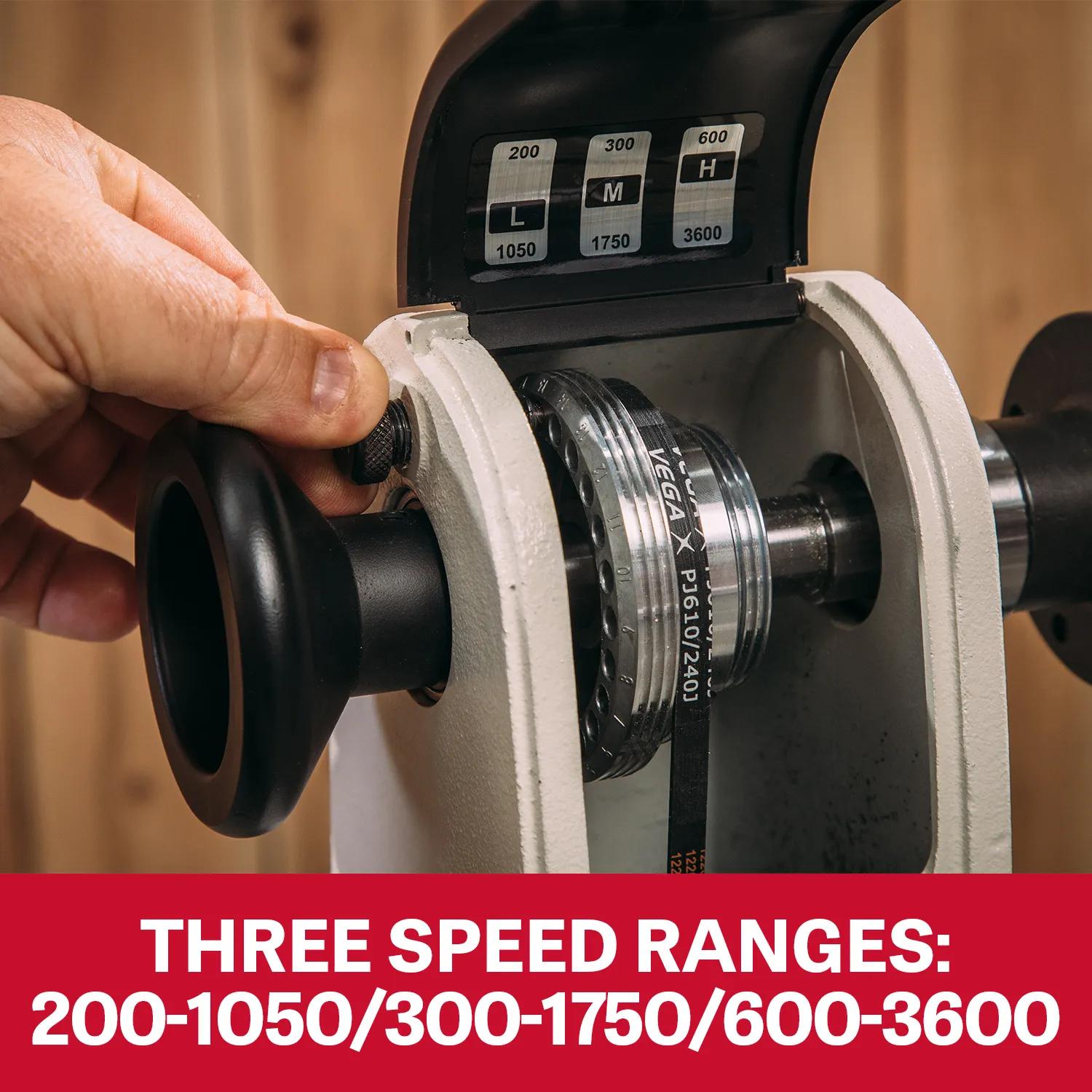

- Range Of Spindle Speeds600 - 3600, 300 - 1750, 200 - 1050 RPM
- Recommended Circut Size Amp10 A
- SAP Gross Weight78
- SAP Net weight72.6
- Speed Range200 - 1050, 300 - 1750, 600 - 3600 RPM
- Spindle Bore3/8 in.
- Spindle Speeds200-1050; 300-1750; 600-3600
- Spindle TaperMT2
- Spindle Thread Tpi1 in. - 8 TPI
- Steady Rest Capacity0.2 - 3.5 in.
- Style TypeBenchtop
- Swing Over Bed10 in.

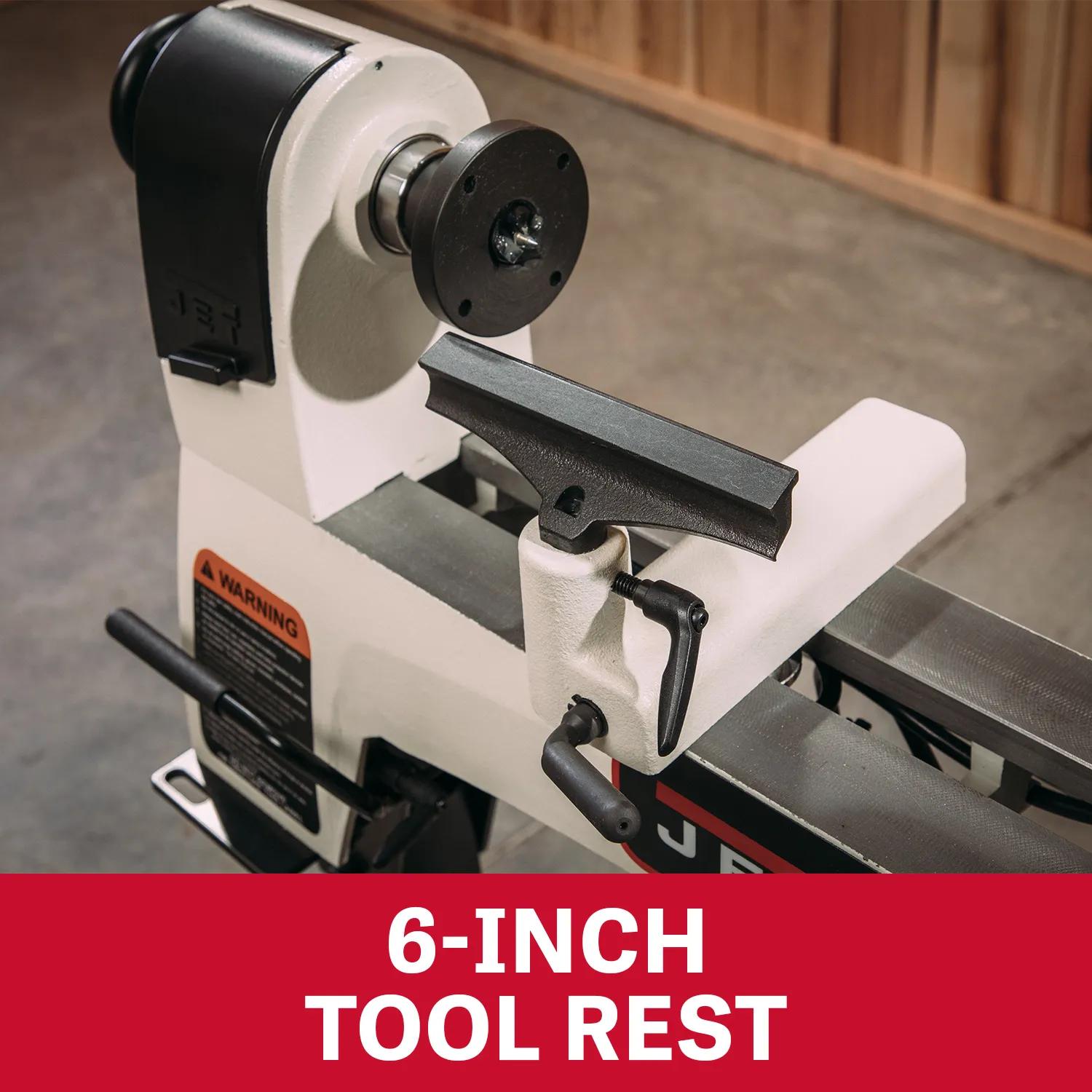

- Tool Rest6 in. Wide - 5/8 in. Post
- UPC731325263923
- WarrantyFive Years
