Product Details
The bed, the spindle, the carriage — every component sized for serious turning. Designed for production turning shops that demand consistency, the JWL-1221VS stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.
Features
- 12-inch swing — delivering swing capacity production turning actually requires.
- Continuous-duty 1 HP induction drive — holding speed under load when lighter motors stall.
- Generous 20-1/4 in. bed length covers shaft turning for repair and fabrication shaft work.
- Precision-rated 3/8 in. spindle bore covers bar-feeding capacity for the bar diameters production work actually runs.
- Engineered Meehanite support castings — delivering the rigidity production turning depends on, sized for the harmonic dampening fine-finish work demands.
- Industrial hardened threading gears — transferring spindle torque without the wear softer drivetrains develop, engineered for finish quality across long production runs.
Specifications
- SKUJT9-719200
- Assembled Dimensions39.3 x 17.7 x 17.7 in.
- Centerline of Spindle to FloorVariable
- Collet CloserNo
- ConstructionCast Iron
- Digital ReadoutYes
- Distance Between Centers20-1/4 in.
- Headstock MovementSliding
- Height17.7 in.
- Horse Power1 HP
- Input Power115 V 1 Ph
- Model NumberJWL-1221VS
- Motor Amps6 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115 V

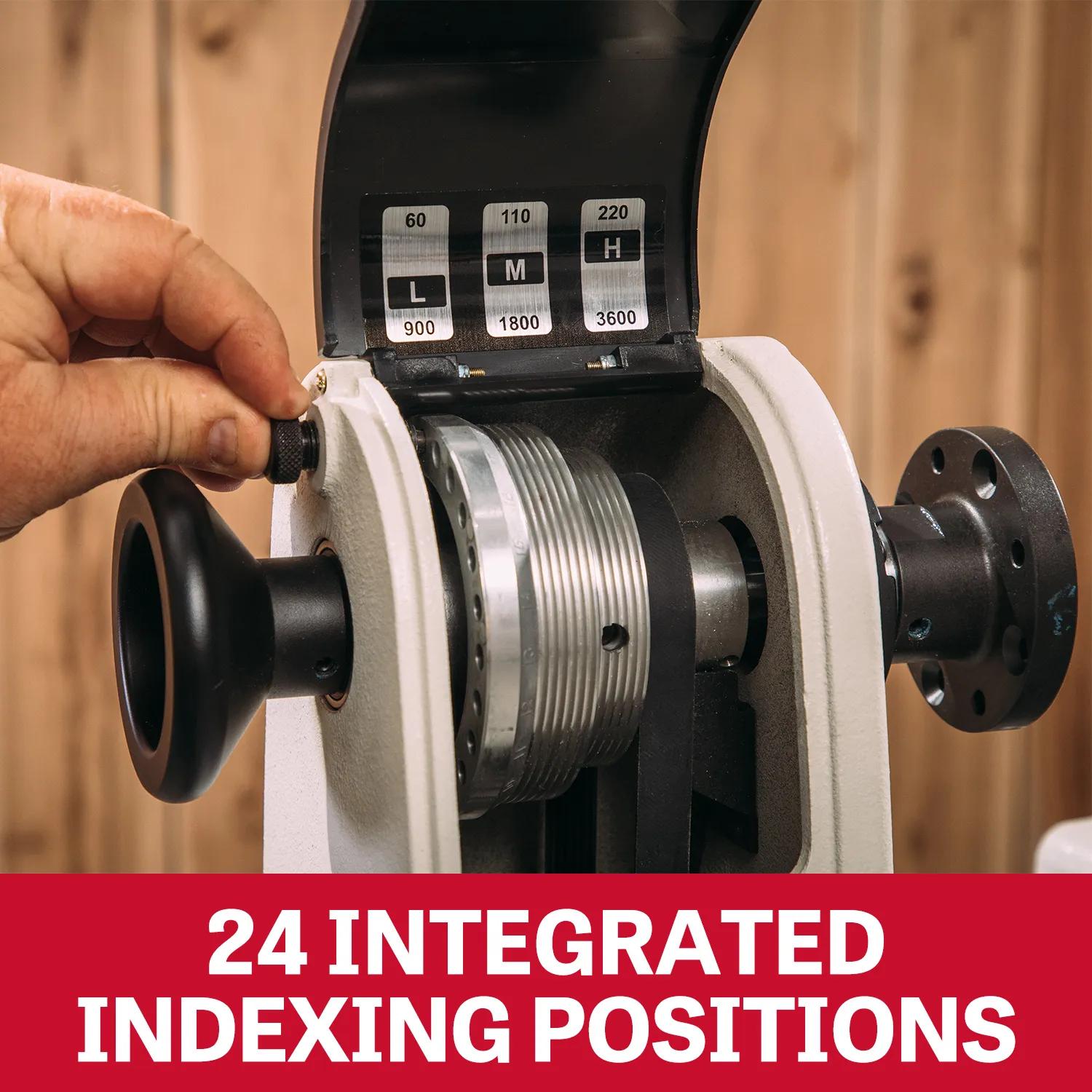

- Number of Indexing Positions24
- Old Material Number719200
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Quill Travel2-1/4 in.
- Range Of Spindle Speeds60 - 900, 110 - 1800, 220 - 3600 RPM
- Recommended Circut Size Amp10 A
- SAP Gross Weight136.69
- SAP Net weight121.25
- Speed Range60 - 900, 110 - 1800, 220-3600 RPM
- Spindle Bore3/8 in.
- Spindle Speeds60-900; 110-1800 220-3600
- Spindle TaperMT2
- Spindle Thread Tpi1 in. - 8 TPI
- Steady Rest Capacity0.2 - 3.5 in.
- Style TypeBenchtop
- Swing Over Bed12-1/2 in.
- Tool Rest6 in./10 in. Wide - 5/8 in. Post
- UPC731325252071
- WarrantyFive Years
