14" x 40". Benchtop Wood Lathe, 1HP, 115/230V 1PH(JWL-1440VS)
14" x 40". Benchtop Wood Lathe, 1HP, 115/230V 1PH(JWL-1440VS)
14" x 40". Benchtop Wood Lathe, 1HP, 115/230V 1PH(JWL-1440VS)
14" x 40". Benchtop Wood Lathe, 1HP, 115/230V 1PH(JWL-1440VS)

14" x 40". Benchtop Wood Lathe, 1HP, 115/230V 1PH(JWL-1440VS)

Stock Number: JT9-719400

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • 14" swing, 40" centers
  • 3/8 in. spindle bore
BUY NOW
Fetching Data...

Product Details

Built for the turning work that defines a production shop. The JWL-1440VS is built for small shops, school programs, and engineering labs. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, production-grade results.

Features

  • 14-inch swing capacity — expanding the working envelope across tool-room turning.
  • Industrial-spec 1 HP single-phase induction motor delivers torque for the duty range working shops actually run.
  • Premium-grade 40 in. bed length supports long-shaft work for shaft turning production schedules generate.
  • 3/8 in. spindle bore — accepting the bar diameters production turning actually runs across industrial machine shops.
  • Certified Meehanite tailstock castings resist wear and deflection for stability where commercial-grade iron warps.
  • Industrial hardened quick-change gears — transmitting power without slop or drift, engineered for the working precision shops measure in tenths.

Specifications

  • SKU
    JT9-719400
  • Assembled Dimensions
    74 x 18 x 18.26 in.
  • Centerline of Spindle to Floor
    Variable
  • Collet Closer
    No
  • Construction
    Cast Iron
  • Digital Readout
    No
  • Distance Between Centers
    40 in.

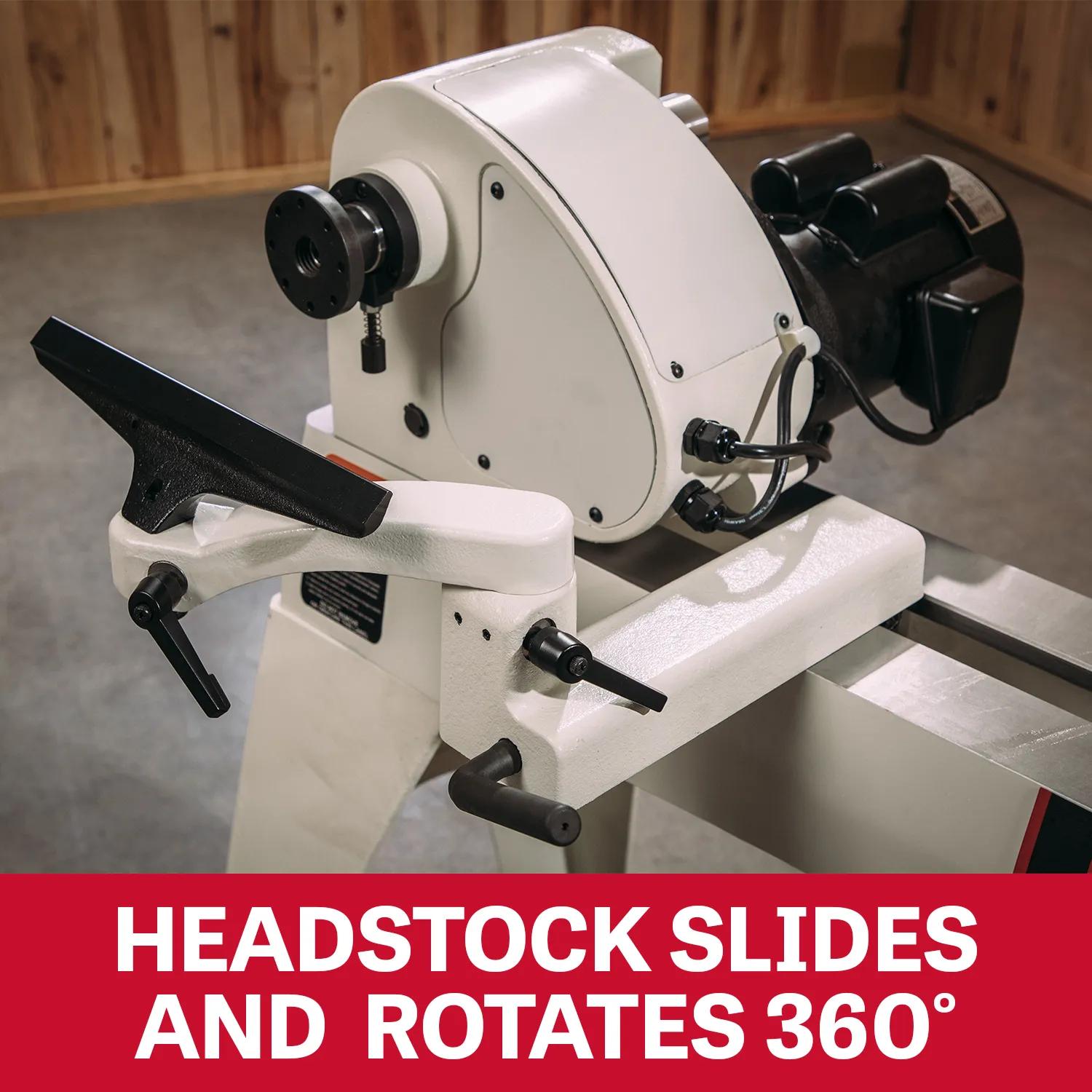

  • Headstock Movement
    Sliding
  • Height
    18.26 in.
  • Horse Power
    1 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    JWL-1440VS
  • Motor Amps
    11 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Indexing Positions
    36
  • Old Material Number
    719400
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Taper
    MT2
  • Quill Travel
    4-1/4 in.
  • Range Of Spindle Speeds
    400 - 3000 RPM
  • Recommended Circut Size Amp
    20 A
  • SAP Gross Weight
    270
  • SAP Net weight
    220
  • Speed Range
    400 - 3000 RPM
  • Spindle Bore
    3/8 in.
  • Spindle Speeds
    400-3000
  • Spindle Taper
    MT2
  • Spindle Thread Tpi
    1 in. - 8 TPI
  • Steady Rest Capacity
    0.2 - 3.5 in.
  • Style Type
    Benchtop
  • Swing Over Bed
    14-1/2 in.
  • Taper Attachment
    No

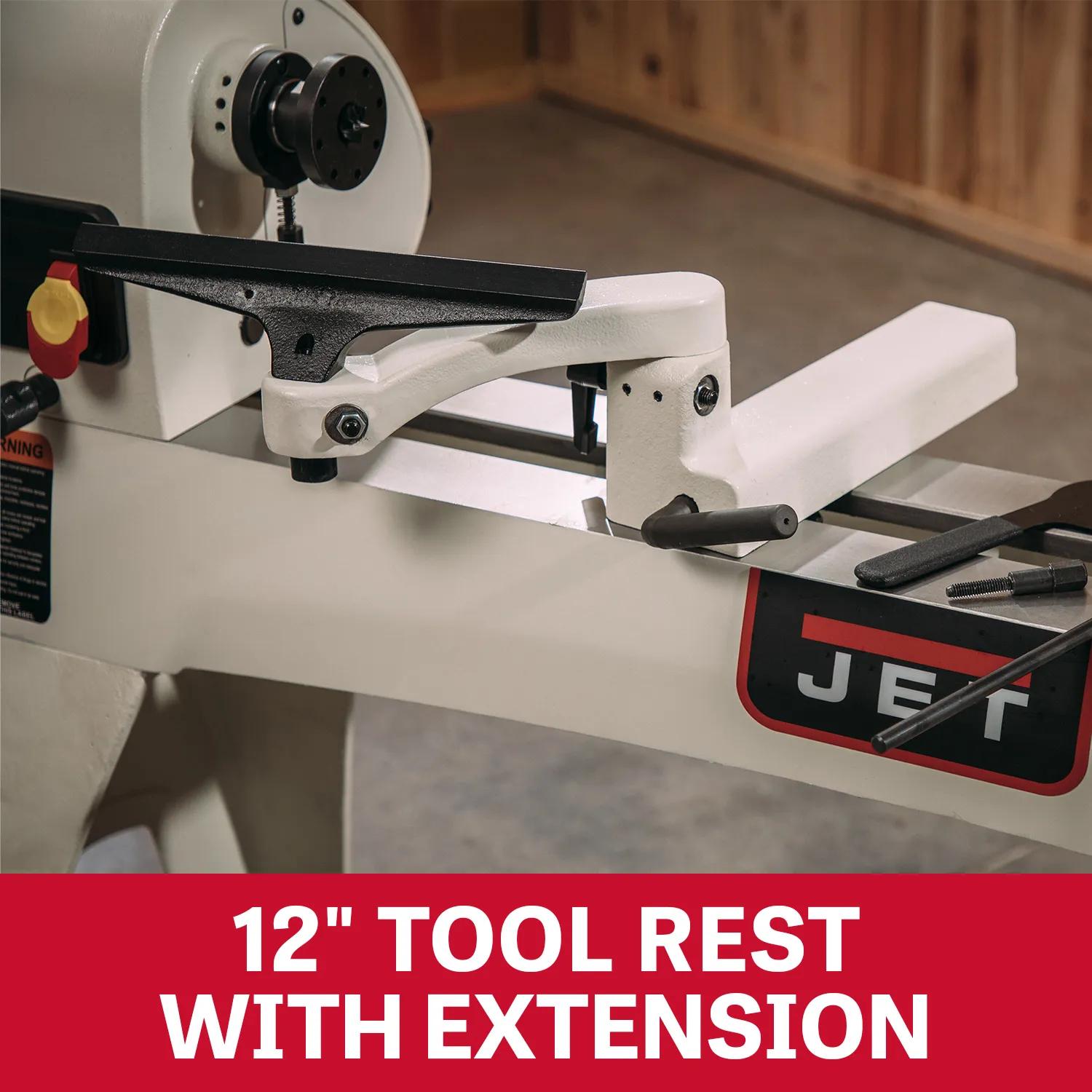

  • Tool Rest
    12 in. Wide - 1 in. Post
  • UPC
    731325342154
  • Warranty
    Five Years
