Product Details
Compact footprint, shop-floor authority. The JWL-1440VSK was sized for small shops, school programs, and engineering labs. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.
Features

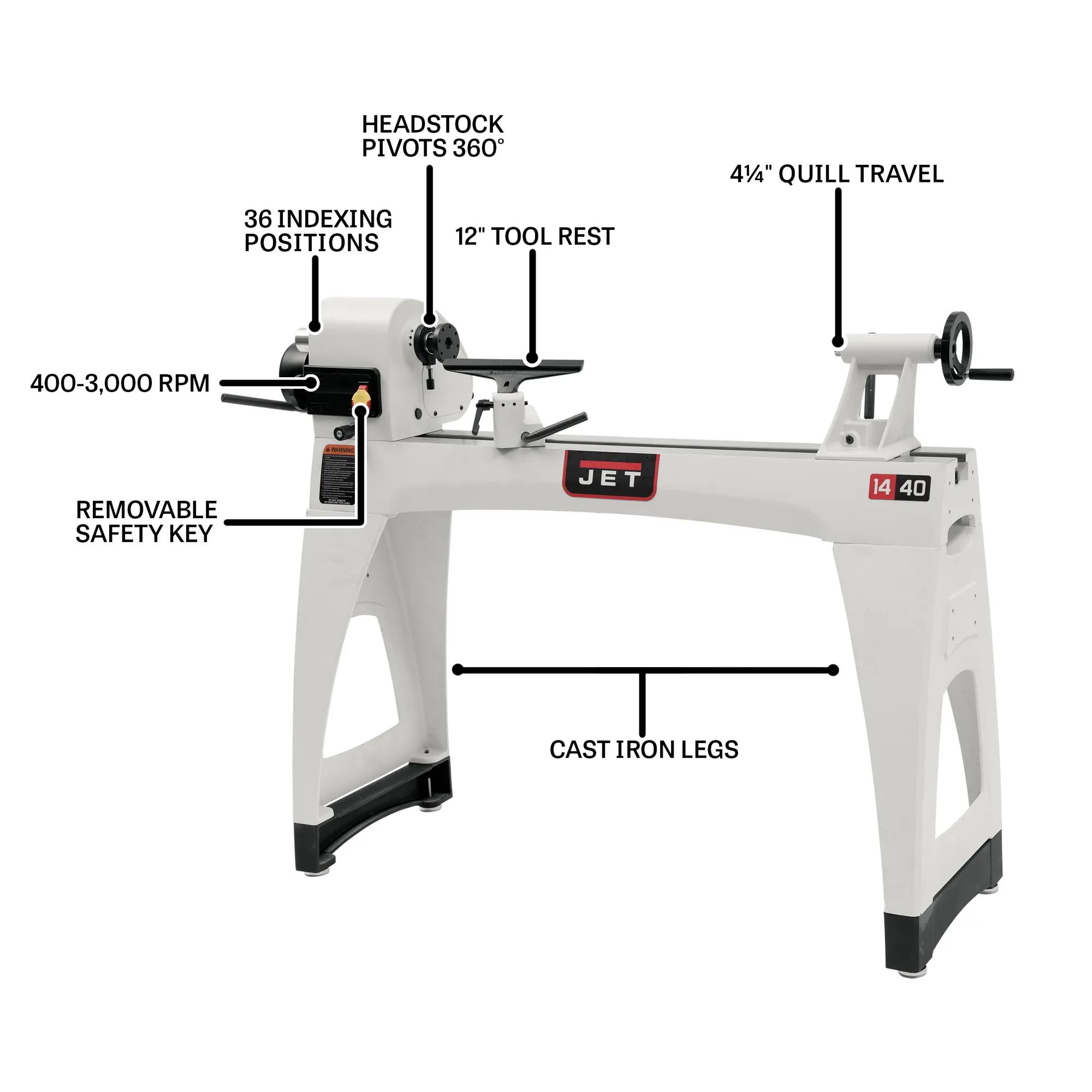

- 14-inch swing-over-bed capacity provides the workpiece diameters for the round-stock work production schedules generate.
- Factory-sealed 1 HP 115/230V induction motor stands up to professional shop floors.
- Heavy-duty 40 in. bed length supports long-shaft work for shaft turning production schedules generate.
- Wide 3/8 in. spindle bore — expanding bar-feeding capacity.
- Certified Meehanite load-bearing castings match structural authority for the harmonic dampening fine-finish work demands.
- Engineered hardened carriage gears — running quieter, cooler, and with less vibration than stock-grade alternatives, engineered for power-transmission accuracy production work depends on.
Specifications
- SKUJT9-719400K
- Assembled Dimensions74 x 18 x 49 in.
- Centerline of Spindle to Floor42 in.
- Collet CloserNo

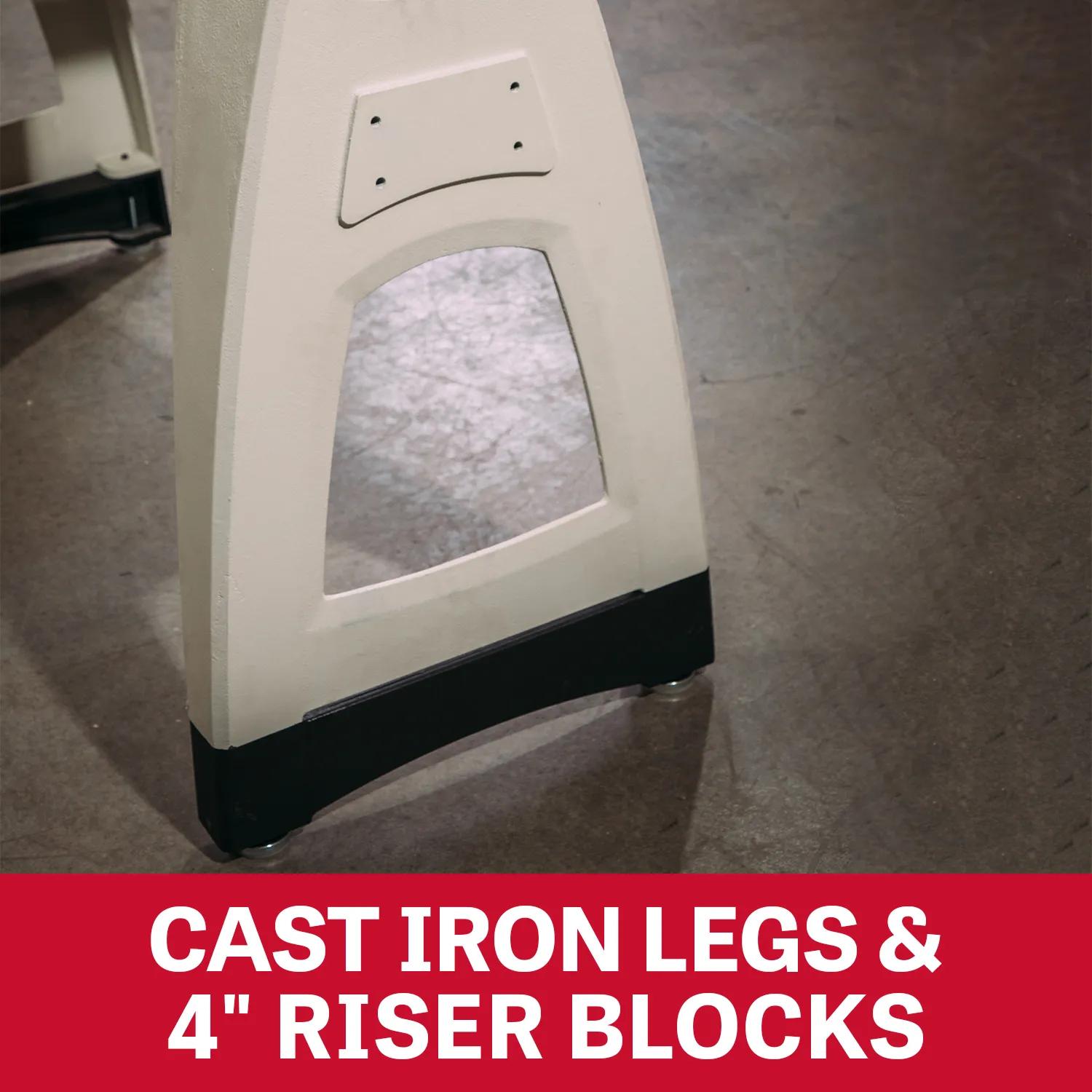

- ConstructionCast Iron
- Digital ReadoutNo
- Distance Between Centers40 in.

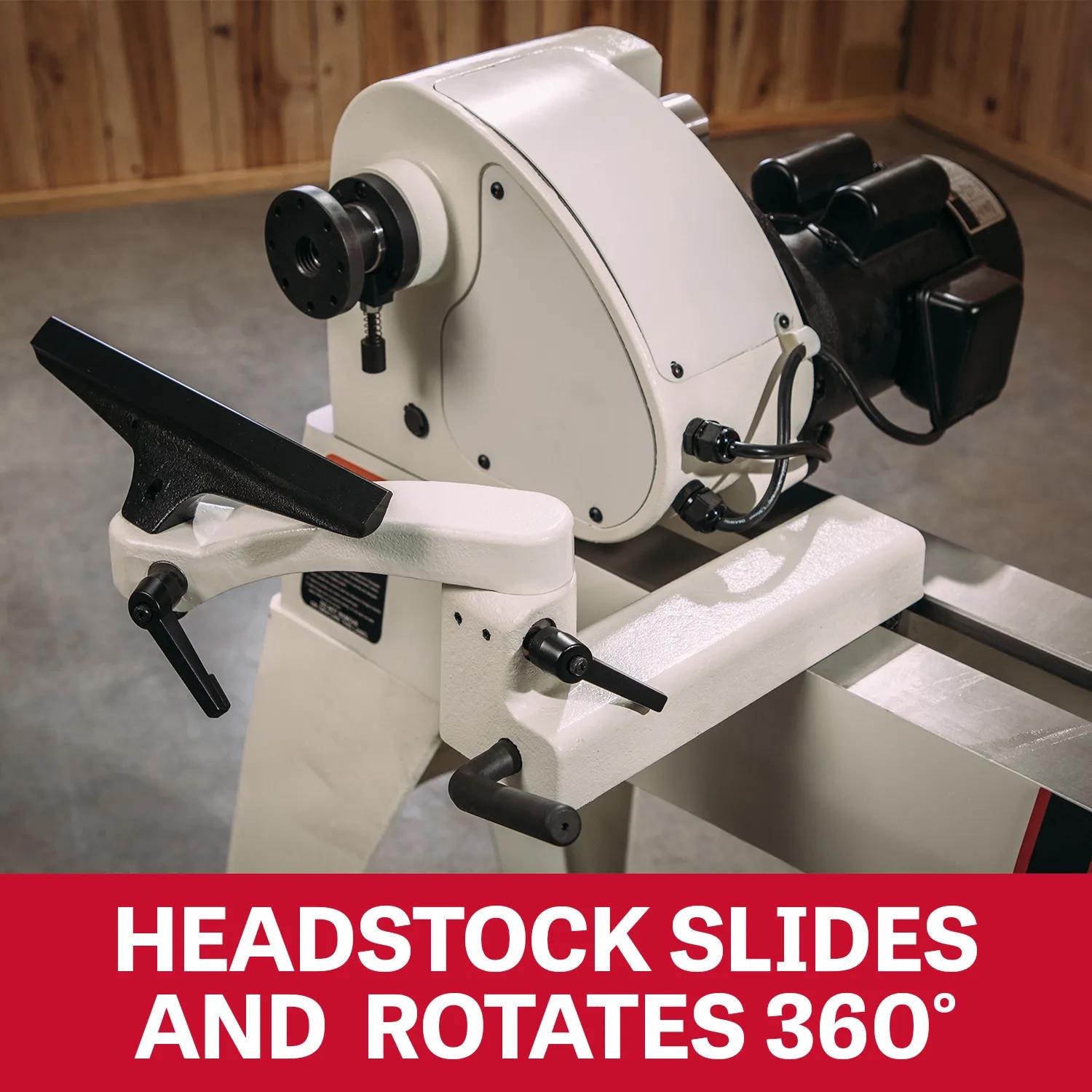

- Headstock MovementSliding
- Height49 in.
- Horse Power1 HP
- Input Power115 V 1 Ph
- Model NumberJWL-1440VSK
- Motor Amps11 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Number of Indexing Positions36
- Old Material Number719400K
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Quill Travel4-1/4 in.
- Range Of Spindle Speeds400 - 3000 RPM
- Recommended Circut Size Amp20 A
- SAP Gross Weight413
- SAP Net weight352
- Speed Range400 - 3000 RPM
- Spindle Bore3/8 in.
- Spindle Speeds400-3000
- Spindle TaperMT2
- Spindle Thread Tpi1 in. - 8 TPI
- Steady Rest Capacity0.2 - 3.5 in.
- Style TypeFloorstanding
- Swing Over Bed14-1/2 in.

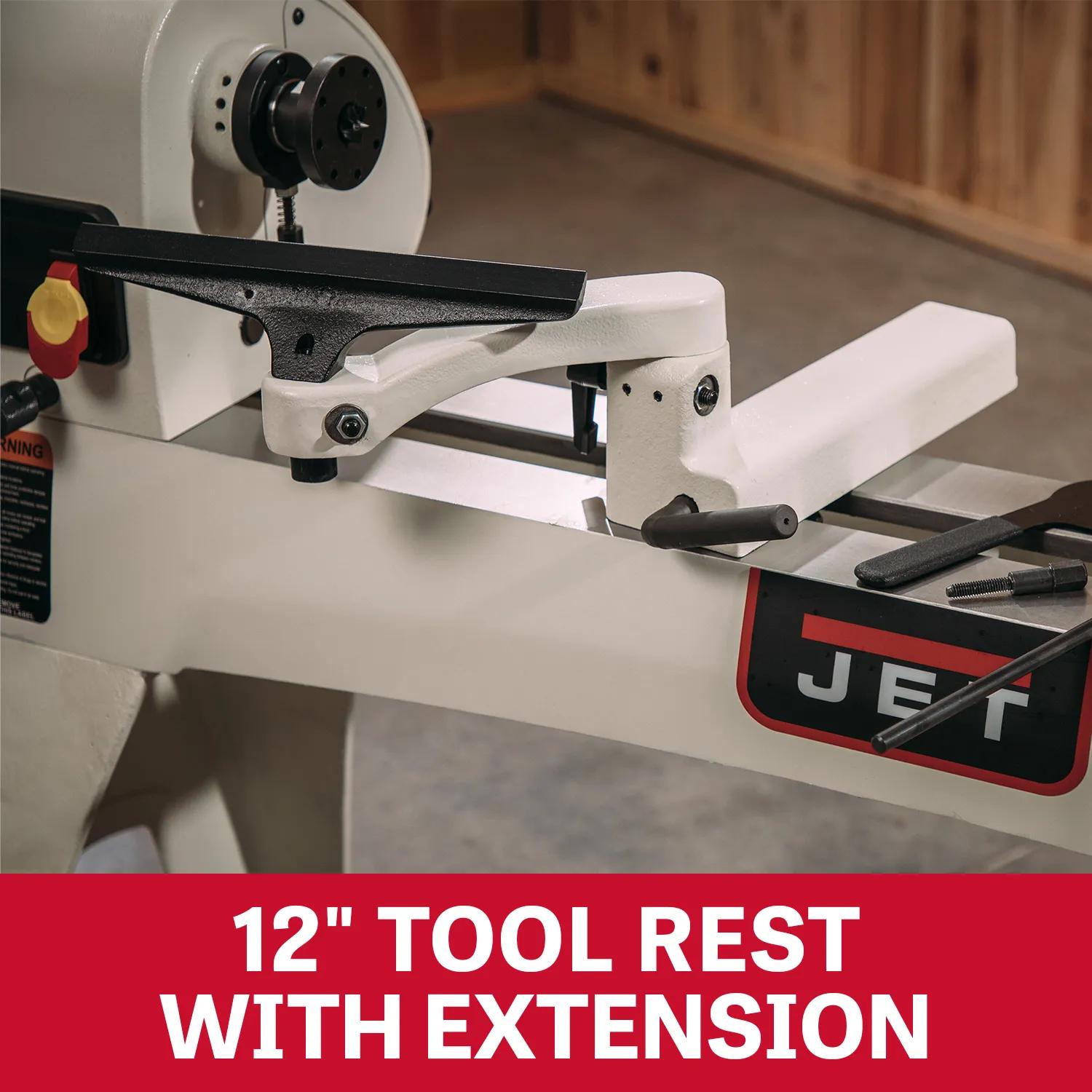

- Tool Rest12 in. Wide - 1 in. Post
- UPC731325352733
- WarrantyFive Years
