16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)
16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)

16" x 40". Wood Lathe, 1.5HP, 115V 1PH(JWL-1640EVS)

Stock Number: JT9-719500

0 Reviews

No reviews yet.

  • 1.5 HP, 115V, three-phase
  • 16" swing, 40" centers
  • 5/8 in. spindle bore
BUY NOW
Fetching Data...

Product Details

Compact footprint, shop-floor authority. The JWL-1640EVS answers the work generated by production turning shops that demand consistency. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.

Features

  • Working-grade 16-inch swing matches the chuck and tool-holding capacity for the workpiece diameters production turning generates.
  • The 1.5 HP induction motor — delivering full nameplate output for the operating realities of production environments.
  • Continuous-duty 40 in. bed length handles long-shaft work for spindle-end-to-tailstock-end work.
  • 5/8 in. spindle bore — expanding bar-feeding capacity across production turning.
  • Engineered Meehanite headstock castings — holding reference flat, sized for finish quality production cutting requires.
  • Industrial hardened spindle drive gears — delivering precision power transmission across decades, engineered for the working precision shops measure in tenths.

Specifications

  • SKU
    JT9-719500
  • Assembled Dimensions
    73 x 52-1/2 x 46-1/3 in.
  • Centerline of Spindle to Floor
    43 in.
  • Collet Closer
    No
  • Construction
    Cast Iron

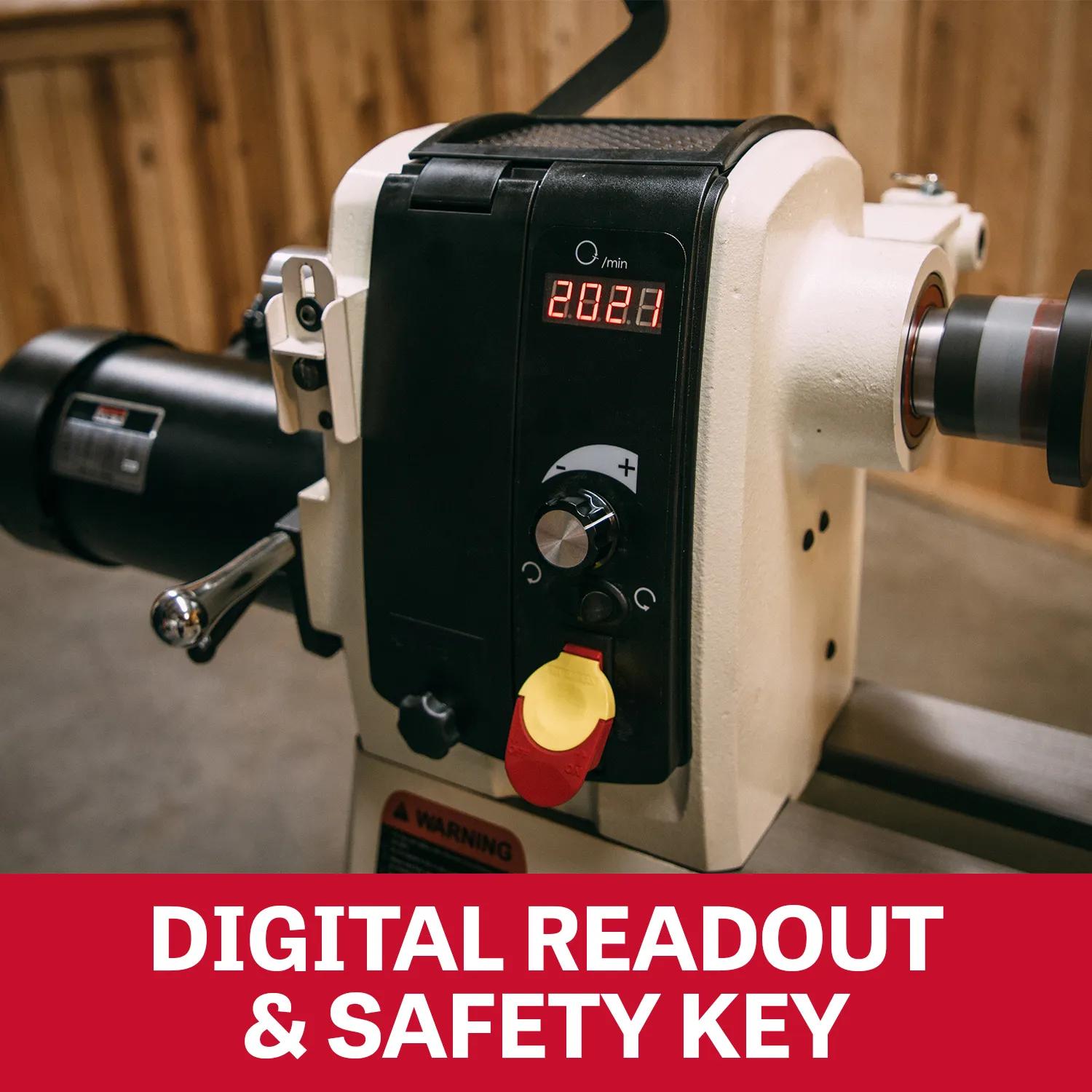

  • Digital Readout
    Yes
  • Distance Between Centers
    40 in.

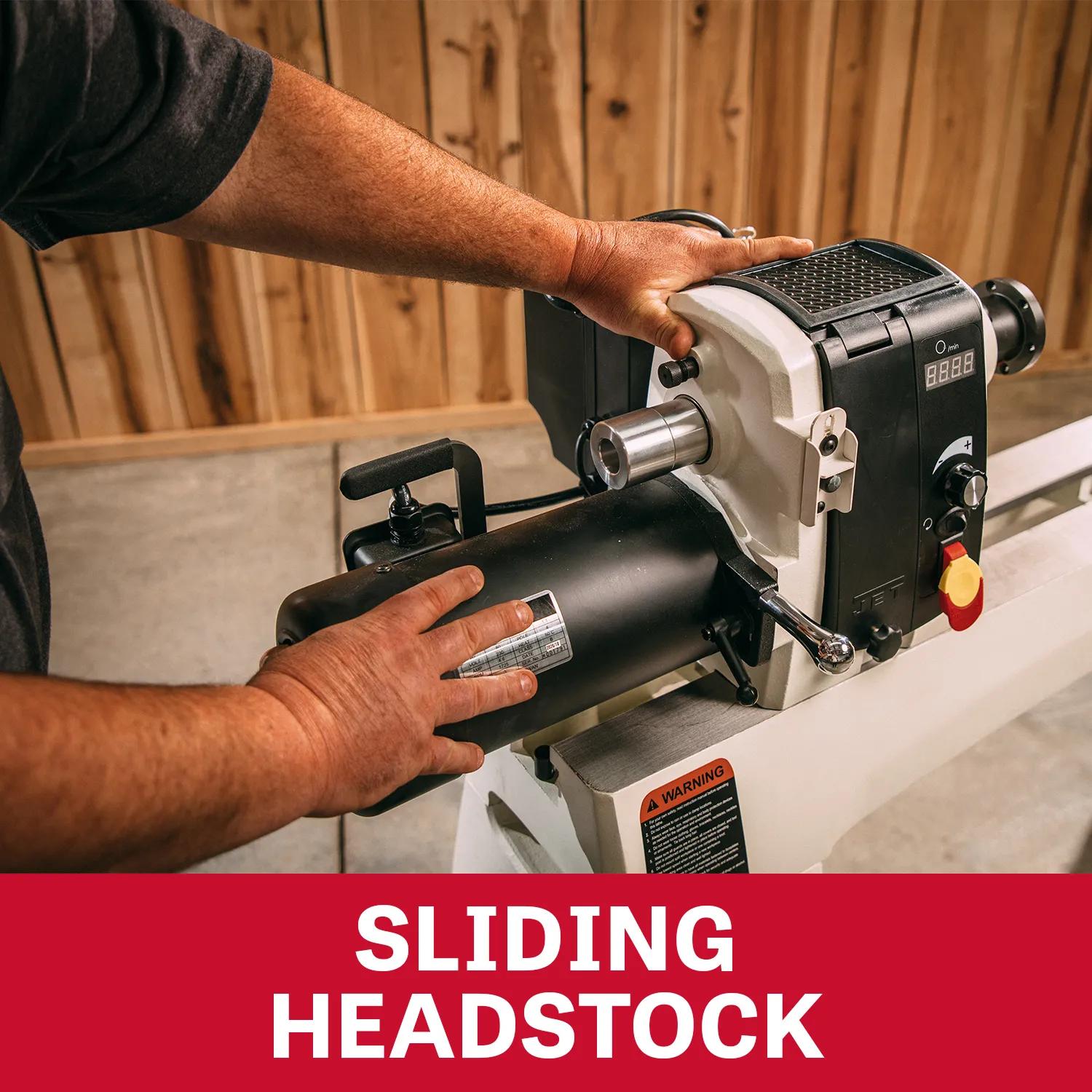

  • Headstock Movement
    Sliding
  • Height
    46-1/3 in.
  • Horse Power
    1.5 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    JWL-1640EVS
  • Motor Amps
    4.6 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Indexing Positions
    36
  • Old Material Number
    719500
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Taper
    MT2
  • Quill Travel
    4-1/2 in.

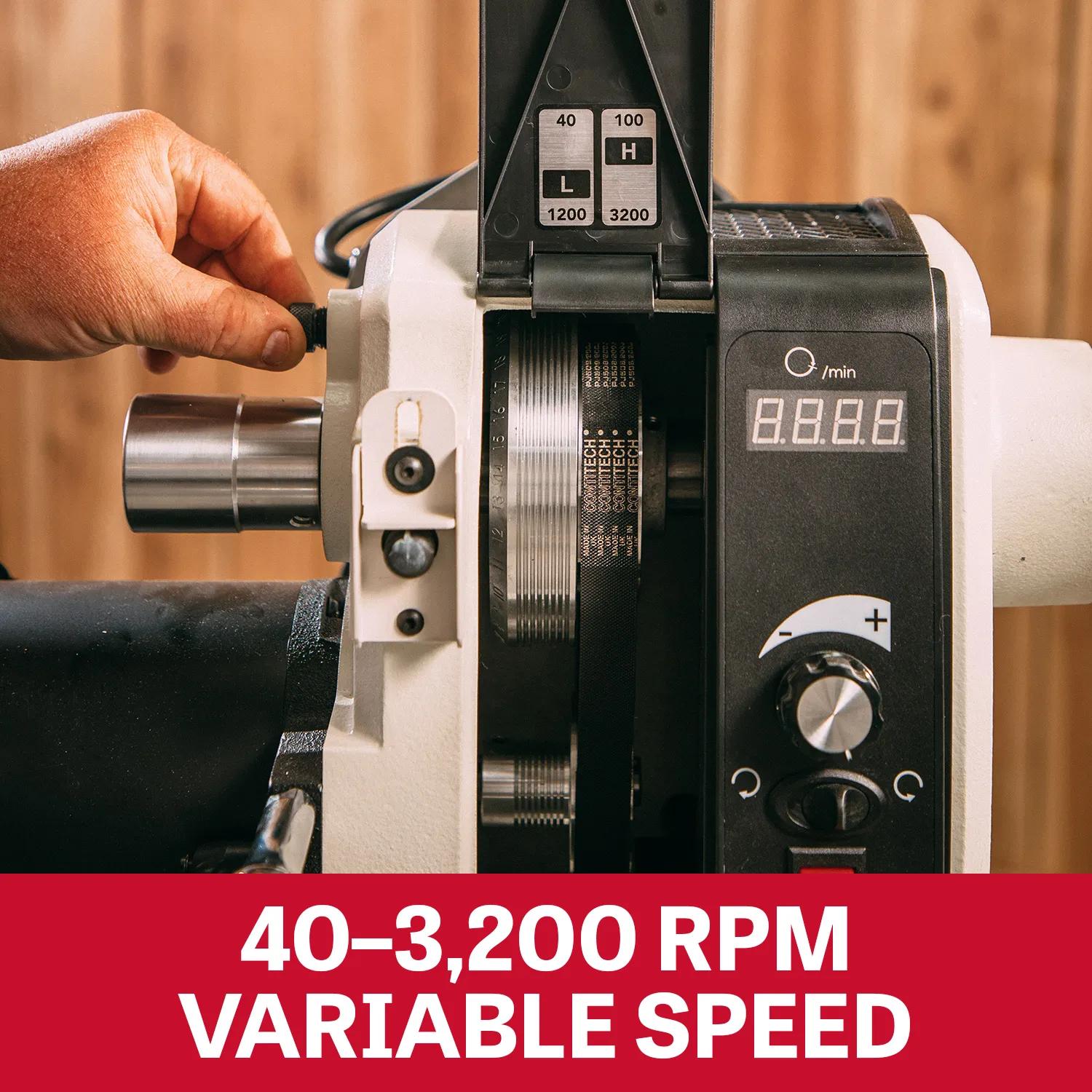

  • Range Of Spindle Speeds
    40 - 1200, 100 - 3200 RPM
  • Recommended Circut Size Amp
    20 A
  • SAP Gross Weight
    440
  • SAP Net weight
    375
  • Speed Range
    40 - 1200, 100 - 3200 RPM
  • Spindle Bore
    5/8 in.
  • Spindle Speeds
    40-1200; 100-3200
  • Spindle Taper
    MT2
  • Spindle Thread Tpi
    1-1/4 in. - 8 TPI
  • Steady Rest Capacity
    0.2 - 3.5 in.
  • Style Type
    Floorstanding
  • Swing Over Bed
    16-1/2 in.
  • Taper Attachment
    No
  • Tool Rest
    14 in. Wide - 1 in. Post
  • UPC
    731325455502
  • Warranty
    Five Years
