Product Details
Production turning, designed around the operator. The JWL-1840EVS fits repair shops, fab shops, and tool-room turning — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.

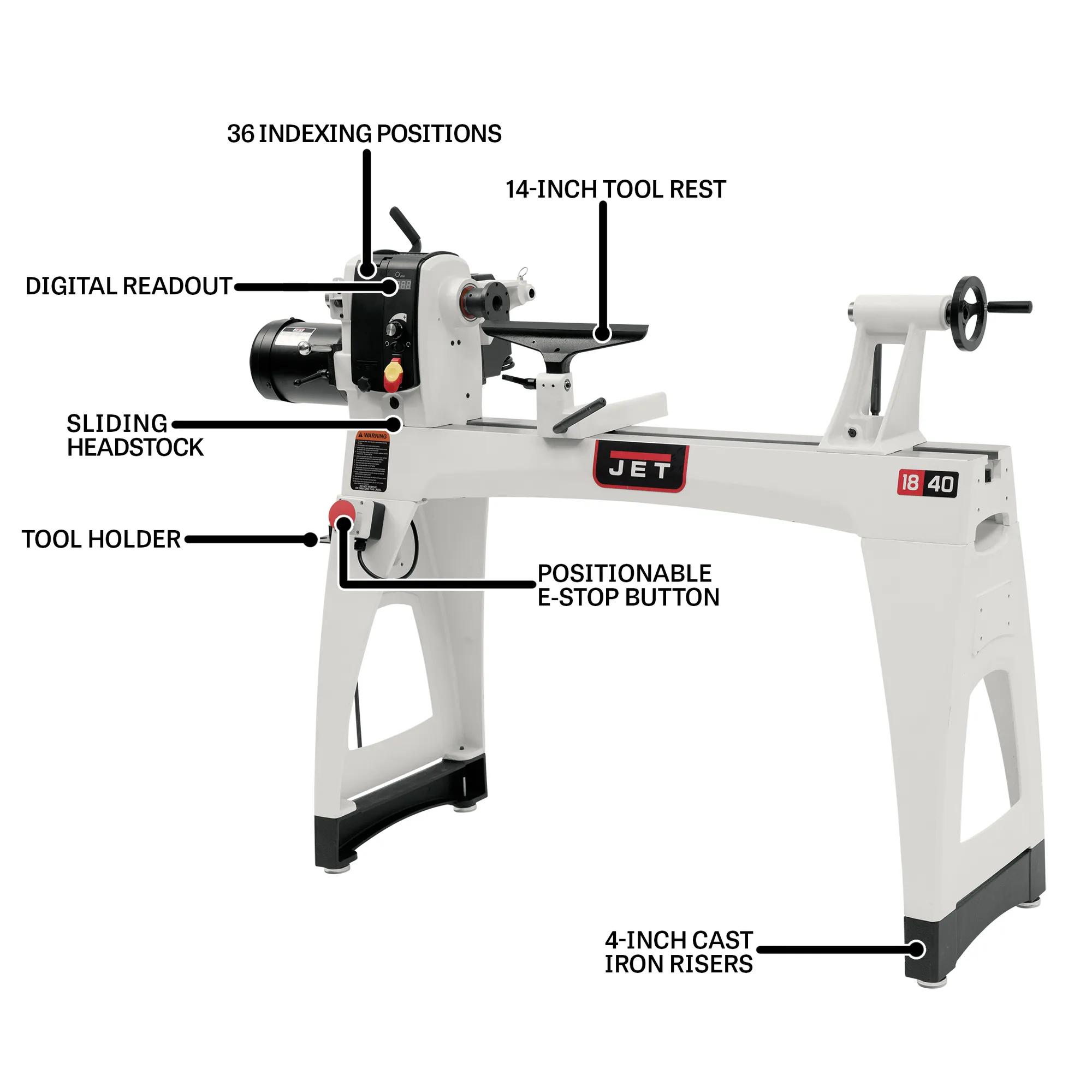

Features
- 18-inch swing capacity — expanding the working envelope across production turning.
- Professional-grade 2 HP drive provides consistent torque for the working loads daily production generates.
- Production-spec 40 in. bed length matches long-shaft work for the long-bed work production turning demands.
- Generous 5/8 in. spindle bore puts long bar work in reach for the bar-stock library production shops keep.
- Heat-treated Meehanite load-bearing castings deliver rigidity for the harmonic dampening fine-finish work demands.
- Engineered hardened quick-change gears — running smoother and quieter than commercial-grade alternatives, engineered without the slop softer drivetrains develop.
Specifications
- SKUJT9-719600
- Assembled Dimensions73 x 52-1/2 x 48-1/3 in.
- Centerline of Spindle to Floor39-1/4 in.
- Collet CloserNo
- ConstructionCast Iron
- Digital ReadoutYes
- Distance Between Centers40 in.

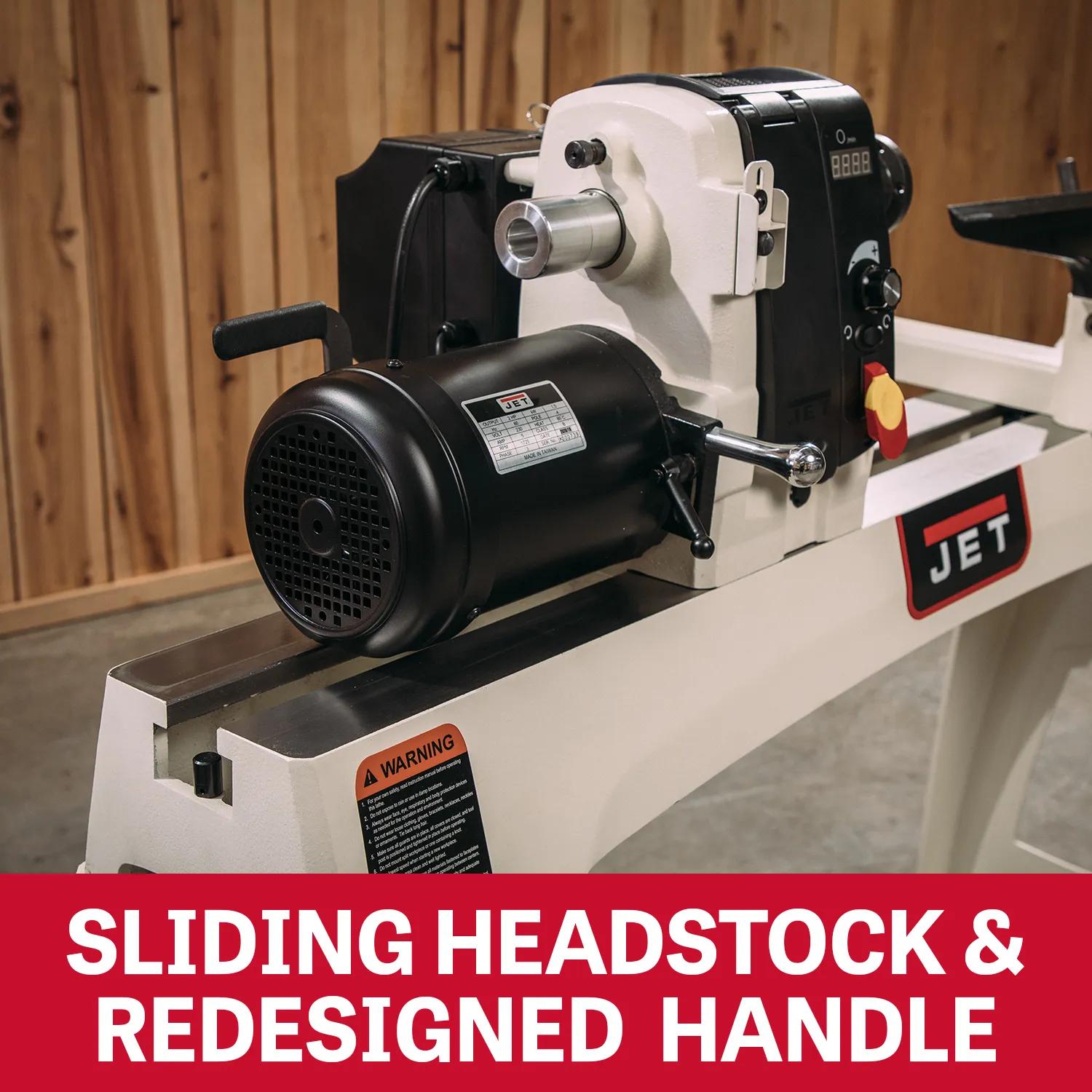

- Headstock MovementSliding
- Height48-1/3 in.
- Horse Power2 HP
- Input Power230 V 1 Ph
- Model NumberJWL-1840EVS
- Motor Amps5 A
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V

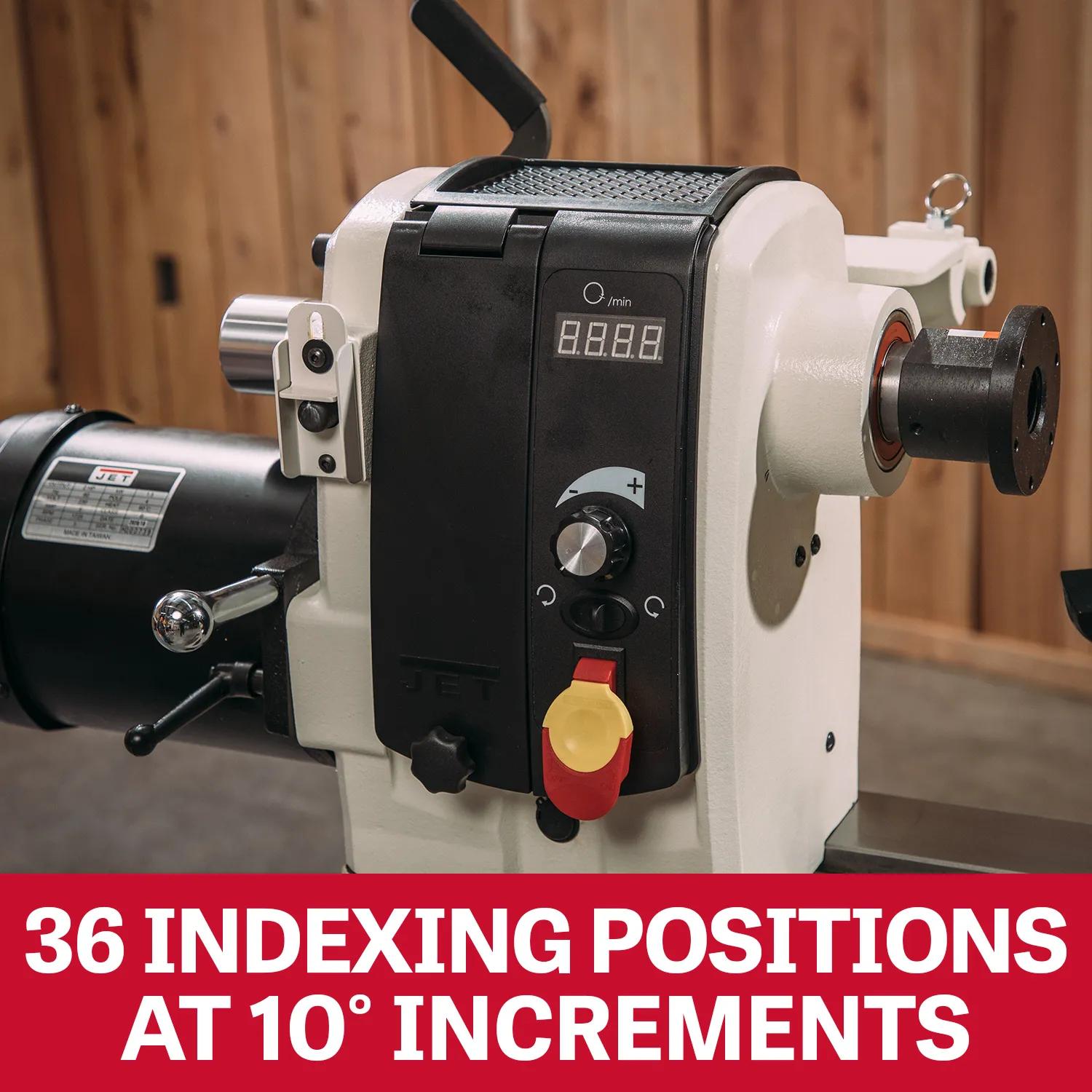

- Number of Indexing Positions36
- Old Material Number719600
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Quill Travel4-1/4 in.
- Range Of Spindle Speeds40 - 3200 RPM
- Recommended Circut Size Amp20 A
- SAP Gross Weight484
- SAP Net weight414
- Speed Range40 - 1200, 100 - 3200 RPM
- Spindle Bore5/8 in.
- Spindle Speeds40-1200; 100-3200
- Spindle TaperMT2
- Spindle Thread Tpi1-1/4 in. - 8 TPI
- Steady Rest Capacity0.2 - 3.5 in.
- Style TypeFloorstanding
- Swing Over Bed18-1/2 in.

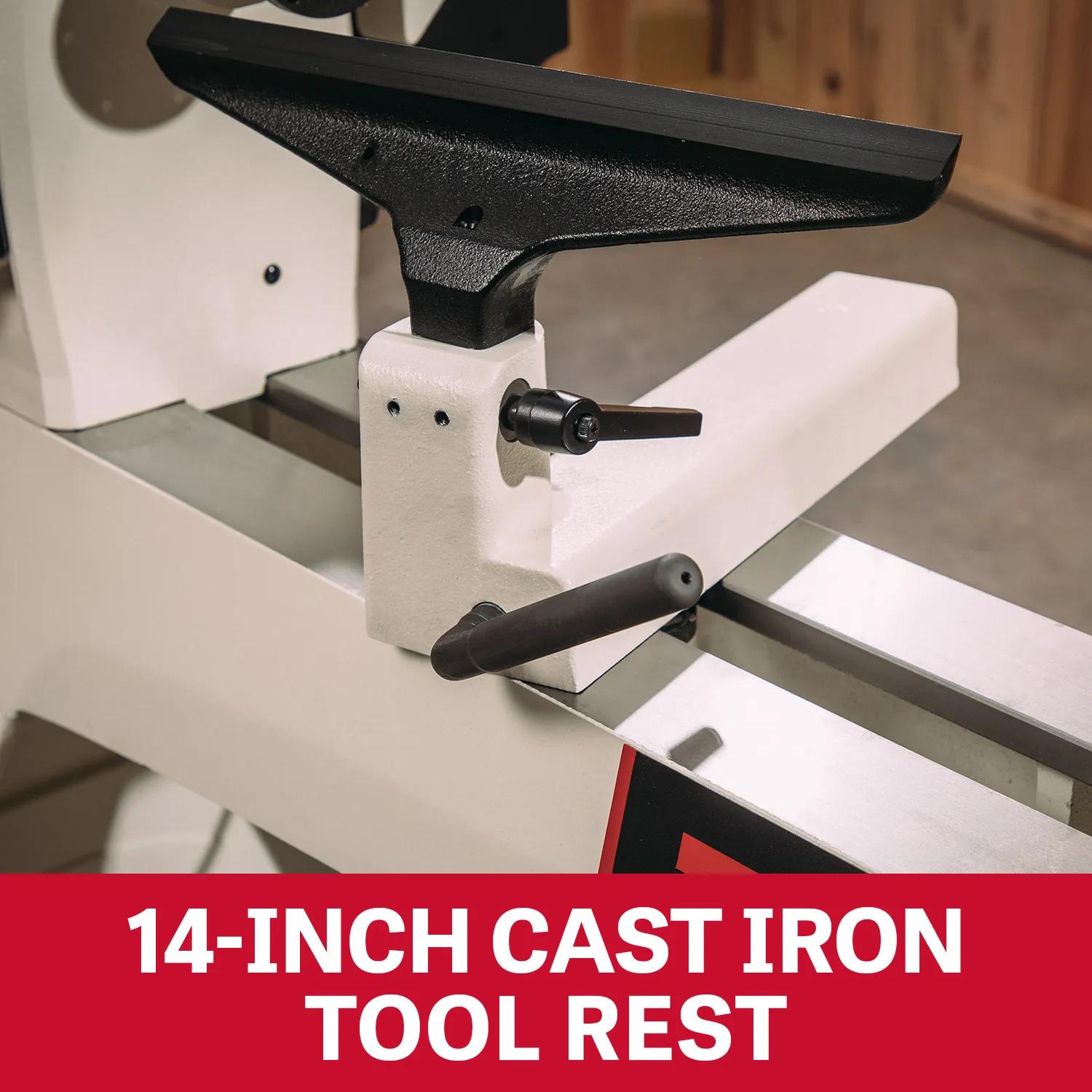

- Tool Rest14 in. Wide - 1 in. Post
- UPC731325455519
- WarrantyFive Years
