Product Details
Cabinet-grade finishes start with a planer built for them. Built around shops where rough lumber turns into shop-ready stock, the JWP-208-1 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and a 400+ service-center network keep production moving.

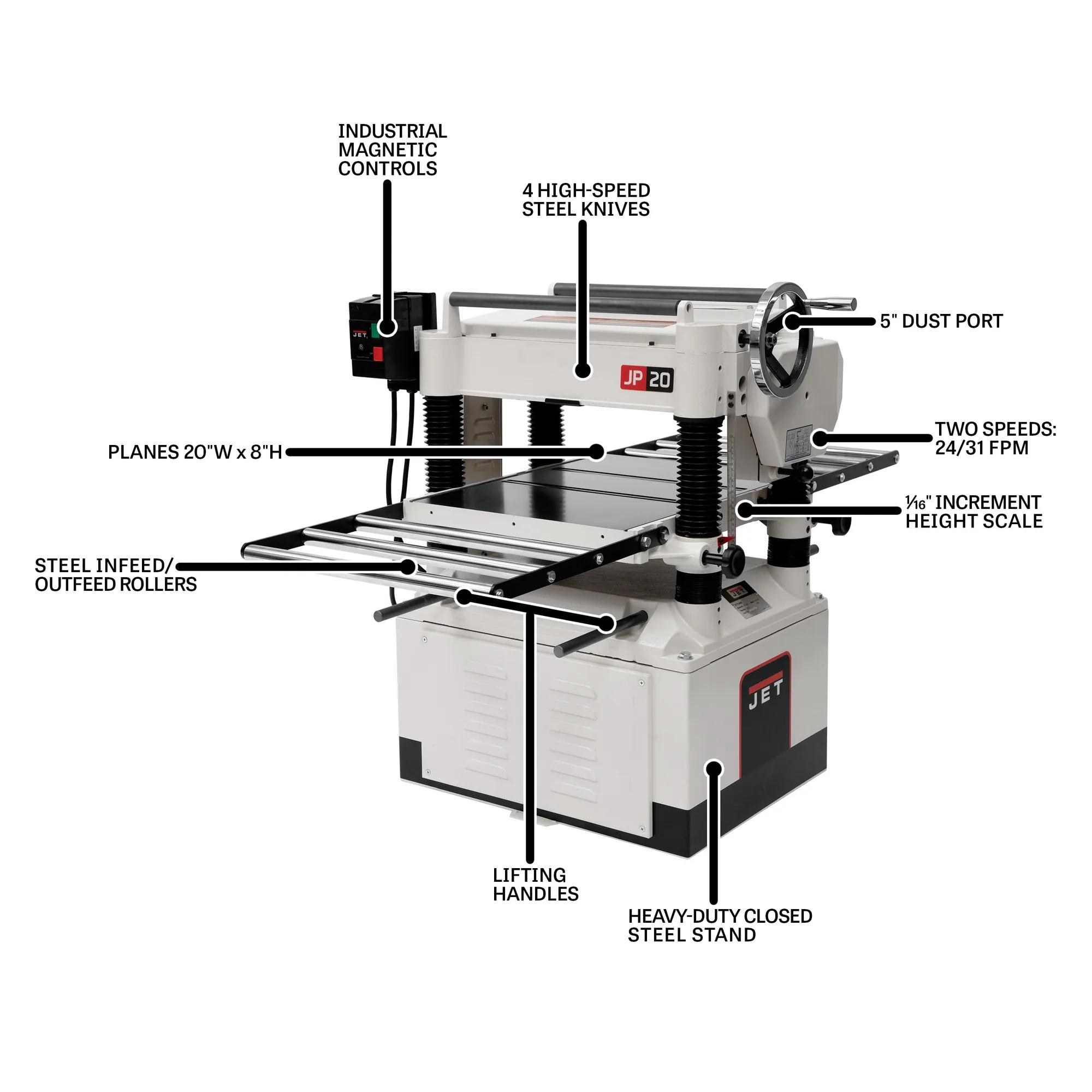

Features
- Wide 20-inch capacity — matching the standard board widths production shops actually run.
- Brushless 3 HP induction motor design means decades of service across tool rooms.

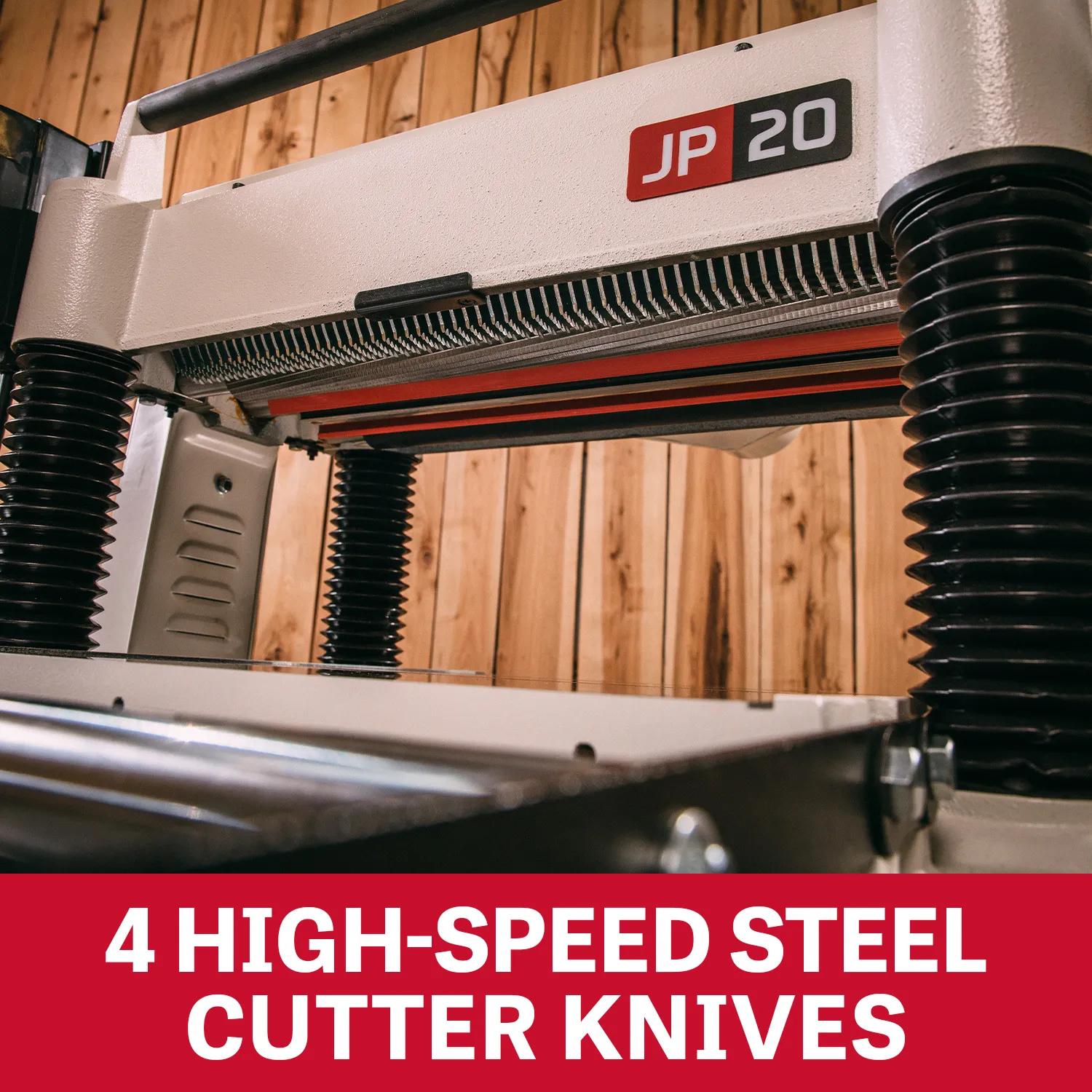

- Industrial-spec 4-knife straight cutterhead supports traditional cutting performance for the proven planing performance production shops actually run.
- Heavy-gauge cast iron infeed and outfeed tables — absorbing the cutting forces lighter materials transmit.
- Working-grade hardened and ground gear assemblies deliver dimensional stability for finish quality across long production runs.
- Industrial-grade CSA/cUS listing — simplifying safety compliance across regulated industrial procurement.
Specifications
- SKUJT9-708528
- Assembled Dimensions26 x 36-5/8 x 41-3/8 in.
- CoatingNone
- Cuts Per Minute20000
- Cutterhead Diameter3-3/16 in.
- Cutterhead Speed5000 RPM
- Cutting Capacity - Width6 in.
- Dust Port Outside Diameter5 in.
- Feed Rate24/31 FPM
- Full Width Depth Of Cut3/32 in.
- Height41.375 in.
- Horse Power3 HP
- Infeed Table Length15 in.
- Input Power230 V 1 Ph
- Maximum Board Thickness8 in.
- Maximum Board Width20 in.
- Maximum Depth Of Cut0.09375 in.
- Minimum Board Length6-3/4 in.
- Model NumberJWP-208-1
- Motor Amps18 A
- Motor HP3 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Number of Knives4

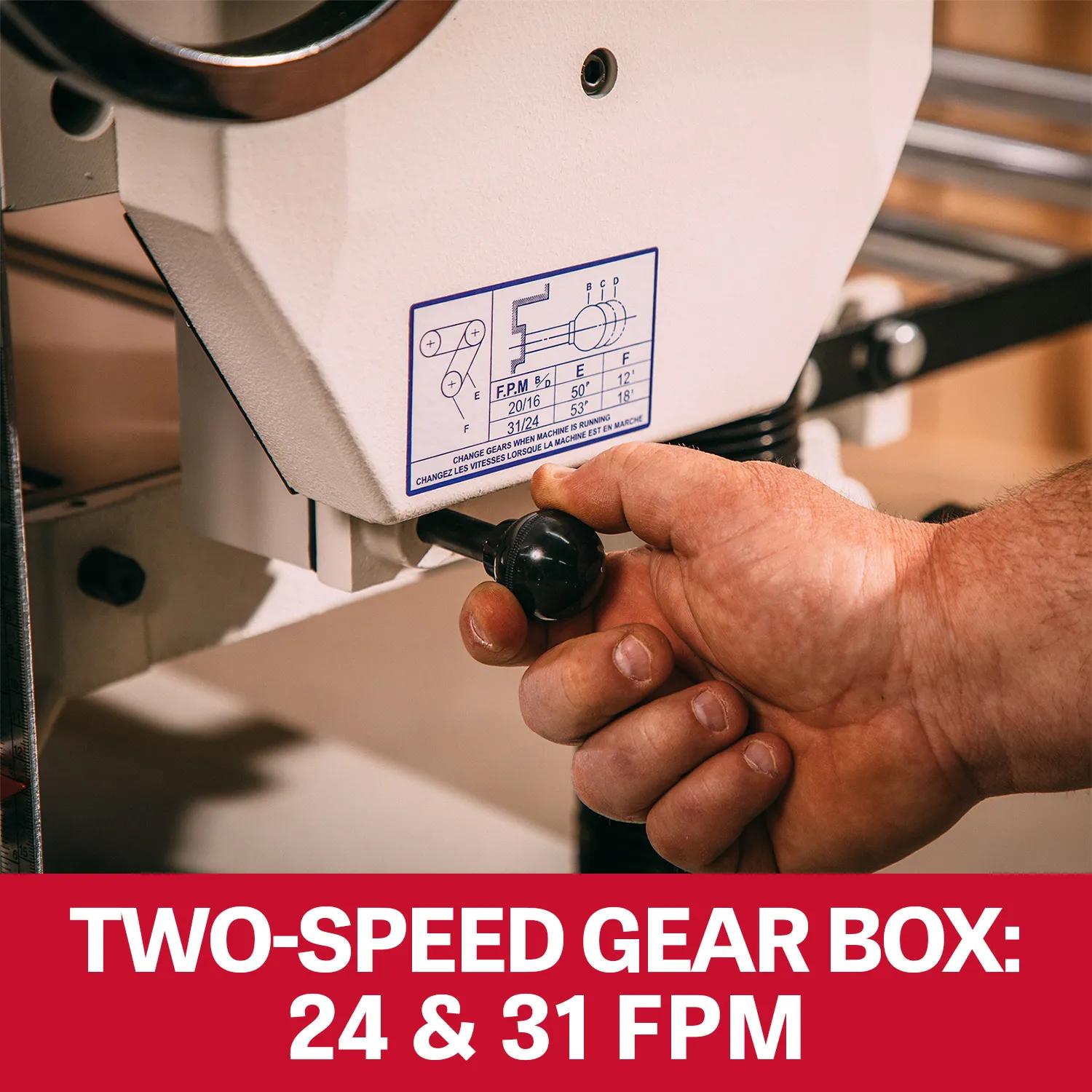

- Number of Speeds2
- Old Material Number708528
- Outfeed Table Length15 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp30 A
- Required Cfm400 - 400 CFM
- SAP Gross Weight765
- SAP Net weight640
- Style TypeFloor Standing
- Table HeightManually Adjusted
- Table Size25-3/4 x 20 in.
- Table Support4 Column
- Type of CutterheadStraight Knife
- UPC662755107009
- WarrantyFive Years
