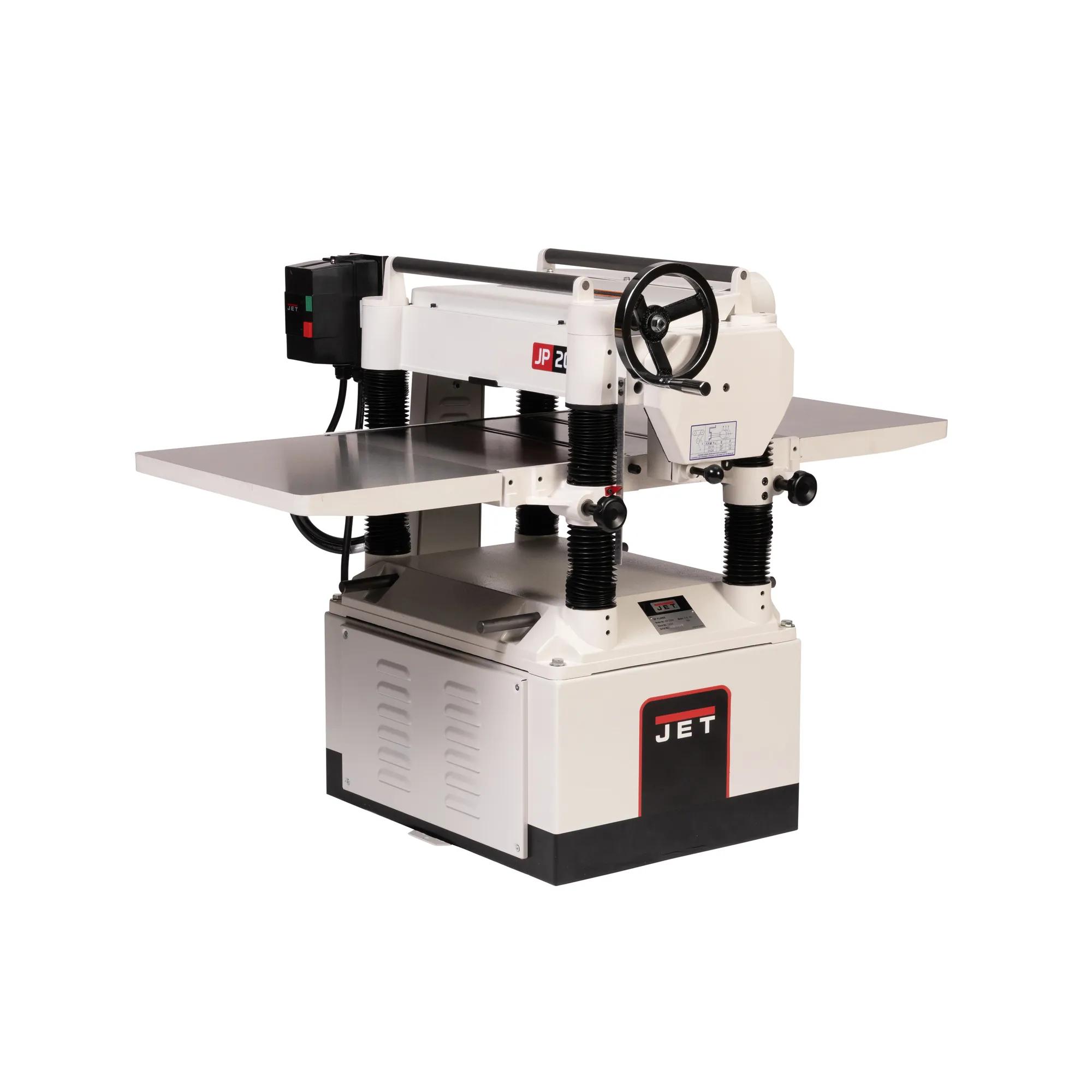

20" Helical Head Wood Planer, 5HP, 1Ph(JWP-208HH)

Stock Number: JT9-708544

0 Reviews

No reviews yet.

  • 5 HP induction motor on 230V, single-phase power

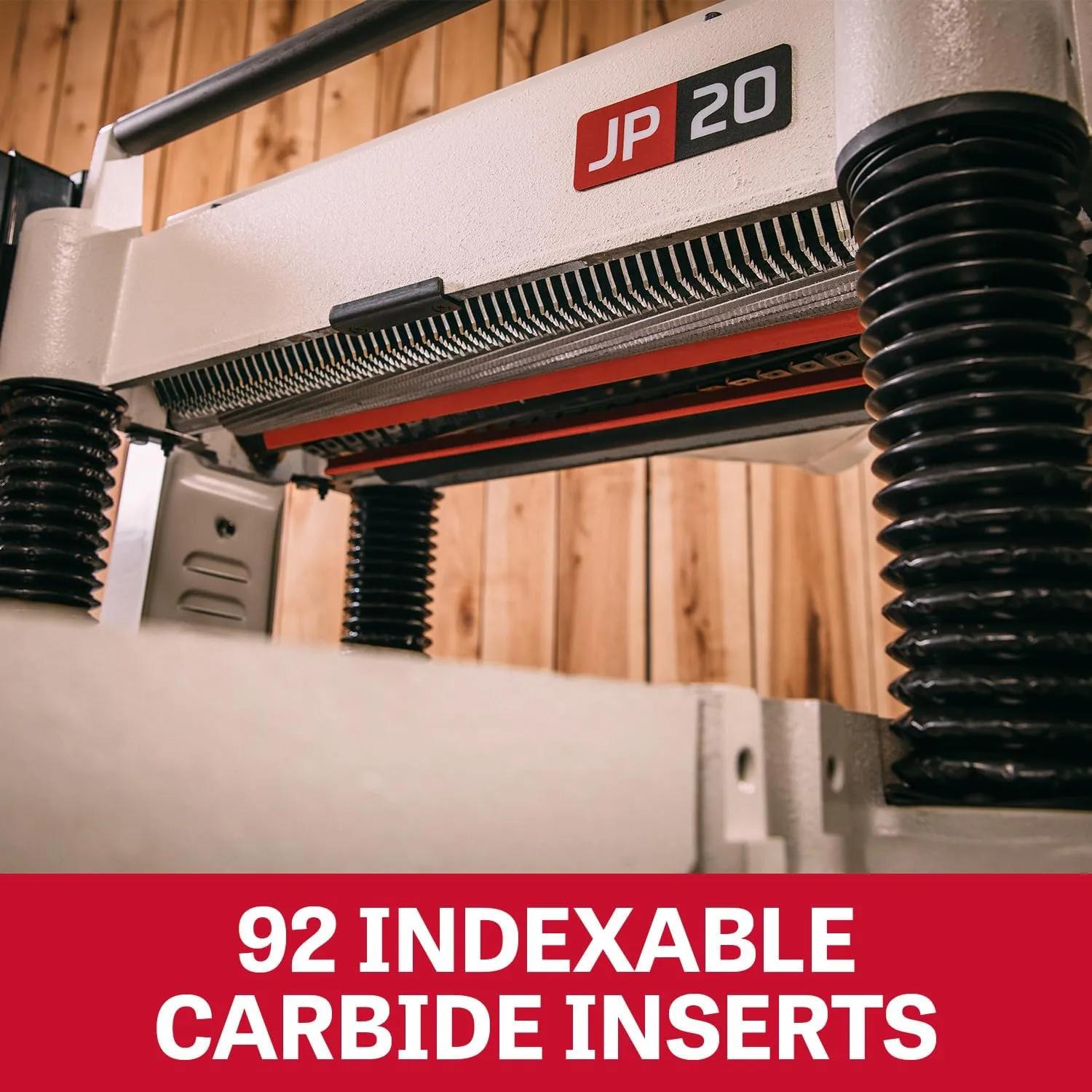

  • 20" full-width helical head with carbide knives
  • Two-speed gearbox with automatic chain tensioner
  • Backed by a 5-year JET warranty for peace of mind
BUY NOW
Loading Banner
Fetching Data...

Product Details

The JET JWP-208HH is a 20" helical head wood planer built to turn rough lumber into smooth, finish-ready stock in a single pass. Heavy-duty cast iron and steel construction keeps the workpiece rock-steady, while a conveniently located two-speed gearbox with automatic chain tensioner lets you dial in feed rate on the fly. This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing staggered carbide knives for a superior finish and quieter cut. Sets of three steel infeed and outfeed rollers help eliminate annoying snipe, and the large, precision-ground cast iron table gives you a smooth-as-glass surface to work from; a beautiful, hardworking addition to any shop. Built for shops that can't afford downtime, the JWP-208HH backs up its performance with a 5-year warranty.

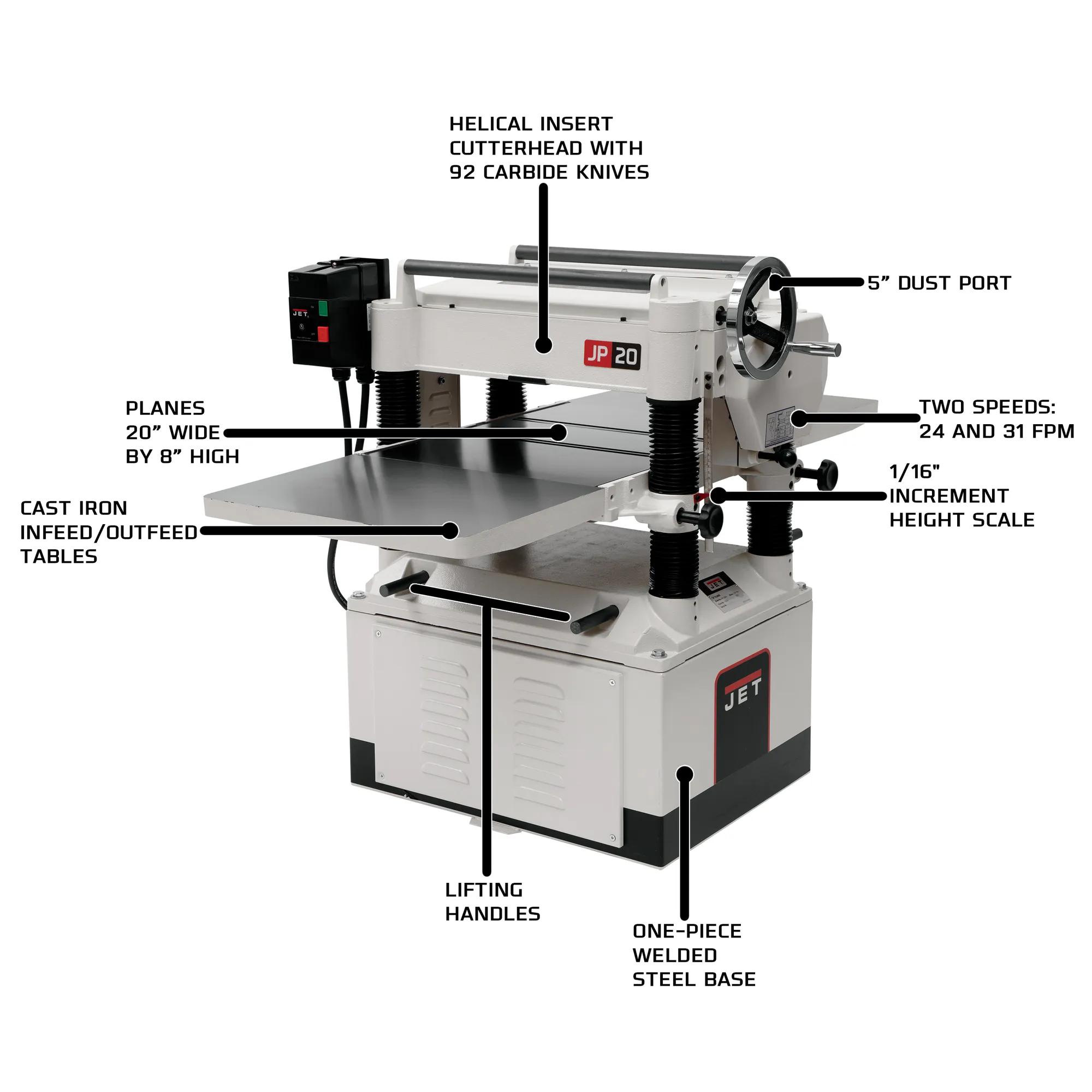

Features

  • 1/16" increment height scale lets you dial in precise, repeatable cutting depths for fine finish work.
  • Three-roller infeed and outfeed sets feed stock smoothly through the cutterhead, helping eliminate snipe for cleaner, more consistent boards.
  • Large cast-iron, precision-ground table provides a smooth-as-glass surface that keeps stock supported and stable during every pass.

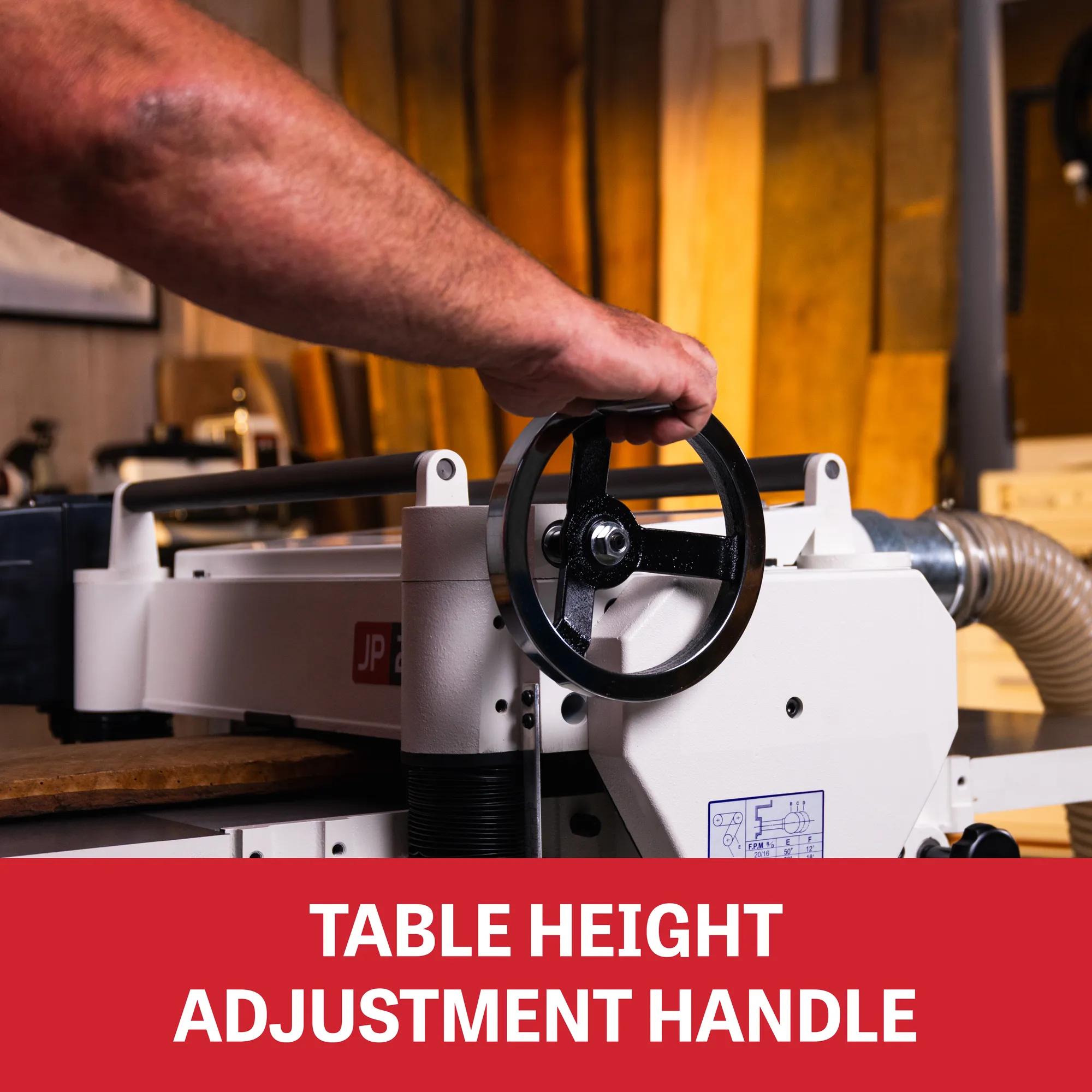

  • Large handwheel with positive gear drive moves the table quickly and accurately, so thickness adjustments are fast and repeatable.
  • Magnetic controls protect the motor from voltage drops and unexpected restarts, adding long-term reliability to daily shop use.
  • One-piece welded steel base delivers solid support and stability, keeping the machine planted through heavy cuts.

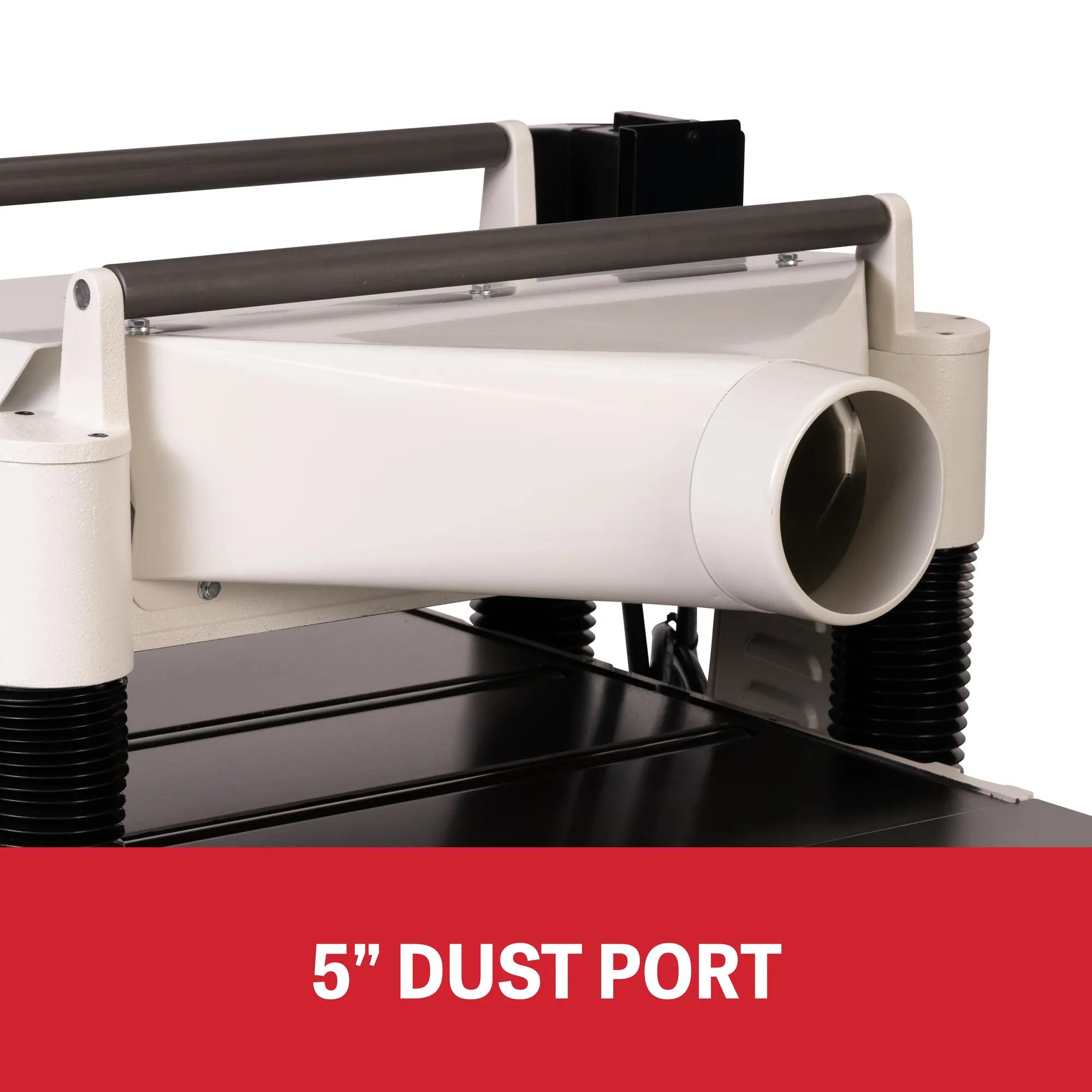

  • 5" dust port with 400 CFM minimum connects easily to shop dust collection for a cleaner, safer work area.

Specifications

  • SKU
    JT9-708544
  • Assembled Dimensions
    36-5/8 in. x 26 in. x 41-3/8 in.
  • Coating
    None
  • Cutterhead Diameter
    3 3/16 in.
  • Cutterhead Speed
    5000 RPM
  • Cutting Capacity - Width
    20 in.
  • Dust Port Outside Diameter
    5 in.
  • Feed Rate
    24, 31 FPM
  • Full Width Depth Of Cut
    3/32 in.
  • Height
    43 3/8 in.
  • Input Power
    220 V 1 Ph
  • Knife Size
    .059” x 0.59” x 0.10”
  • Maximum Board Thickness
    8 in.
  • Maximum Board Width
    20 in.
  • Maximum Depth Of Cut
    3/32 in.
  • Minimum Board Length
    6 3/4 in.
  • Model Number
    JWP-208HH
  • Motor HP
    5 HP
  • Motor Phase
    Single
  • Motor Voltage
    220 V
  • Number of Knives
    68
  • Number of Speeds
    2
  • Old Material Number
    708544
  • Prewired Voltage
    220 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    790
  • SAP Net weight
    640
  • Table Size
    25-3/4 x 20 in.
  • Type of Cutterhead
    Helical Head
  • UPC
    662755955891
  • Warranty
    Five Years
