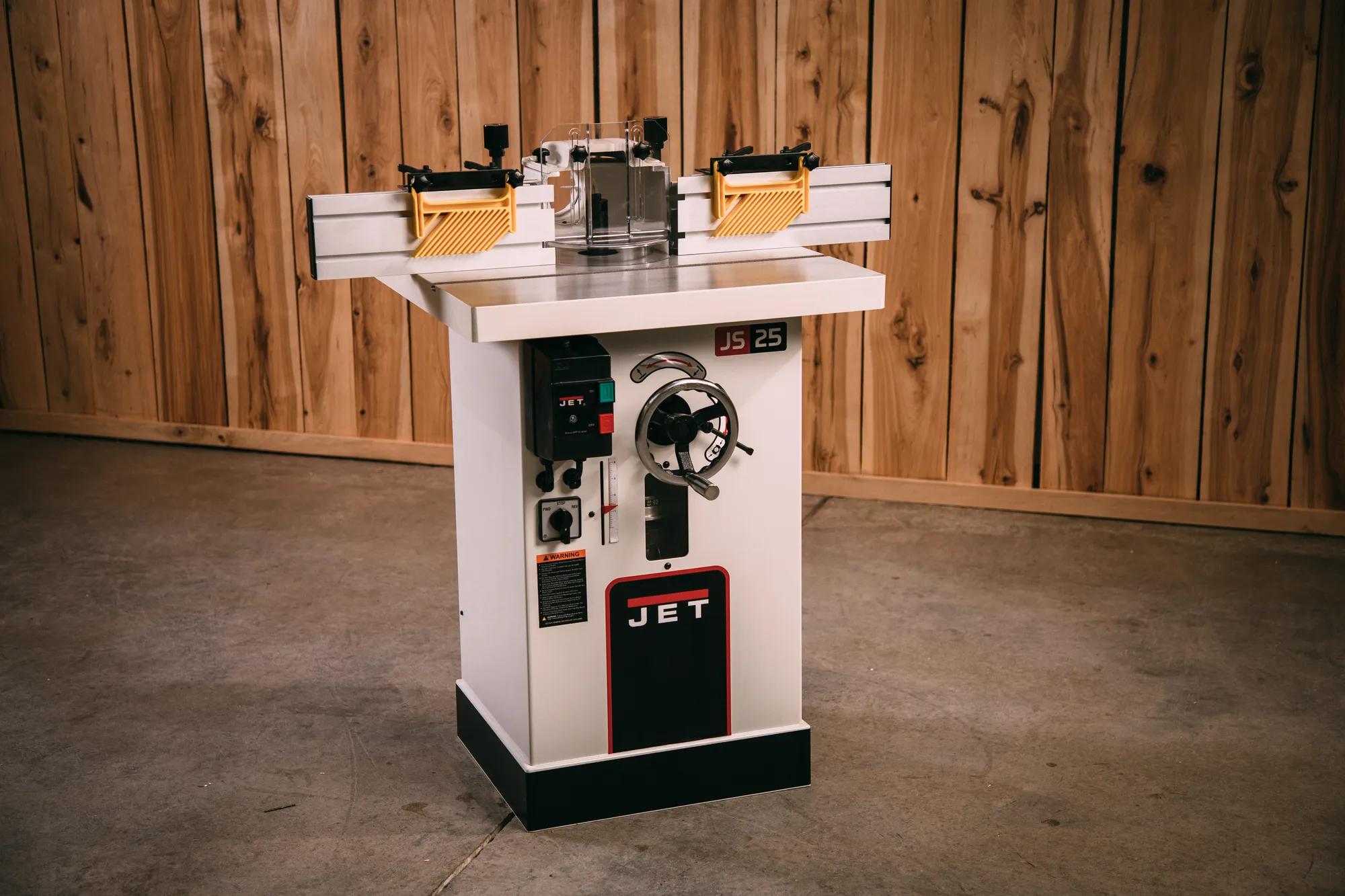

25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)
25" x 25" Shaper, 3HP, 1PH(JWS-25X)

25" x 25" Shaper, 3HP, 1PH(JWS-25X)

Stock Number: JT9-708309

0 Reviews

No reviews yet.

  • 3 HP, 230V, single-phase
  • Variable speed control
  • Industrial collet system
  • Cast iron table
BUY NOW

Product Details

Where the bit meets the work, sized for industrial cycles. Designed for production routing that defines part edges, the JWS-25X stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial cutting durability, industrial warranty coverage.

Features

  • Factory-sealed 3 HP 230V induction motor stands up to working shops.
  • Spring-collet design delivers concentric tool holding for fast bit swaps without operator-side complexity.
  • Variable speed control — letting operators match the cut to the bit and material.
  • Mechanical authority built into every component of the routing path — standing up to the cycle counts production work demands.
  • Heat-treated and surface-ground gear assemblies resist wear across industrial duty cycles.
  • Independently CSA/cUS listed for the safety paperwork EHS managers actually verify.

Specifications

  • SKU
    JT9-708309

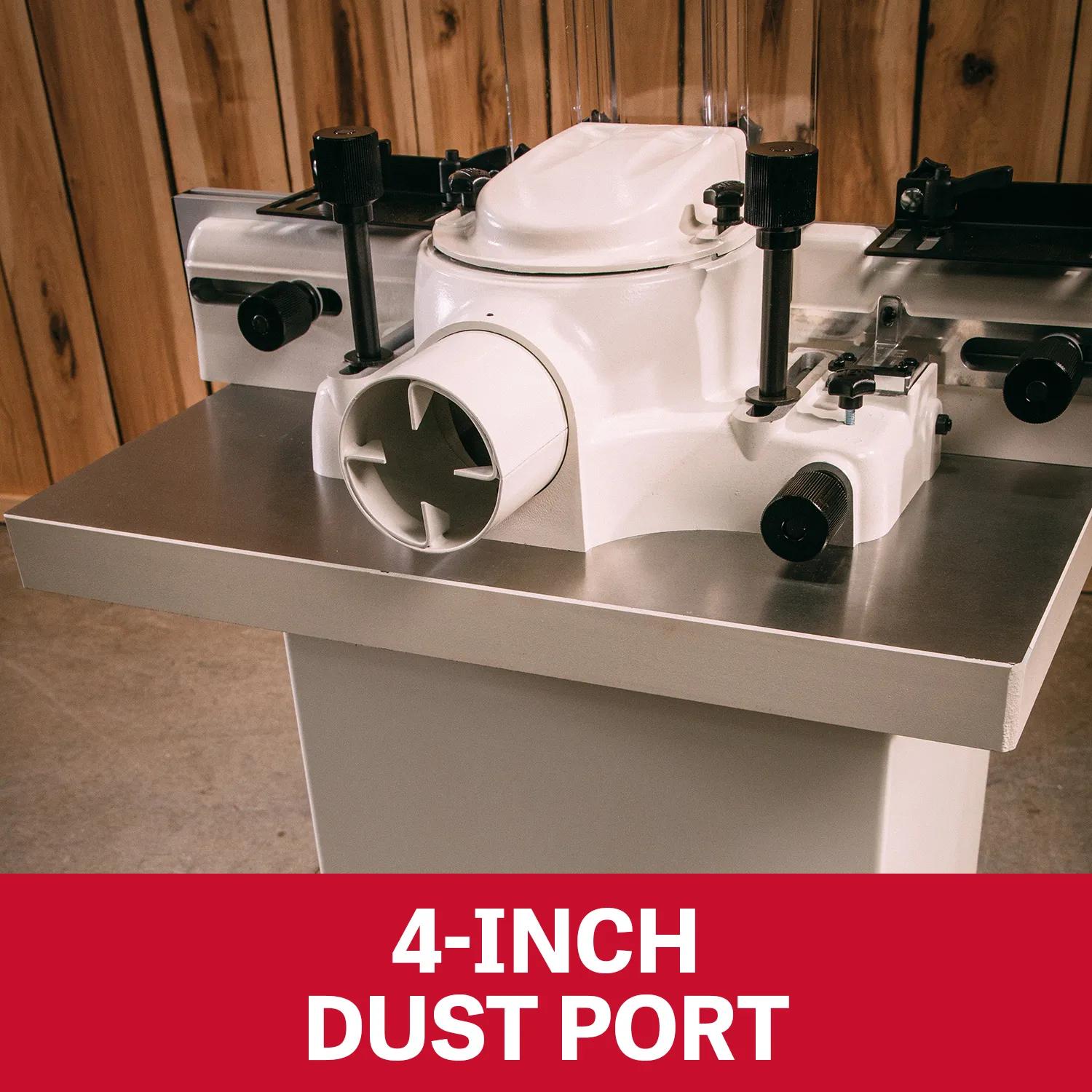

  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    4-3/4 x 14-1/2 in. (2)
  • Horse Power
    3 HP
  • Input Power
    230 V 1 Ph
  • Maximum Spindle Diameter
    1 in.
  • Model Number
    JWS-25X
  • Motor Amps
    16 A
  • Motor HP
    3 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Old Material Number
    708309
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    30 A
  • Required Cfm
    600 - 600 CFM
  • Reversible
    Yes
  • SAP Gross Weight
    381
  • SAP Net weight
    331
  • Spindle Speed
    7500, 10000 RPM
  • Spindle Travel
    3-1/2 in.
  • Style Type
    Floorstanding
  • Table Height
    33 in.

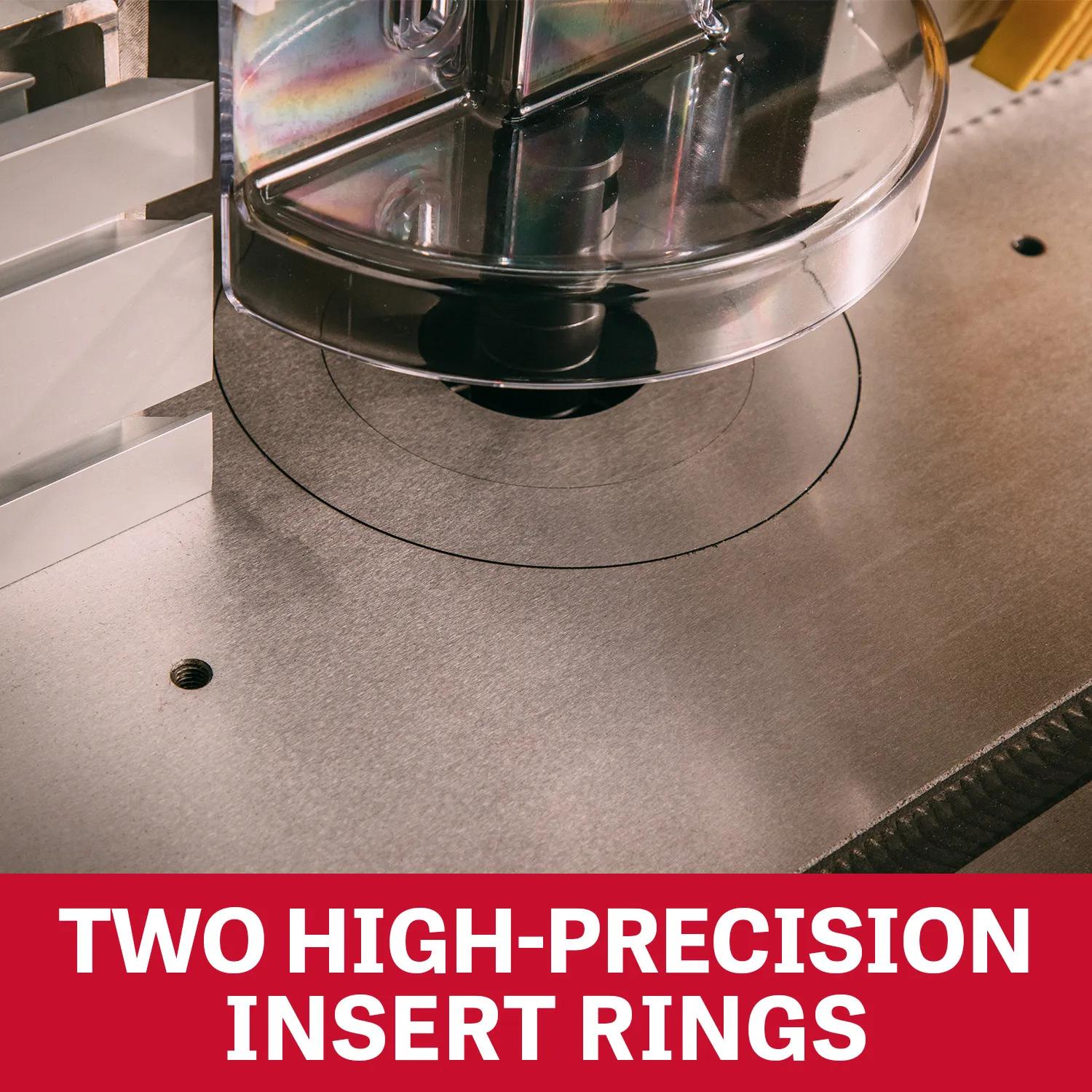

  • Table Inserts
    2 - 2-9/16 in., 4-21/64 in.
  • Table Opening Diameter
    6-9/32 in.
  • Table Size
    25-1/2 x 25 in.
  • UPC
    662756003942
  • Warranty
    Five Years
