Product Details

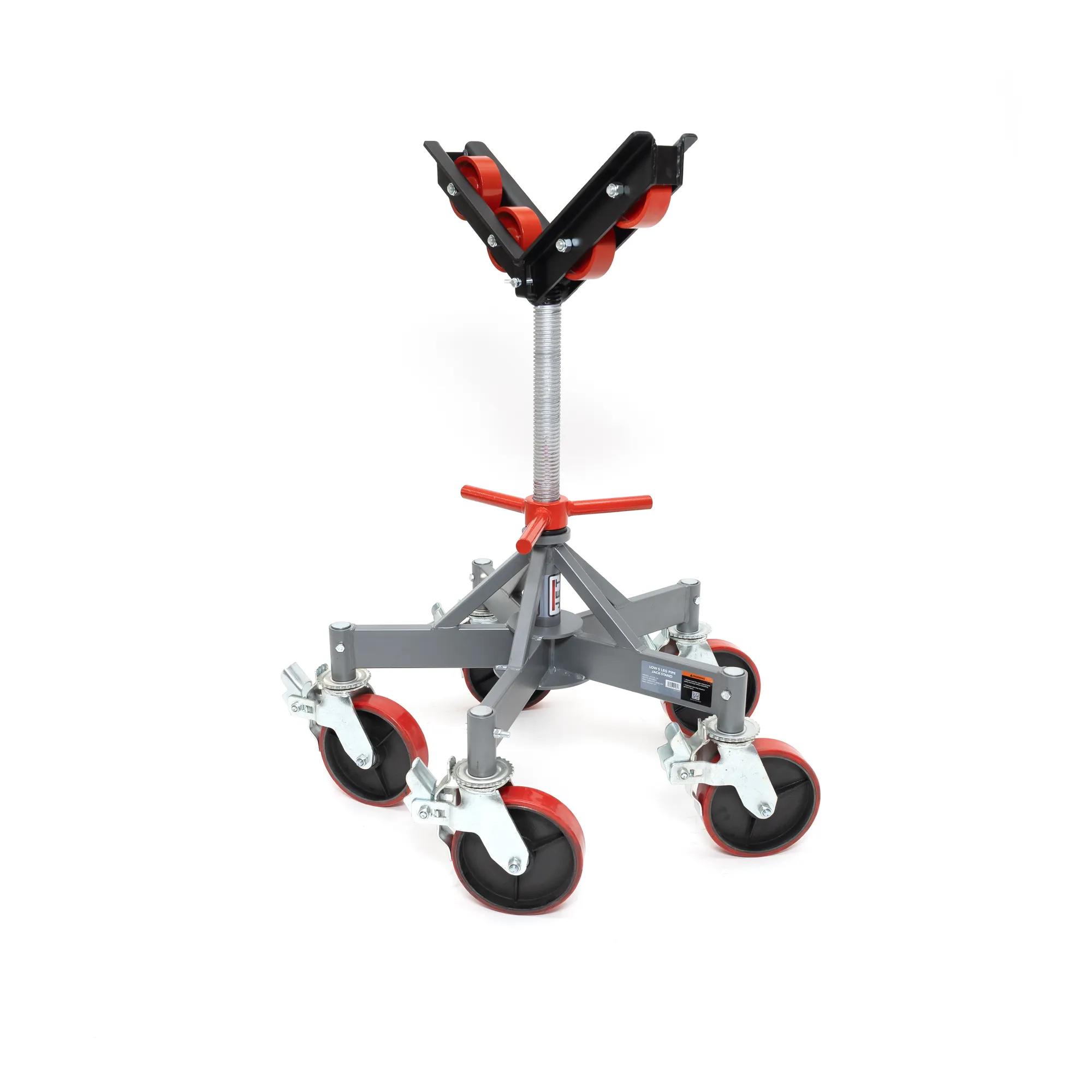

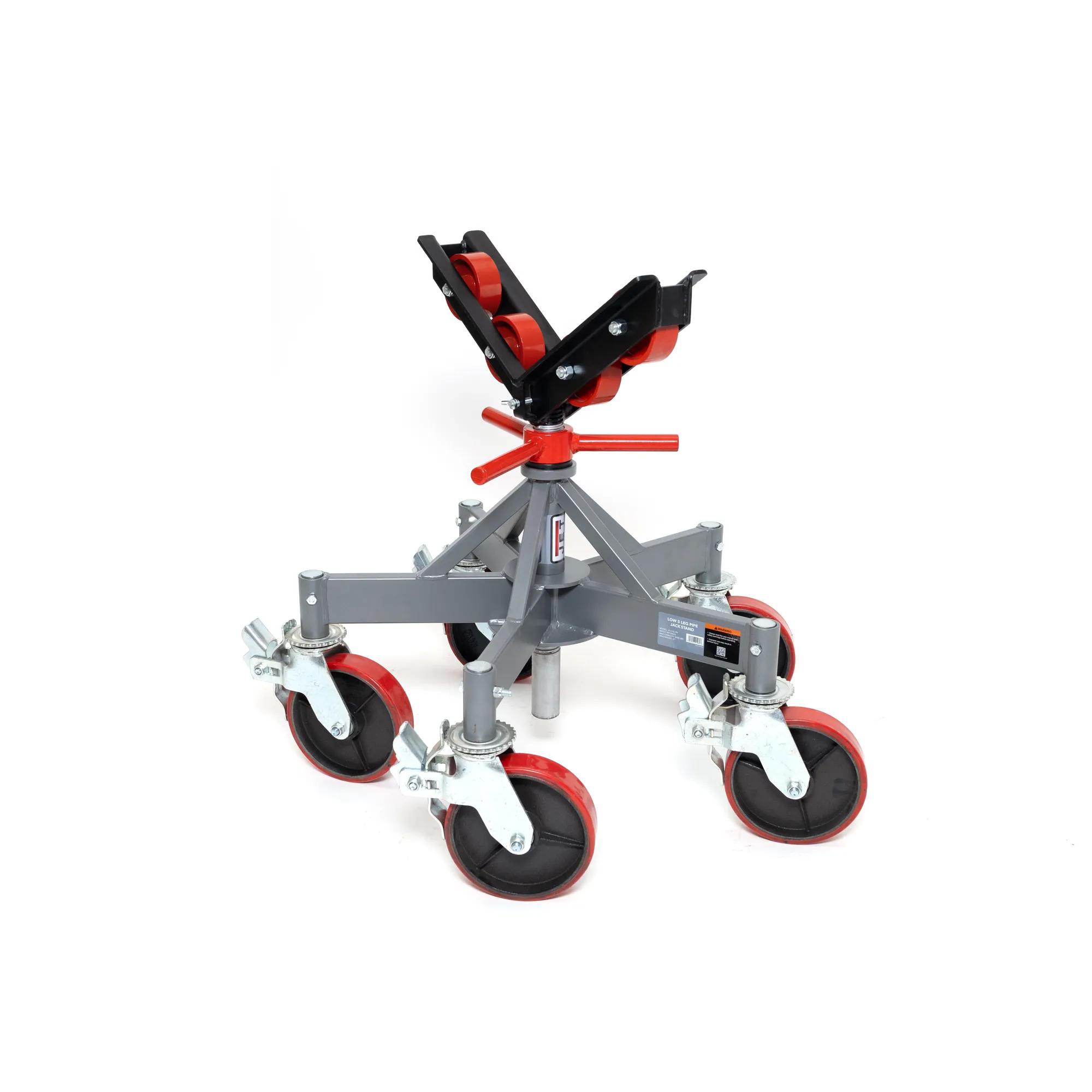

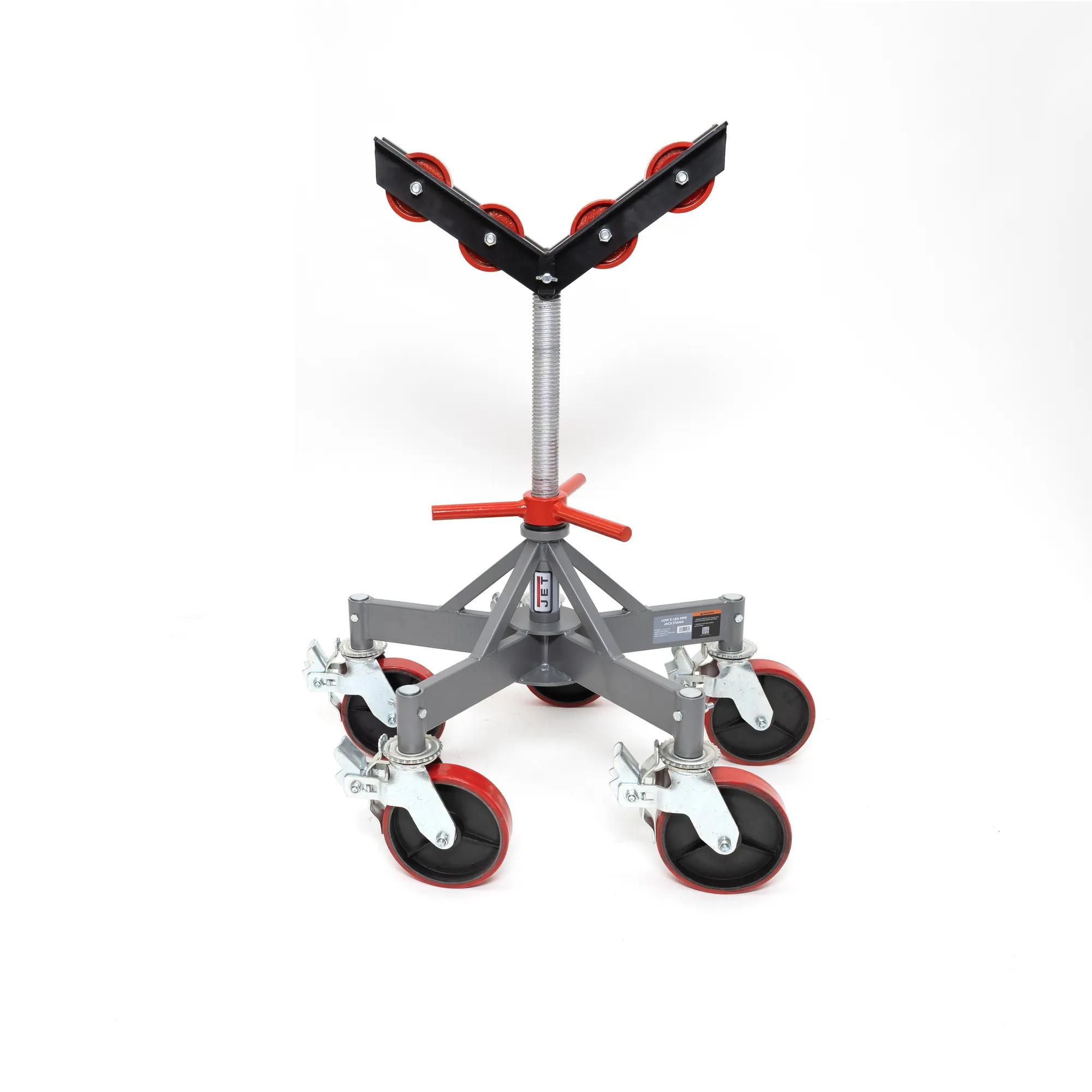

The JET Low 5 Leg Pipe Jack Stand is a mobile, low-profile pipe roller stand used by welders, pipefitters, and metal fabricators handling large-diameter pipe in pipeline, plumbing, and structural steel work. Roll pipe up to 36" in diameter and 5,000 lbs. into position on locking 8" casters, lock the swivel and rotation to hold it steady, then turn the pipe on oversized steel rollers with grease axles during layout, fit-up, and welding at a low working height of 24" to 37".
Features

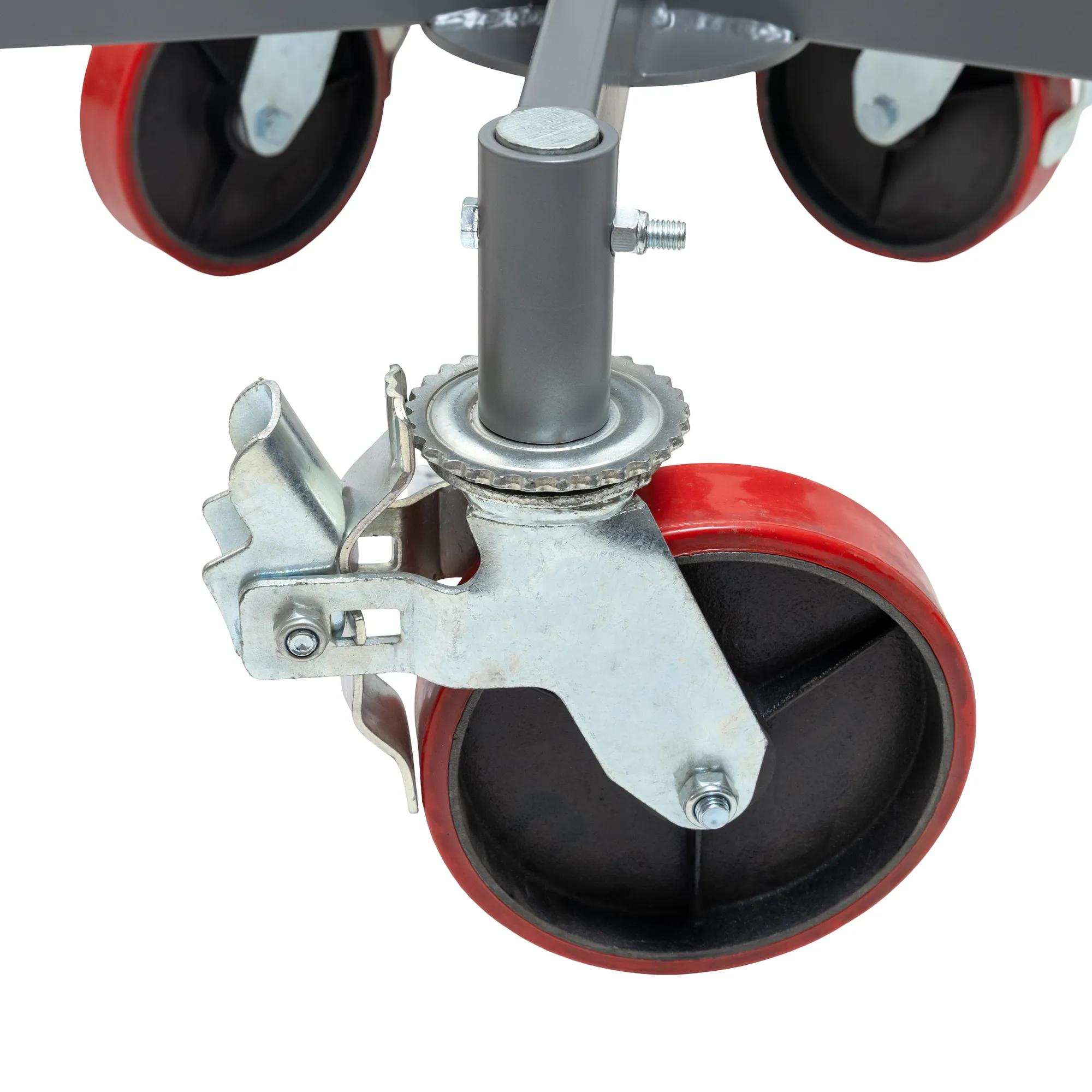

- Large, non-marking casters let one person roll a fully loaded stand without damaging shop floors
- Thru-bolt and locknut caster attachment keeps assembly simple, with no loose hardware to lose
- Oversized steel rollers with grease axles turn heavy pipe with less physical effort during fit-up and welding
- Rated for 5,000 lbs. and pipe up to 36" in diameter at a low working height (24"-37"), purpose-built for large-diameter pipe

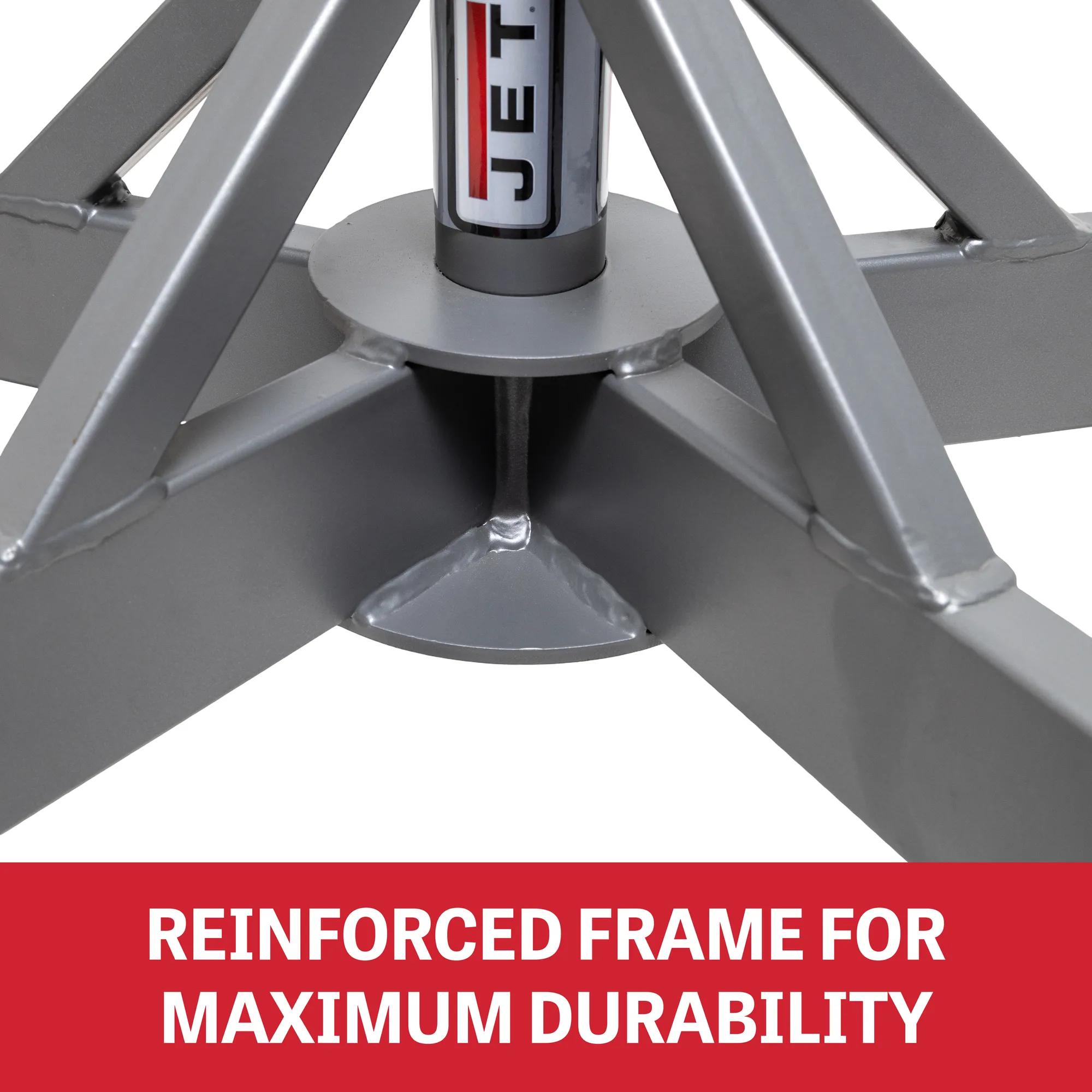

- Reinforced plates at key stress points and casters that lock both swivel and rotation keep a heavy load from shifting once positioned
- A five-leg base spreads heavy loads for added stability when maneuvering large pipe around a busy fabrication shop
Specifications
- SKUJT1-3808
- Assembled Dimensions39 in. x 39 in. x 31-1/4 in.
- Capacity0 - 36 in.
- Caster Size8" Dia. x 2" Wide
- Load Wheel Size4 in. Dia. x 1-1/2 in. Wide

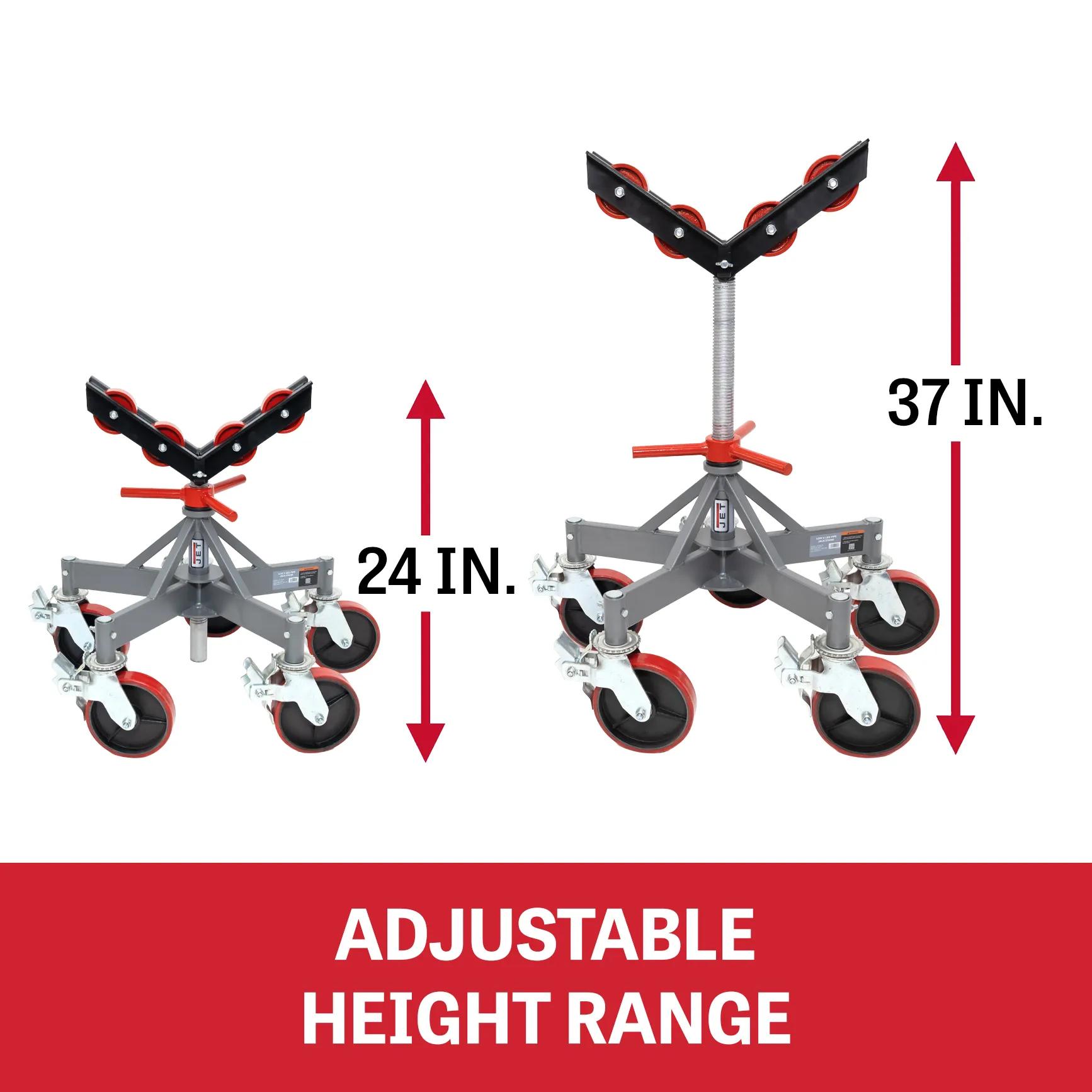

- Maximum Height37 in.
- Minimum Height24 in.
- Model NumberJPJ-L5L-SR
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight125
- SAP Net weight125
- UPC019907010647
- WarrantyTwo Years
