Product Details
Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The MBS-1014W-1 is built for shops cutting varied stock through long-cycle work. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.

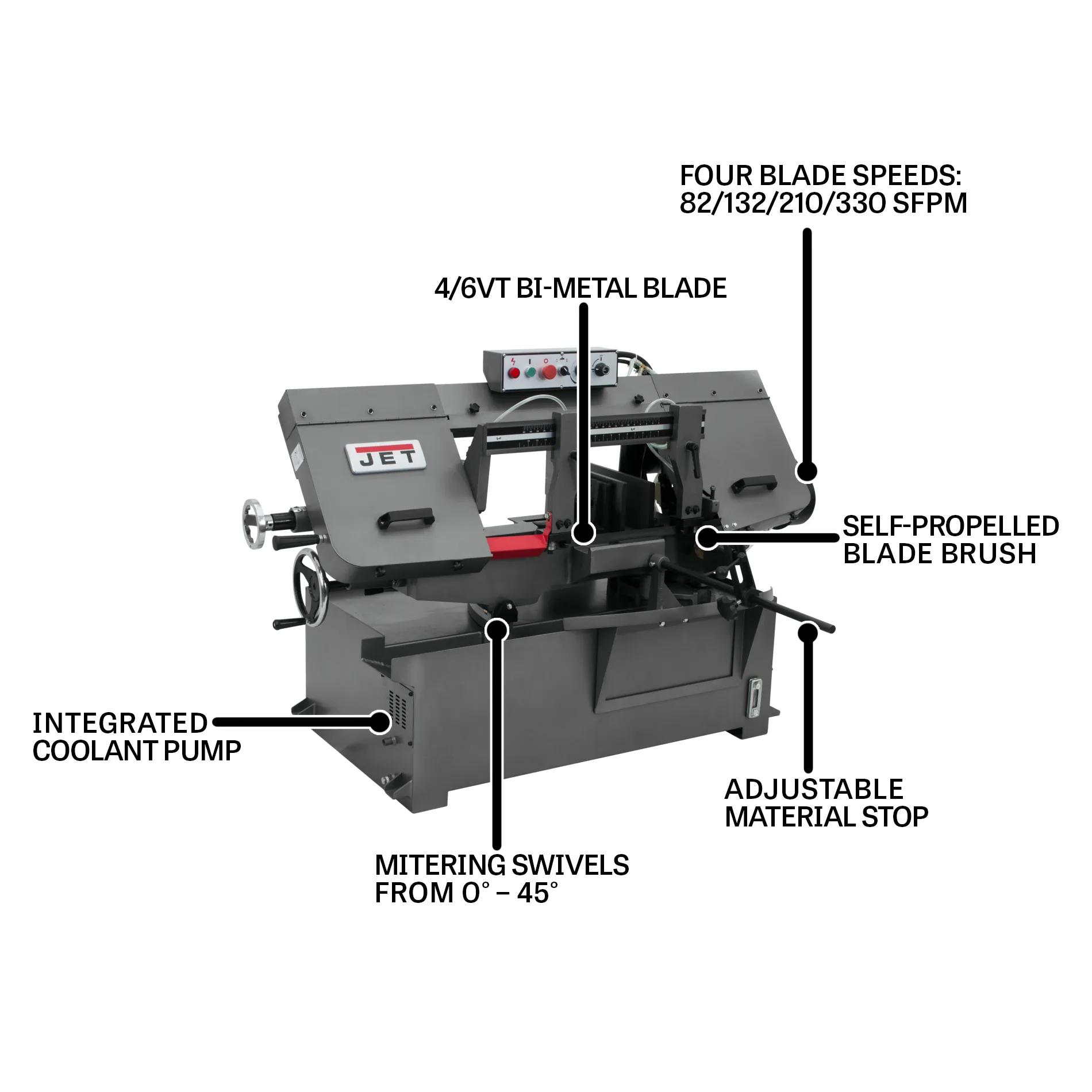

Features
- 2 HP single-phase induction motor sized without thermal drift across long cycles.

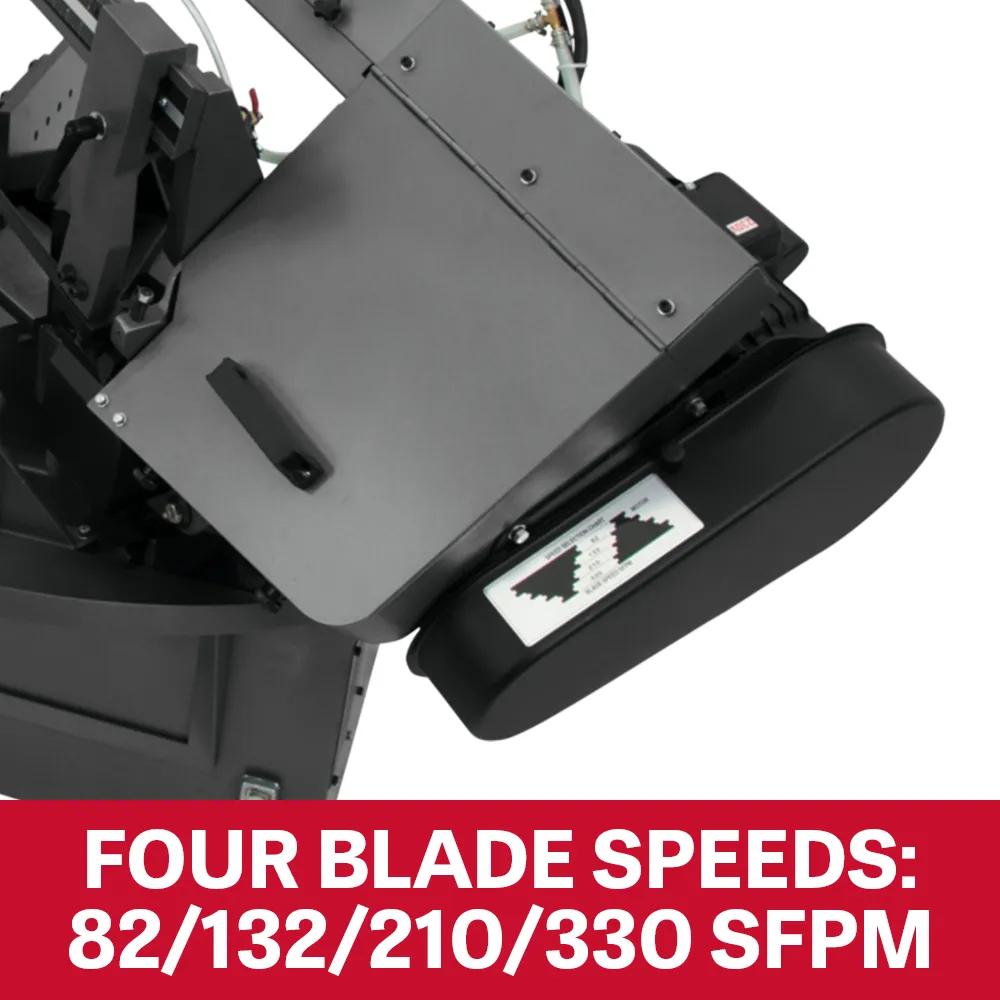

- 82, 132, 210, 330 blade speed — delivering the cutting velocity production fabrication requires.
- Precision-rated frame construction holds blade alignment for the structural rigidity production cutting demands.
- Industrial-spec tilting table — extending the working envelope, engineered for miter and bevel cuts that defeat fixed-table saws.
- Production cutting capacity — covering the workpiece library production sawing runs across fabrication shops.
- Cast iron trunnion castings dampen vibration for vibration dampening welded steel can't match.
Specifications
- SKUJT9-414479
- Assembled Dimensions26 x 69 x 44 in.
- Bed Height25 in.
- Blade Diameter14 in.
- Blade Length1 x 0.035 x 130 in.
- Blade Size (In.)10 x 144 in.
- Blade Speed82, 132, 210, 330
- Cutting Capacity - Height10.5 in.
- Drive TypeBelt Drive
- Height43 in.
- Horse Power2 HP
- Input Power230 V 1 Ph
- Model NumberMBS-1014W-1
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number414479
- Overall Assembled (Bow Lowered)26 x 69 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp7 A
- Rectangle At 45 Degrees9 x 8-1/2 in.
- Rectangle At 90 Degrees10 x 14 in.
- Round Capacity At 45 Degrees9 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight1,067
- SAP Net weight1,034
- UPC662755788789

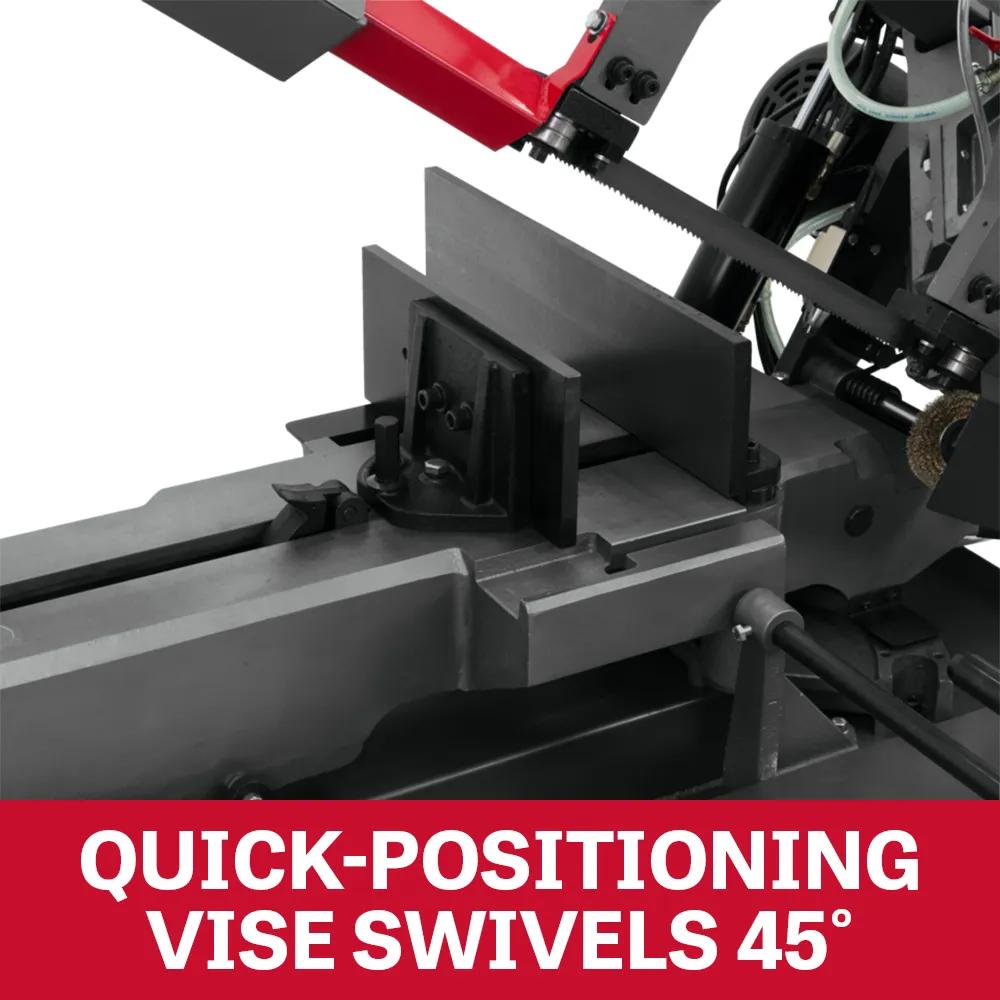

- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
