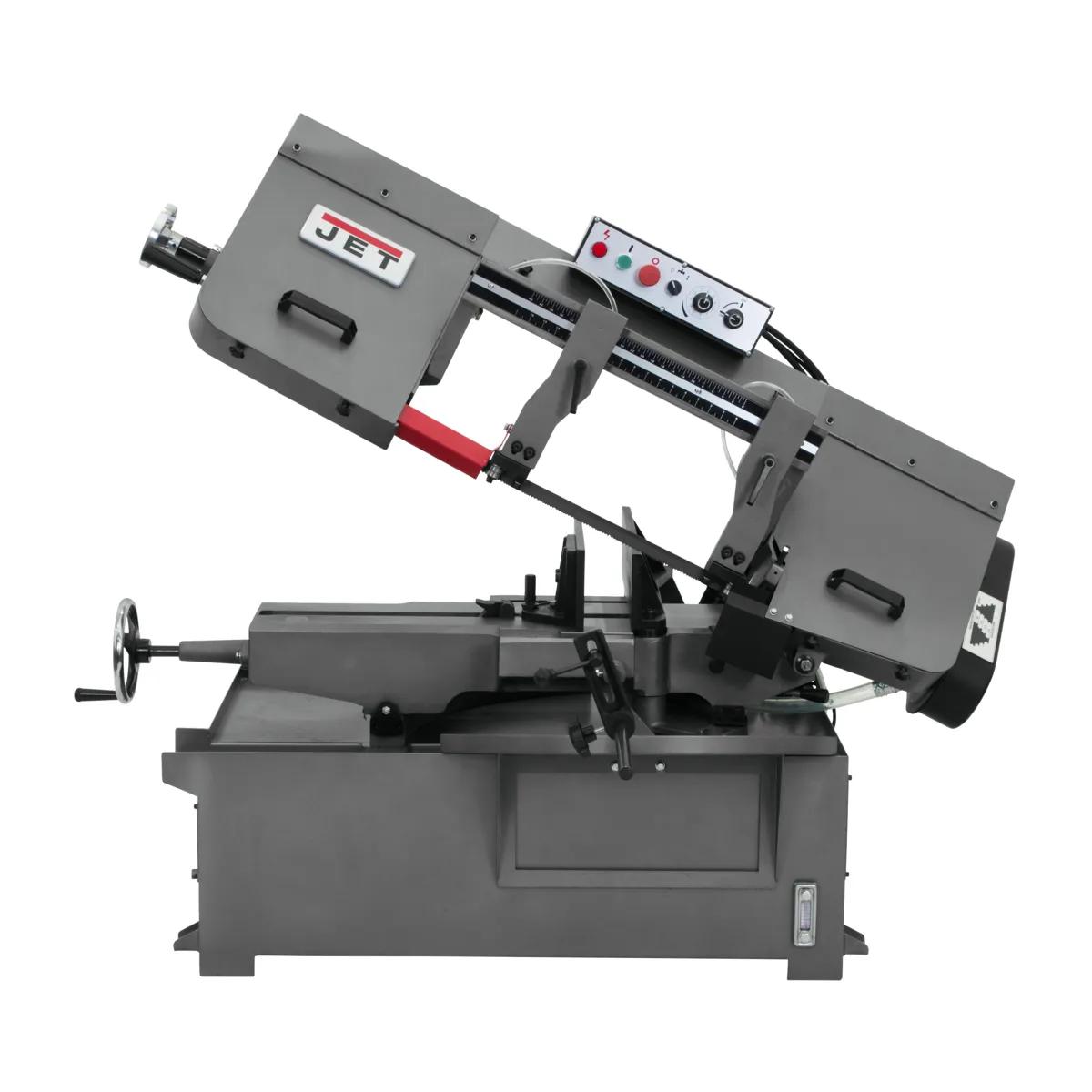

Product Details
From benchtop to production floor, sized for the work that ships. Engineered around fabrication shops running daily cuts, the MBS-1014W-3 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

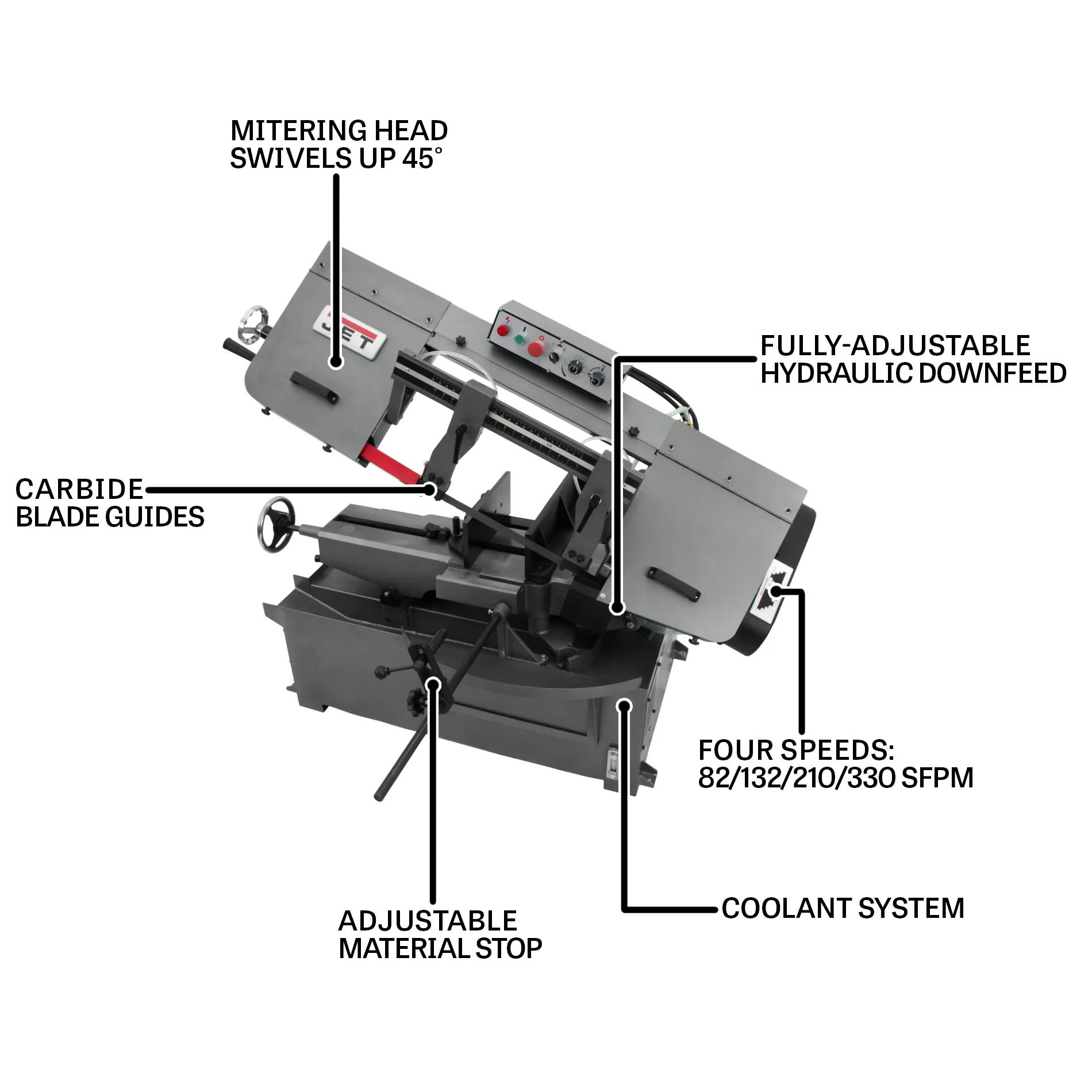

Features
- Precision-rated 3 HP three-phase induction motor delivers torque for long-cycle production work.
- Professional-grade blade speed at 82, 132, 210, 330 handles cut velocity for the cuts production sawing actually runs.
- Heavy-gauge welded frame handles structural rigidity for the cutting authority industrial fabrication demands.
- Continuous-duty tilting table — extending the working envelope, engineered for the angle work production fabrication generates.
- Working-grade cutting envelope provides workpiece sizes for the workpiece sizes production sawing actually runs.
- Solid cast iron trunnion castings weigh in where stability counts most across production cutting.
Specifications
- SKUJT9-414477
- Assembled Dimensions26 x 69 x 44 in.
- Bed Height25 in.
- Blade Diameter14 in.
- Blade Length1 x 0.035 x 130 in.
- Blade Size (In.)10 x 144 in.

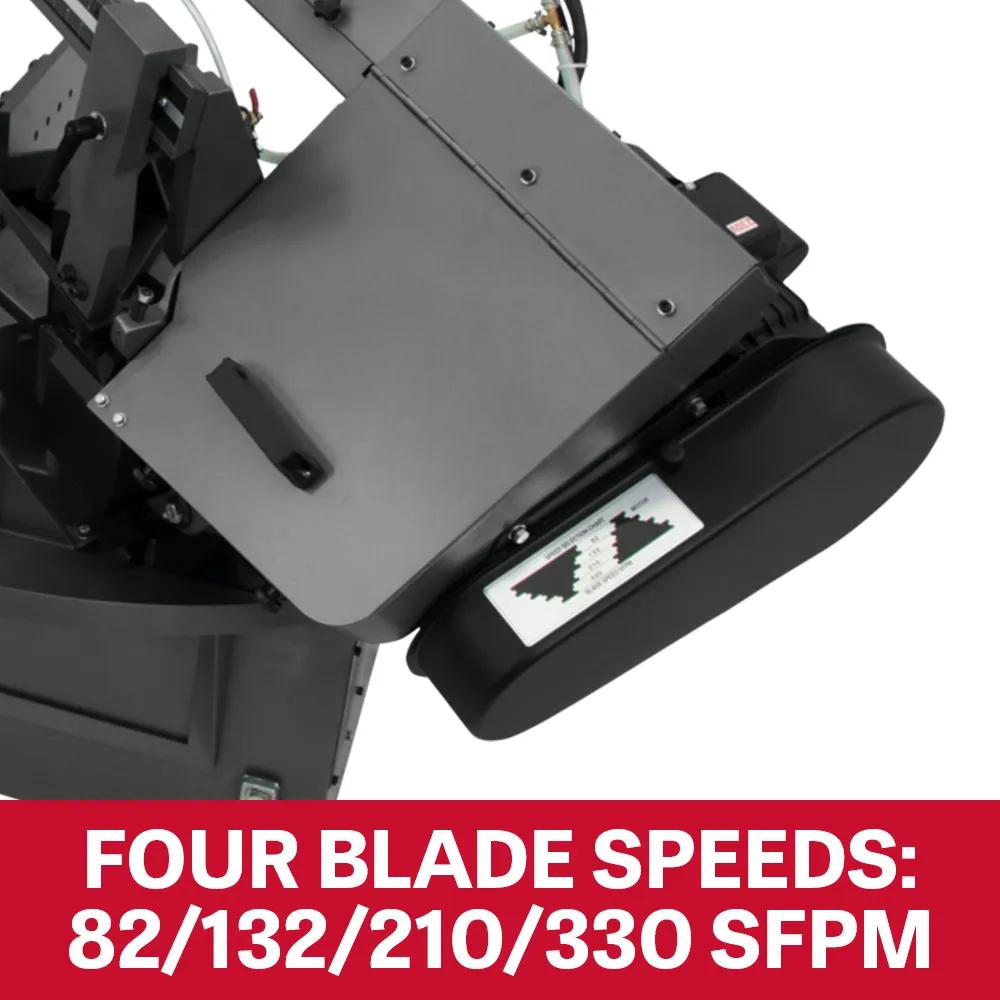

- Blade Speed82, 132, 210, 330
- Cutting Capacity - Height10.5 in.
- Drive TypeBelt Drive
- Height43 in.
- Horse Power3 HP
- Input Power230 V 3 Ph
- Model NumberMBS-1014W-3
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number414477
- Overall Assembled (Bow Lowered)26 x 69 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp7 A
- Rectangle At 45 Degrees9 x 8-1/2 in.
- Rectangle At 90 Degrees10 x 14 in.
- Round Capacity At 45 Degrees9 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight1,034
- SAP Net weight948
- UPC662755784781

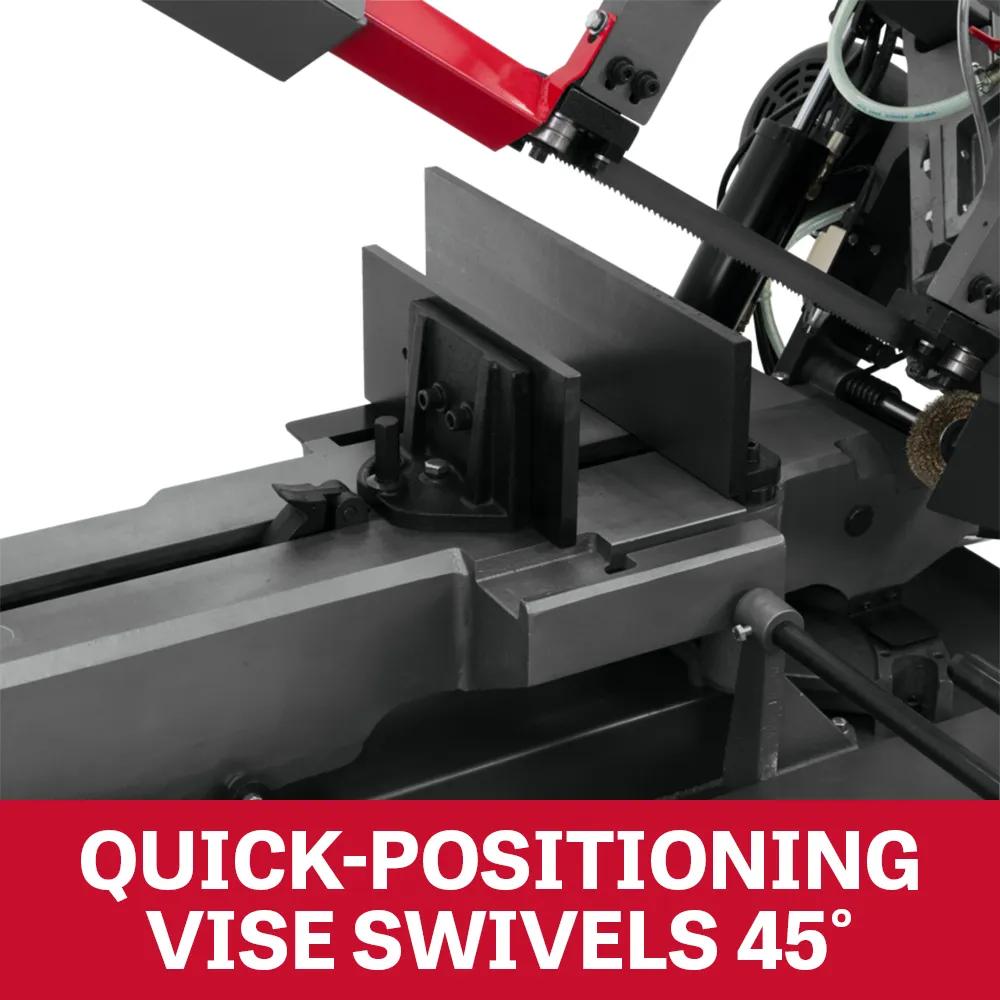

- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
