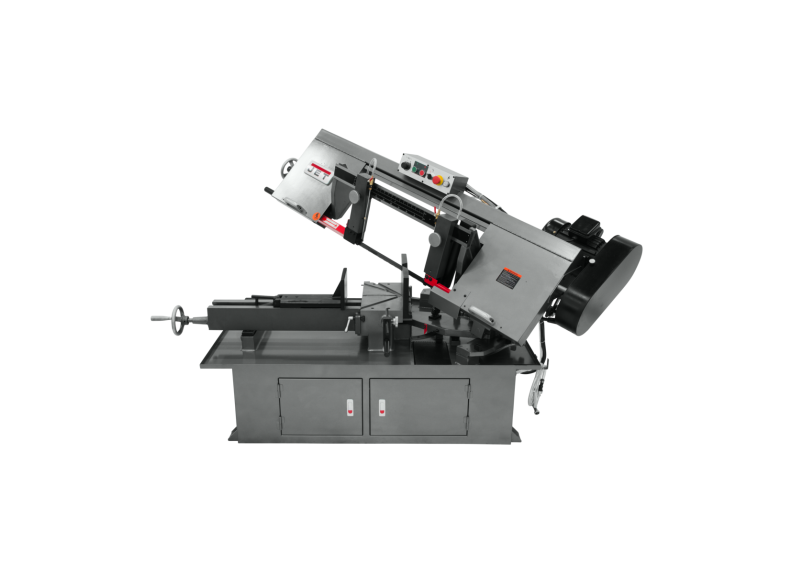

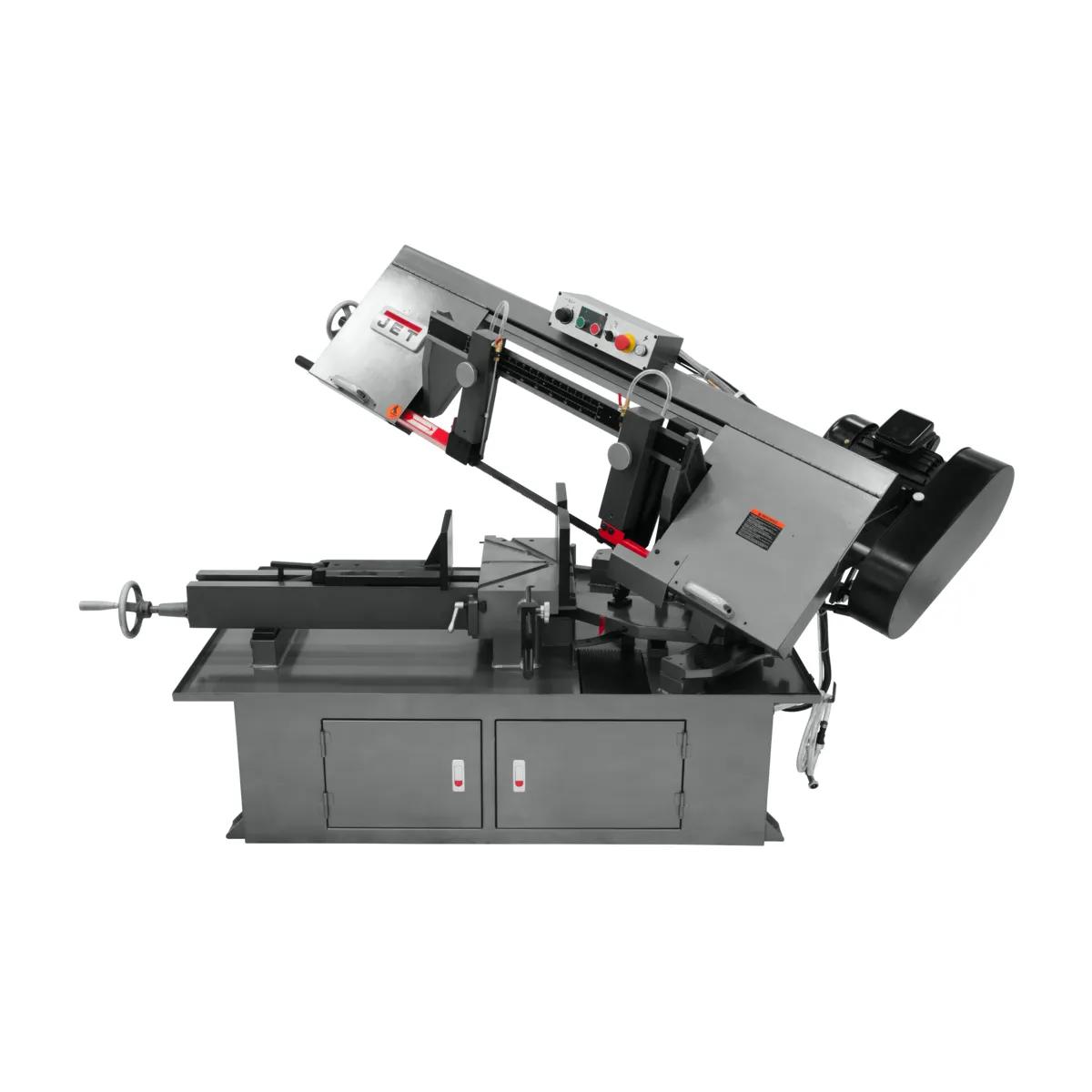

10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)
10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)

10" x 18" Horizontal Dual Mitering Bandsaw, 2HP, 230V 1PH(MBS-1018-1 10)

Stock Number: JT9-413411

0 Reviews

No reviews yet.

  • 2 HP, 230V, single-phase

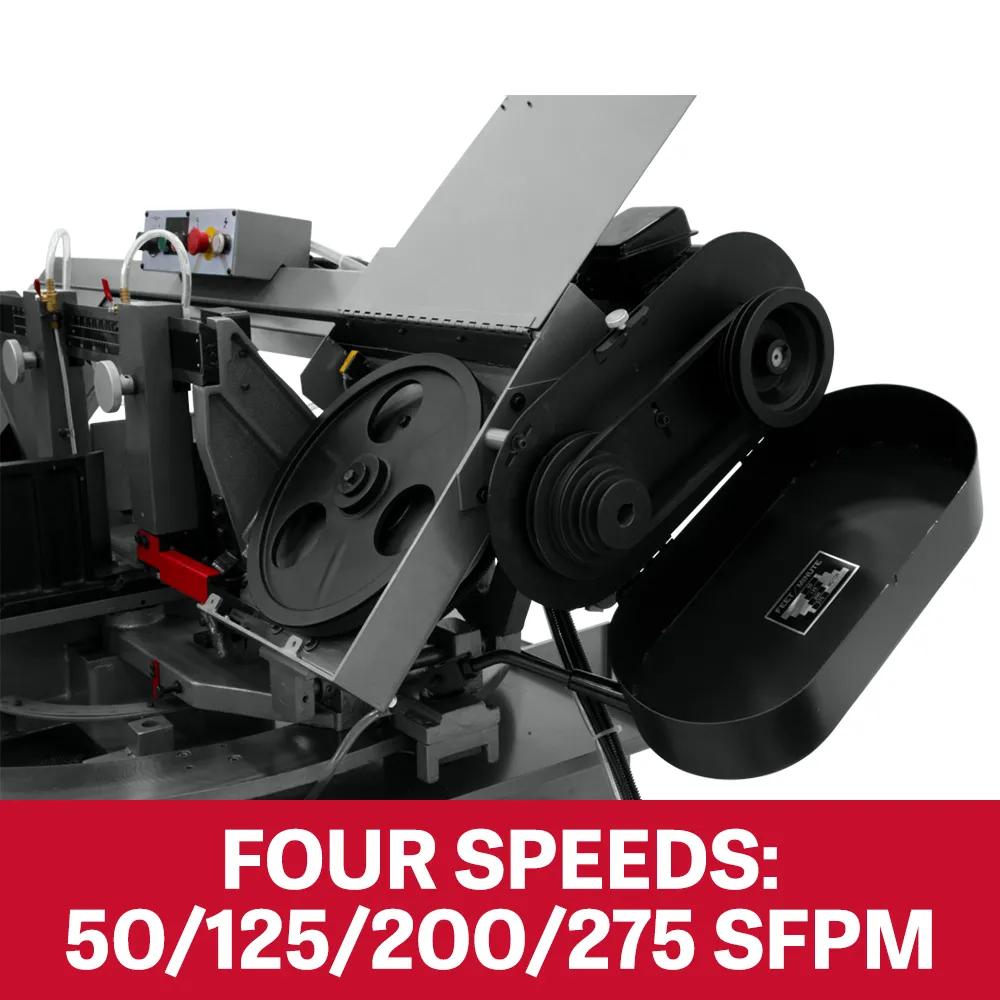

  • 50, 125, 200, 275 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW

Product Details

Built for the cuts that production fabrication actually generates. The MBS-1018-1 10 is built for fabrication shops running daily cuts. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

Features

  • Factory-tested 2 HP drive supports consistent torque without bogging down on full-width passes.
  • Industrial blade speed at 50, 125, 200, 275 SFPM matches cut velocity for the cuts production sawing actually runs.
  • Industrial saw frame — holding reference flat under cutting loads that warp lighter frames across production sawing.
  • Premium-grade tilting table — covering miter and bevel cuts production fabrication generates, engineered for angle accuracy production work expects.
  • Shop-rated cutting envelope handles workpiece sizes for the stock library production fabrication actually generates.
  • Cast iron tables hold reference flat for the structural stability shop work demands.

Specifications

  • SKU
    JT9-413411

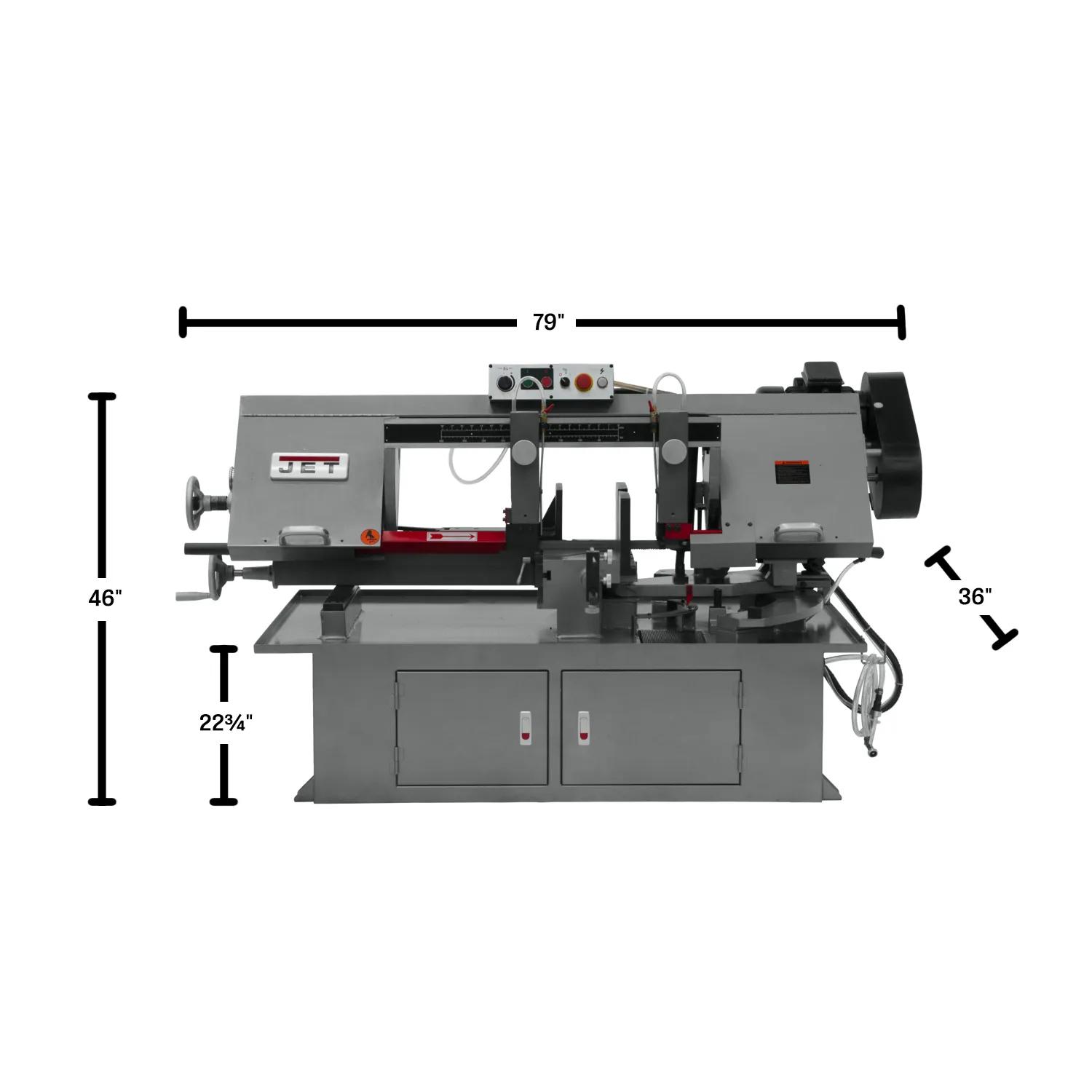

  • Assembled Dimensions
    79 x 36 x 46 in.
  • Bed Height
    22.5 in.
  • Blade Length
    144 in.
  • Blade Size (In.)
    10 x 144 in.
  • Blade Speed
    50, 125, 200, 275 sfpm
  • Cutting Capacity - Height
    10 x 17 in.
  • Drive Type
    Belt

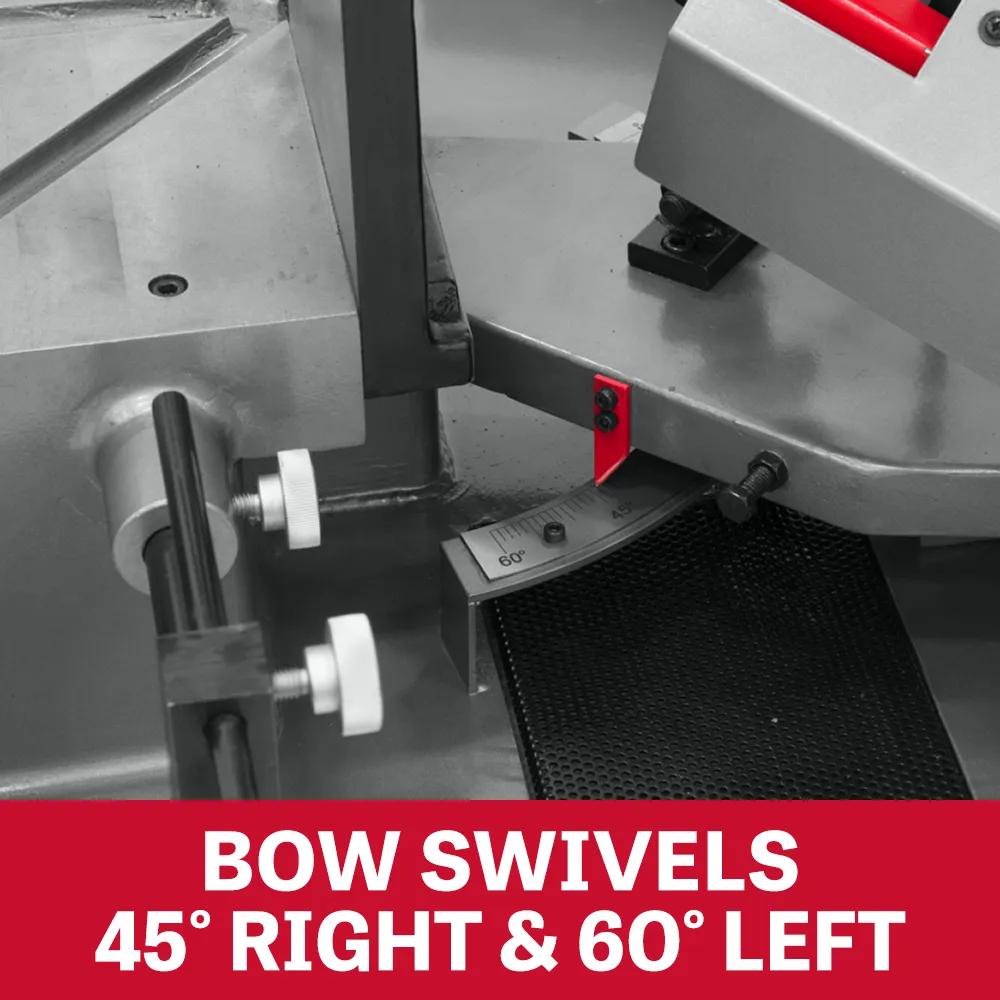

  • Head Movement
    45 Deg. R, 60 Deg. L
  • Height
    22.75 in.
  • Horse Power
    2 HP
  • Input Power
    230 V 1 Ph
  • Model Number
    MBS-1018-1 10
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Old Material Number
    413411
  • Overall Assembled (Bow Lowered)
    79 x 36 x 46 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Rectangle At 45 Degrees
    10 x 12 in.
  • Rectangle At 60 Degrees
    6 x 5 in.
  • Round Capacity At 45 Degrees
    10 in.
  • Round Capacity At 60 Degrees
    6 in.
  • Round Capacity At 90 Degrees
    10 in.
  • SAP Gross Weight
    1,144
  • SAP Net weight
    1,034
  • UPC
    731325513523
  • Warranty
    Two Years
  • Wheel Diameter
    14-1/4 in.
