Product Details

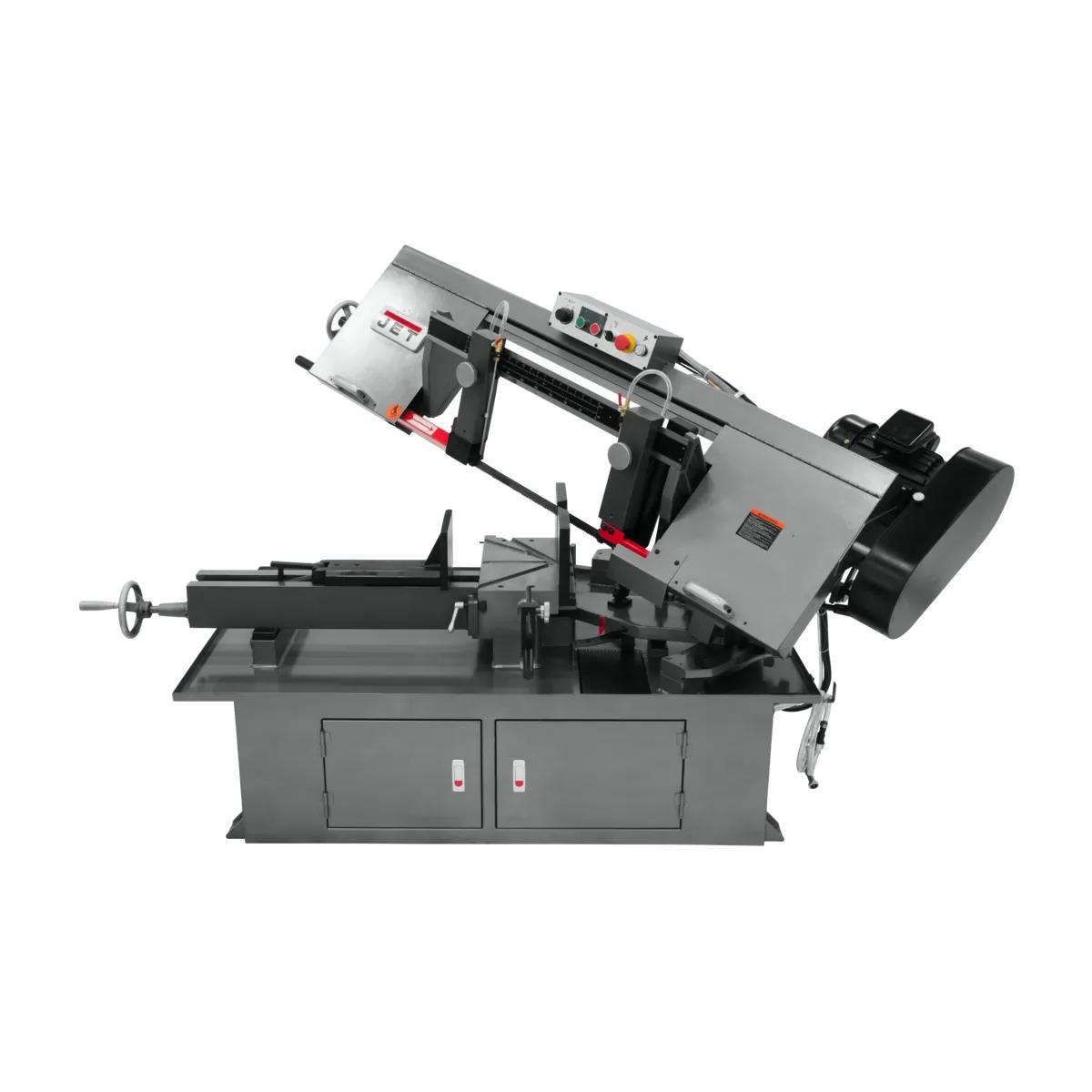

Cut quality starts with a saw built for the work. Engineered around production environments where blade speed and frame rigidity both count, the MBS-1018-3 10 earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- The 2 HP induction motor — running cooler under sustained load than equivalents for industrial-grade duty cycles.
- Continuous-duty blade speed at 50, 125, 200, 275 SFPM supports cut velocity for matching the cut to the material.
- Professional-grade frame construction holds blade alignment for blade-tracking accuracy production sawing requires.
- Heavy-duty tilting table — handling miter and bevel cuts in one setup, engineered for angle accuracy production work expects.
- Tolerance-grade cutting envelope covers workpiece sizes for the cutting envelope production sawing demands.
- Heat-treated cast iron frames resist deflection — delivering dimensional stability lighter materials can't match.
Specifications
- SKUJT9-413410-4
- Assembled Dimensions79 x 36 x 46 in.
- Bed Height22.5 in.
- Blade Length144 in.
- Blade Size (In.)10 x 144 in.
- Blade Speed50, 125, 200, 275 sfpm
- Cutting Capacity - Height10 x 17 in.
- Drive TypeBelt

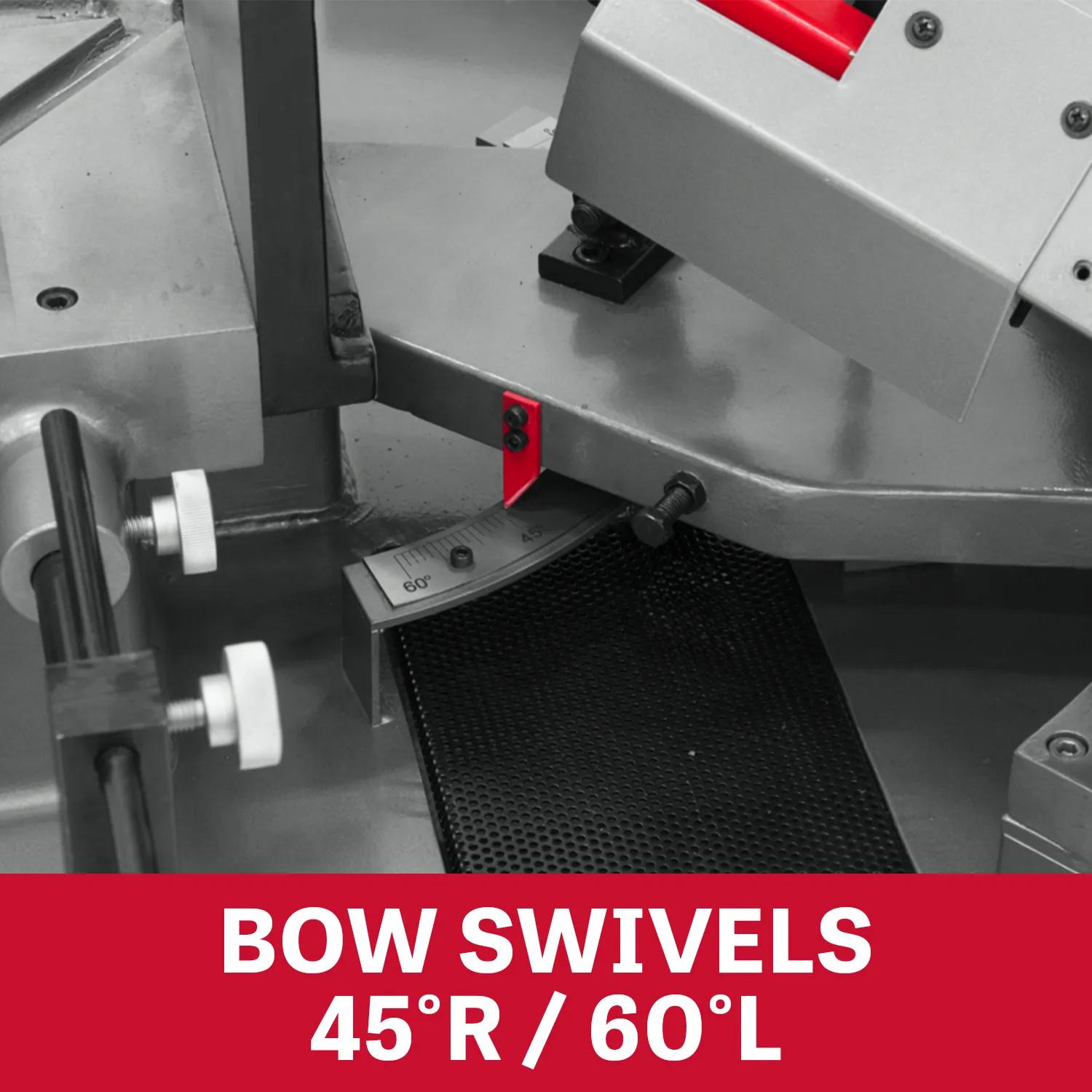

- Head Movement45 Deg. R, 60 Deg. L
- Height22.75 in.
- Horse Power2 HP
- Input Power460 V 3 Ph
- Model NumberMBS-1018-3 10
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage460 V
- Old Material Number413410-4
- Overall Assembled (Bow Lowered)79 x 36 x 46 in.
- Prewired Voltage460 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp7-15 A
- Rectangle At 45 Degrees10 x 12 in.
- Rectangle At 60 Degrees6 x 5 in.
- Rectangle At 90 Degrees10 x 17 in.
- Round Capacity At 45 Degrees10 in.
- Round Capacity At 60 Degrees6 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight1,144
- SAP Net weight1,034
- UPC731325073560
- WarrantyNinety Days
- Wheel Diameter14-1/4 in.
