Product Details

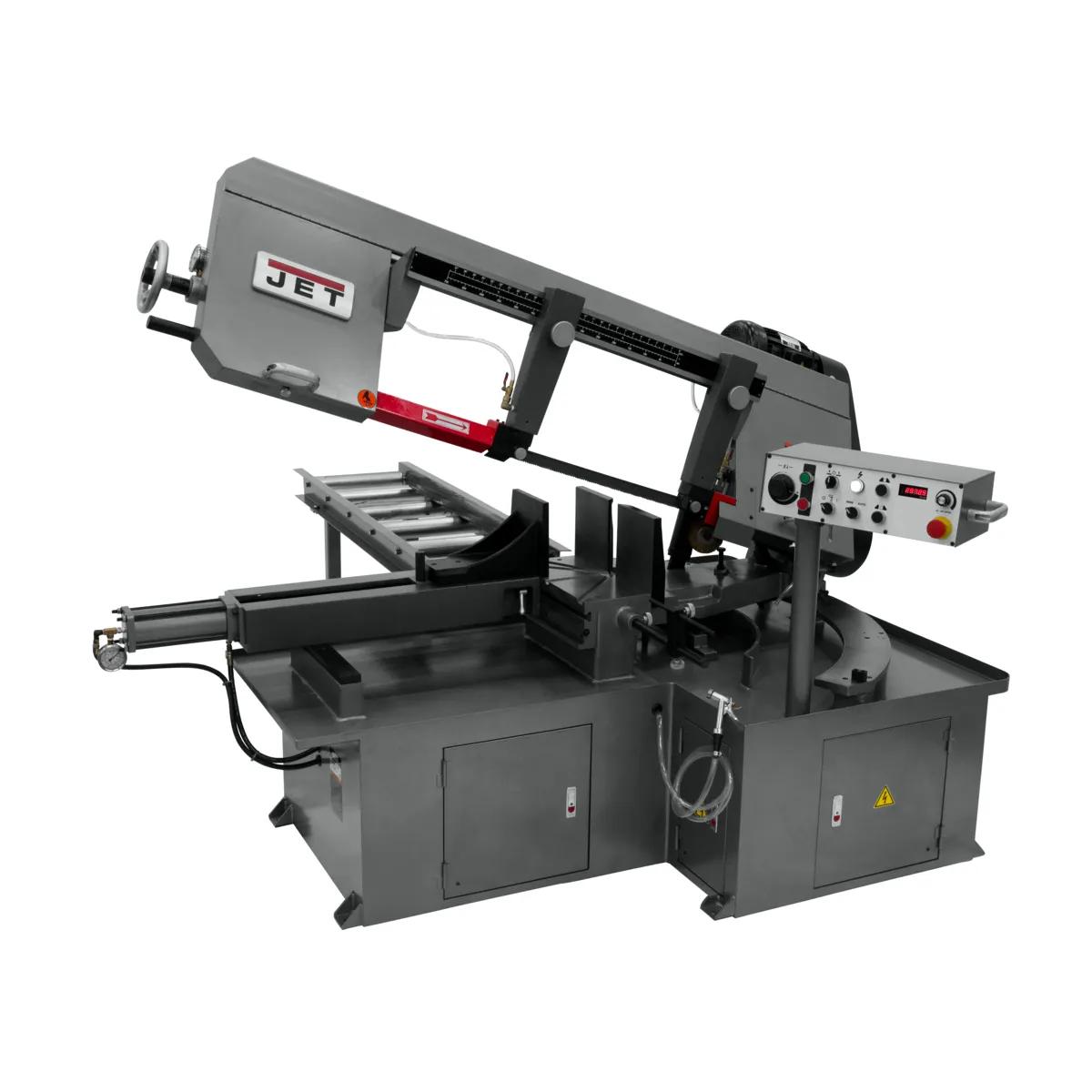

Frame rigidity meets blade-speed flexibility. Built around shops cutting varied stock through long-cycle work, the MBS-1323EVS-H-4 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Industrial 3 HP induction motor: running quieter and cooler than equivalent open-frame designs, designed for service shops.

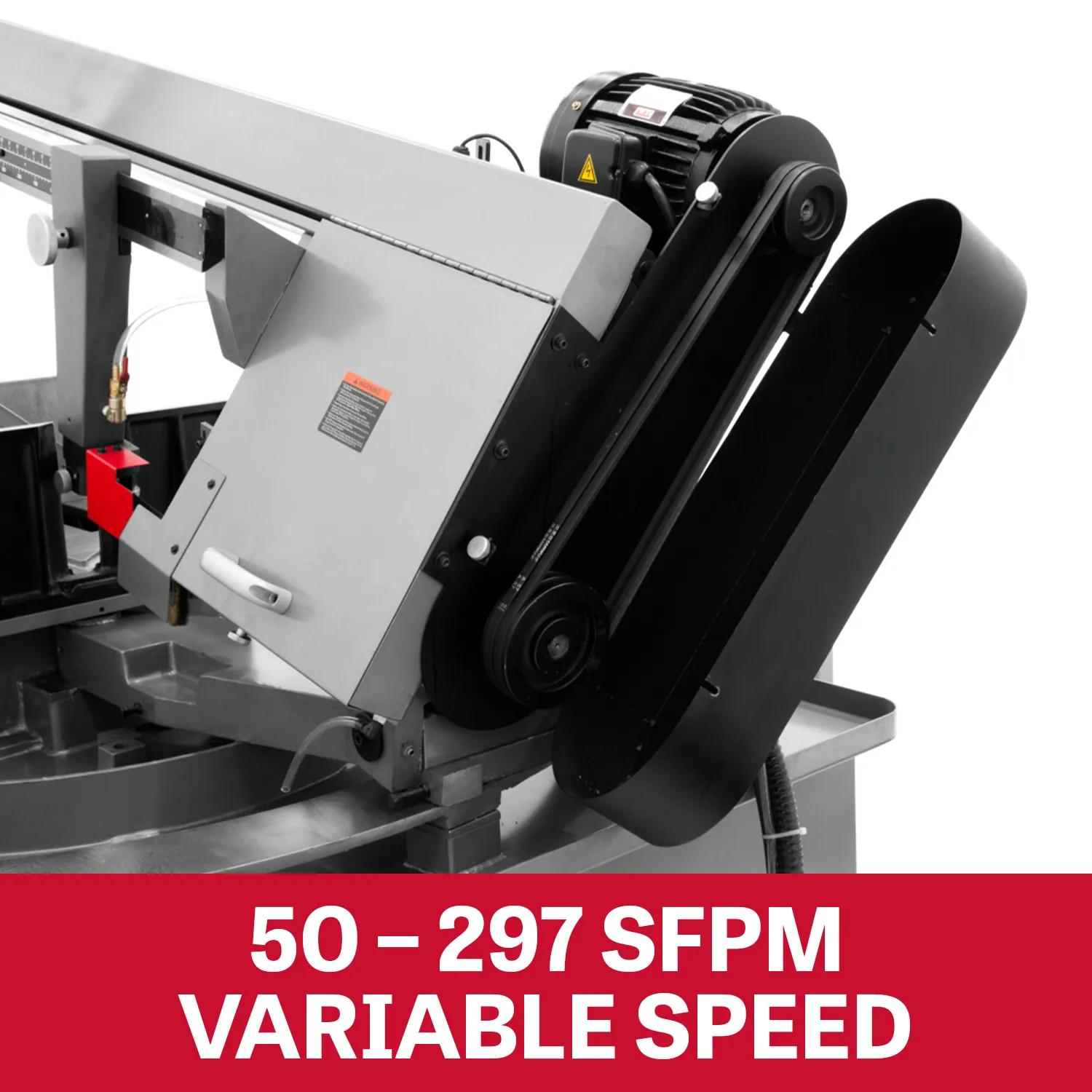

- 50 - 297 SFPM cutting speed — matching cut velocity to material density across industrial cutting environments.
- Industrial-spec frame construction holds blade alignment for cut quality consistency across long runs.
- Continuous-duty tilting table — delivering angle accuracy precision work expects, engineered for miter and bevel cuts that defeat fixed-table saws.
- Production-grade cutting envelope supports workpiece sizes for the cut-length envelope industrial sawing requires.
- Heavy-gauge cast iron support castings — absorbing the cutting forces lighter materials transmit.
Specifications
- SKUJT9-413415
- Assembled Dimensions88 x 55 x 51 in.
- Bed Height27.75 in.
- Blade Diameter13 in.
- Blade Length172 in.
- Blade Size (In.)13 x 150 in.
- Blade Speed50 - 297 sfpm
- Cutting Capacity - Height12 x 23-1/2 in.
- Drive TypeEVS
- Height700 mm
- Horse Power3 HP
- Input Power460 V 3 Ph
- Model NumberMBS-1323EVS-H-4
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage460 V
- Old Material Number413415
- Overall Assembled (Bow Lowered)88 x 55 x 51 in.
- Prewired Voltage460 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp7 A
- Rectangle At 90 Degrees12 x 23-1/2 in.
- Round Capacity At 45 Degrees13 in.
- Round Capacity At 60 Degrees11 in.
- Round Capacity At 90 Degrees13 in.
- SAP Gross Weight2,090
- SAP Net weight1,826
- Table Size440 x 195 mm
- UPC731325733167
- WarrantyTwo Years
- Wheel Diameter16 in.
