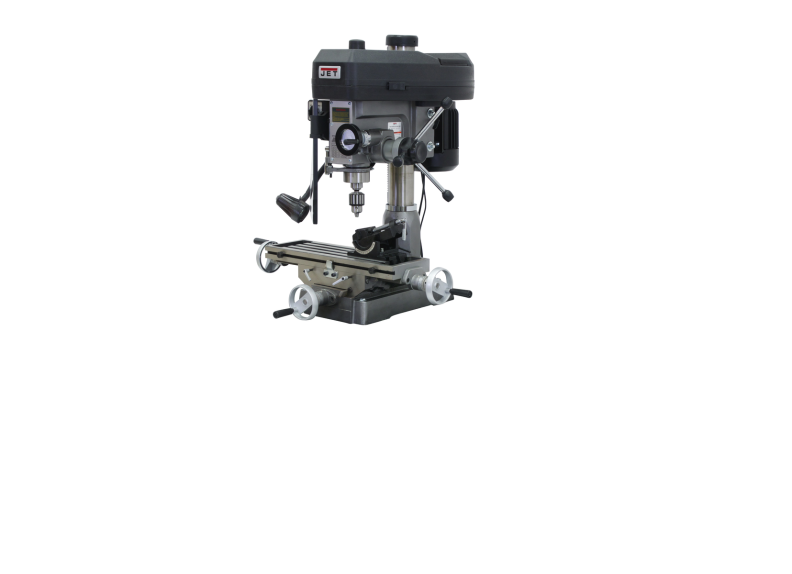

7-1/2" x 23" Mill/Drill w/ ACU-RITE 203 DRO, 1HP, 115/230V 1PH(JMD-15)
7-1/2" x 23" Mill/Drill w/ ACU-RITE 203 DRO, 1HP, 115/230V 1PH(JMD-15)

7-1/2" x 23" Mill/Drill w/ ACU-RITE 203 DRO, 1HP, 115/230V 1PH(JMD-15)

Stock Number: JT9-350116

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • 7-1/2" x 23" table
  • R-8 spindle taper
  • 3-1/2" spindle travel
BUY NOW
Fetching Data...

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. Engineered around production shops that turn programs into parts daily, the JMD-15 earns its place. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • 1 HP, 115/230V single-phase induction motor — transmitting power smoothly, sized for industrial-grade duty cycles.
  • Generous 7-1/2 in. x 23 in. table surface — accommodating the fixture-and-vise library most production shops keep across professional shop floors.
  • Production-spec R-8 spindle interface — expanding tooling compatibility without operator-side workarounds.
  • 3-1/2-inch vertical reach handles production milling for the working depth precision cutting requires.
  • Wide 110 - 2,580 RPM range — covering the operating range production cuts require.
  • Industrial Meehanite knee castings — dampening vibration that lesser castings transmit straight to the cut across professional turning environments.

Specifications

  • SKU
    JT9-350116
  • Air Powered Drawbar
    No
  • Assembled Dimensions
    36-1/2 x 37-1/2 x 35-1/2 in.
  • Base Size
    12-1/2 x 19-3/4 in.
  • Collet Size
    3-5/8 in.
  • Digital Readout
    Acu-Rite
  • Drilling Capacity Mild Steel
    1 in.
  • Face Mill Capacity
    2-1/2 in.
  • Head Movement
    360 Deg.
  • Maximum Distance Spindle To Table
    15 in.
  • Model Number
    JMD-15
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    12
  • Old Material Number
    350116
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    2-1/2 in.
  • Range Of Spindle Speeds
    110 - 2580 RPM
  • SAP Gross Weight
    500
  • SAP Net weight
    460
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    3-1/2 in.
  • Style Type
    Mill/Drill
  • Swing
    14-1/2 in.
  • T-Slot Centers
    1-1/2 in.
  • T-Slots Number And Size
    4, 9/16 in.
  • Table Cross Travel
    6 in.
  • Table Longitudal Travel
    14 in.
  • Table Size
    7-1/2 x 23 in.
  • UPC
    662755110542
  • Warranty
    Two Years
  • Work Table Weight Capacity
    350 lbs
