1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)

1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 230V 3PH(MT050)

Stock Number: JT9-140183

0 Reviews

No reviews yet.

  • 0.04 / 0.16 HP, 230V, three-phase
  • 1100 lbs
  • ANSI/ASME B30.16 rated
  • Grade 100 load chain
BUY NOW
Fetching Data...

Product Details

Engineered for the loads that production environments actually move. Engineered around rigging operations that demand certified equipment, the MT050 earns its place. Equipped with a 0.04 / 0.16 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, regulated-environment-ready warranty.

Features

  • Factory-tested 1100 lbs rating handles overhead loads for the load envelope industrial rigging generates.
  • The 0.04 / 0.16 HP, 230V induction motor handles full-capacity passes for mixed-material work envelopes.
  • Double-pawl Weston brake — delivering redundant brake authority overhead lifting requires, sized for the safety paperwork regulated lifting expects.
  • Heat-treated alloy steel load chain matches the strength-to-weight ratio for the cycle-count durability overhead work demands.
  • 360-degree hook rotation provides rigging flexibility for rigging in confined spaces.
  • Independently certified to ANSI/ASME — delivering third-party verification, not just the manufacturer's word.

Specifications

  • SKU
    JT9-140183
  • Capacity
    1100 lbs.
  • Classification / Certification
    ANSI/ASME B30.16, ANSI/ASME HST-1 Standard
  • Hook Mount Headroom
    38.2 in.

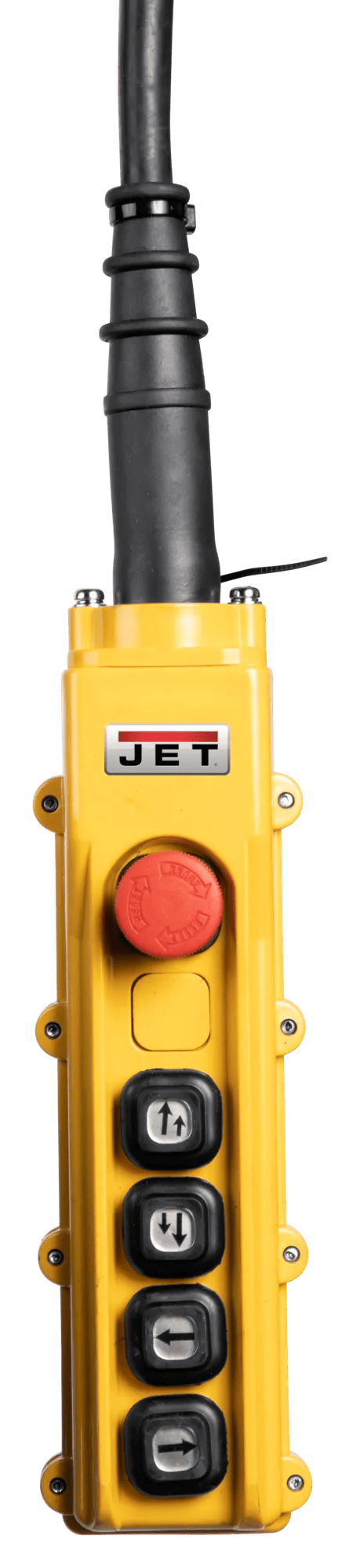

  • Lift Control
    Wired
  • Maximum Beam Flange Width
    5 in.
  • Minimum Beam Curve Radius
    51.2 in.
  • Minimum Beam Flange Width
    3 in.
  • Model Number
    MT050
  • Motor HP
    0.04 / 0.16 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    140183
  • Product Type
    Accessories
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    143
  • SAP Net weight
    99
  • Travel Speed
    20/79 FPM
  • UPC
    731325854817
  • Warranty
    Limited Lifetime Warranty
  • Wheel Diameter
    7/8 in.
