1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)
1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)

1/2 Ton, 2 Speed Electric Trolley, 0.04 / 0.16HP, 460V 3PH(MT050-4)

Stock Number: JT9-144183

0 Reviews

No reviews yet.

  • 0.04 / 0.16 HP, 460V, three-phase
  • 1100 lbs
  • ANSI/ASME B30.16 rated
  • Grade 100 load chain
BUY NOW
Fetching Data...

Product Details

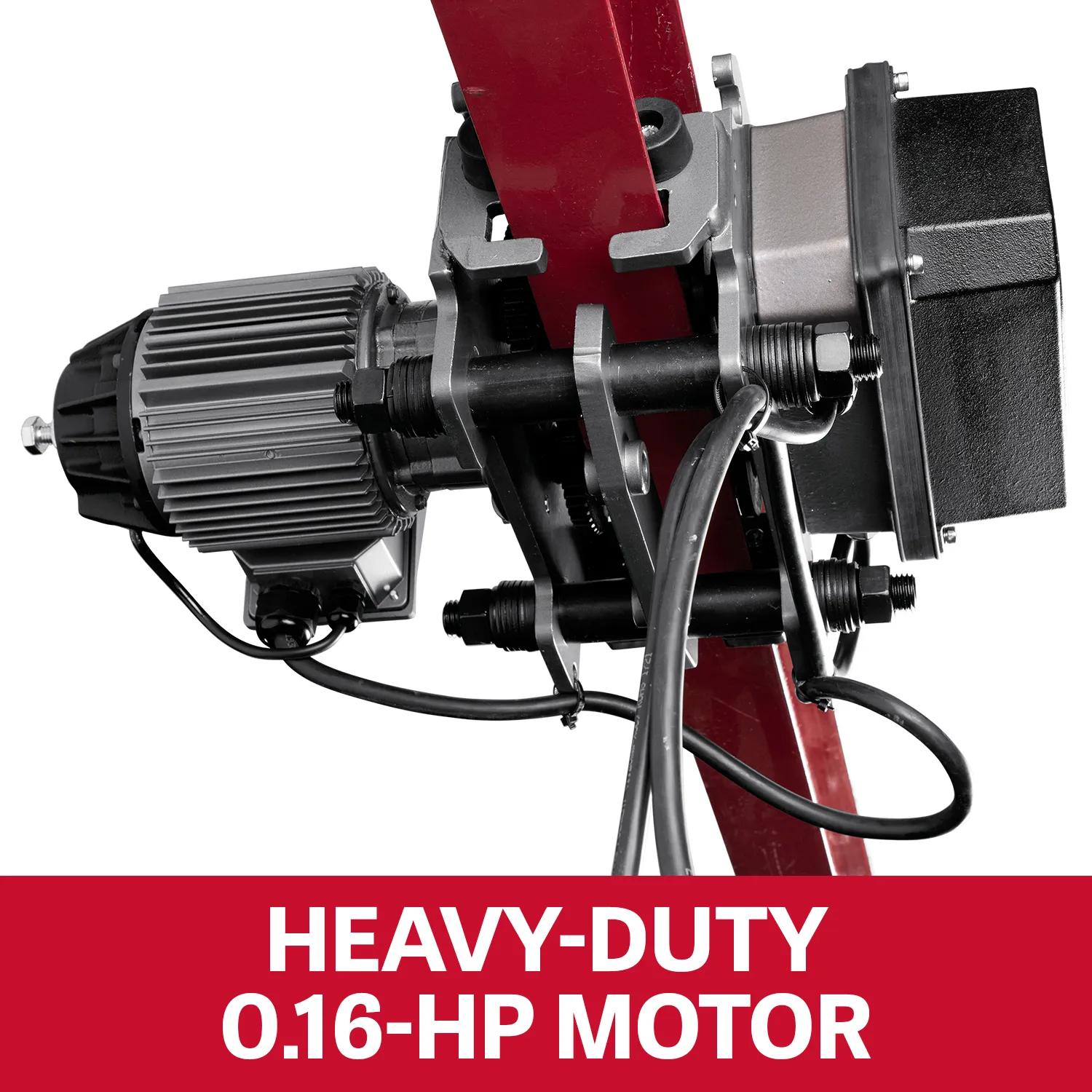

Lifting capacity you can trust, every cycle. Designed for production environments where overhead lifting can't pause, the MT050-4 stands up to the duty cycle. Equipped with a 0.04 / 0.16 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and ANSI/ASME-verified construction.

Features

  • Production-grade 1100 lbs working load handles the lifts industrial lifting facilities actually demand.
  • Production-grade 0.04 / 0.16 HP drive matches consistent torque for the power output industrial cutting requires.
  • Mechanical Weston brake matches controlled descent for controlled descent across the lift range.
  • Industrial-grade load chain — delivering proof-loaded chain authority production rigging requires, sized for the strength-to-weight ratio industrial lifting demands.
  • Industrial-grade rotating hooks resist deformation for orienting the load without re-rigging at the lift point.
  • Compliant ANSI/ASME B30.16 design covers the safety documentation for the certification regulated overhead work depends on.

Specifications

  • SKU
    JT9-144183

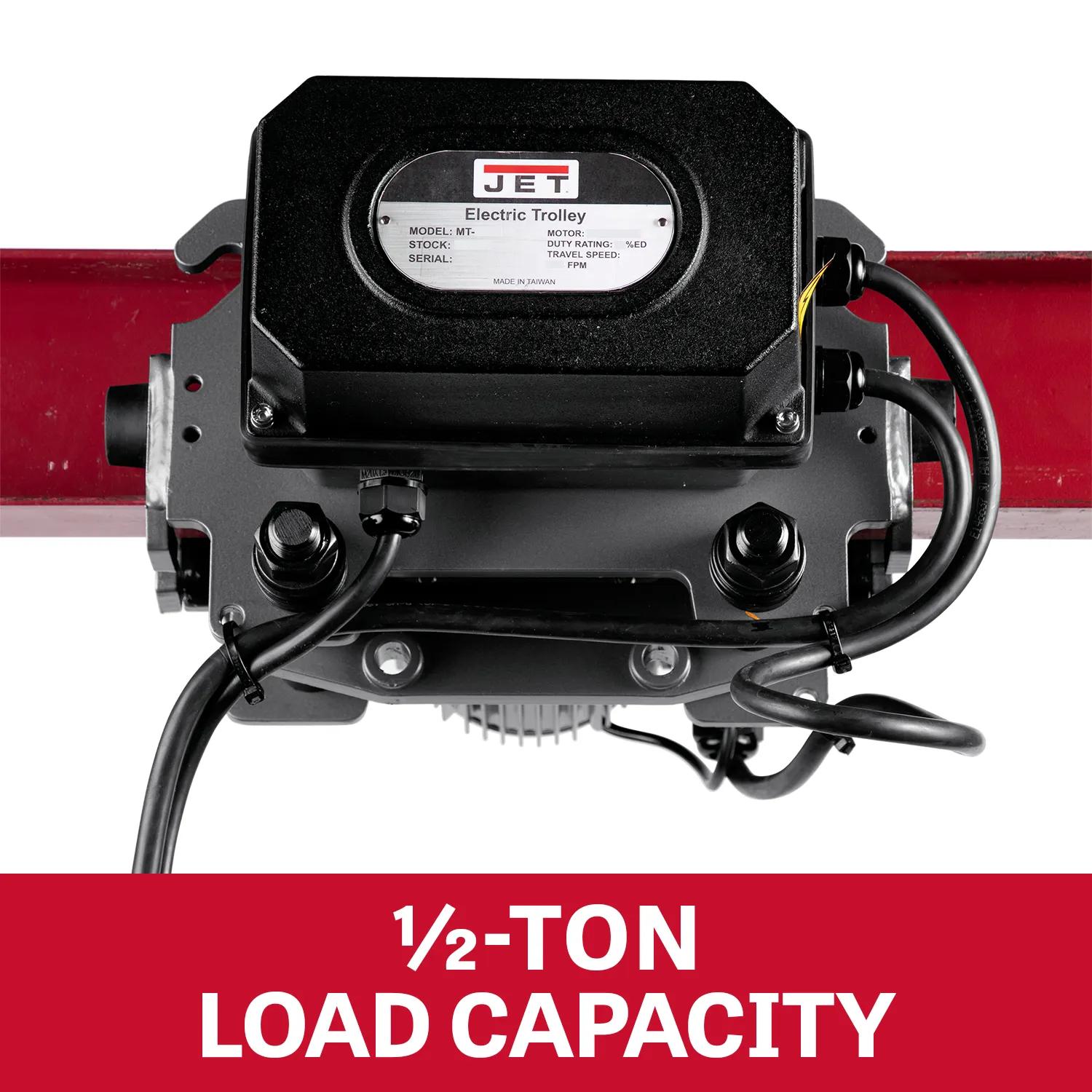

  • Capacity
    1100 lbs.
  • Classification / Certification
    ANSI/ASME B30.16, ANSI/ASME HST-1 Standard
  • Lift Control
    Wired

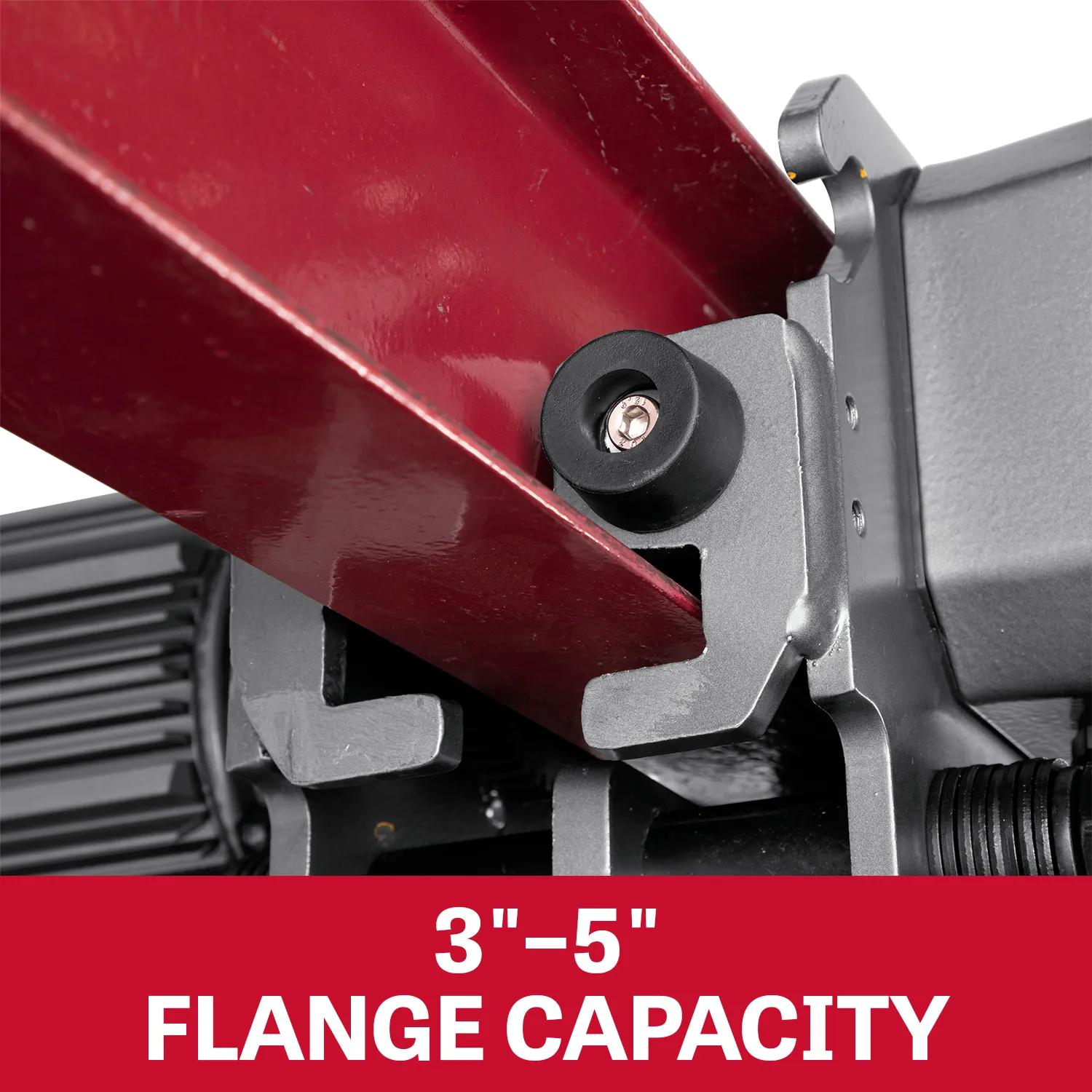

  • Maximum Beam Flange Width
    5 in.
  • Minimum Beam Curve Radius
    51.2 in.
  • Minimum Beam Flange Width
    3 in.
  • Model Number
    MT050-4
  • Motor HP
    0.04 / 0.16 HP
  • Motor Phase
    Three
  • Motor Voltage
    460 V
  • Old Material Number
    144183
  • Product Type
    Accessories
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    143
  • SAP Net weight
    99
  • Travel Speed
    20/79 FPM
  • UPC
    731325880076
  • Warranty
    Limited Lifetime Warranty
  • Wheel Diameter
    7/8 in.
