Product Details
Overhead work demands a hoist that earns its place. Built around plants where load capacity, brake authority, and chain durability all matter, the MT200 delivers production-grade results. Equipped with a .12 / .50 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.
Features
- Rated for 4400 lbs, this hoist handles the loads production overhead environments actually move.

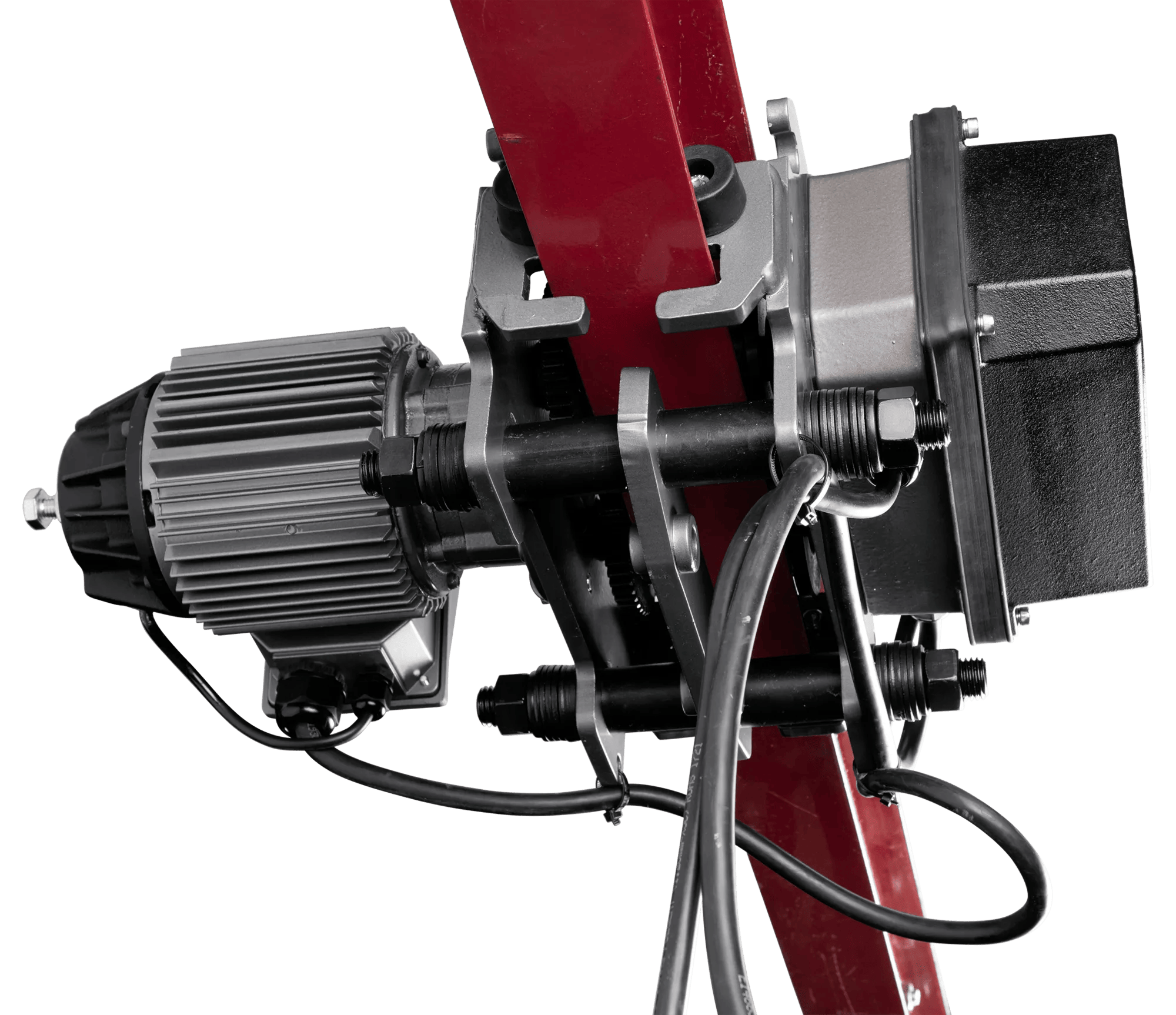

- Production-grade.12 /.50 HP, 230V drive — running at nameplate output.
- Industrial-grade Weston brake holds load in either direction — delivering safety the design enforces, not the operator remembers.
- Industrial-grade load chain — running proof-loaded and inspection-tested before shipment, sized for the chain authority overhead lifting requires.

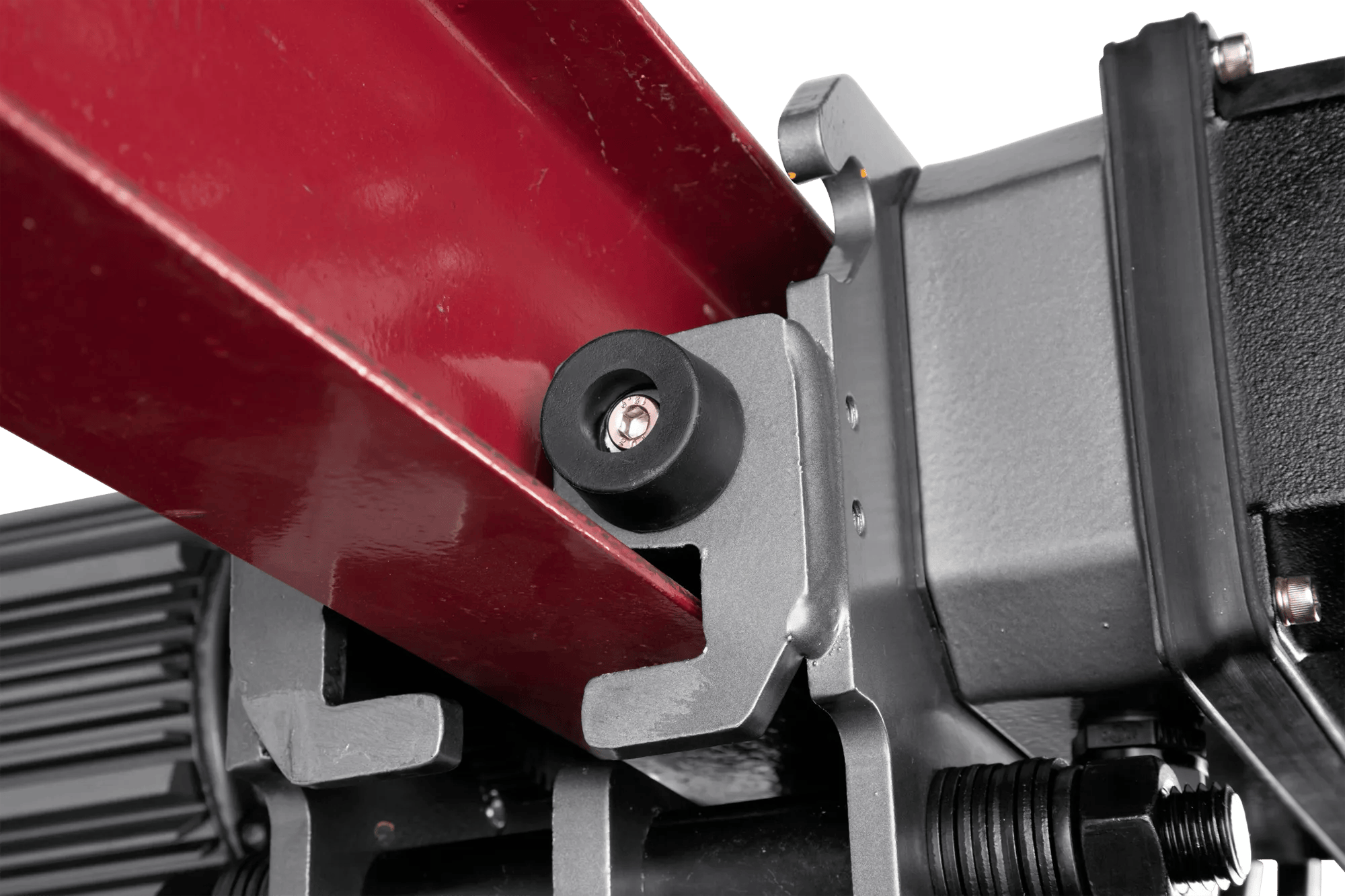

- Industrial rotating hooks resist deformation for tight headroom applications.
- Industrial-grade ANSI/ASME compliance is the certification customers verify for facilities with strict procurement requirements.
Specifications
- SKUJT9-140187
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Hook Mount Headroom39.375 in.

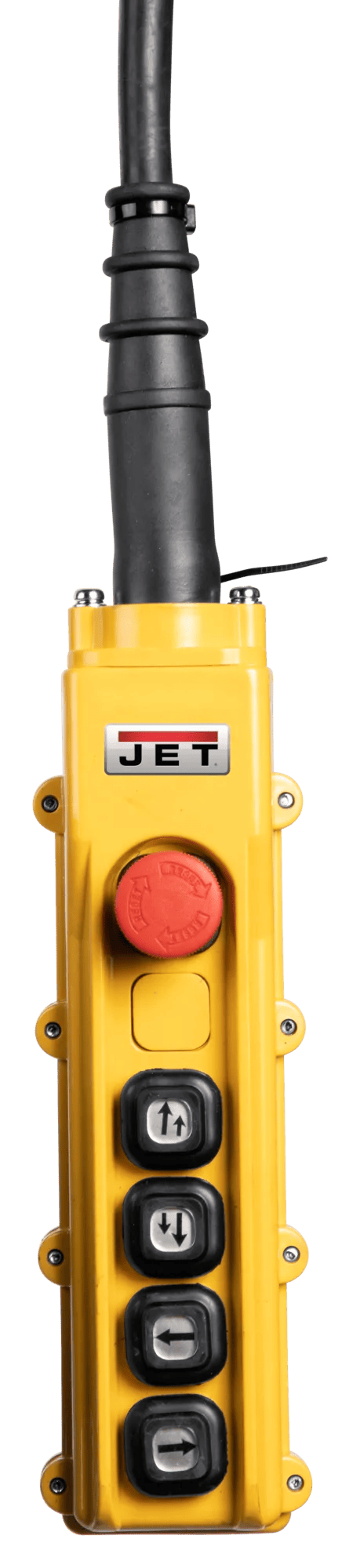

- Lift ControlWired
- Maximum Beam Flange Width6 in.
- Minimum Beam Curve Radius66.9 in.
- Minimum Beam Flange Width4 in.
- Model NumberMT200
- Motor HP.12 / .50 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number140187
- Product TypeAccessories
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight170
- SAP Net weight126
- Travel Speed20/79 FPM
- UPC731325854831
- WarrantyLimited Lifetime Warranty
- Wheel Diameter1-1/4 in.
