Product Details
When the load matters, so does the lift. Designed for rigging operations that demand certified equipment, the MT300 stands up to the duty cycle. Equipped with a 0.2 5/ 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- 6600 lbs. capacity passes the spec inspectors verify for overhead work where the load can't slip.
- Industrial 0.2 5/ 0.75 HP induction motor: running tens of thousands of hours without service intervention, designed for production environments.
- Self-engaging Weston brake covers the load-holding redundancy for the redundant pawl-and-ratchet design overhead lifting demands.
- Heat-treated alloy steel load chain provides the strength-to-weight ratio for the cycle counts production lifting environments demand.
- Continuous-duty rotating hooks resist deformation for rigging in confined spaces.
- Built and tested to ANSI/ASME standards — delivering the certification overhead lifting compliance requires, sized for the documentation field inspectors actually verify.
Specifications
- SKUJT9-140189
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Hook Mount Headroom39.375 in.

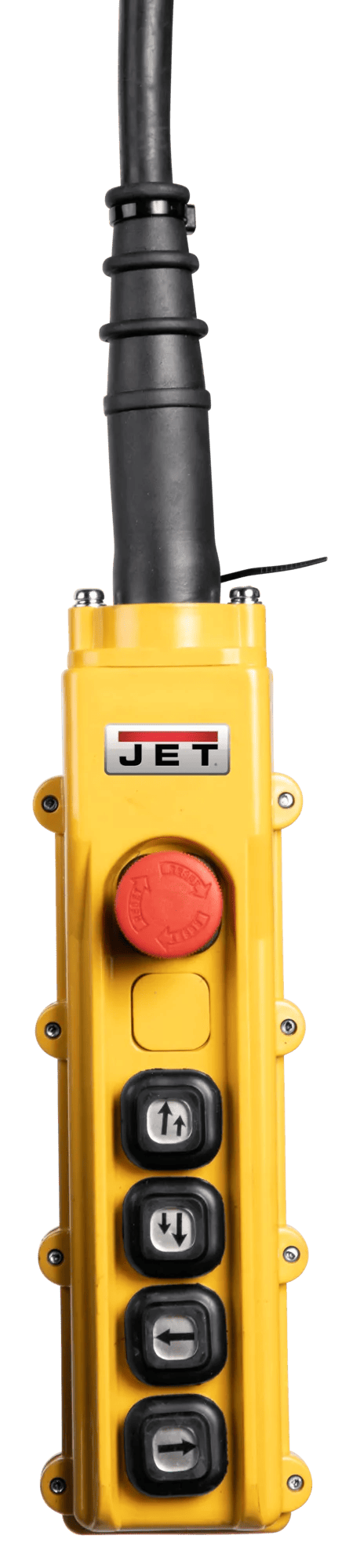

- Lift ControlWired
- Maximum Beam Flange Width6 in.
- Minimum Beam Curve Radius78.7 in.
- Minimum Beam Flange Width5 in.
- Model NumberMT300
- Motor HP0.2 5/ 0.75 HP
- Motor PhaseThree
- Motor Voltage230 V
- Net Weight196
- Old Material Number140189
- Product TypeAccessories
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight243
- Travel Speed20/79 FPM
- UPC731325854848
- WarrantyLimited Lifetime Warranty
- Wheel Diameter1-1/2 in.
