5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)
5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)

5 Ton, 2 Speed Electric Trolley, 0.2 5 / 0.75HP, 230V 3PH(MT500)

Stock Number: JT9-140190

0 Reviews

No reviews yet.

  • 0.25 / 0.75 HP, 230V, three-phase
  • 11000 lbs
  • ANSI/ASME B30.16 rated
  • Grade 100 load chain
BUY NOW
Fetching Data...

Product Details

Strength-to-weight, brake authority, and chain durability — engineered together. The MT500 is built for plants where load capacity, brake authority, and chain durability all matter. Equipped with a 0.2 5/ 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.

Features

  • Production 11000 lbs rating handles overhead work across regulated overhead environments.
  • Factory-tested 0.2 5/ 0.75 HP motor with sealed bearings — running tens of thousands of hours without service intervention across manufacturing cells.
  • Weston-style brake architecture — splitting the load across industrial overhead work.
  • Working-grade load chain covers chain authority for the wear pattern production rigging actually generates.
  • Heat-treated rotating hooks meet certification standards for rigging in confined spaces.
  • Industrial-spec ANSI/ASME compliance is the certification customers verify for compliance with regulated industrial procurement.

Specifications

  • SKU
    JT9-140190
  • Capacity
    11000 lbs.
  • Classification / Certification
    ANSI/ASME B30.16, ANSI/ASME HST-1 Standard
  • Hook Mount Headroom
    39.375 in.

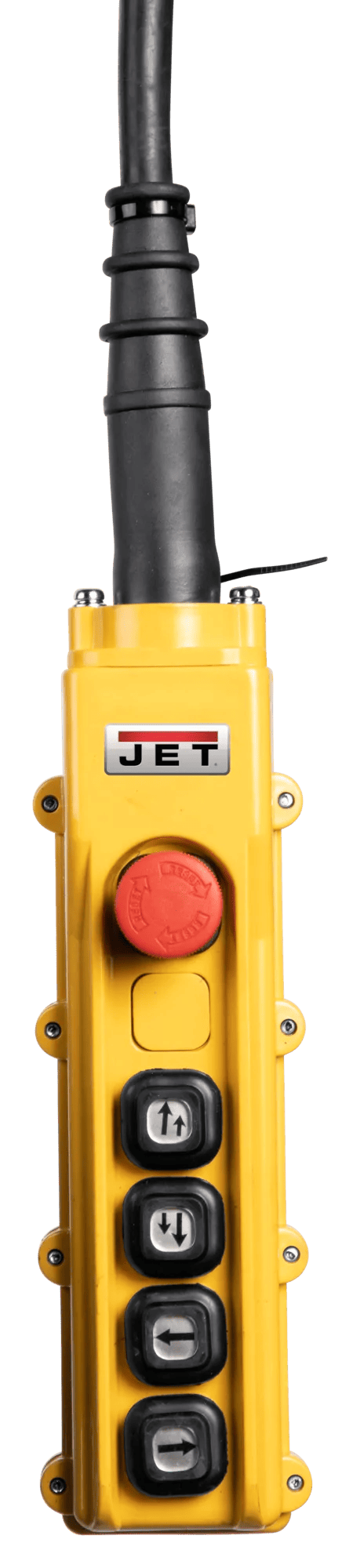

  • Lift Control
    Wired
  • Maximum Beam Flange Width
    7 in.
  • Minimum Beam Curve Radius
    78.7 in.
  • Minimum Beam Flange Width
    5 in.
  • Model Number
    MT500
  • Motor HP
    0.2 5/ 0.75 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    140190
  • Product Type
    Accessories
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    243
  • SAP Net weight
    196
  • Travel Speed
    20/79 FPM
  • UPC
    731325854855
  • Warranty
    Limited Lifetime Warranty
  • Wheel Diameter
    1-3/4 in.
