6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)
6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)

6" x 89" Black Oscillating Edge Sander, Belt, 1.75HP, 115/230V 1PH(OES-689-BLK)

Stock Number: JT1-1372

0 Reviews

No reviews yet.

  • 1.75 HP, 115/230V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW

Product Details

Surface finish that survives the QA bench. Engineered around industrial finishing environments running long abrasive cycles, the OES-689-BLK earns its place. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production finishing cycles, warrantied for the duty.

Features

  • 1.75 HP single-phase induction motor sized for the duty cycles production schedules generate.
  • Engineered belt tension — delivering belt geometry production finishing actually requires.
  • Belt geometry was sized for the material removal rates production work demands.
  • Disc-grinding architecture — delivering disc-grinding authority production finishing requires across industrial finishing.
  • Tolerance-grade tilting table — covering miter and bevel grinding production fabrication generates across production grinding.
  • Cast iron construction in the main castings — earning their place through sheer mechanical authority.

Specifications

  • SKU
    JT1-1372
  • Abrasive Type
    6 x 89
  • Assembled Dimensions
    51-3/16 x 31-1/2 x 49-1-1/4 in.
  • Base Size
    20-5/8 x 16 in.
  • Belt Size
    6 x 89 in.
  • Belt Speed
    4000 fpm,540 RPM

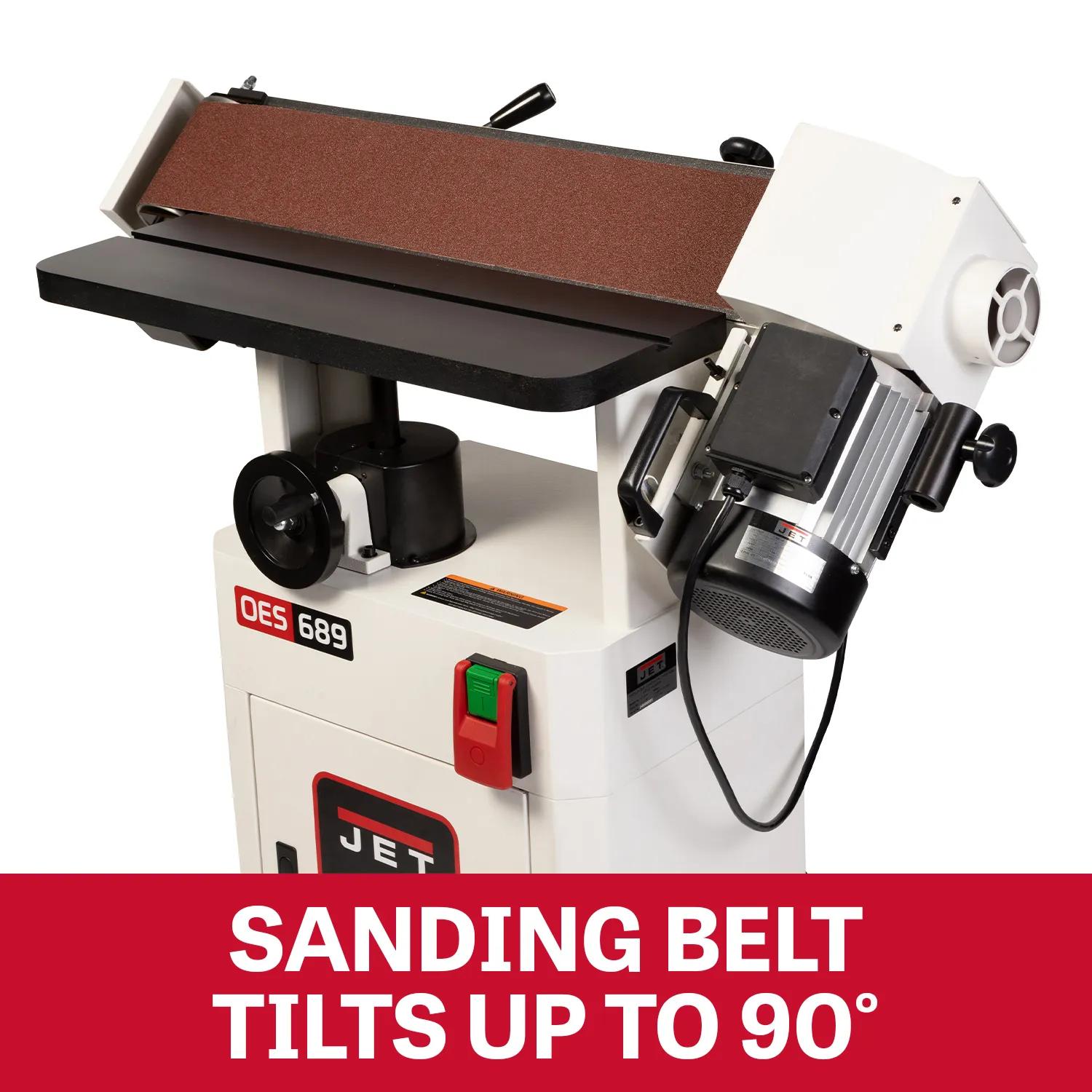

  • Belt Tilt Range
    0-90 Deg.
  • Coating
    JET Black Coating

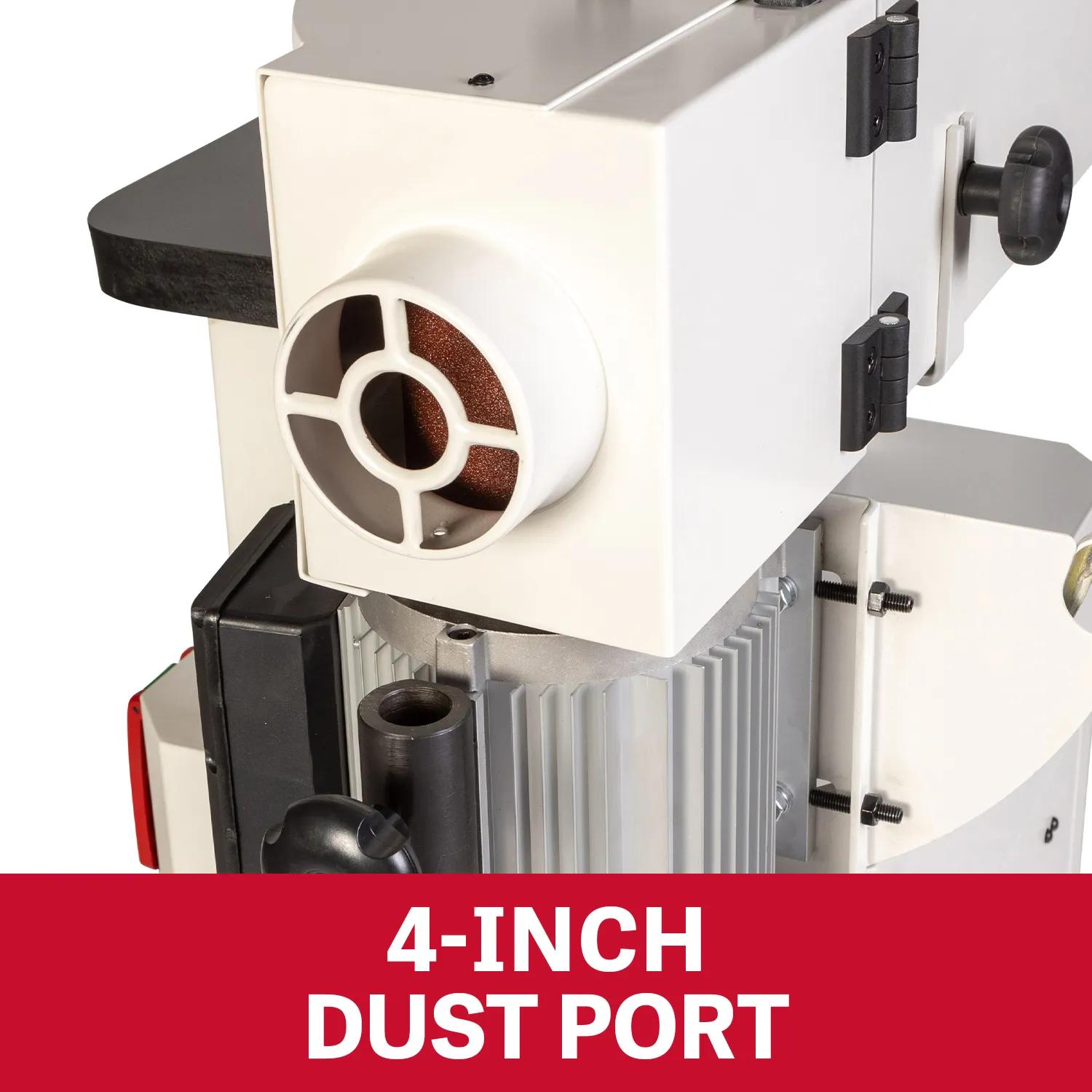

  • Dust Port Outside Diameter
    4 in.

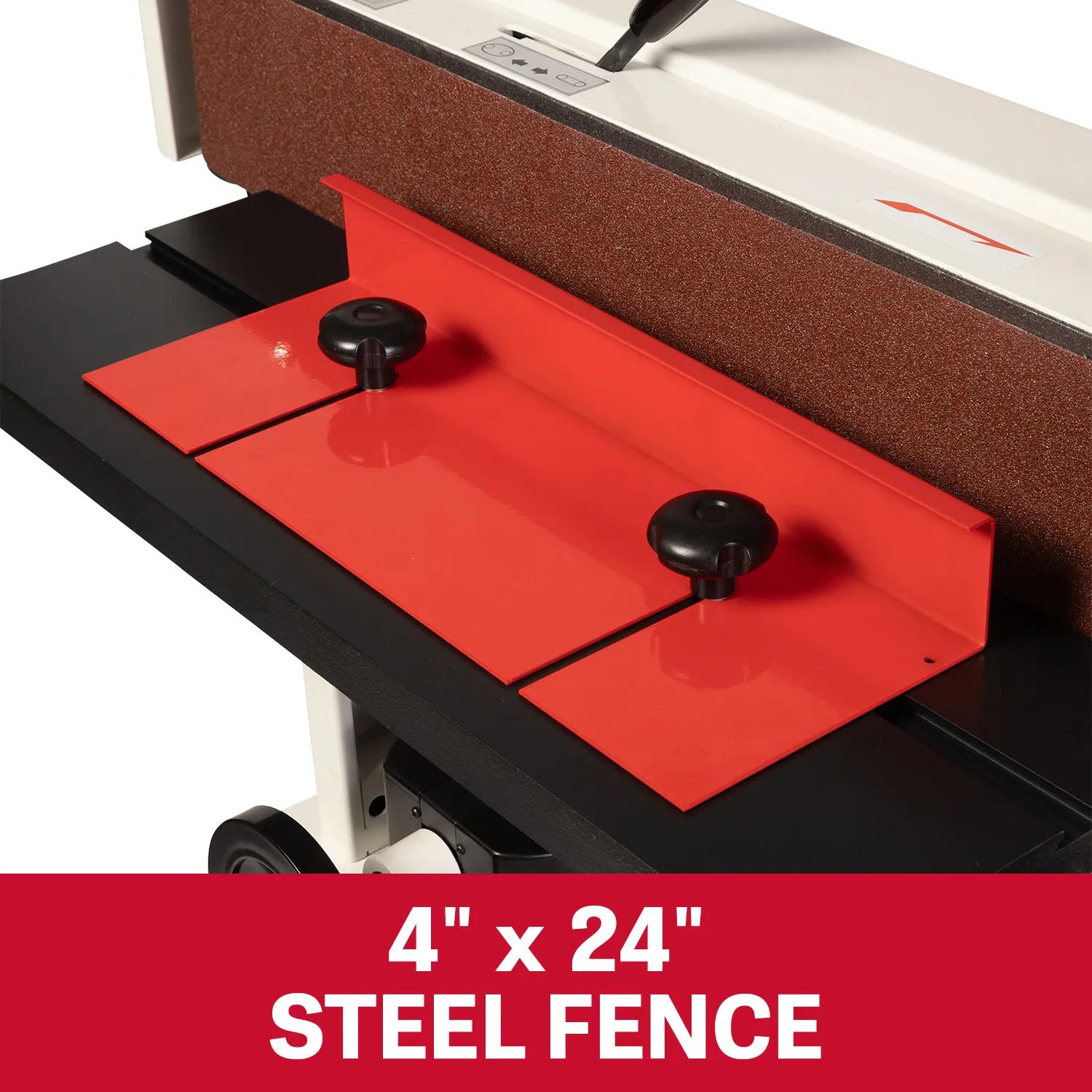

  • Fence Size L X H
    24 x 4 in.
  • Fence Tilt
    0-90 Deg.
  • Horse Power
    1.75 HP
  • Input Power
    115/230 V 1 Ph

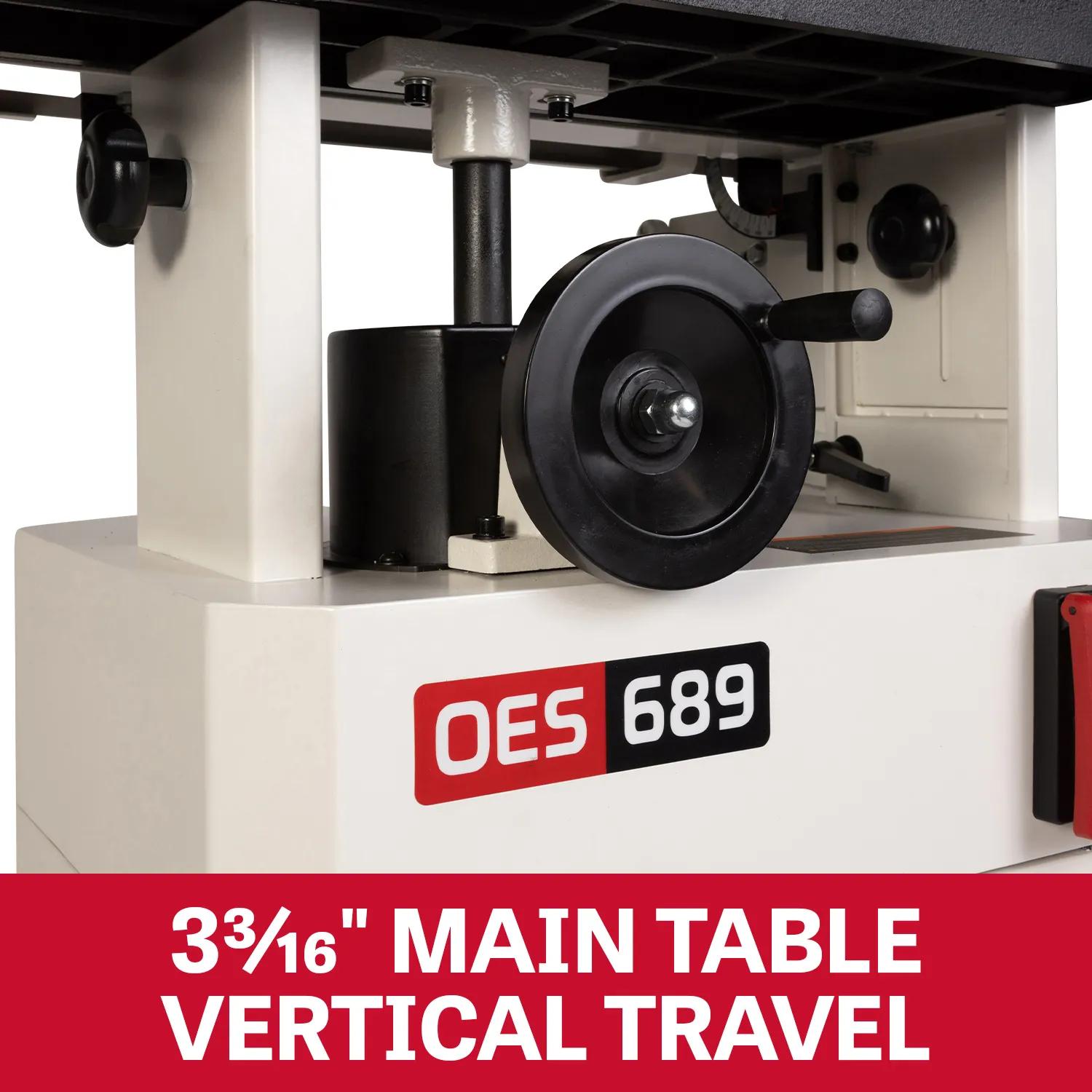

  • Maximum Table Travel
    3-3/16 in.
  • Model Number
    OES-689-BLK
  • Motor Amps
    14.5 A
  • Motor HP
    1.75 HP
  • Motor Phase
    Single
  • Motor Speed
    3450 RPM
  • Motor Voltage
    115/230 V

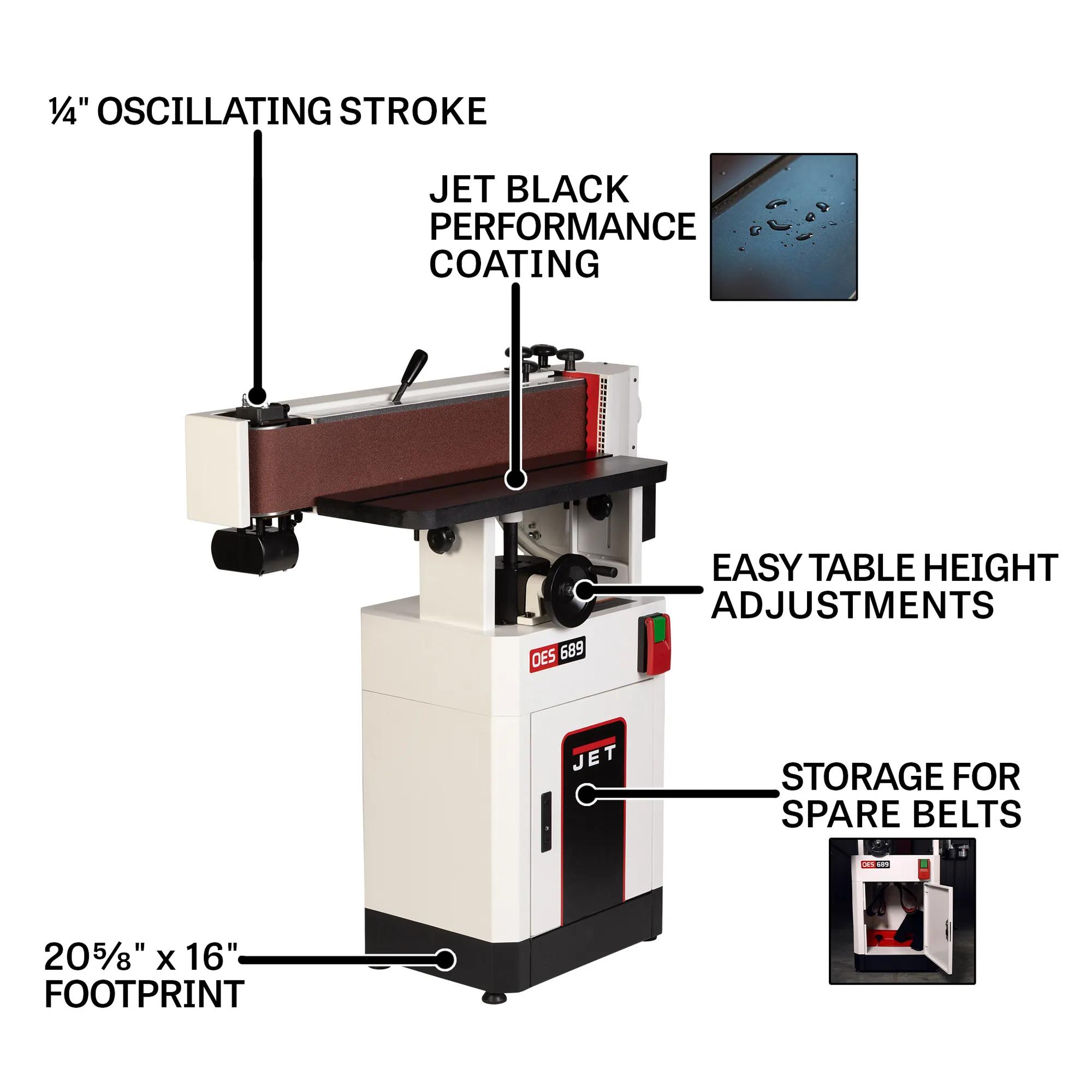

  • Oscillation Stroke
    1/4 in.
  • Oscillations Per Minute
    106
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    400 - 400 CFM

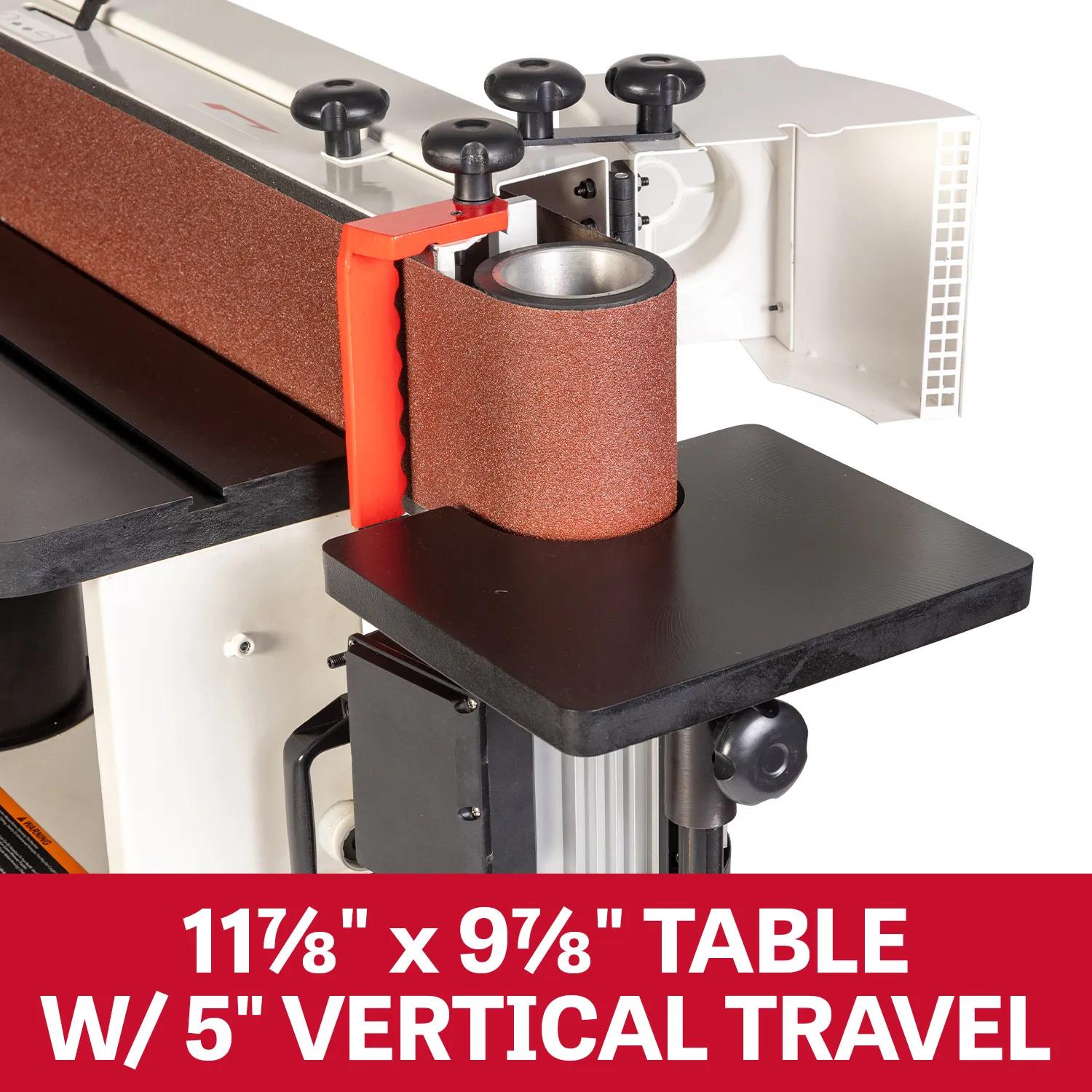

  • Right Side Extension Table
    11-7/8 x 9-7/8 in.
  • Running Amps
    6.0/3.17 A (load)
  • Sanding Belt Size
    6 x 89 in.
  • Sanding Belt Speed
    4000 FPM
  • SAP Gross Weight
    352
  • SAP Net weight
    280
  • Table Size
    29-1/2 x 10 in.
  • Table Travel
    5 in.
  • Throat Depth
    18 in.
  • UPC
    019907931980
  • Warranty
    Five Years
