Product Details
Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The MBS-1323EVS-H answers the work generated by production sawing across hardwoods, softwoods, and metal stock. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Engineered 3 HP drive provides consistent torque for the working loads daily production generates.

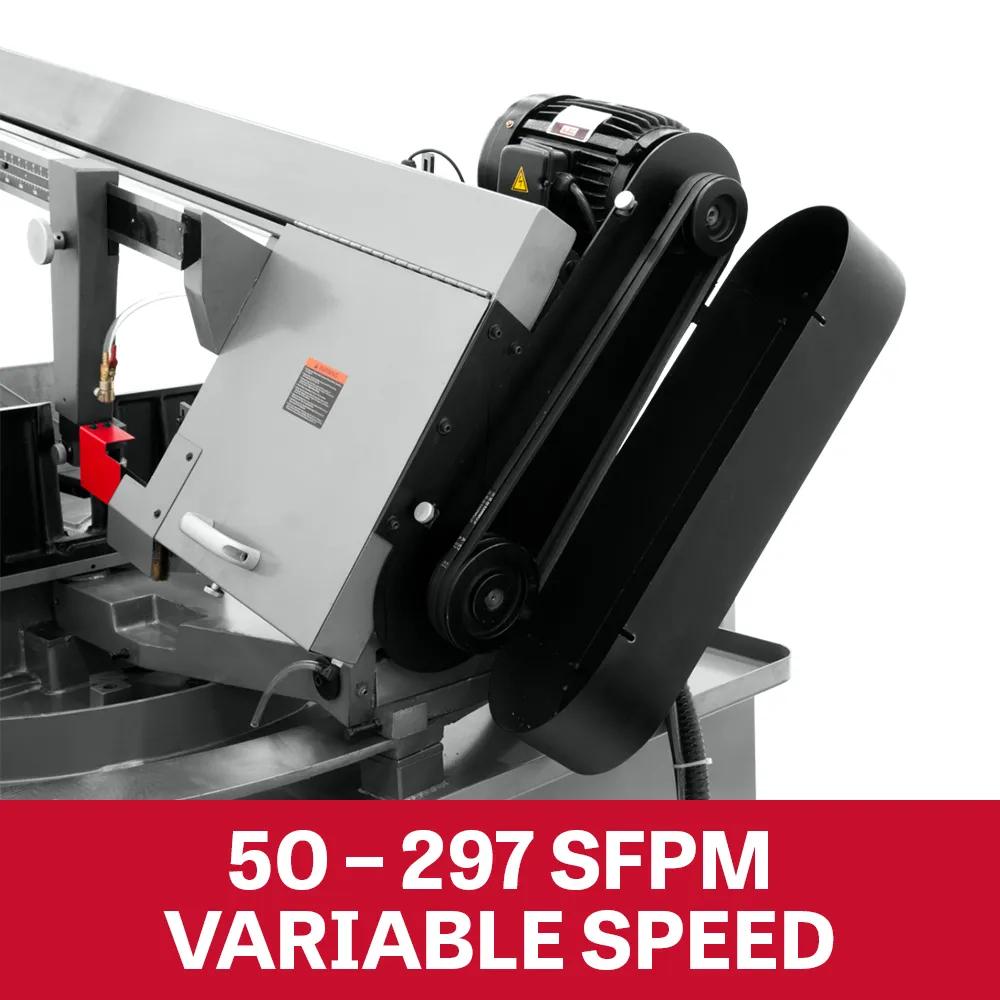

- Professional-grade blade speed at 50 - 297 SFPM supports cut velocity for variable cuts across material density.
- Industrial-grade saw frame handles blade alignment for cut quality consistency across long runs.
- Production-grade tilting table — delivering angle accuracy precision work expects, engineered for miter-and-bevel work in one setup.
- Production-spec cutting envelope covers workpiece sizes for the cut-length envelope industrial sawing requires.
- Cast iron trunnion castings hold reference flat for the working loads industrial cutting generates.
Specifications
- SKUJT9-413412
- Assembled Dimensions88 x 55 x 51 in.
- Bed Height27.75 in.
- Blade Length172 in.
- Blade Speed50 - 297 sfpm
- Drive TypeEVS
- Height700 mm
- Input Power230 V 3 Ph
- Model NumberMBS-1323EVS-H
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number413412
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 90 Degrees12 x 23-1/2 in.
- Round Capacity At 45 Degrees13 in.
- Round Capacity At 60 Degrees11 in.
- Round Capacity At 90 Degrees13 in.
- SAP Gross Weight2,090
- SAP Net weight1,826
- Table Size440 x 195 mm
- UPC731325513561
- WarrantyTwo Years
- Wheel Diameter16 in.
