Product Details

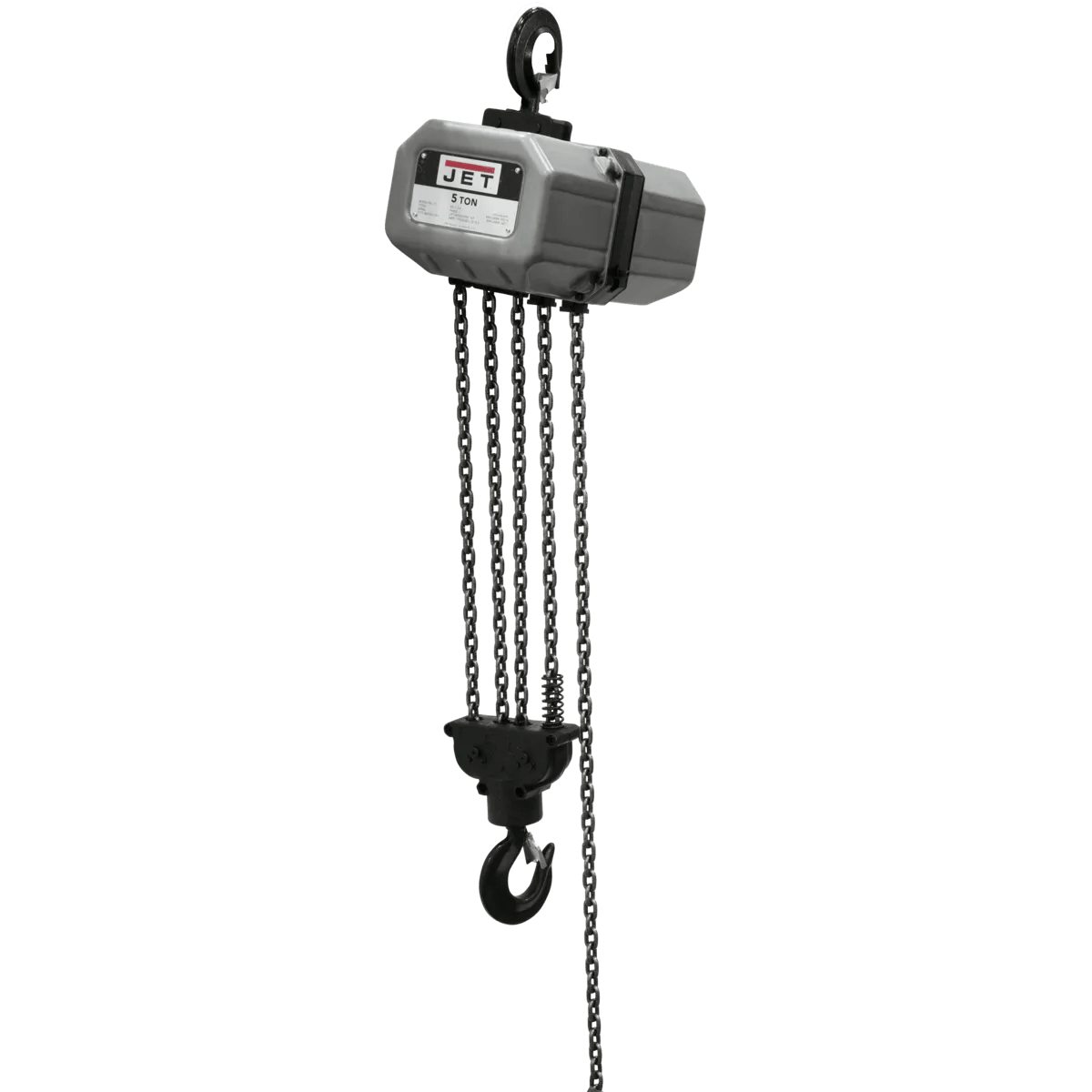

Strength-to-weight, brake authority, and chain durability — engineered together. Designed for plants where load capacity, brake authority, and chain durability all matter, the 5SS-1C-20 stands up to the duty cycle. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and ANSI/ASME-verified construction.
Features
- 6600 lbs. working load — passing the spec inspectors verify on regulated job sites, certified for production overhead lifting.
- The 20 feet lift envelope was sized for the headroom most overhead applications actually require.
- Premium-grade 1.75 HP drive handles consistent torque for the duty range working shops actually run.
- Self-engaging Weston brake matches the load-holding redundancy for engagement that works on or off shop power.
- Heat-treated alloy steel load chain handles the strength-to-weight ratio for the wear pattern production rigging actually generates.
- Forged rotating hooks — simplifying rigging in tight headroom across production overhead work.
Specifications
- SKUJT9-512000
- Capacity11000 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom41.333 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed4.9 FPM
- Maximum Number Of Starts Per Hr150
- Maximum On Time Min Hr15
- Old Material Number512000
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight277
- SAP Net weight258
- Shipyard HooksNo
- UPC731325173499
- WarrantyTwo Years
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage230 V
