Product Details

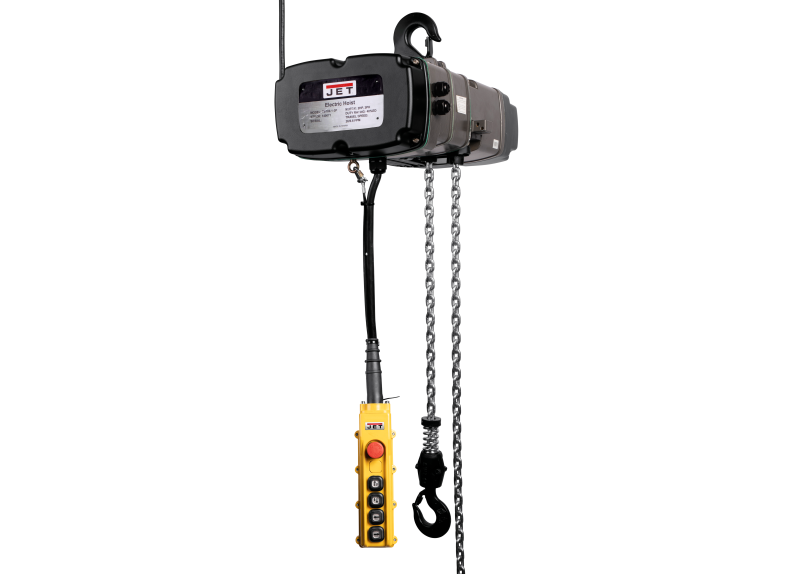

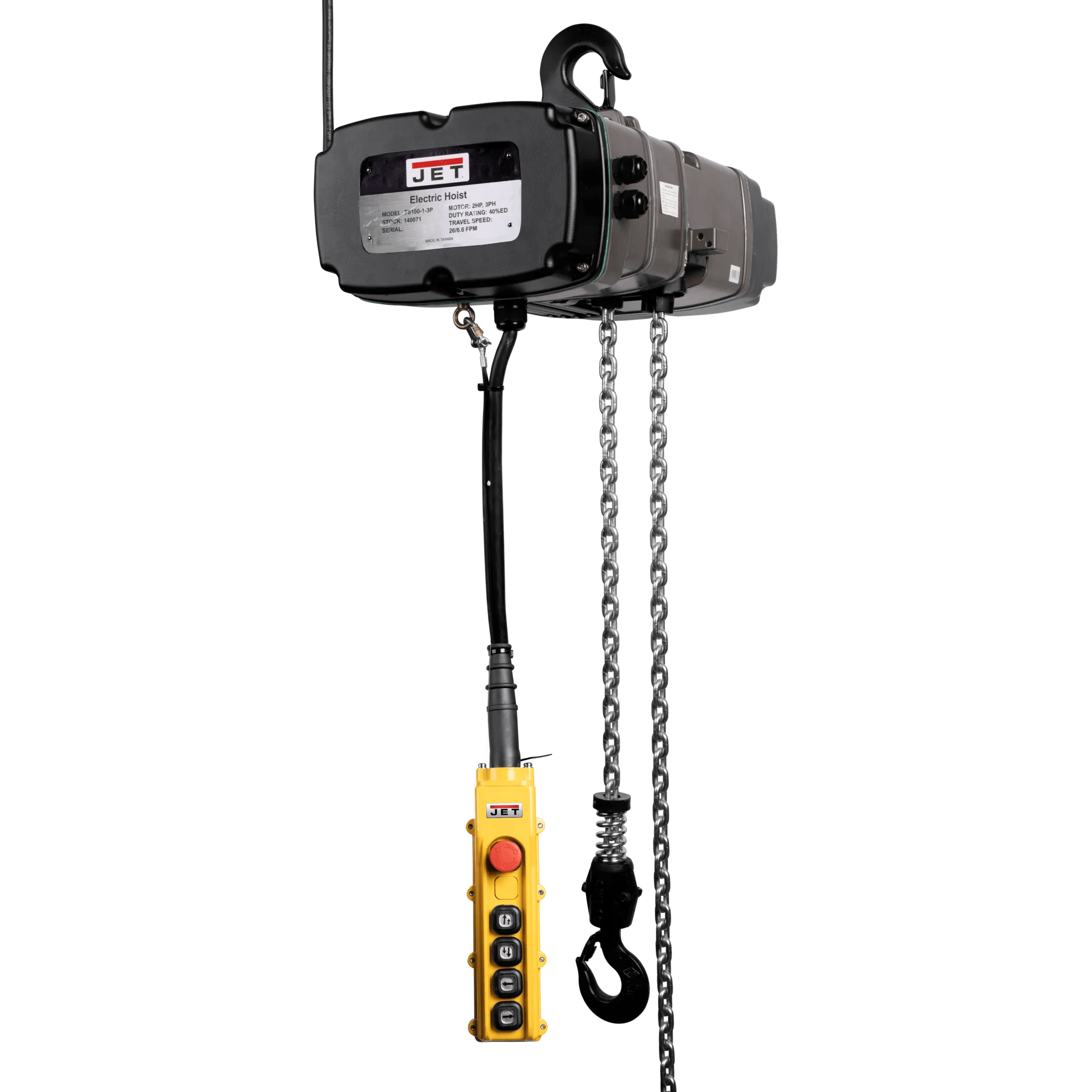

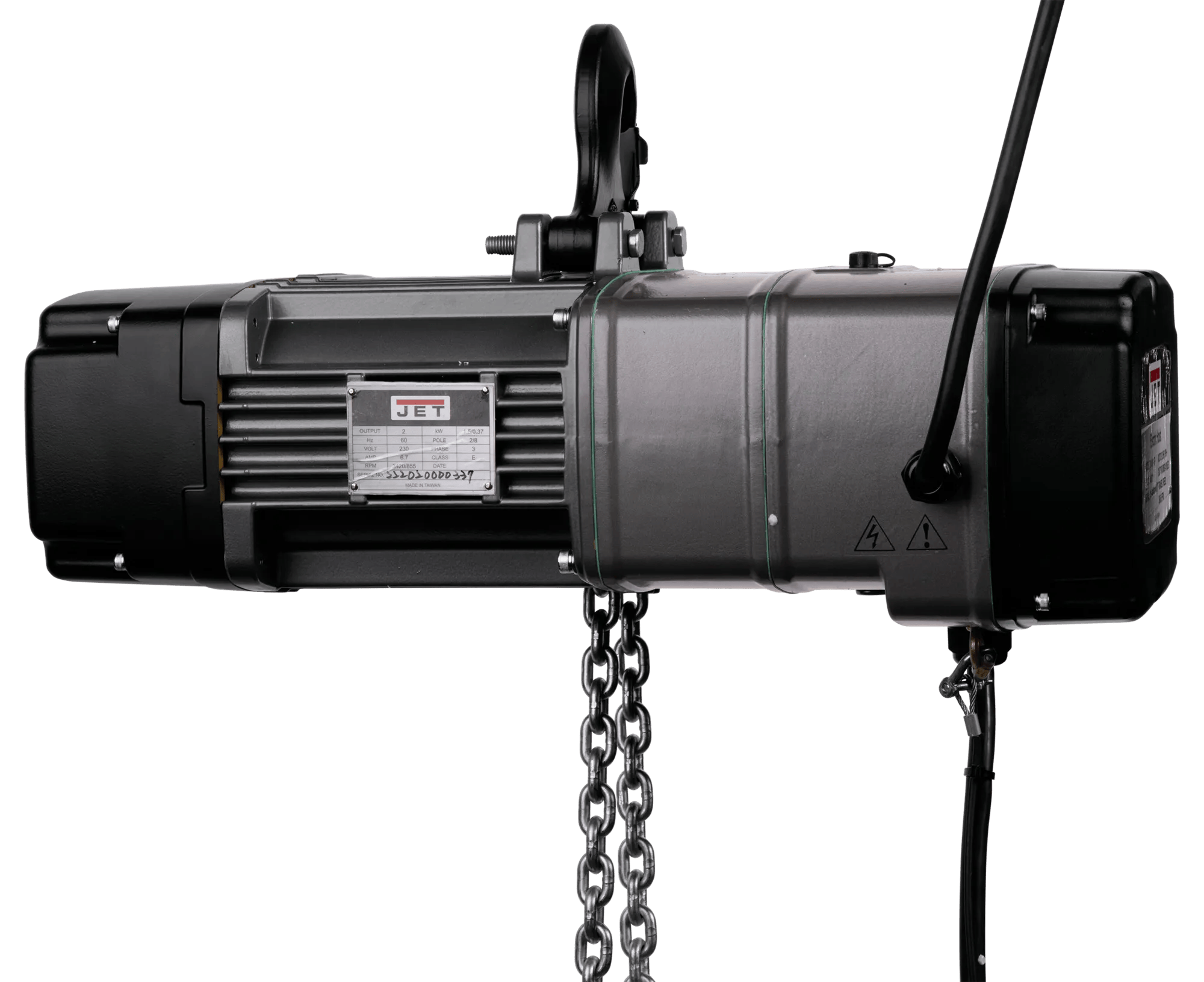

Engineered for the loads that production environments actually move. The TS050-230-010 KIT was sized for plants where load capacity, brake authority, and chain durability all matter. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.
Features
- Tolerance-grade 1100 lbs working load handles the lifts production rigging operations actually demand.
- Production 10 feet lift envelope fits overhead applications across production overhead work.
- Heavy-duty 1.5 HP induction motor handles working speed under load — transmitting power smoothly.
- Mechanical overload limiter built into the load-bearing path for safety regulated lifting requires.
- Production-grade Weston brake architecture is the proven safety design across overhead lifting operations.
- Production-spec alloy load chain — handling cycle counts that wear lower-grade alternatives down.
Specifications
- SKUJT9-140233K
- Capacity1100 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom7.6875 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed8 / 33 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140233K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight172
- SAP Net weight117
- Shipyard HooksNo
- UPC731325864533
- WarrantyTwo Years
- Motor HP1.5 HP
- Motor PhaseThree
- Motor Voltage230 V
