Product Details

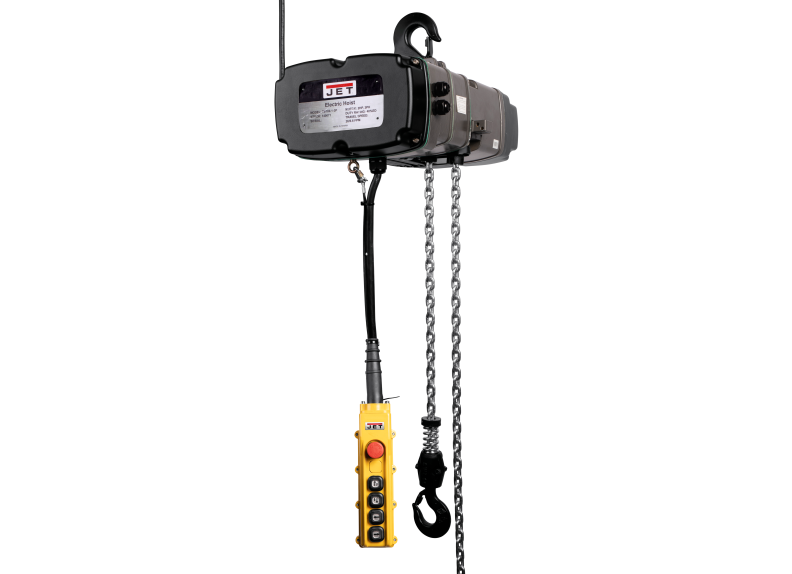

Lifting capacity you can trust, every cycle. Built around production environments where overhead lifting can't pause, the TS050-230-015 KIT delivers production-grade results. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime-backed, because we stand behind every lift.
Features
- Precision-rated 1100 lbs rating — delivering capacity rating production overhead work depends on.
- The 15 feet lift envelope was sized for the lift-and-hold cycles production work generates.
- 1.5 HP three-phase induction motor sized for industrial-grade duty cycles.
- Built-in overload protection handles the load-bearing safety net for safety regulated lifting requires.
- Double-pawl Weston brake — delivering safety the design enforces, not the operator remembers, sized for the safety-net redundancy regulated lifting demands.
- Premium-grade load chain handles chain authority for the cycle counts production lifting environments demand.
Specifications
- SKUJT9-140234K
- Capacity1100 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom19.667 in.
- Lift15 ft.
- Lift ControlWired
- Lifting Speed8 / 33 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140234K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight176
- SAP Net weight121
- Shipyard HooksNo
- UPC731325864540
- WarrantyTwo Years
- Motor HP1.5 HP
- Motor PhaseThree
- Motor Voltage230 V
