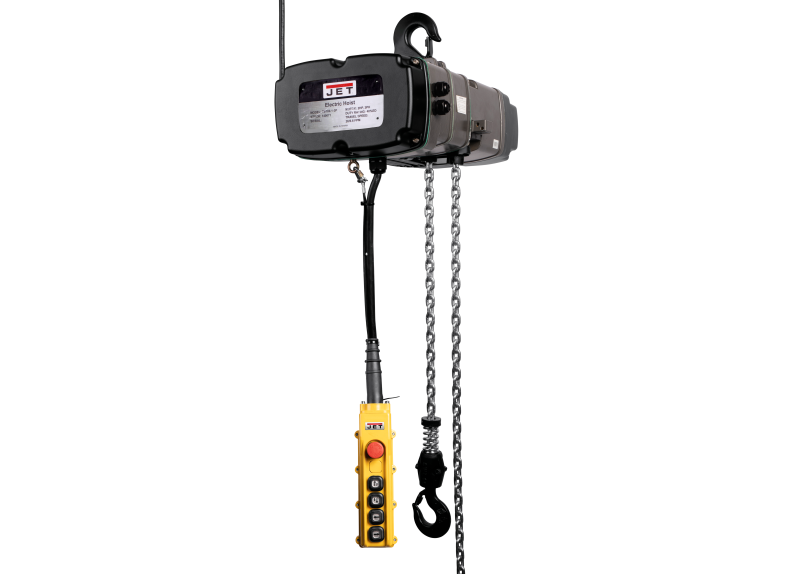

1/2 Ton, 2 Speed Electric Chain Hoist 20' Lift, MT050 Electric 2 Speed Trolley,16ft, 1.5HP, 3PH(T050-230-020 KIT)

Stock Number: JT9-140235K

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, three-phase
  • 1100 lbs
  • 20 ft lift
  • ANSI/ASME B30.16 rated
BUY NOW
JET 2Year Warranty Logo

Product Details

Where loads move and safety can't slip. Designed for facilities running ANSI/ASME-compliant overhead lifting, the T050-230-020 KIT stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.

Features

  • Heavy-duty 1100 lbs working load handles the lifts industrial production lines actually demand.
  • Factory-tested 20 feet lift range — covering vertical reach industrial overhead environments require.
  • Industrial 1.5 HP induction motor — transmitting power without the maintenance brush-motor designs require, engineered for the operating realities of production environments.
  • Engineered overload sensing — engaging before the load chain or hooks see damaging stress, sized for safety regulated lifting requires.
  • Shop-rated Weston brake design delivers controlled descent for the controlled load holding overhead rigging requires.
  • Factory-tested alloy load chain — delivering proof-loaded chain authority production rigging requires.

Specifications

  • SKU
    JT9-140235K
  • Capacity
    1100 lbs.
  • Classification / Certification
    ANSI/ASME B30.16, ANSI/ASME HST-1 Standard
  • Duty Cycle
    40/20 H4
  • Hook Mount Headroom
    19.667 in.
  • Lift
    20 ft.
  • Lift Control
    Wired
  • Lifting Speed
    8 / 33 FPM
  • Maximum Number Of Starts Per Hr
    240
  • Maximum On Time Min Hr
    30
  • Old Material Number
    140235K
  • Overload Protection
    No
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    180
  • SAP Net weight
    125
  • Shipyard Hooks
    No
  • UPC
    731325864557
  • Warranty
    Two Years
  • Motor HP
    1.5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
