Product Details

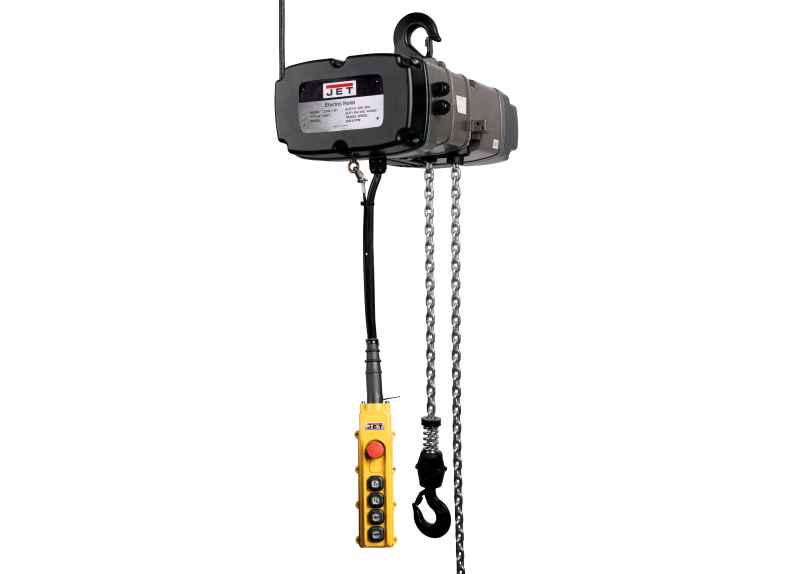

Strength-to-weight, brake authority, and chain durability — engineered together. Designed for production environments where overhead lifting can't pause, the TS100-230-020 KIT stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- Rated for 2200 lbs., this hoist handles the loads professional rigging operations actually move.
- 20 feet working lift — delivering the lift envelope production overhead work demands, sized for the headroom most overhead applications actually require.
- Working-grade 2 HP drive provides consistent torque for the duty cycles production schedules generate.
- Engineered overload sensing — engaging before the load chain or hooks see damaging stress, sized for the safety net that prevents near-miss incidents.
- Double-pawl Weston brake — splitting the load, sized for the redundant pawl-and-ratchet design overhead lifting demands.
- Heat-treated alloy steel load chain delivers the strength-to-weight ratio for the cycle counts production lifting environments demand.
Specifications
- SKUJT9-140238K
- Capacity2200 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom21 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed7/ 26 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140238K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight228
- SAP Net weight172
- Shipyard HooksNo
- UPC731325864588
- WarrantyLimited Lifetime Warranty
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230 V
