Product Details

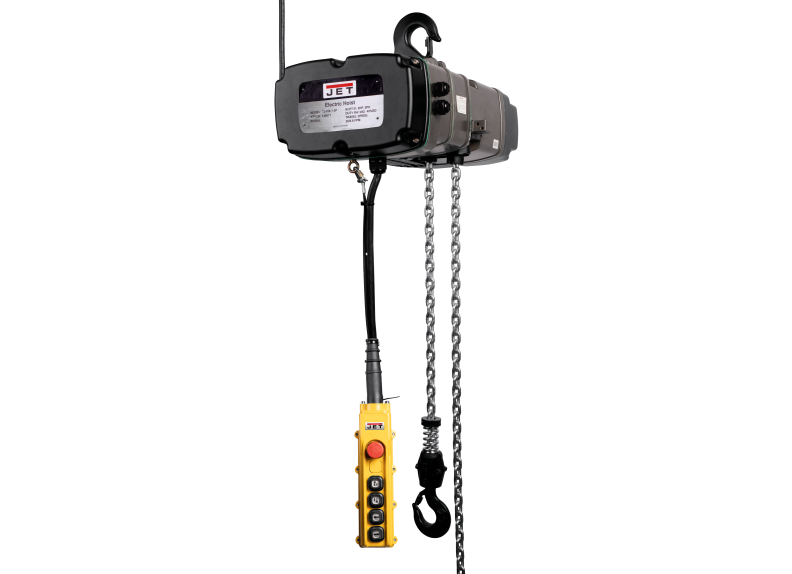

Rigging is the last place to take a shortcut. The TS200-230-020 KIT fits industrial shops with regulated lifting requirements — and the cycle counts they generate. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- 4400 lbs lifting capacity covers the load range for production overhead lifting.
- Standard 10 feet lift delivers the vertical reach for production overhead work across varied beam heights.
- Industrial-spec 5 HP induction motor — outlasting brush-driven alternatives across decades, engineered for long-cycle production work.
- Industrial-spec overload protection works whether shop power is on or off for safety regulated lifting requires.
- Double-pawl Weston brake — splitting the load, sized for added security under strain.
- Premium-grade alloy steel load chain runs proof-loaded and inspection-tested for the load library industrial overhead environments generate.
Specifications
- SKUJT9-140239K
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom38.2 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed8 / 32 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140239K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight375
- SAP Net weight320
- Shipyard HooksNo
- UPC731325864595
- WarrantyTwo Years
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230 V
