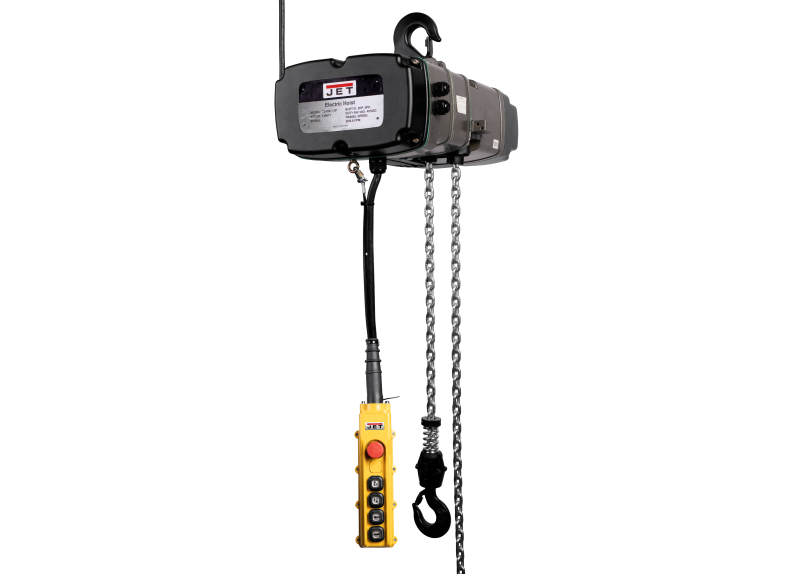

Product Details
Engineered for the loads that production environments actually move. The TS200-230-020 KIT answers the work generated by rigging operations that demand certified equipment. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime-backed, because we stand behind every lift.
Features
- Precision-rated 4400 lbs working load handles the lifts production rigging operations actually demand.
- 20 feet of standard lift covers the headroom for the lift-and-hold cycles production work generates.
- Industrial 2 HP induction motor: delivering production-grade power output, designed for tool rooms.
- Built-in overload protection supports the load-bearing safety net for protecting both equipment and operator from over-pull.
- Self-engaging Weston brake supports the load-holding redundancy for the safety paperwork regulated lifting expects.
- Industrial-grade load chain — handling cycle counts that wear lower-grade alternatives down, sized for the load-test paperwork regulated sites verify.
Specifications
- SKUJT9-140240K
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom38.2 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed8 / 32 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140240K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight392
- SAP Net weight336
- Shipyard HooksNo
- UPC731325864601
- WarrantyLimited Lifetime Warranty
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230 V
