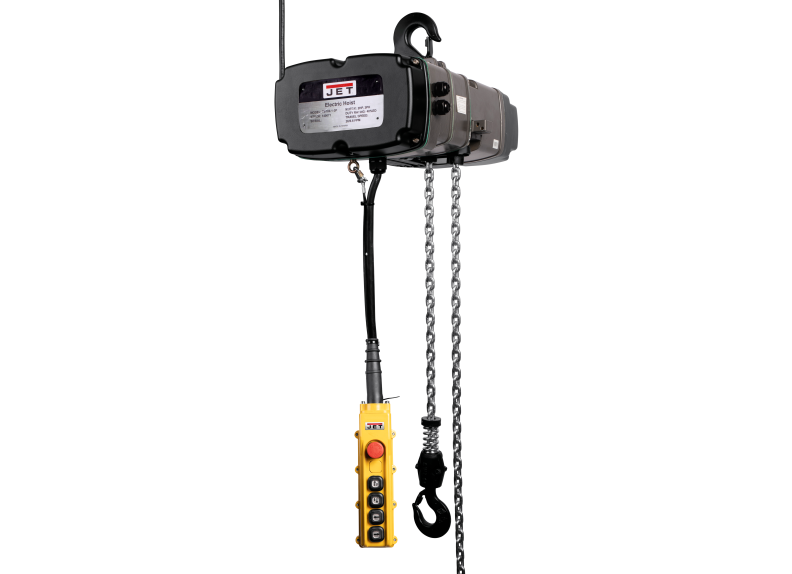

Product Details
Overhead work demands a hoist that earns its place. Designed for industrial shops with regulated lifting requirements, the TS200-460-020 KIT stands up to the duty cycle. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, regulated-environment-ready warranty.
Features
- Continuous-duty 4400 lbs working load handles the lifts regulated industrial lifting actually demand.
- Standard 20 feet lift handles the vertical reach production overhead lifting demand.
- Shop-rated 5 HP motor with sealed bearings — running tens of thousands of hours without service intervention across fabrication shops.
- Precision-rated overload protection works whether shop power is on or off for the load-protection redundancy overhead rigging requires.
- Heavy-duty Weston brake design delivers controlled descent for the controlled load holding overhead rigging requires.
- Heat-treated, proof-loaded chain matches cycle-count durability for the chain authority overhead lifting requires.
Specifications
- SKUJT9-144009K
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom6 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed8 / 32 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number144009K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight392
- SAP Net weight336
- Shipyard HooksNo
- UPC731325879957
- WarrantyTwo Years
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage460 V
