Product Details

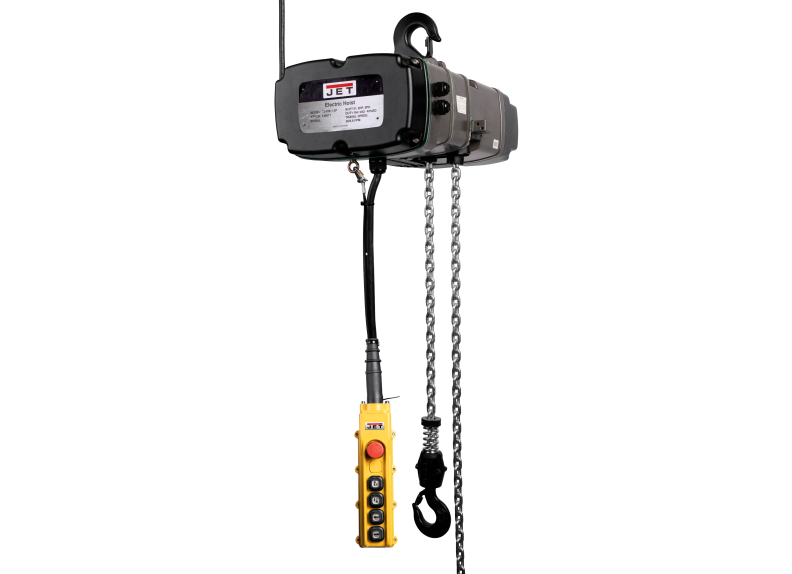

When the load matters, so does the lift. The TS300-230-010 KIT was sized for production environments where overhead lifting can't pause. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- Industrial 6600 lbs. rating — covering the loads industrial overhead environments actually move.
- Production 10 feet lift envelope fits overhead applications across industrial rigging operations.
- Industrial-grade 5 HP three-phase drive — handling startup loads where smaller motors trip, built for manufacturing cells.
- Engineered overload sensing — sensing excess load and disengaging mechanically, sized for the over-pull protection production overhead work demands.
- Mechanical Weston brake handles controlled descent for the controlled load holding overhead rigging requires.
- Engineered alloy load chain — shipping with the load-test paperwork inspectors expect.
Specifications
- SKUJT9-140116K
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom7.333 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed5 / 21 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140116K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight406
- SAP Net weight351
- Shipyard HooksNo
- UPC731325864625
- WarrantyTwo Years
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230 V
