Product Details

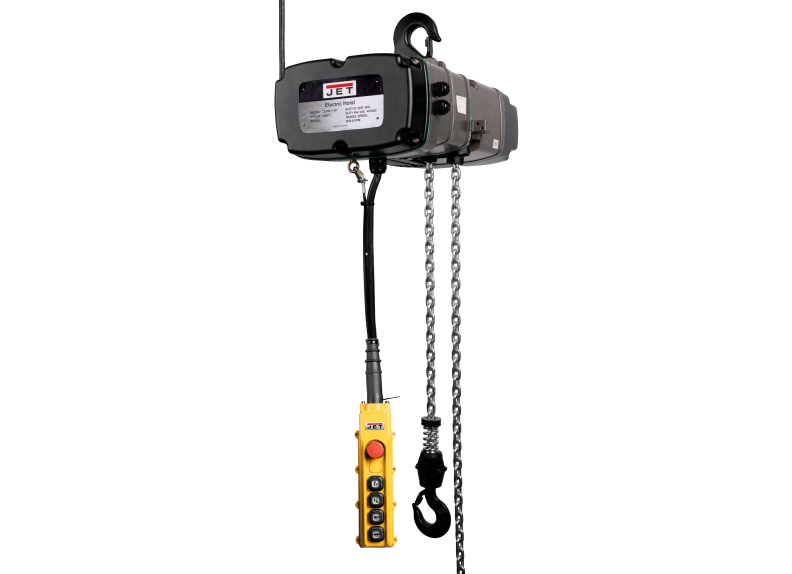

Strength-to-weight, brake authority, and chain durability — engineered together. The TS300-230-015 KIT answers the work generated by facilities running ANSI/ASME-compliant overhead lifting. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and ANSI/ASME-verified construction.
Features
- Professional-grade 6600 lbs. working load handles the lifts professional rigging operations actually demand.
- Working-grade 15 feet lift range — covering vertical reach industrial overhead environments require.
- 5 HP, 230V three-phase induction motor — running tens of thousands of hours without service intervention, sized for full-capacity production runs.
- Engineered overload sensing — engaging without electronics, batteries, or shop-power dependency, sized for capacity-rated mechanical overload sensing.
- Weston-pattern brake — splitting load mechanically across both pawls — no electronics, no batteries, no weak link, engineered for redundant load holding regulated lifting requires.
- Production-grade alloy load chain — handling cycle counts that wear lower-grade alternatives down.
Specifications
- SKUJT9-140117K
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom8.625 in.
- Lift15 ft.
- Lift ControlWired
- Lifting Speed5 / 21 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140117K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight421
- SAP Net weight366
- Shipyard HooksNo
- UPC731325864632
- WarrantyLimited Lifetime Warranty
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230 V
