Product Details

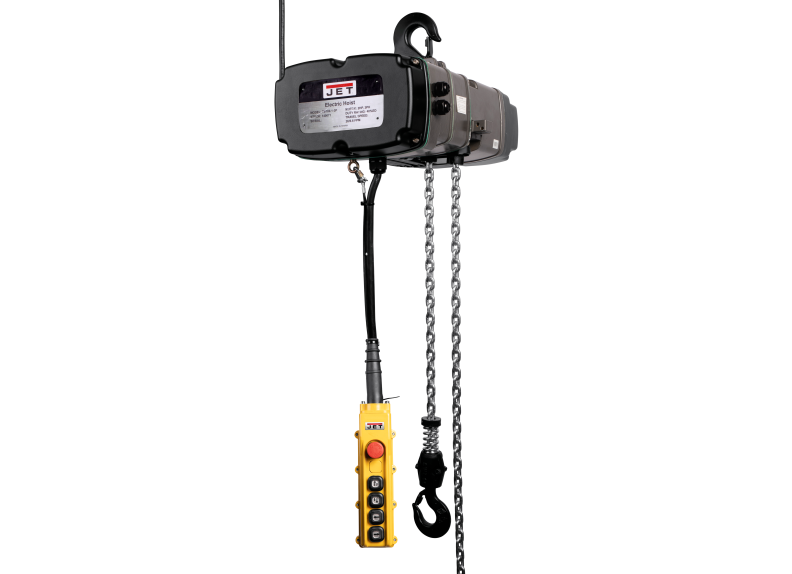

Built for overhead work that doesn't forgive shortcuts. Engineered around production environments where overhead lifting can't pause, the TS300-230-020 KIT earns its place. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- Shop-rated 6600 lbs. rating — delivering working capacity production overhead lifting requires.
- Production 20 feet lift envelope fits overhead applications across industrial rigging operations.
- Factory-sealed 5 HP 230V induction motor stands up to industrial shop floors.
- Factory-calibrated overload protection covers the rated capacity range for the load-protection redundancy overhead rigging requires.
- Mechanical Weston brake matches controlled descent for redundant load holding regulated lifting requires.
- Industrial-grade alloy load chain — standing up to the abrasive realities of overhead work.
Specifications
- SKUJT9-140118K
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom10.833 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed5 / 21 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140118K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight437
- SAP Net weight382
- Shipyard HooksNo
- UPC731325864649
- WarrantyTwo Years
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230 V
