Product Details

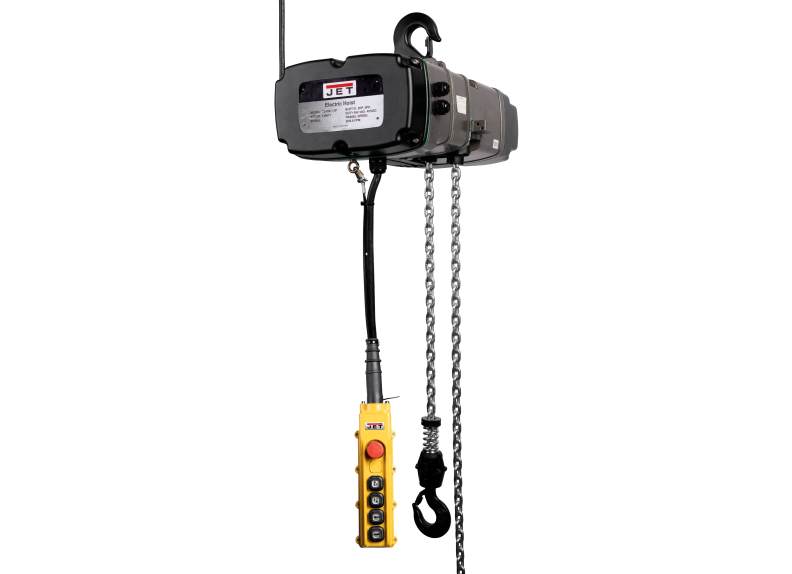

Built for overhead work that doesn't forgive shortcuts. Built around plants where load capacity, brake authority, and chain durability all matter, the TS300-460-015 KIT delivers production-grade results. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.
Features
- Production-spec 6600 lbs. rating — passing the spec inspectors verify on regulated job sites.
- Standard 15 feet lift handles the vertical reach for the beam-to-load distance industrial sites actually have.
- Industrial 5 HP induction motor: outlasting brush-driven alternatives across decades, designed for industrial production lines.
- Working-grade overload protection works whether shop power is on or off for capacity-rated mechanical overload sensing.
- Weston brake mechanism — engaging without operator-side switches, batteries, or maintenance.
- Continuous-duty load chain supports chain authority for the load-test paperwork regulated sites verify.
Specifications
- SKUJT9-144011K
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom4.6875 in.
- Lift15 ft.
- Lift ControlWired
- Lifting Speed5 / 21 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number144011K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight421
- SAP Net weight366
- Shipyard HooksNo
- UPC731325879971
- WarrantyTwo Years
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage460 V
