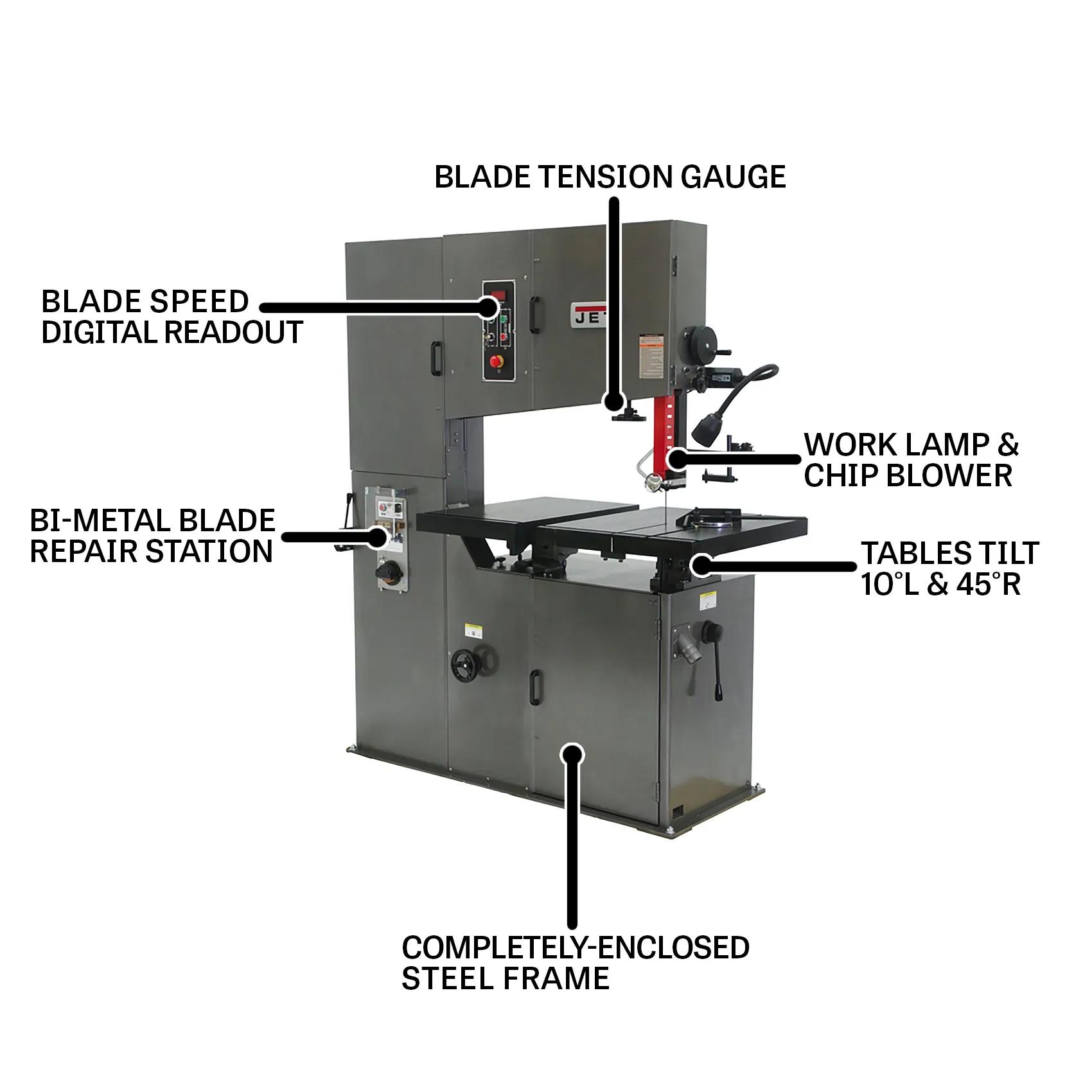

Product Details
Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The VBS-3612 fits shops cutting varied stock through long-cycle work — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Production-grade 3 HP motor with sealed bearings — running quieter and cooler than equivalent open-frame designs across industrial production lines.
- 50 - 4,925 SFPM cutting speed — delivering blade velocity production sawing demands across production fabrication.
- Production-grade frame design absorbs harmonics for blade alignment under sustained cutting.
- Factory-tested tilting table — delivering angle accuracy precision work expects, engineered for miter-and-bevel work in one setup.
- Production cutting capacity — expanding the cutting envelope industrial sawing requires across production sawing.
- Heavy cast iron main castings — staying true under loads that warp lighter castings, engineered for finish quality where lighter materials fail.
Specifications
- SKUJT9-414470
- Assembled Dimensions69 x 32 x 81 in.
- Bed Height40 in.
- Blade Diameter36 in.
- Blade Length197 in.
- Blade Size (In.)Blade-style bandsaw
- Blade Speed50 - 4,925 sfpm
- Blade Width1.125 in.
- CoatingPowder Coat
- Cutting Capacity - Height36 in.
- Drive TypeVariable Speed
- Height80 in.
- Height Capacity Max12 in.
- Horse Power3 HP
- Input Power230 V 3 Ph
- Model NumberVBS-3612
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number414470
- Overall Assembled (Bow Lowered)48 x 46 x 96 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- SAP Gross Weight2,014
- SAP Net weight1,760
- Table Height40 in.
- Table Size23-5/8 x 27-1/2 in., 17-3/4 x 27-1/2 in.
- Throat Depth36 in.
- UPC662755509612
- WarrantyTwo Years
- Wheel Diameter36 in.
