14" Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX)
14" Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX)
14" Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX)
14" Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX)

14" Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX)

Stock Number: JT9-714400K

0 Reviews

No reviews yet.

  • 1.75 HP, 115/230V, single-phase
  • 3000 FPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

The JET 14SFX 14" Steel Frame Bandsaw redefines the line between functionality and affordability. The large, cast iron table features 360 sq. in. of work surface for greater work piece support when making deep cuts. The machined aluminum fence system features easily visible measurements for the most accurate cutting. This saw is equipped with JET’s easily adjustable blade guide system, makes adjustments quick and simple. The JET 14SFX 14” Bandsaw also features over 13 inches of resaw capacity, and dual 4 inch dust ports for maximum dust collection efficiency. Heavy duty tubular steel welded construction, robust stamped steel doors with welded steel pin hinges, and heavy duty base, allows for stability and durability when sawing large work pieces. The JET 14SFX 14” Bandsaw provides the woodworker all the premium features of a higher end saw with superior performance to complete any project.

Features

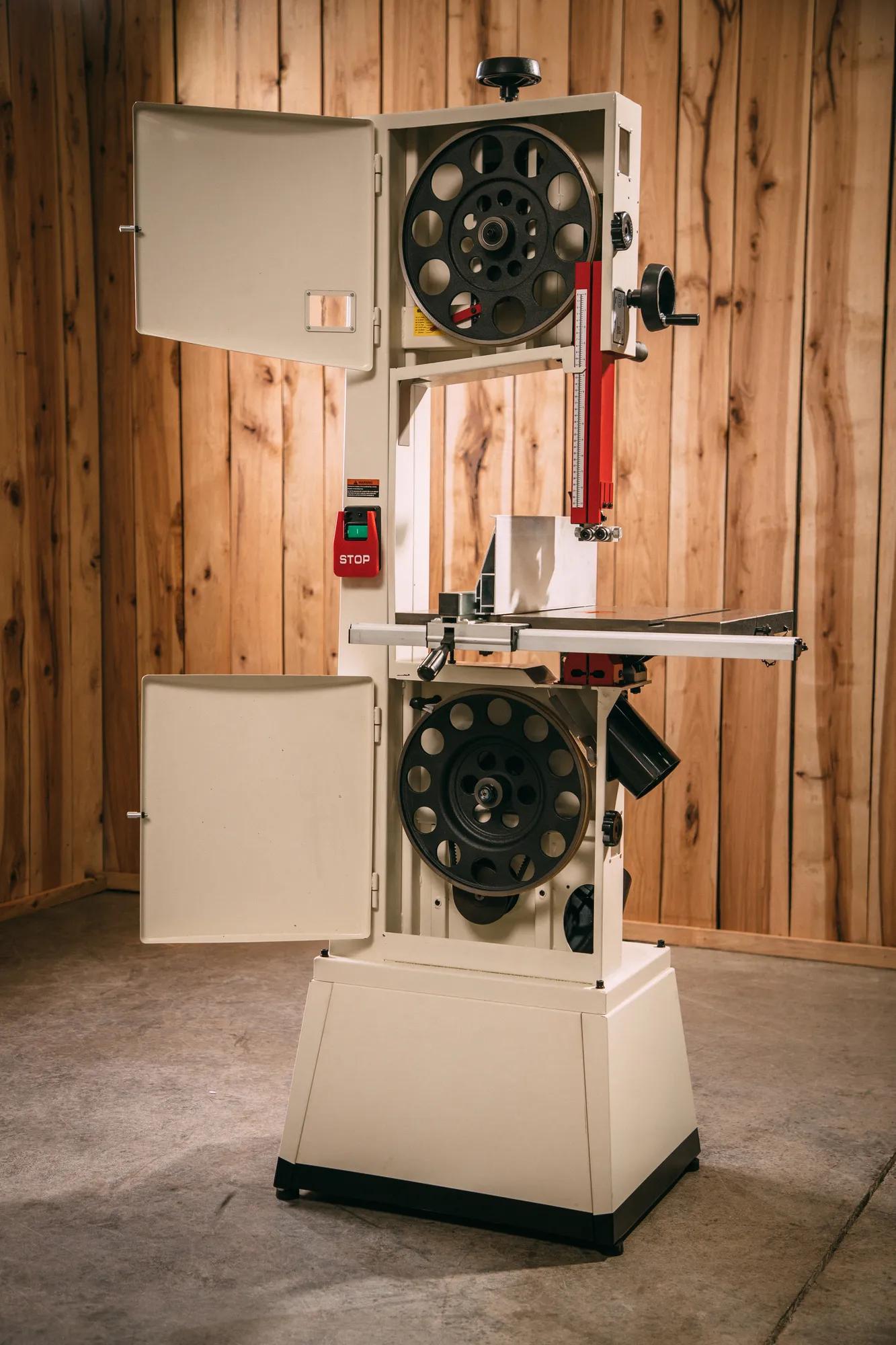

  • Blade tensioning wheel located on top of the saw for better work piece clearance when cutting
  • Convenient 115V AC outlet location for optional accessories
  • Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
  • Engineered diecast and steel trunnion system, allows for single point adjustments when moving table

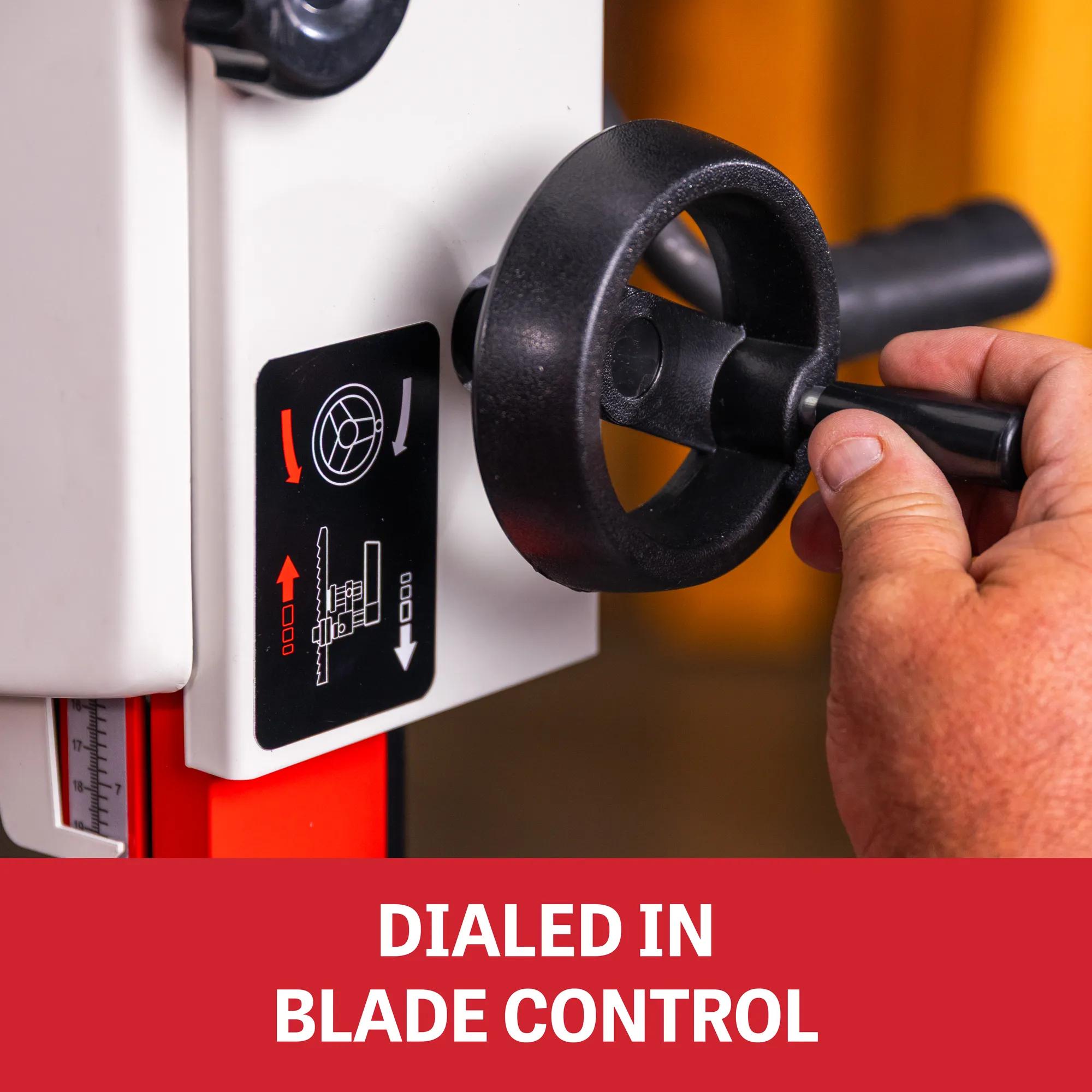

  • Independently adjustable, upper and lower ball bearing blade guides
  • Oversized lower bearing bolt pattern for maximum strength and rigidity

Specifications

  • SKU
    JT9-714400K
  • Assembled Dimensions
    37 x 27-1/2 x 75-3/8 in.
  • Base Size
    24.4 x 19.7 in.
  • Blade Diameter
    14 in.
  • Blade Length
    116 in.
  • Blade Size (In.)
    14 in.
  • Blade Speed
    3000 FPM
  • Coating
    None

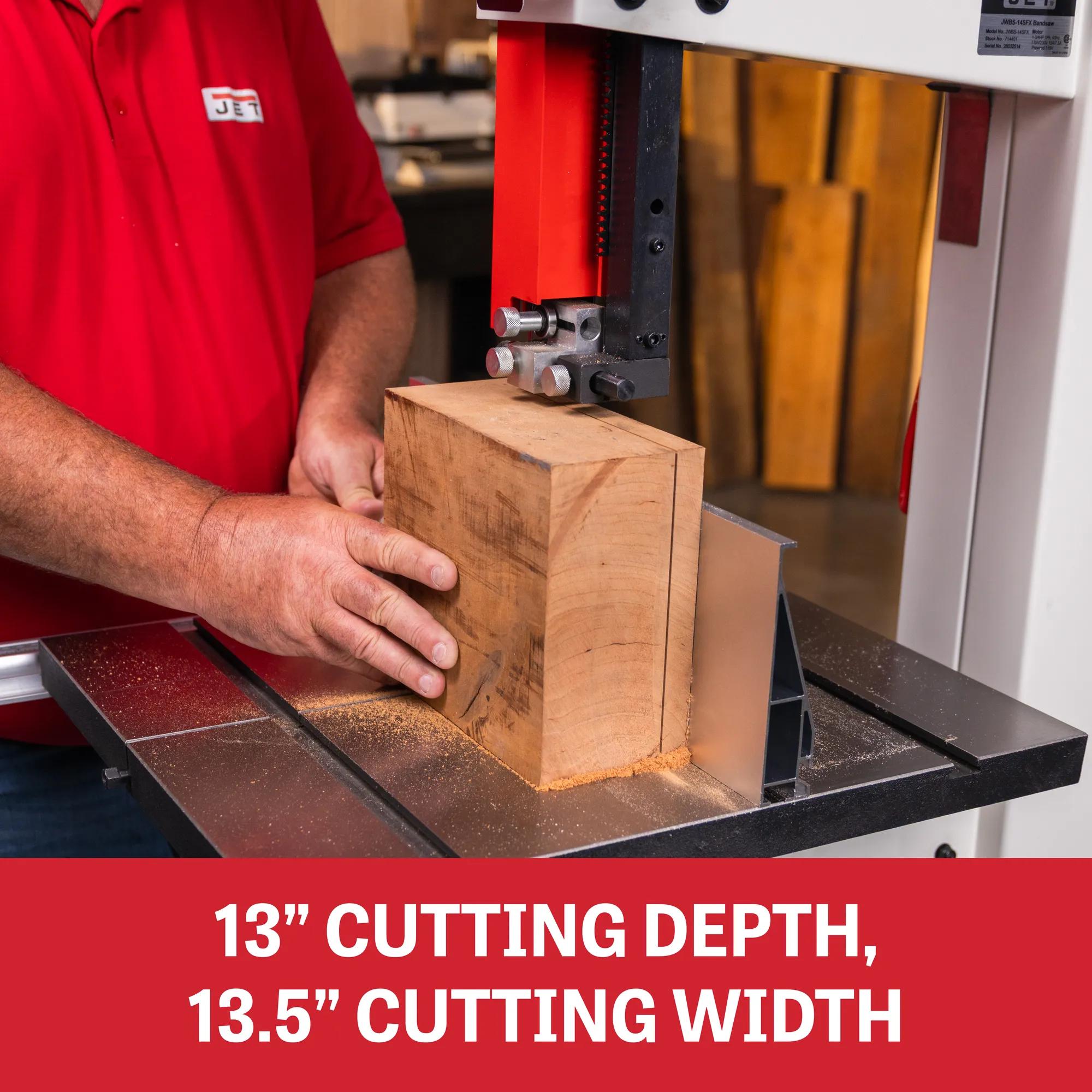

  • Cutting Capacity - Height
    13 in.
  • Cutting Capacity - Width
    13-1/2 in.
  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    18-1/4 x 6 in.
  • Height
    75-3/8 in.
  • Horse Power
    1.75 HP
  • Input Power
    115/230 V 1 Ph

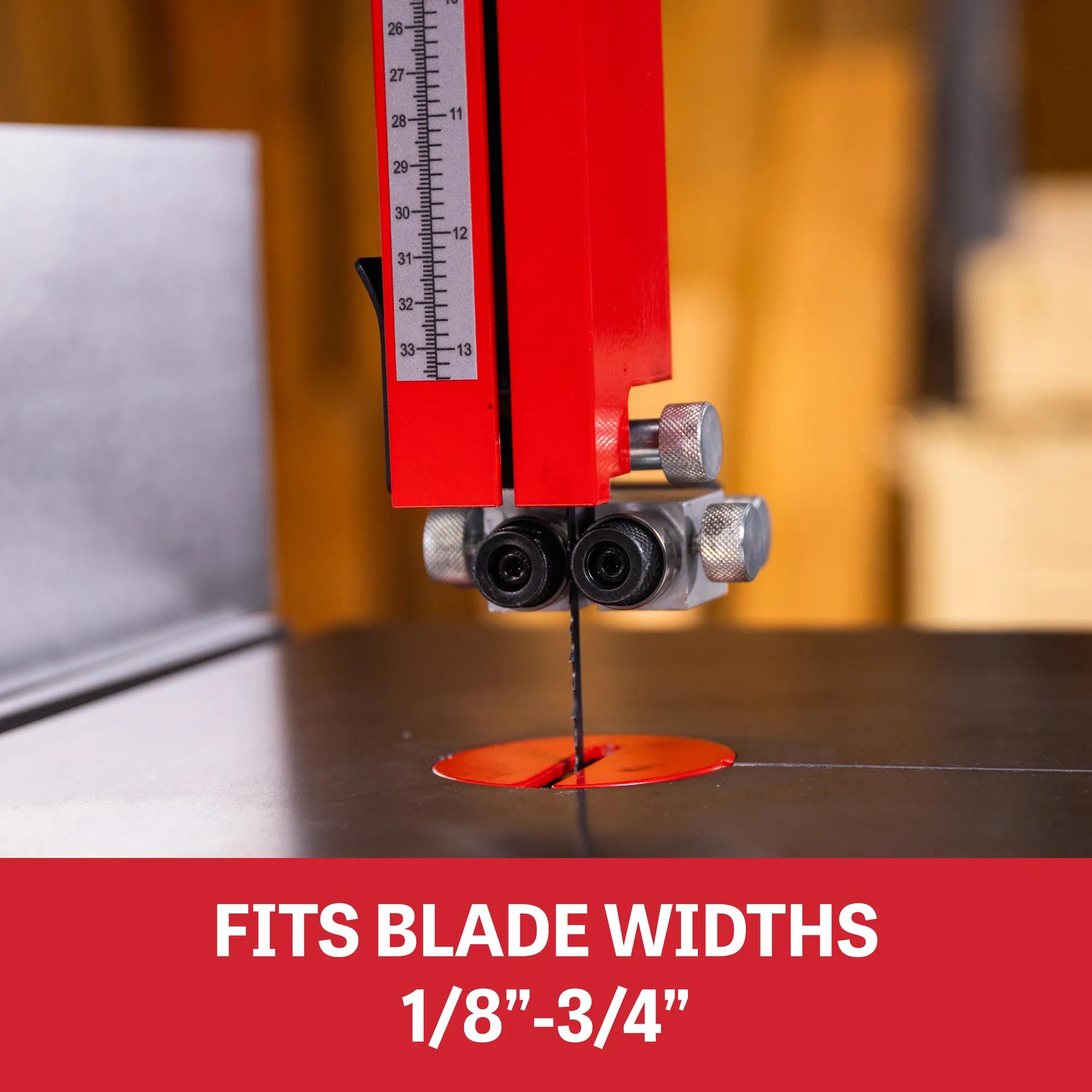

  • Maximum Blade Width
    3/4 in.
  • Minimum Saw Blade Width
    1/8 in.
  • Model Number
    JWBS-14SFX
  • Motor Amps
    15 A
  • Motor HP
    1.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    714400K
  • Overall Assembled (Bow Lowered)
    37 x 27-1/2 x 75-3/8 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A (for 115 V) 15 A (for 230 V)
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    316
  • SAP Net weight
    272
  • Style Type
    Floor
  • Table Height
    40 in.
  • Table Size
    21-1/2 x 17 in.
  • Table T-Slot
    3/4 in.

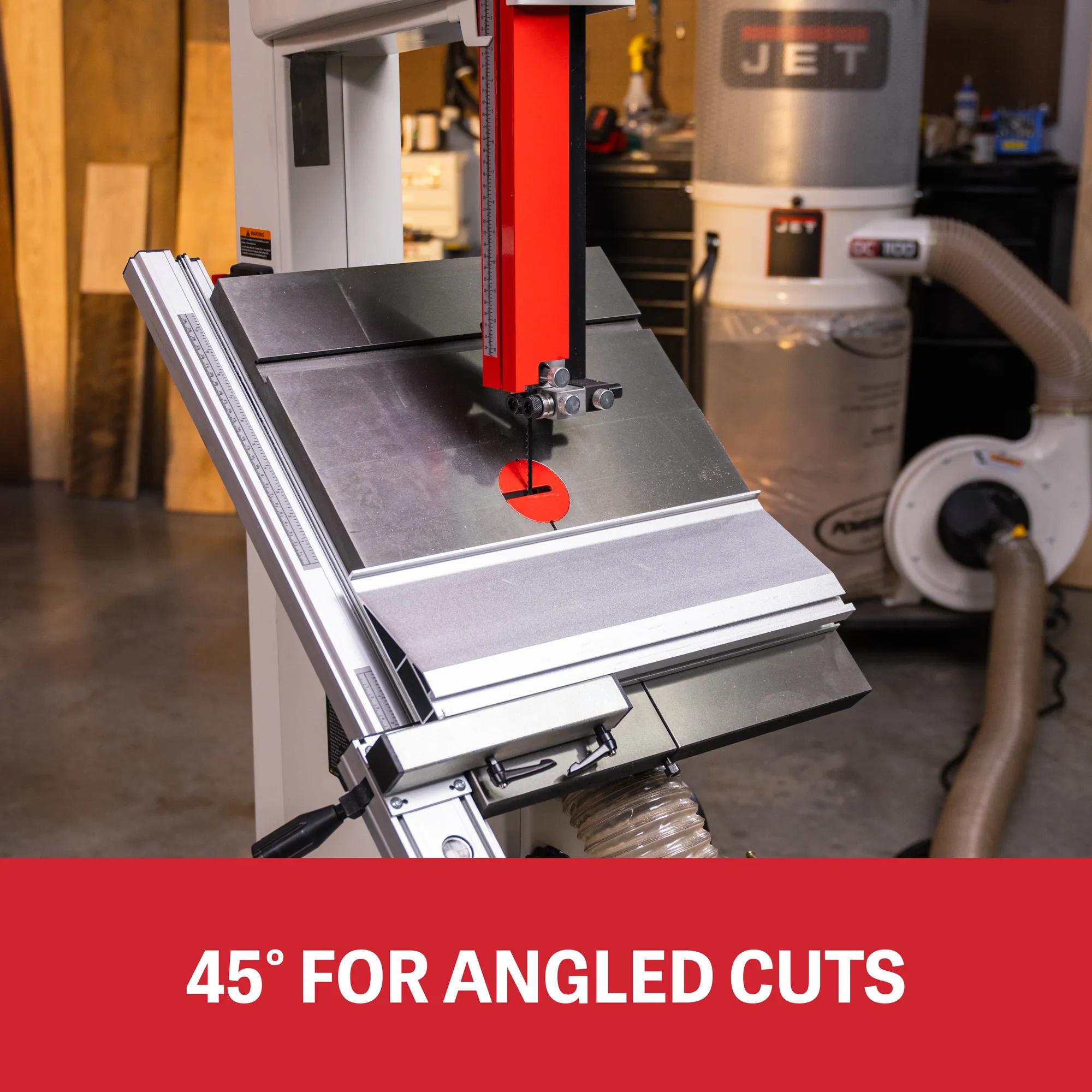

  • Table Tilt (L, R, C)
    Right 45 Deg.
  • Throat Depth
    13-1/2 in.
  • UPC
    731325741162
  • Warranty
    Five Years
  • Wheel Diameter
    14 in.
